Draw smooth, refined curves and straight lines in Adobe Illustrator.

O que você precisará

This sample file includes Adobe Stock assets you can use to practice what you learn in this tutorial. If you want to use the sample file beyond this tutorial, you can purchase a license on Adobe Stock. Check out the ReadMe file in the folder for the terms that apply to your use of this sample file..

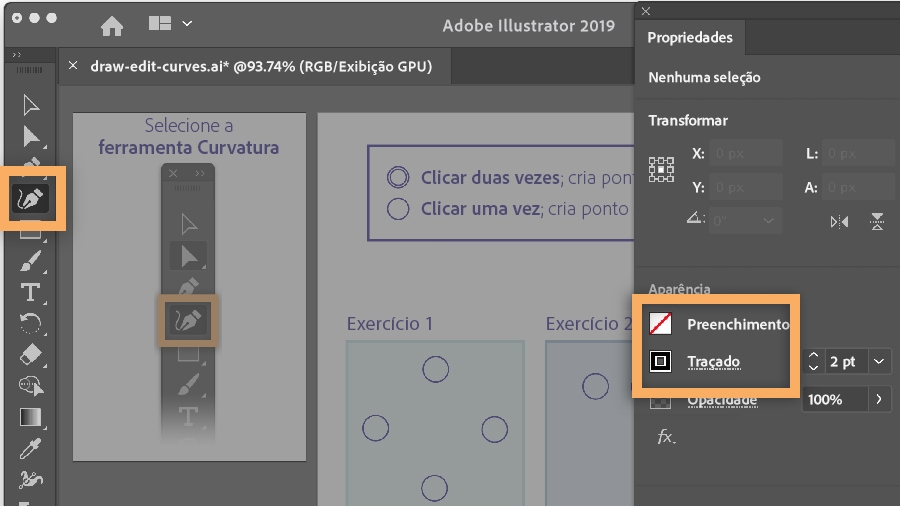

Select the Curvature tool from the Toolbar. Before starting to use it, set your fill color to None and select a stroke color in the Properties panel.

Selecting the Curvature tool

Exercise 1

Click once in the center of each circular guide. It takes only four clicks to make a perfect circle.

Clicking once in the center of each circular guide to make a perfect circle

Exercise 2

Click once to create your first point. Then double-click the center of each of the other circular guides. Each double-click creates a corner point with a straight line in between. To complete the shape, double-click the first point you placed.

Clicking to create a corner point with straight lines in between

Exercise 3

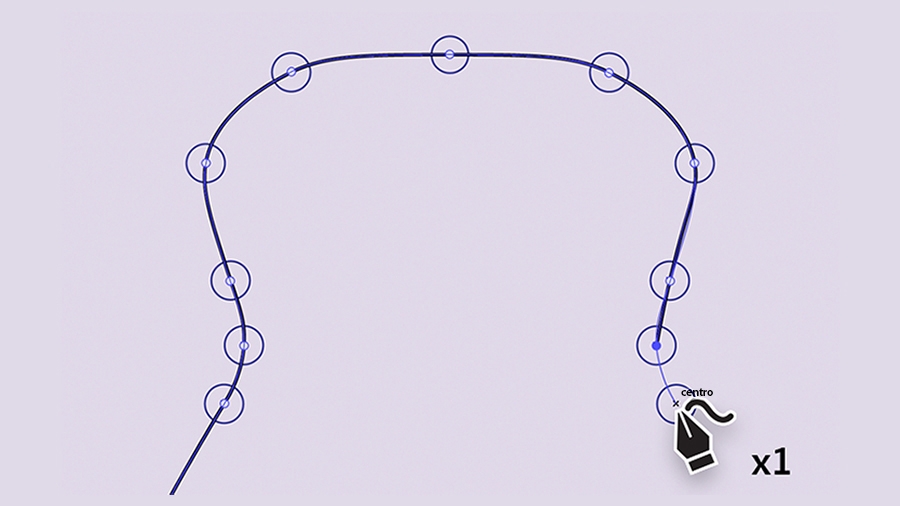

Complete the guitar body shape using only single-clicks to draw the entire path.

Drawing a guitar body shape using single-clicks

Exercise 4

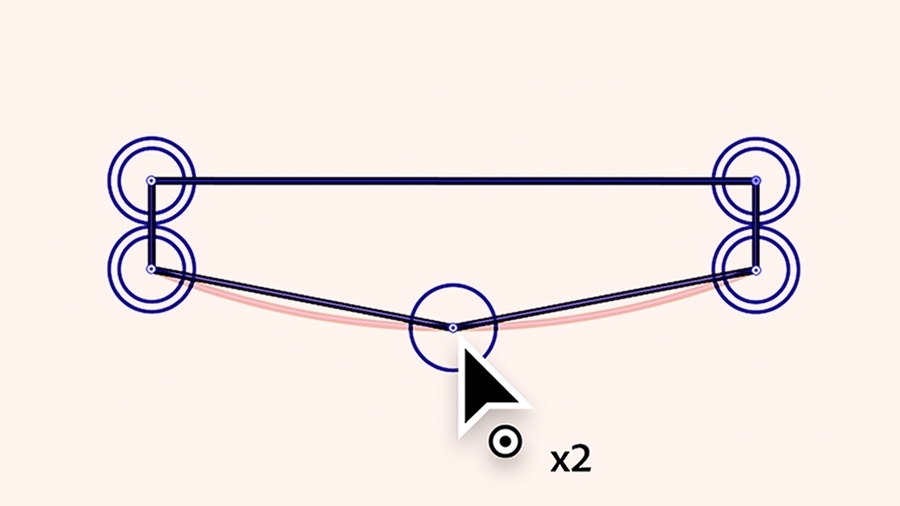

In Exercise 4, the path has already been created. First use the Selection tool to select the path. Then switch to the Curvature tool and double-click the center point at the bottom to make the corner a smooth curve. To practice, click the straight line segment directly above and drag out a smooth curve. To delete the point, click to select and press Delete.

Using the Curvature tool to convert a corner into a curve

Exercise 5

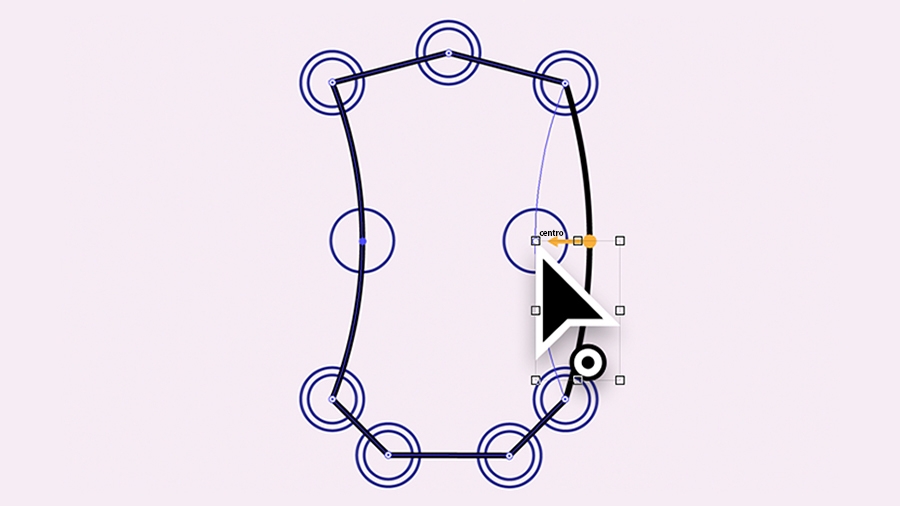

In Exercise 5, the path has already been created. Use the Selection tool to select the path, and then switch to the Curvature tool. Drag the middle points to adjust their curves as shown.

Using the Curvature tool to adjust curves

You’re getting the hang of it, keep practicing! Trace the artwork on the artboard below, and try changing the fill and stroke colors of your drawing. Then use these techniques to draw elegant curves and lines in your own designs.
