Learn how to align and space objects as you draw.

Camping images in red, brown, and orange hues appear in random pattern on light green background

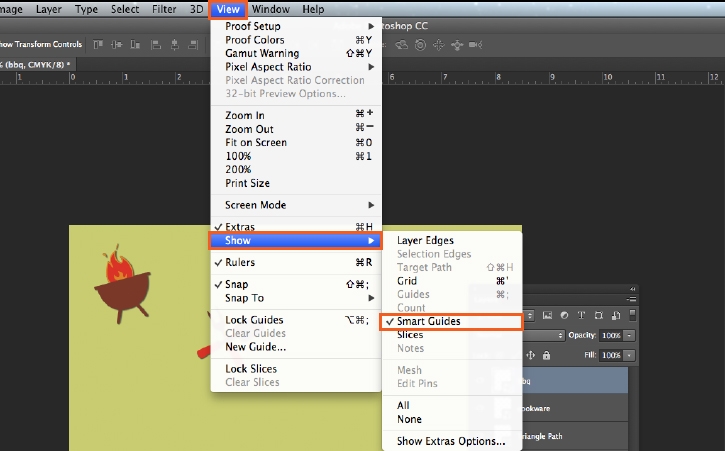

Turn your Smart Guides on

By default, Smart Guides are on. To make sure they are on, choose View > Show > Smart Guides. For this tutorial, you will also need your rulers visible. Choose View > Rulers to ensure that rulers are on.

Ensure Rulers and Smart Guides are on through the View and View > Show menus

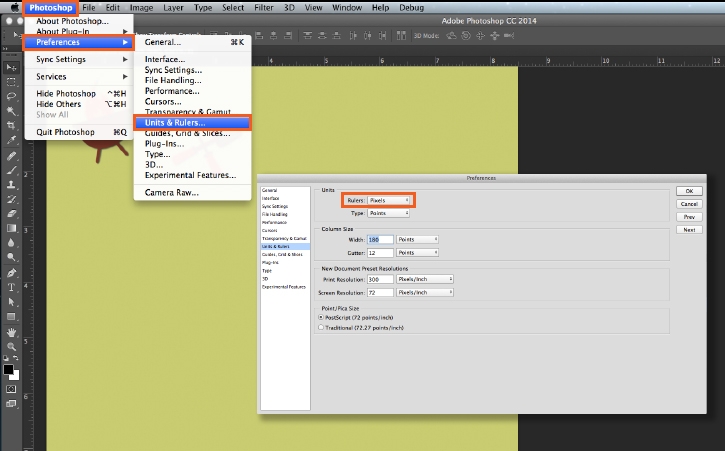

Change your ruler to pixels

By default, your ruler shows inches. We want the ruler to be in pixels for this tutorial. Go to Photoshop > Preferences > Units & Rulers. Select Pixels from the drop-down menu next to Rulers. Click OK.

Ruler unit of measure may be toggled through the Photoshop > Preferences > Units & Rulers menu

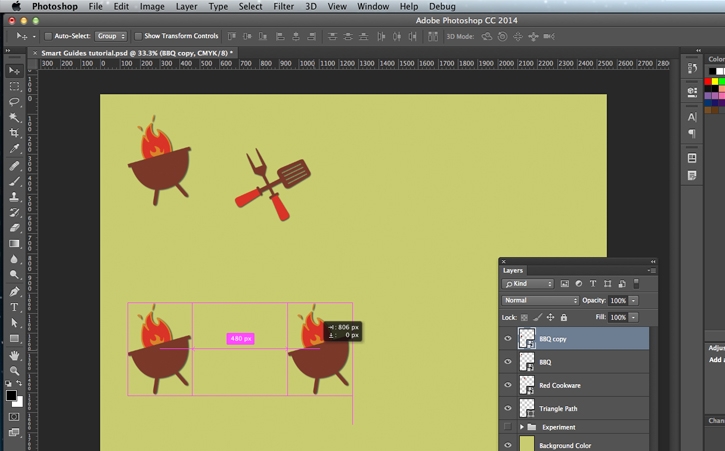

Option/Alt + Drag a Layer

With the Move tool and the BBQ layer selected, hold down the Option (Mac)/Alt (Windows) key and drag the layer. Notice how measurement information appears in pink.

Drag the BBQ 480 px below the First BBQ. Option/Alt-drag another one 480 px to the right. You'll see a new layer each time you use Option or Alt drag.

Barbeque grill images are duplicated on new layers using Option (Mac) or Alt (Windows) key, clicking and dragging.

Cmd/Ctrl + Hover over a Layer

Select the top layer in the layers panel. Hold down the Command key, and with the move tool, hover over some of the other shapes on the image. Notice how the measurement guides appear.

Measurement guides appear when holding Command (Mac) or Windows (Windows) key and hovering over images

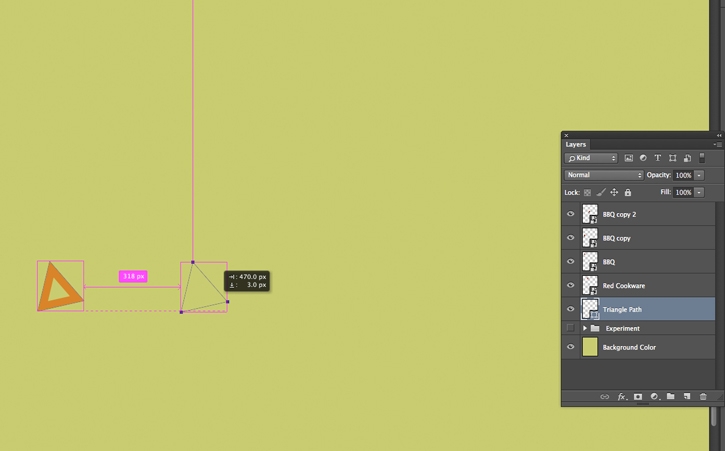

See guides displayed for paths

Select the triangle Path Layer. With the Path Selection tool, use Option (Mac)/Alt (Win) and drag the path to the right. Notice how the measurement guides appear.

While using Path Selection tool, measurement guides appear when holding Option (Mac) or Alt (Win) key and dragging paths

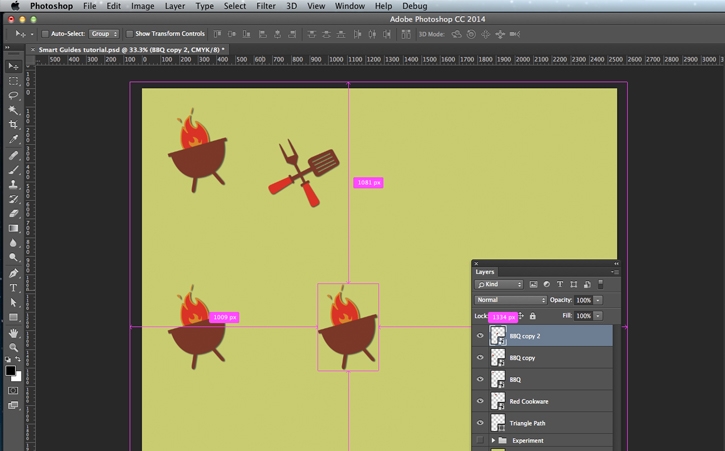

See spacing guides between objects

When you move an object, Measurement Guides visually indicate spacing between the selected object and its immediate neighbors.

Use Option/Alt-drag to select and move the BBQ layer down and to the right, to align it with the other two BBQs. The measurement indicators appear when you have the three BBQs aligned and spaced evenly.

Measurement indicators show that the barbeque grills are aligned on a grid and evenly spaced.


Experiment with the measurement guides. For instance, when you hold down the Command Key, you can see the placement of that specific object in the image.

Try making a pattern. By opening the “experiment” layer group and making it visible, you can build a pattern out of all the elements provided.

Various camping images are added to existing barbeque grills using measurement guides to create a pattern
