ColdFusion and Amazon SQS

Overview

Message queues allow different components of a system to asynchronously communicate between the various components. A message queue provides a buffer that stores messages temporarily and provides endpoints for the components to connect to the queue and send messages. The message can be requests, replies, or error messages.

A message is usually stored in the queue until another service consumes the message and performs some operation.

Amazon Simple Queue Service (SQS) is a queueing service that stores messages that applications or microservices use. Amazon SQS help decouple system components, reduce dependencies, and provides scalability. The reason behind decoupling components is to build the system such that if any single component of the system were to become unresponsive for some reason, the other components would continue to work as usual.

SQS provides an implementation of message queuing software in the cloud. It provides a distributed system for passing messages between computers and application components. Message queues also provide a manner in which systems and components within systems can remain independent and autonomous.

With SQS, the system components use queue buffers to send messages to one another. These queues allow the components to communicate asynchronously, to support concurrency, to remain highly available, and to better handle load and spikes.

Get started

Install awssqs package

Adobe ColdFusion (2021 release) is modularized. By default, the module for AWS SQS is not installed. The first step is to install the SQS package in ColdFusion.

The package for SQS is called awssqs.

To install the package awssqs, follow the steps below:

  1. Navigate to <CF_HOME>/cfusion/bin.

  2. Enter the command:

    • Windows: cfpm.bat
    • Linux: cfpm.sh
  3. Enter the command, install awssqs.

    Wait for the AWS SQS package to get installed.

For more information, see ColdFusion Package Manager.

Get credentials to access AWS SQS

When you interact with AWS, you specify your AWS security credentials to verify your credentials and check whether you have permission to access the resources that you are requesting.

AWS uses the security credentials to authenticate and authorize your requests.

You must get the AWS Access Key ID and the AWS Secret Access Key. For more information, see Access Keys.

Add cloud service credentials and configuration

In ColdFusion (2021 release), there is a method getCloudService() that gives you a handle to create objects for accessing various cloud services.

The syntax of the service handle is as follows:

service=getCloudService(cloudCred,cloudConfig), where:

  • cloudCred: Defines the credentials for the cloud service. It could either be a struct or a string (also known as credential alias).
  • cloudConfig: Defines the cloud service configuration details. It could either be a struct or a string (also known as config alias).

After you've acquired the AWS credentials, you must declare these credentials in one of the following ways. Only then you can use these credentials to create a SQS object, after which you can use the object to make calls to the various SQS methods.

ColdFusion Administrator

Set credentials

In the ColdFusion Administrator, click Data & Services > Cloud Credentials

An alias is a named representation of a cloud service and its configuration details. You can set the config alias through ColdFusion Administrator.

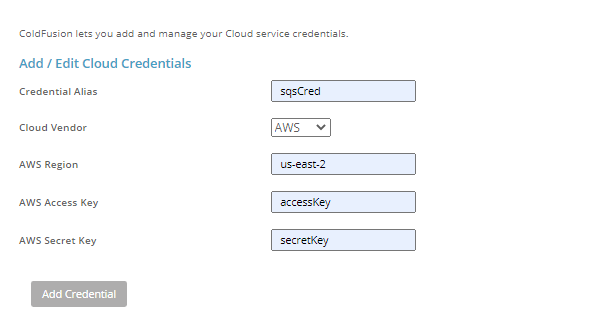

Add cloud credentials
Add cloud credentials

After entering the details, click Add Credential.

Set configuration options

In the ColdFusion Administrator, click Data & Services > Cloud Configuration

Enter the following details, like configuration Alias, Vendor, and the name of the service.

Add cloud configuration
Add cloud configuration options

After adding the configuration options, you may need to add a few more options. You can do so in the next screen. The following are a few options that you may need to add:

  • Request config
  • Client config
  • Proxy settings
  • Retry policy
  • Retry conditions

For more information, see Cloud configuration options.

Create the object

Once you've created the aliases for SQS credential and configuration options, you can create the object by using the getCloudService API, and include the following in your CFM.

sqsObject= getCloudService("sqsCred", "sqsConf")

Application.cfc

You can specify the SQS credentials and configuration options in Application.cfc. For example,

component
{
    this.name="AWS_STD_Queue";
    void function onApplicationStart(){
        application.awsCred  = {
                                "alias" : "aws_std_queue",
                                "vendorName" : "AWS",
                                "region" : "us-east-1",
                                "secretAccessKey" : "xxxxxxxxxxxxxxxxx",
                                "accessKeyId" : "xxxxxxxxxxxxxxxx"
                             }

        application.snsConf  = {
                                "serviceName" : "SNS"
                             }

        application.sqsConf ={
                                 "serviceName" : "SQS"
                             }

    }
}

Create the object

sqsObject = getCloudService(application.awsCred, application.sqsConf)

On CFM page

On a CFM page, you can specify the SQS credentials and configuration options in one of the four methods, specified below:

Credential alias and configuration alias

After you've created the aliases for SQS credential and configuration options, you can use these aliases in the getCloudService
handle as shown below:

<cfscript>
  // define the credential and the configuration aliases in the ColdFusion Admin
  sqs=getCloudService("awsCred","sqsConf")
  // code below.
  ...........
</cfscript>

Credential Alias and Struct for configuration options

<cfscript>
    // Using credential alias and struct for service config
    sqsConf = {
            "alias":"sqsConf",
            "serviceName" : "SQS",
            "clientOverrideConfig":{
                "retryPolicy":{
                  "numRetries":4
                }
            },
            "httpClientConfig":{
                "maxConnections":50
            }

    }
    sqs= getCloudService("sqsCred", sqsConf)

    // code below
    .....................
</cfscript>

Configuration alias and struct for credentials

<cfscript>
    // Using config alias and struct for service credentials
    // sqs credentials
    sqsCreds={
      "vendorName":"AWS",
      "alias": "sqsCred",
      "region":"us-east-2",
      "accessKeyId": "access key",
      "secretAccessKey": "secret access"
    }
    sqs= getCloudService(sqsCreds, "sqsConf")
    // code below
    .....................................
</cfscript>

Structs for both credential and configuration options

<cfscript>
  // Using Structs for both cloud credential and config
  sqsCred={
    "vendorName":"AWS",
    "alias": "sqs_cred_alias",
    "region":"us-east-2",
    "accessKeyId": "access key",
    "secretAccessKey": "secret access key"
  }

  sqsConf = {
          "alias":"sqs_conf_alias",
          "serviceName" : "SQS",
          "clientOverrideConfig":{
              "retryPolicy":{
                "numRetries":4
              }
          },
          "httpClientConfig":{
              "maxConnections":50
          }

  }
  sqs = getCloudService(sqsCred, sqsConf )

  // code below
  ...................................................................
</cfscript>

Admin API

You can also add SQS credentials and configuration options by using the Admin APIs. The methods to add credentials and configuration are available in cloud.cfc.

The examples below demonstrate the usage of the methods addCredential(struct credential) and addServiceConfig(struct config).

Add credentials

<cfscript>
  // Create an object of administrator component and call the login method
  adminObj = createObject("component","cfide.adminapi.administrator")
  adminObj.login("admin")

  // Create an object of cloud component
  cloudObj = createObject("component","cfide.adminapi.cloud")

  // define credentials struct
  credentialStruct={
    "alias" : "CredSQS",
    "vendorName" : "AWS",
    "region" : "us-east-2",
    "secretAccessKey" : "secret access key",
    "accessKeyId" : "access key"
  }

  // add credential credentialStruct
  try{
    cloudObj.addCredential(credentialStruct)
    writeOutput("Credentials added successfully")
  }
  catch(any e){
      writeDump(e)
  }
</cfscript>

Add configuration

<cfscript>
  // Create an object of administrator component and call the login method
  adminObj = createObject("component","cfide.adminapi.administrator")
  adminObj.login("admin")

  // Create an object of cloud component
  cloudObj = createObject("component","cfide.adminapi.cloud")

  // define configuration struct
  configStruct={
      "alias":"ConfSQS",
      "serviceName":"SQS",
      "clientOverrideConfig":{
          "retryPolicy":{
              "numRetries":4
          }
      },
      "httpClientConfig":{
          "maxConnections":50
      }
  }

  // add config configStruct
  try{
    cloudObj.addServiceConfig(configStruct)
    writeOutput("Configuration service added successfully")
  }
  catch(any e){
    writeDump(e)
  }
</cfscript>

CFSetup

You can also set up SQS credential and configuration via the CFSetup configuration utility.

Add cloud credential

  • add cloudcredential credentialAlias=sqscred accesskeyid=<access> secretaccesskey=<secret> region=ap-southeast-1 vendorname=AWS

Set credential

  • set cloudcredential sqscred secretaccesskey=awssecret

Add cloud configuration

  • add cloudconfiguration serviceName=SQS alias=sqsConfig

Set configuration

  • set cloudconfiguration conf1 alias=conf2

SQSClient APIs

  1. SQSQueue createQueue(String queueName);
  2. SQSQueue createQueue(String queueName, Map queueAttributes);
  3. String getQueueUrl(String queueName);
  4. Struct listQueues();
  5. Struct listQueueTags(String queueUrl);
  6. Struct purgeQueue(String queueUrl);
  7. Struct deleteQueue(String queueUrl);
  8. Struct sendMessage(String queueUrl, Map message);
  9. Struct receiveMessage(String queueUrl, Map receiveMessageOptions);
  10. Struct deleteMessage(String queueUrl, Map message);
  11. Struct tagQueue(String queueUrl, Map tags);
  12. Struct untagQueue(String queueUrl, Map tags);
  13. Struct changeMessageVisibility(String queueUrl, Map message);
  14. Struct setQueueAttributes(String queueUrl, Map queueAttributes);
  15. Struct getQueueAttributes(String queueUrl, Map queueAttributes);
  16. Struct changeMessageVisibilityBatch(String queueUrl, List<Map> messages);
  17. Struct deleteMessageBatch(String queueUrl, List<Map> messages);
  18. Struct sendMessageBatch(String queueUrl, List<Map> messages);
  19. Struct listDeadLetterSourceQueues(String queueUrl);
  20. Struct editTags(String queueUrl, Map tags);
  21. Struct addPermission(String queueUrl, Map permission);
  22. Struct removePermission(String queueUrl, String permissionLabel);
  23. Struct listQueues(String queueNamePrefix);
  24. String getQueueArn(String queueUrl);

SQSQueue APIs

  1. public Struct listQueueTags();
  2. public Struct purge();
  3. Struct sendMessage(Map message);
  4. Struct receiveMessage(Map receiveMessageOptions);
  5. Struct deleteMessage(Map message);
  6. Struct tag(Map tags);
  7. Struct untag(Map tags);
  8. Struct getAttributes(Map attributes);
  9. Struct setAttributes(Map attributes);
  10. Struct sendMessageBatch(List<Map> messages);
  11. Struct deleteMessageBatch(List<Map> messages);
  12. Struct changeMessageVisibilityBatch(List<Map> messages);
  13. String getQueueUrl();
  14. Struct listDeadLetterSourceQueues();
  15. Struct editTags(Map tags);
  16. Struct changeMessageVisibility(Map message);
  17. Struct addPermission(Map permission);
  18. Struct removePermission(String permissionLabel);
  19. String getQueueArn();

Create a queue

This function creates a standard or a FIFO queue. While creating a queue, you must ensure the following:

  • If you do not specify the attribute FifoQueue, Amazon SQS creates a standard queue.
  • If you want to create a FIFO queue, you must use the convention, <QueueName>.fifo.
  • While creating a queue, if you do not provide a value for an attribute, the default values of the attribute are used to create the queue.

For more information, see CreateQueue.

Syntax

createQueue(String queueName, Struct queueAttributes)

Parameters

Parameter Description Type Required
queueName

Name of the queue. If you want to create a FIFO queue, the queue name must end with the .fifo suffix.

Queue names are case-sensitive.

String Yes
queueAttributes
Struct of strings containing the following attributes:
  • DelaySeconds: The time, in seconds, for which the delivery of all messages in the queue is delayed. Valid range: 0-900. Default: 0.
  • MaximumMessageSize: Specifies the size in bytes a message can contain before Amazon SQS rejects it. Valid values: 1024 bytes (1 KB) - 262144 bytes (256 KB). Default: 262144 (256 KB).
  • MessageRetentionPeriod: The time, in seconds, for which a message is retained in a queue. Valid values: 60-1209600. Default: 345600
  • Policy: The policy associated with the queue. For more information, see AWS policies.
  • ReceiveMessageWaitTimeSeconds: The time, in seconds, for which the ReceiveMessage API waits for a message to arrive. Valid values:0-20. Default: 0.
  • RedrivePolicy: The string that includes the parameters for the dead-letter queue. For more information about redrive policy and dead-letter queues, see Using Amazon SQS Dead-Letter Queues. Valid value are:
    • deadLetterTargetArn
    • maxReceiveCount
  • VisibilityTimeout: The visibility timeout for the queue, in seconds. Valid values: 0-43200. Default: 30. For more information about the visibility timeout, see Visibility Timeout.

Server Side Encryption-related attributes:

  • KmsMasterKeyId: The ID of an AWS-managed customer master key (CMK)
  • KmsDataKeyReusePeriodSeconds: The length of time, in seconds, for which Amazon SQS can reuse a data key to encrypt or decrypt messages before calling AWS KMS again.

FIFO-related attributes:

  • FifoQueue: If true, creates a FIFO queue. For more information, see SQS Fifo queues.
  • ContentBasedDeduplication: If true, enables content-based deduplication.

Note: You cannot change the queue from Standard to FIFO queue and vice-versa.

Struct

No

For more information, see createQueue parameters.

Example

Standard queue

<cfscript>
    cred={
        "credentialAlias" : "alias",
        "vendorName" : "AWS",
        "region" : "us-east-2",
        "secretAccessKey" : "secret access",
        "accessKeyId" : "access key"
    }

    conf={
        "serviceName"="SQS"
    }

    sqs=getCloudService(cred, conf)
    queueName="QueueOne"

    // standard queue
    myQueue=sqs.createQueue(queueName)
   try{
        myQueue=sqs.createQueue(queueName)
        writeOutput("Standard queue created")
    }
    catch (any e){
        writeDump(e)
    }
</cfscript>

Standard queue with attributes

<cfscript>

    sqs = getCloudService(application.awsCred, application.sqsConf)
    queueName="MyQueue"
    // Creates a new standard
    setQueueAttributesMetadata = {
        "attributes"={
                       "VisibilityTimeout"="10",
                       "MessageRetentionPeriod"="100",
                       "MaximumMessageSize"="1024",
                       "DelaySeconds"="10",
                       "ReceiveMessageWaitTimeSeconds"="20"
                     }
    }
    // standard queue
    try{
        myQueue=sqs.createQueue(queueName,setQueueAttributesMetadata)
        writeOutput("Queue with attributes created")
    }
    catch (any e){
        writeDump(e)
    }
</cfscript>

FIFO queue

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf)
    queueName="MyQueue.fifo" // A FIFO queue name must end with the .fifo suffix
    // Creates FIFO queue
    setQueueAttributesMetadata = {
        "attributes"={
                       "FifoQueue":"true", // This attribute must be True for a FIFO queue
                       "VisibilityTimeout"="10",
                       "MessageRetentionPeriod"="100",
                       "MaximumMessageSize"="1024",
                       "DelaySeconds"="10",
                       "ReceiveMessageWaitTimeSeconds"="20"
                     }
    }
    // FIFO queue
    try{
        myQueue=sqs.createQueue(queueName,setQueueAttributesMetadata)
        writeOutput("FIFO queue with attributes created")
    }
    catch (any e){
        writeDump(e)
    }
</cfscript>

Create a queue with SSE

Create a queue and enable Server-Side Encryption (SSE). SSE works with both standard and FIFO queues.

For better encryption, you can use the following:

  • Customer Master Key (CMK) ID: Key to encrypt the contents of the messages in SQS. For more information, see Data keys in SQS.
  • Customer Data Key Reuse Period: The time, in seconds, for which SQS reuses the data key to encrypt or decrypt messages. The value can be between 60-86400. For more information, see Understanding the Data Key Reuse Period.

Example

<cfscript>
	sqs = getCloudService(application.awsCred, application.sqsConf);

	//Use the sqs service object to create a queue using createQueue(). This method returns a queue object.
	myQueue = sqs.createQueue("QueueWithSSE");

	setQueueAttributesMetadata = {
		"attributes"={
					"KmsMasterKeyId"="arn:aws:kms:us-east-2:xxxxxxxxxxx:key/xxxxxxxxxxxx",
					"KmsDataKeyReusePeriodSeconds"="120"
					}
	};
	setQueueAttributesResponse = myQueue.setAttributes(setQueueAttributesMetadata);

	KmsMasterKeyIdVal = myQueue.getAttributes({
		"attributeNames"=["KmsMasterKeyId"]
	})
	val = KmsMasterKeyIdVal["attributes"];
	writeoutput(val["KmsMasterKeyId"]);
</cfscript>

List all queues

This function lists the number of queues in your AWS account.

For more information, see ListQueues.

Syntax

listQueues(queueNamePrefix)

Parameters

Parameter Type Required
queueNamePrefix String No

For more information, see parameters.

Note:

In the ListQueues method, the parameters maxResults and nextToken are not supported at present.

Example

<cfscript>
       // Create a queue in SQS
       // Get the getCloudService from the credentials and configuration we declared in Application.cfc
       sqs = getCloudService(application.awsCred, application.sqsConf);
       // Use the sqs service object to create a queue using createQueue().
       // This method returns a queue object.
       writeoutput("Create queue in AWS</br>");
       myQueue = sqs.createQueue("MyQueueWithAttrib")
       writeoutput("Listing all the queues in AWS<br>")
       writeDump(sqs.listQueues().queueUrls)
       writeOutput("The number of queues in the region is:")
       queueCount= ArrayLen(sqs.listQueues().queueUrls)
       writeOutput(queueCount)
</cfscript>

Get URL of a queue

Retrieve the URL of an Amazon SQS queue.

Syntax

getQueueUrl(queueName)

Parameters

Parameter Description Type Required
queueName The name of the queue whose URL you want to retrieve. String Yes

For more information, see request parameters.

Example

<cfscript>
    sqs=getCloudService(application.awsCred, application.sqsConf)
    qURL=sqs.GetQueueUrl("BatchQueue")
    writeDump(qURL)
</cfscript>

Get ARN of a queue

Retrieve the Amazon Resource Names (ARNs) of an SQS queue.

Syntax

getQueueArn(String queueUrl)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes

Example

<cfscript>
    sqs=getCloudService(application.awsCred, application.sqsConf)
    stdQueueObj = sqs.createQueue("stdQueueARN");
    queueARN = stdQueueObj.getQueueArn();
    writeoutput(queueARN)
</cfscript>

Tag a queue

This function adds tags, for example, cost allocation, to a specified standard or a FIFO queue. While creating tags, you must ensure that:

  • The tags that you are adding are case-sensitive.
  • Any new tag with a key identical to that of an existing tag overwrites the existing tag.

For more information, see TagQueue.

Syntax

tagQueue(String queueUrl, Struct tags)

Parameters

Parameter Description Type Required
queueURL The url of the queue which is to be tagged. String Yes
map The tags to be added to the queue. Struct Yes

For more information, see tagQueue parameters.

Example

<cfscript>
    sqs=getCloudService(application.awsCred, application.sqsConf)
    // create a queue
    myQueue=sqs.createQueue("QueueTags")
    // get url of the queue
    queueUrl=sqs.getQueueUrl("QueueTags")
    writeOutput("The queue url is: " & queueUrl)

    // create tags
    queueTags={
        "tags"={
            "Product":"ColdFusion",
            "Version":"2021",
            "Build":"338001",
            "Date":"2020/10/28",
            "Location":"Adobe",
            "Place":"Bangalore"
        }
    }

    try{
        queueTagResponse=sqs.tagQueue(queueUrl,queueTags)
        writeOutput(""&"Queue successfully tagged")
        writeDump(queueTagResponse)
    }
    catch(any e){
        writeDump(e)
    }
</cfscript>

Using queue object

<cfscript>
    sqs=getCloudService(application.awsCred, application.sqsConf)
    // create a queue
    myQueue=sqs.createQueue("QueueTags")
    // get url of the queue
    queueUrl=sqs.getQueueUrl("QueueTags")
    writeOutput("The queue url is: " & queueUrl)

    // create tags
    queueTags={
        "tags"={
            "Product":"ColdFusion",
            "Version":"2021",
            "Build":"338001",
            "Date":"2020/10/28",
            "Location":"Adobe",
            "Place":"Bangalore"
        }
    }

    try{
        queueTagResponse=myQueue.tag(queueTags)
        writeOutput(""&"Queue successfully tagged")
        writeDump(queueTagResponse)
    }
    catch(any e){
        writeDump(e)
    }
</cfscript>

List tags of a queue

List all tags of a specified queue.

For more information, see ListQueueTags.

Syntax

listQueueTags(queueURL)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes

For more information, see parameters.

Example

<cfscript>
    sqs=getCloudService(application.awsCred, application.sqsConf)
    // list queues
    queueList=sqs.listQueues()
    // get queue url of the queue created in the previous example
    queueUrl=queueList.queueUrls[16]
    tagList=sqs.listQueueTags(queueUrl)
    writeOutput("List of tags in the queue:")
    writeDump(tagList.tags)
</cfscript>

The next example displays the list of tags in a queue by using the queue object. Here, a queue is created and a few tags are added to the queue.

<cfscript>
   sqs=getCloudService(application.awsCred, application.sqsConf)
   // create a queue
   myQueue=sqs.createQueue("QueueTags")
   // add tags to the queue
   queueTags={
       "tags"={
           "Product":"ColdFusion",
           "Version":"2021",
           "Build":"338001",
           "Date":"2020/10/28",
           "Location":"Adobe"
       }
   }
   myQueue.tag(queueTags)
   // list tags
   listTagResponse=myQueue.listQueueTags()
   writeDump(listTagResponse)
</cfscript>

Untag a queue

You can remove a tag from the queue using the tag's key.

For more information, see Untag a queue.

Syntax

untagQueue(String queueUrl, Struct tags)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes
map Array of tags to be removed from the specified queue.
Array Yes

Example

<cfscript>
        sqs = getCloudService(application.awsCred, application.sqsConf);

		//writeoutput("Create queue in AWS<br>");
		myQueue = sqs.createQueue("Tagging_Queue");

		//writeoutput("set Tag queue attributes response");
		tagQueueMetadata = {"tags"=
									{
										"Product"="ColdFusion",
										"Environment"="Production"
									}
							};

		// tag the queue
		setQueueAttributesResponse = myQueue.tag(tagQueueMetadata);

		writeoutput(#myQueue.ListQueueTags().tags["Product"]#);
		writeoutput(#myQueue.ListQueueTags().tags["Environment"]#&"<br>");

		untagQueueMetadata = {"tagKeys"=["Product","Environment"]};
		// untag the queue
		untagQueueResponse = myQueue.untag(untagQueueMetadata);

		try{
			writeoutput(#myQueue.ListQueueTags().tags["Environment"]#);
		}
		catch(any e){
			writeoutput(e.Message);
		}
</cfscript>

Delete a queue

Delete a queue in SQS. For more information, see Delete a queue.

You can delete a queue even when it is not empty. If you want to delete the messages in a queue but not the queue itself, you can purge the queue.

When you delete a queue, all messages in the queue are no longer available.

Syntax

deleteQueue(queueURL)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes

Example

<cfscript>
    // Get the getCloudService from the credentials and configuration we declared in Application.cfc
    sqs = getCloudService(application.awsCred, application.sqsConf)

    // Use the sqs service object to create a queue using createQueue(). This method returns a queue object.
    myQueue=sqs.createQueue("QueueForDeletion");

    // get queue Url
    queueUrl=sqs.getQueueUrl("QueueForDeletion")

    try{
        sqs.deleteQueue(queueUrl)
        writeOutput("Queue deleted successfully.")
    }
    catch(any e){
        writeDump(e)
    }
</cfscript>

Purge a queue

If you do not want to delete a queue, but need to delete all the messages from it, you can purge the queue.

For more information, see Purge queue.

Syntax

purgeQueue(queueURL)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf);
		stdQueue = sqs.createQueue("PurgeMessageQueue");
        stdQueueUrl = stdQueue.getQueueUrl();
		sendMessageMetadata = {
			"messageBody"="This is a sample message",
			"messageAttributes"={
				"timestamps"=dateTimeFormat(now()),
				"geospatial_data"="San Francisco",
				"signatures"="ADBE",
				"identifiers"="ColdFusion"
			}
        }
        // send message to the queue
        sqs.sendMessage(stdQueueUrl,sendMessageMetadata)
        try{
            sqs.purgeQueue(stdQueueUrl)
            writeOutput("Queue purged successfully.")
        }
        catch(any e){
            writeDump(e)
        }
</cfscript>

Send message to a queue

You can send a message to the queue that exists by specifying your AWS credentials. For more information, see Send message in SQS.

Syntax

sendMessage(String queueUrl, Struct message)

Parameters

Parameter Description Type Required
queueUrl The URL of the queue to which a message is to be sent.
String Yes
messageAttributes Key-value pair of SQS message attributes. For more information, see SQS Message Attributes. Struct No
messageBody The message to send to the queue. String Yes
messageDeduplicationId
Applies only to FIFO queues. This is a token for deduplication of messages. String No
messageGroupId
Applies only to FIFO queues. This is a tag for a specific message group.
String No
messageSystemAttribute
Key-value pair of message system attributes. For more information, see SQS Message System Attributes. Struct No

For more information, see SendMessage request parameters.

Example

Example 1- Send message to a standard queue

<cfscript>
    //Get the getCloudService from the credentials and configuration we declared in Application.cfc
    sqs = getCloudService(application.awsCred, application.sqsConf);

    // Use the sqs service object to create a queue using createQueue().
    // This method returns a queue object.
    myQueue = sqs.createQueue("SimpleMessageQueue");

    // Use the queue object to send a message to the queue.
    message = {"messageBody"="This is a sample message."};
    sendMessageResponse = myQueue.sendMessage(message);
    writedump(sendMessageResponse)
    // display the status code
    writeoutput(sendMessageResponse.sdkHttpResponse["statusCode"]); // 200
</cfscript>

Example 2- Send message to a standard queue with additional parameters

<cfscript>
		sqs = getCloudService(application.awsCred, application.sqsConf);
		stdQueue = sqs.createQueue("sendMessage");
                stdQueueUrl = stdQueue.getQueueUrl();
		sendMessageMetadata = {
			"messageBody"="This is a sample message",
			"messageAttributes"={
				"timestamps"="#dateTimeFormat(now())#",
				"geospatial_data"="San Francisco",
				"signatures"="ADBE",
				"identifiers"="ColdFusion"
			}
		}
        sendMessageResp = sqs.sendMessage(stdQueueUrl,sendMessageMetadata);
        writeoutput(sendMessageResp.sdkHttpResponse.statusCode); // 200
</cfscript>

Example 3- Send message to a FIFO queue

<cfscript>
        try{
            sqs = getCloudService(application.awsCred, application.sqsConf);
            queueAttributes = {
                "attributes" : {"FifoQueue" : "true"}
            }
            fifoQueue = sqs.createQueue("sendMessage.fifo", queueAttributes);
            fifoQueueUrl = fifoQueue.getQueueUrl();
            sendMessageMetadata = {
                "messageBody"="This is a sampe message",
                "messageGroupId" ="12345",
                "messageDeduplicationId" ="123456",
                "messageAttributes"={
                    "timestamps"="#dateTimeFormat(now())#",
                    "geospatial_data"="San Jose",
                    "signatures"="ADBE",
                    "identifiers"="ColdFusion"
                }
            };
        // send message
            sendMessageResp = sqs.sendMessage(fifoQueueUrl,sendMessageMetadata);
            writeoutput(sendMessageResp.sdkHttpResponse.statusCode); // 200
        }
        catch(any e){
            writeDump(e);
        }

	</cfscript>

Send message with attributes

You can include structured metadata (such as timestamps, geospatial data, signatures, and identifiers) with messages using message attributes.

For more information, see Send message with attributes.

Example

<cfscript>

    // Get the getCloudService from the credentials and configuration we declared in Application.cfc
    sqs = getCloudService(application.awsCred, application.sqsConf)

    // Use the sqs service object to create a queue using createQueue(). This method returns a queue object.
    //writeoutput("Create queue in AWS<br>");
    myQueue = sqs.createQueue("MessageQueueWithAttribute");

    //Use the queue object to send a message to the queue.

    sendMessageMetadata = {
        "messageBody"="This is a sample message",
        "messageAttributes"={
            "timestamps"=datetimeformat(now()),
            "geospatial_data"="Bangalore",
            "signatures"="ADBE",
            "identifiers"="ColdFusion"
        }
    };
    sendMessageResponse = myQueue.sendMessage(sendMessageMetadata);

    writeoutput("message successfully sent with attribute");
    writeDump(sendMessageResponse)
</cfscript>

Receive message

After you send a message into a queue, you can retrieve it from the queue. When you request a message from a queue, you can't specify which message to get. Instead, you must specify the maximum number of messages (up to 10) that you want to get.

For more information, see Receive message in a queue.

Syntax

receiveMessage(String queueUrl, Map receiveMessageOptions)

Parameters

Parameter Description Type Required
queueUrl The URL of the queue from which messages are received. String Yes
messageAttributeNames

One of the following:

  • ALL
  • ApproximateFirstReceiveTimestamp
  • ApproximateReceiveCount
  • AWSTraceHeader
  • SenderId
  • SentTimestamp
  • MessageDeduplicationId
  • MessageGroupId
  • SequenceNumber
Struct No
maxNumberOfMessages The maximum number of messages to return. Valid value 1-10.
Integer No
receiveRequestAttemptId
ONLY FOR FIFO queues String No
vVisibilityTimeout
The time for which messages remain hidden from retrieve requests. Integer No
waitTime
The duration for which a message waits before arriving in the queue. Integer No

For more information, see request parameters.

Example

Example 1- Receive a message in a FIFO queue

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf);
    // define attribues for a FIFO queue
    queueAttributes = {
        "attributes" : {
            "FifoQueue" : "true"
        }
    }
    fifoQueue = sqs.createQueue("sendMessage.fifo", queueAttributes);
    fifoQueueUrl = fifoQueue.getQueueUrl();
    sendMessageMetadata = {
        "messageBody"="This is a sample message",
        "messageGroupId" ="12345",
        "messageDeduplicationId" ="123456",
        "messageAttributes"={
                "timestamps"="#dateTimeFormat(now())#",
                "geospatial_data"="Bangalore",
                "signatures"="SG",
                "identifiers"="ColdFusion"
        }
    }
    // send message
    sqs.sendMessage(fifoQueueUrl,sendMessageMetadata)
    // define receive message metadata
    receiveMessageMetadata = {
        "messageAttributeNames"="All"
    }
    try{
        receiveMessageResp = sqs.receiveMessage(fifoQueueUrl,receiveMessageMetadata)
        writeOutput("Message received successfully")
        writeDump(receiveMessageResp)
    }
    catch (any e){
        writeDump(e)
    }
</cfscript>

Example 2- Send messages in a standard queue

<cfscript>
        sqs = getCloudService(application.awsCred, application.sqsConf);
        // create a queue
        stdQueue = sqs.createQueue("ReceiveMessageQueueNew");
        // get queue url
        stdQueueUrl = stdQueue.getQueueUrl();
		sendMessageMetadata = {
			"messageBody"="This is a sample message",
			"messageAttributes"={
				"timestamps"="#dateTimeFormat(now())#",
				"geospatial_data"="San Jose",
				"signatures"="SG",
				"identifiers"="ColdFusion"
			}
		}
        // send message
        sqs.sendMessage(stdQueueUrl,sendMessageMetadata);
        // define receive message metadata
		receiveMessageMetadata = {
            "messageAttributeNames"="All"
        }
        try{
            receiveMessageResp = sqs.receiveMessage(stdQueueUrl,receiveMessageMetadata)
            writeOutput("Message received successfully")
            writeDump(receiveMessageResp)
            writeoutput(ArrayLen(receiveMessageResp.messages)>0) // TRUE
        }
        catch(any e){
            writeDump(e)
        }
</cfscript>

Delete a message

Delete a message from a queue. To select the message to delete, use the ReceiptHandle of the message.

For more information, see Delete message in a queue.

Syntax

deleteMessage(String queueUrl, Struct message)

Parameters

Parameter Description Type Required
queueURL The url of the queue. String Yes
receiptHandle The receipt handle associated with the message to delete.
String Yes

For more information, see request parameters.

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf);
        // create a queue
        stdQueue = sqs.createQueue("ReceiveMessageQueueNew");
        // get queue url
        stdQueueUrl = stdQueue.getQueueUrl();
		sendMessageMetadata = {
			"messageBody"="This is a sample message",
			"messageAttributes"={
				"timestamps"="#dateTimeFormat(now())#",
				"geospatial_data"="San Jose",
				"signatures"="SG",
				"identifiers"="ColdFusion"
			}
		}
        // send message
        sqs.sendMessage(stdQueueUrl,sendMessageMetadata)
        // receive message
        // define receive message metadata
		receiveMessageMetadata = {
            "messageAttributeNames"="All"
        }
        receiveMessageResp=sqs.receiveMessage(stdQueueUrl,receiveMessageMetadata)

        // get receipt handle
        receiptHandle={
            "receiptHandle":receiveMessageResp.messages[1].receiptHandle
        }
        // delete message
        try{
            deleteMessageResponse=sqs.deleteMessage(stdQueueUrl,receiptHandle)
            writeOutput("Message deleted successfully")
            writeDump(deleteMessageResponse)
        }
        catch(any e){
            writeDump(e)
        }
</cfscript>

Set attributes of a queue

Set the value of one or more queue attributes.

For more information, see Set queue attributes.

Syntax

setQueueAttributes(String queueUrl, Struct queueAttributes)

Parameters

Parameter Description Type Required
queueURL The URL of the queue whose attributes are to be set. String Yes
attribute

Key-value pair of the following:

  • DelaySeconds
  • MaximumMessageSize
  • MessageRetentionPeriod
  • Policy
  • ReceiveMessageWaitTimeSeconds
  • RedrivePolicy
  • VisibilityTimeout

Attributes for FIFO:

  • ContentBasedDeduplication

Attributes for Server-Side Encryption:

  • KmsMasterKeyId
  • KmsDataKeyReusePeriodSeconds
Struct Yes

For more information, see request parameters.

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf)
    // create a queue
    sqs.createQueue("QueueAttributeDemo")
    // get queue url
    qURL=sqs.getQueueUrl("QueueAttributeDemo")
    // define queue attribute metadata
    setQueueAttributes = {
        "attributes"={
            "VisibilityTimeout"="10",
            "MessageRetentionPeriod"="100",
            "MaximumMessageSize"="1024",
            "DelaySeconds"="10",
            "ReceiveMessageWaitTimeSeconds"="20"
        }
    }
    // set the queue attributes
    try{
        queueAttributeResponse=sqs.setQueueAttributes(qURL,setQueueAttributes
        writeOutput("Queue attributes set successfully")
        writeDump(queueAttributeResponse)
    }
    catch(any e){
        writeOutput("Unable to set queue attribute")
        writeDump(e)
    }
</cfscript>

Get attributes of a queue

Get the attributes of a specified queue.

For more information, see Get queue attributes.

Syntax

getQueueAttributes(String queueUrl, Struct queueAttributes)

Parameters

Parameter Description Type Required
queueURL The URL of the queue whose attributes are to be retrieved. String Yes
attributeNames

One of the following:

  • All
  • ApproximateNumberOfMessages
  • ApproximateNumberOfMessagesDelayed
  • ApproximateNumberOfMessagesNotVisible
  • CreatedTimestamp
  • DelaySeconds
  • LastModifiedTimestamp
  • MaximumMessageSize
  • MessageRetentionPeriod
  • Policy
  • QueueArn
  • ReceiveMessageWaitTimeSeconds
  • RedrivePolicy
  • VisibilityTimeout

Attributes for SSE:

  • KmsMasterKeyId
  • KmsDataKeyReusePeriodSeconds

Attributes for FIFO:

  • FifoQueue
  • ContentBasedDeduplication
Array Yes

For more information, see request parameters.

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf)
    // create a queue
    sqs.createQueue("QueueGetAttributeDemo")
    // get queue url
    qURL=sqs.getQueueUrl("QueueGetAttributeDemo")
    // define queue attribute metadata
    setQueueAttributes = {
        "attributes"={
            "VisibilityTimeout"="10",
            "MessageRetentionPeriod"="100",
            "MaximumMessageSize"="1024",
            "DelaySeconds"="10",
            "ReceiveMessageWaitTimeSeconds"="20"
        }
    }
    // set the queue attributes
    sqs.setQueueAttributes(qURL,setQueueAttributes)
    // define get attribute metadata
    getQueueAttributesMetadata={
        "attributeNames"=["All"]
    }
    try{
        getAttributeResponse=sqs.getQueueAttributes(qURL,getQueueAttributesMetadata)
        writeOutput("Queue attributes are:")
        writeDump(getAttributeResponse.attributes)
    }
    catch(any e){
        writeDump(e)
    }
</cfscript>

Change message visibility

Change the visibility timeout of a message in a queue. The default visibility timeout for a message is 30 seconds. The range is 0 seconds-12 hours.

For more information, see Change message visibility.

Syntax

changeMessageVisibility(String queueUrl, Struct message)

Parameters

Parameter Description Type Required
queueURL The URL of the queue whose message's visibility timeout is to be changed. String Yes
receiptHandle
The receipt handle of the message whose visibility timeout is to be changed.
String Yes
visibilityTimeout
The new timeout value (0-43200) Integer Yes

For more information, see request parameters.

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf);
		stdQueue = sqs.createQueue("ChangeVisibilityDemo");
        stdQueueUrl = stdQueue.getQueueUrl();
		sendMessageMetadata = {
				"messageBody"="This is a sample message",
				"messageAttributes"={
						"timestamps"="#dateTimeFormat(now())#",
						"geospatial_data"="London",
						"signatures"="CF",
						"identifiers"="ColdFusion"
				}
		}
		// send message to the queue
		sqs.sendMessage(stdQueueUrl,sendMessageMetadata);
		// define receive message metadata
		receiveMessageMetadata = {
			"messageAttributeNames"="All"
		};
		// receive message
        receiveMessageResp=sqs.receiveMessage(stdQueueUrl,receiveMessageMetadata);
		msgReceiptHandle= receiveMessageResp.messages[1].receiptHandle;
		// define change visibility metadata
        changeVisibilityMetadata= {
                "visibilityTimeout":"100", // 100 seconds
                "receiptHandle":msgReceiptHandle
		}
		try{
			changeVisibiltyResponse= sqs.changeMessageVisibility(stdQueueUrl,changeVisibilityMetadata)
			writeOutput("Message visibility timeout changed successfully")
        	writeDump(changeVisibiltyResponse)
        	writeoutput(changeVisibiltyResponse.sdkHttpResponse.statusCode)
		}
        catch(any e){
			writeDump(e)
		}
</cfscript>

Change message visibility batch

Change visibility timeout for multiple messages.

For more information, see Change message visibility match.

Syntax

changeMessageVisibilityBatch(String queueUrl, List<Map> messages)

Parameters

Parameter Description Type Required
queueURL The url of the queue whose messages' visibility is to be changed. String Yes
changeMessageVisibilityBatchMetadata Receipt handles of the messages for which the visibility timeout must be changed. For more information, see the array objects.
Array Yes

For more information, see request parameters.

Example

<cfscript>
    sqsObj = getCloudService(application.awsCred, application.sqsConf);
    stdQueueName = "stdBatchQueue"
    // create the queue
    stdQueueObj = sqsObj.createQueue(stdQueueName);
    // get the queue url
    stdQueueUrl = stdQueueObj.getQueueUrl()
    // define the metadata for sending messages in a batch
	sendMessageBatchMetadata =
    [
        {
            "id":"1",
            "messageAttributes":{
                "name":"name1",
                "type":"string",
                "value":"value1"
            },
            "messageBody":"This is the body of batch 1"
        },
        {
            "id":"2",
            "messageAttributes":{
                "name":"name2",
                "type":"number",
                "value":24
            },
            "messageBody":"This is the body of batch 2"
        },
        {
            "id":"3",
            "messageAttributes":{
                "name":"name3",
                "type":"string",
                "value":"value2"
            },
            "messageBody":"This is the body of batch 3"
        }
    ]
    // send the messages in batch
    sendMessageBatchResponse = sqsObj.sendMessageBatch(stdQueueUrl, sendMessageBatchMetadata);
    // Receive the messages in the queue
    receiveMessageMetadata = {
        "messageAttributeNames"="All",
        "maxNumberOfMessages"=5
    }
    receiveMessageResp = sqsObj.receiveMessage(stdQueueUrl,receiveMessageMetadata);
    writeDump(receiveMessageResp)
    //break;

    // Define metadata for visibility change
    changeMessageVisibilityBatchMetadata=[
        {
            "id":receiveMessageResp.messages[1].messageId,
            "receiptHandle":receiveMessageResp.messages[1].receiptHandle,
            "visibilityTimeout":"20"
        }
        // {
        //     "id":receiveMessageResp.messages[2].messageId,
        //     "receiptHandle":receiveMessageResp.messages[2].receiptHandle,
        //     "visibilityTimeout":"10"
        // }
    ]
    // Change visiblity in batch
    changeMessageVisibilityBatchResponse=sqsObj.changeMessageVisibilityBatch(stdQueueUrl,changeMessageVisibilityBatchMetadata)
    writeDump(changeMessageVisibilityBatchResponse)
</cfscript>

Send messages in batch

Send a batch of up to 10 messages to a specified queue. This is a batch version of the sendMessage API.

For more information, see SendMessageBatch.

Syntax

sendMessageBatch(String queueUrl, List<Map> messages)

Parameters

Parameter Description Type Required
queueURL The url of the queue to which messages are to be sent in a batch. String Yes
sendMessageBatchMetadata
Array of SendMessageBatchRequestEntry objects.
Array Yes

For more information, see request parameters.

Example

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf)
    // get queue url to which the message batch will be sent.
    myQueueUrl=sqs.listQueues().queueUrls[1]

    sendMessageBatchMetadata =
    [
	    {
            "id":"1",
            "messageAttributes":{
                "name":"name1",
                "type":"string",
                "value":"value1"
            },
            "messageBody":"This is the body of batch 1"
        },
        {
            "id":"2",
            "messageAttributes":{
                "name":"name2",
                "type":"number",
                "value":24
            },
            "messageBody":"This is the body of batch 2"
        }
    ]
    try{
        sendMessageBatchResponse = sqs.sendMessageBatch(myQueueUrl, sendMessageBatchMetadata)
        writeOutput("Message batch sent successfully")
        writeDump(sendMessageBatchResponse)
        writeDump(sendMessageBatchResponse.successful)
    }
    catch (any e){
        writeDump(e)
    }
</cfscript>

Delete messages in a batch

Delete up to 10 messages in a queue. This function is the batch version of the deleteMessage API.

For more information, see Delete messages in a batch.

Syntax

deleteMessageBatch(String queueUrl, List<Map> messages)

Parameters

Parameter Description Type Required
queueURL The url of the queue whose messages are to be deleted. String Yes
deleteMessageBatchMetadata List of receipt handles of the messages to be deleted. Array of DeleteMessageBatchRequestEntry objects.
Array Yes

For more information, see request parameters.

Example

Example 1- Standard queue

<cfscript>
    sqs = getCloudService(application.awsCred, application.sqsConf)
    // create a queue
    myQueue = sqs.createQueue("SendDeleteBatchMessage")
    // get queue url
    qURL=myQueue.getQueueUrl()
    // upoad a file
    myImage = "image.PNG"
    sendMessageBatchMetadata = [
	    {"id"="1", "messageBody"="Delete Batch Message 1", "messageAttributes"={"date"=datetimeformat(now()), "myAtt12"="#toBinary(toBase64(myImage))#"}},
        {"id"="2", "messageBody"="Delete Batch Message 2", "messageAttributes"={"send_date"=datetimeformat(now())}}
    ];
    sendMessageResponse = sqs.sendMessageBatch(qURL, sendMessageBatchMetadata)
    // writeDump(sendMessageResponse)
    // break;
    // receive messages in the queue
    receiveMessageMetadata = {"messageAttributeNames"="All","maxNumberOfMessages"=2}
    receiveMessageResponse = sqs.receiveMessage(qURL,receiveMessageMetadata);
    writeDump(receiveMessageResponse)
    //break;
    writeoutput("Delete message batch response");
	msgReceiptHandle1= receiveMessageResponse.messages[1].receiptHandle;
    msgReceiptHandle2= receiveMessageResponse.messages[2].receiptHandle;
    deleteMessageBatchMetadata = [
	    {"id"="1", "receiptHandle"="#msgReceiptHandle1#"},
	    {"id"="2", "receiptHandle"="#msgReceiptHandle2#"}
	];
	deleteMessageResponse = sqs.deleteMessageBatch(qURL,deleteMessageBatchMetadata);
	writeDump(deleteMessageResponse)
</cfscript>

Example 2- FIFO queue

<cfscript>
        try{
            sqs = getCloudService(application.awsCred, application.sqsConf);
            queueAttributes = {
                                    "attributes" : {"FifoQueue" : "true"}
                            }
            fifoQueue = sqs.createQueue("sendBatchMessage.fifo", queueAttributes);
            fifoQueueUrl = fifoQueue.getQueueUrl();
            sendMessageBatchMetadata = [
	                                    {"id"="1", "messageBody"="First Batch message","messageGroupId" ="720","messageDeduplicationId" ="23", "messageAttributes"={"myAtt1"="First"}},
	                                    {"id"="2", "messageBody"="Second Batch Message","messageGroupId" ="008","messageDeduplicationId" ="45",  "messageAttributes"={"myAtt21"="Second"}}
                                      ];

            sendMessageResp = sqs.sendMessageBatch(fifoQueueUrl,sendMessageBatchMetadata);
            writeoutput(sendMessageResp.sdkHttpResponse.statusCode);
            receiveMessageMetadata = {"messageAttributeNames"="All","maxNumberOfMessages"=2};
            receiveMessageResp = sqs.receiveMessage(fifoQueueUrl,receiveMessageMetadata);
            msgReceiptHandle1= receiveMessageResp.messages[1].receiptHandle;
            msgReceiptHandle2= receiveMessageResp.messages[2].receiptHandle;
            deleteMessageBatchMetadata = [
	                               {"id"="1", "receiptHandle"="#msgReceiptHandle1#"},
	                               {"id"="2", "receiptHandle"="#msgReceiptHandle2#"}
	                              ];
            deleteMsgReps= sqs.deleteMessageBatch(fifoQueueUrl,deleteMessageBatchMetadata);
            writeoutput(deleteMsgReps.sdkHttpResponse.statusCode);
        }
        catch(any e){
            writeDump(e);
        }

Add permission

Add permission to a queue for for a user, service, or account, whose permissions are defined in a policy.

When you create a queue, you have full control of the queue. You can then grant or deny permissions to the queue.

For more information, see Add permission.

Syntax

addPermission(String queueUrl, Struct permission)

Parameters

Parameter Description Type Required

Actions

The action the client wants to allow for the specified principal. Valid values are:

  • SendMessage
  • DeleteMessage
  • ChangeMessageVisibility
Array Yes

awsAccountIds

The AWS account number of the principal who is given permission.

Array Yes

Label

The unique id of the permission to be set.

String Yes

queueUrl

The URL of the queue.

String Yes

For more information, see request parameters.

Example

<cfscript>
	sqs = getCloudService(application.awsCred, application.sqsConf);
	// create queue
	sqs.createQueue("AddPermission");
	// get url of the queue
	queueUrl=sqs.getQueueUrl("AddPermission")
	// define permission struct
	addPermissionStruct={
		"actions" = ["SendMessage"], // Send message action granted
		"awsAccountIds" = ["xxxxxxxxxxxxx"],
		"label" = "label-cf-sqs"
	}
	try{
		addPermissionResp = sqs.addPermission(queueUrl,addPermissionStruct)
		writeOutput("Permission added successfully")
		writeDump(addPermissionResp)
	}
	catch (any e){
		writeDump(e)
	}
</cfscript>

Remove permission

Revoke any permissions in the policy of the queue that matches the label, which was used to add permission in the first place.

For more information, see Remove permission.

Syntax

removePermission(String queueUrl, String permissionLabel)

Parameters

Parameters Description Type Required
queueURL The url of the queue from which you want to remove the permission. String Yes
permissionLabel
The unique Id of the permission to remove.
String Yes

For more information, see request parameters.

Example

<cfscript>
        sqs = getCloudService(application.awsCred, application.sqsConf);
	// create queue
	sqs.createQueue("RemovePermission");
	// get url of the queue
	queueUrl=sqs.getQueueUrl("AddPermission")
	// define permission struct
	addPermissionStruct={
		"actions" = ["SendMessage"], // Send message action granted
		"awsAccountIds" = ["xxxxxxxxxxxxx"],
		"label" = "label-cf-sqs"
	}
	sqs.addPermission(queueUrl,addPermissionStruct)
	// remove permission struct
	labelToRemove="label-cf-sqs"
	try{
		removePermissionResp = sqs.removePermission(queueUrl,labelToRemove)
		writeOutput("Permission removed successfully")
		writeDump(removePermissionResp)
	}
	catch(any e){
		writeDump(e)
	}
</cfscript>

List Dead Letter Source Queues

In SQS, using a dead letter queue, you can automatically transfer messages, that have exceeded the maximum number of receiving messages, to the dead letter queue.

Also a dead letter queue stores messages when the queue does not exist or the queue or message length have exceeded a set value.

In a nutshell, a dead letter queue handles failed messages so that you can letter debug a faulty message.

You can set a redrive policy on a queue where you can define that if a message is not successfully processed by a consumer within a specified number of times, SQS will send that message to a dead letter queue.

For more information, see Amazon dead letter queues.

The listDeadLetterSourceQueues API returns a list of your queues that have the RedrivePolicy attribute configured with a dead-letter queue.

For more information, see ListDeadLetterSourceQueues.

Syntax

listDeadLetterSourceQueues(queueUrl)

Parameters

Parameter Description Type Required
queueURL The URL of a dead-letter queue.
String Yes

For more information, see request parameters.

Example

<cfscript>
        sqs = getCloudService(application.awsCred, application.sqsConf);
		setQueueAttributesMetadata = {
			"attributes"={
			"FifoQueue" : "true"
			}
        }
        // create FIFO queues
		myQueue = sqs.createQueue("FIFOQueue4DL.fifo",setQueueAttributesMetadata);
		deadLetterQueue = sqs.createQueue("dead_Letter_Queue.fifo",setQueueAttributesMetadata);
		queueUrl = myQueue.getQueueUrl();
		getQueueAttributesMetadata = {"attributeNames":["All"]};

		deadLetterQueueARN = deadLetterQueue.getAttributes(#getQueueAttributesMetadata#).attributes["QueueArn"];
		redrivePolicy = {
			"maxReceiveCount" = 2,
			"deadLetterTargetArn" = "#deadLetterQueueARN#"
		}
		setQueueAttributesMetadata = {
			"attributes"={
			"RedrivePolicy" = "#serializeJson(redrivePolicy)#"
		    }
		};
		setQueueAttributesResponse = myQueue.setAttributes(setQueueAttributesMetadata);
		getQueueAttributesMetadata = {"attributeNames"=["All"]};
		getQueueAttributesResponse = myQueue.getAttributes(getQueueAttributesMetadata);
		redrivePolicyVal= #deserializeJson(getQueueAttributesResponse.attributes["RedrivePolicy"])#;
		writeoutput(#redrivePolicyVal.deadLetterTargetArn#);
</cfscript>

Configure Long Polling with Queue

SQS is a poll-based service, where applications poll messages from SQS queue. If you poll your SQS queue and it returns an empty response, you are still charged. The default polling for SQS is short polling, where the response is sent without any wait time even if the queue is empty or updated with new messages.

Long polling eliminates the number of empty responses and false empty responses, when messages are available, but aren’t included in a response.

For more information, see Long polling for SQS.

<cfscript>
		sqs = getCloudService(application.awsCred, application.sqsConf);

		myQueue = sqs.createQueue("longPolling");
		writeoutput(myQueue.getQueueUrl());
		queueUrl = myQueue.getQueueUrl();

		setQueueAttributesMetadata = {
			"attributes"={
			"ReceiveMessageWaitTimeSeconds"="20"
			}
		};
		setQueueAttributesResponse = myQueue.setAttributes(setQueueAttributesMetadata);

		longPollingVal=myQueue.getAttributes({"attributeNames"=["ReceiveMessageWaitTimeSeconds"]});
		writeoutput(longPollingVal.attributes["ReceiveMessageWaitTimeSeconds"]);

	</cfscript>
