Article summary

Summary

Discusses how to work with the AEM MSM API to create a custom rollout action.

This article uses an Adobe Maven Archetype 10 project to build an OSGi bundle. If you are not familiar with an Adobe Maven Archetype project, it is recommended that you read the following article: Creating your first AEM 6.2 Project using Adobe Maven Archetype 10.

A special thank you to community members Ranta Kumar Kotla for testing this Community Article to ensure it works.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (beginner - intermediate)
Required Skills
JCR nodes, Java, HTML
AEM Version Adobe Experience Manager 6.2
Video N/A

Note:

For information about how to use the Experience Manager MSM API to dynamically retrieve LiveCopy information, see Retrieving AEM LiveCopy information using the MSM API.

Introduction

You can use the Adobe Experience Manager Muli Site Manager (MSM) API to create a custom service that is invoked when you perform a MSM operation such as create and activate a LiveCopy page. Multi Site Manager enables you to easily manage multiple web sites that share common content. MSM lets you define relations between the sites so that content changes in one site are automatically replicated in other sites.

For example, web sites are often provided in multiple languages for international audiences. When the number of sites in the same language is low (three to five), a manual process for syncronizing content across sites is possible. However, as soon as the number of sites grows or when multiple languages are involved, it becomes more efficient to automate the process.

A service that works with Experience Manager MSM functionality is implemented as an OSGi bundle and uses APIs located in the com.day.cq.wcm.api package.

Note:

For information about MSM functionality, see Multi-Site Management.

The main MSM API objects interact as follows:

Blueprint
A Blueprint defines the pages from which a live copy can inherit content. The use of a blueprint is optional but is required to push modifications to live copies that are inheriting from this blueprint or to define the default rollout configuration for the live copy that is in relation with the blueprint.

LiveCopy
A LiveCopy is the configuration of the relationship (LiveRelationship) between a page and its blueprint page. Use the LiveCopy class to access to the path of the page, the path of the blueprint page, the Rollout Configs, and whether child pages are also included in the LiveCopy.

LiveRelationship
The LiveRelationship represents the relationship between a resource and a blueprint. LiveRelationship objects provide access to the Rollout Configs, LiveCopy, and LiveStatus objects of the relationship. It also provides access to the paths of the target and source pages.

For example, a Live Copy is created in /content/copy from the blueprint at /content/geometrixx. The resources /content/geometrixx/en/jcr:content and /content/copy/en/jcr:content form a relationship.

LiveStatus
LiveStatus objects provide access to the runtime status of a LiveRelationship. Use to query the synchronization status of a Live Copy.

LiveAction
A LiveAction is an action that is executed on each resource that is involved in the rollout.

LiveActionFactory
Creates LiveAction objects given a LiveAction configuration. Configurations are stored as resources in the repository.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note:

It is recommended that you use Maven 3.0.3 or greater. For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Note:

The Adobe repository URL is now made secured. Change http://repo.adobe.com/nexus/content/groups/public/ to https://repo.adobe.com/nexus/content/groups/public/.

Create an AEM Maven 10 archetype project

You can create an Adobe CQ archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

files
Maven Archetype 10 generated files

The following list describes the Archetype 10 project arguments:

  • groupId - Base Maven groupId
  • artifactId - Base Maven ArtifactId
  • version - the version of your project
  • package - Java Source Package
  • appsFolderName - /apps folder name
  • artifactName - Maven Project Name
  • componentGroupName - AEM component group name
  • contentFolderName - /content folder name
  • cssId - prefix used in generated css
  • packageGroup - Content Package Group name
  • siteName - AEM site name

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeGroupId=com.adobe.granite.archetypes -DarchetypeArtifactId=aem-project-archetype -DarchetypeVersion=10 -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/

3. When prompted, specify the following information:

  • groupId - Rollout
  • artifactId - Rollout
  • version - 1.0-SNAPSHOT
  • package -  com.community.msm
  • appsFolderName - Rollout
  • artifactName - Rollout
  • componentGroupName - Rollout
  • contentFolderName - Rollout
  • cssId - Rollout
  • packageGroup - Rollout
  • siteName - Rollout

4. WHen prompted, specify Y.

5. Once done, you will see a message like:

[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 01:42 min
[INFO] Finished at: 2016-04-25T14:34:19-04:00
[INFO] Final Memory: 16M/463M
[INFO] ------------------------------------------------------------------------

6. Change the working directory to SlingModel62 and then enter the following command.

mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

projectRoll
Eclipse Import Project Dialog

The Eclipse project that you work in to build the OSGi bundle is Rollout.core. You do not have to work in the other projects.

Note:

Do not worry about the errors reported in Eclipse. It does not read the POM file where the APIs are resolved. You build the bundle with Maven. Eclipse is used to edit the Java files and the POM file. Also, delete all files in the project except for the  Rollout.core package. Place the Java file that is discussed in this article into this package.

ExampleLiveActionFactory class

Create custom synchronisation actions to use with your Rollout Configurations. You can create a syncrhonization action when the installed actions do not meet your specific application requirements. To do so, use these MSM classes:

  • An implementation of the com.day.cq.wcm.msm.api.LiveAction interface that performs the action.
  • An OSGI component that implements the com.day.cq.wcm.msm.api.LiveActionFactory interface and creates instances of your LiveAction class.

LiveAction classes include the following methods:

  • getName: Returns the name of the action The name is used to refer to the action, for example in rollout configurations.
  • execute: Performs the tasks of the action.

LiveActionFactory classes include the following members:

  • LIVE_ACTION_NAME: A field that contains the name of the associated LiveAction. This name must coincide with the value that is returned by the getName method of the LiveAction class.
  • createAction: Creates an instance of the LiveAction. The optional Resource parameter can be used to provide configuration information.
  • createsAction: Returns the name of the associated LiveAction.

The following Java class uses the MSM API.

package com.community.msm.core;

import java.util.Collections;

import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Property;
import org.apache.felix.scr.annotations.Service;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.api.resource.ResourceResolver;
import org.apache.sling.api.resource.ValueMap;
import org.apache.sling.api.wrappers.ValueMapDecorator;
import org.apache.sling.commons.json.io.JSONWriter;
import org.apache.sling.commons.json.JSONException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.jcr.Node;
import javax.jcr.RepositoryException;
import javax.jcr.Session;

import com.day.cq.wcm.msm.api.ActionConfig;
import com.day.cq.wcm.msm.api.LiveAction;
import com.day.cq.wcm.msm.api.LiveActionFactory;
import com.day.cq.wcm.msm.api.LiveRelationship;
import com.day.cq.wcm.api.WCMException;

@Component(metatype = false)
@Service
public class ExampleLiveActionFactory implements LiveActionFactory<LiveAction> {
	@Property(value="exampleLiveAction")
	static final String actionname = LiveActionFactory.LIVE_ACTION_NAME;

	public LiveAction createAction(Resource config) {
		ValueMap configs;
		//* Adapt the config resource to a ValueMap
        if (config == null || config.adaptTo(ValueMap.class) == null) {
            configs = new ValueMapDecorator(Collections.<String, Object>emptyMap());
        } else {
            configs = config.adaptTo(ValueMap.class);
        }

		return new ExampleLiveAction(actionname, configs);
	}
	public String createsAction() {
		return actionname;
	}
	//**  LiveAction
	private static class ExampleLiveAction implements LiveAction {
		private String name;
		private ValueMap configs;
		private static final Logger log = LoggerFactory.getLogger(ExampleLiveAction.class);

		public ExampleLiveAction(String nm, ValueMap config){
			name = nm;
			configs = config;
		}

		public void execute(Resource source, Resource target,
				LiveRelationship liverel, boolean autoSave, boolean isResetRollout)
						throws WCMException {

			String lastMod = null;

			log.info(" *** Executing ExampleLiveAction *** ");

			/* Determine if the LiveAction is configured to copy the cq:lastModifiedBy property */
			if ((Boolean) configs.get("repLastModBy")){

				/* get the source's cq:lastModifiedBy property */
				if (source != null && source.adaptTo(Node.class) !=  null){
					ValueMap sourcevm = source.adaptTo(ValueMap.class);
					lastMod = sourcevm.get(com.day.cq.wcm.api.NameConstants.PN_PAGE_LAST_MOD_BY, String.class);
				}

				/* set the target node's la-lastModifiedBy property */
				Session session = null;
				if (target != null && target.adaptTo(Node.class) !=  null){
					ResourceResolver resolver = target.getResourceResolver();
					session = resolver.adaptTo(javax.jcr.Session.class);
					Node targetNode;
					try{
						targetNode=target.adaptTo(javax.jcr.Node.class);
						targetNode.setProperty("la-lastModifiedBy", lastMod);
						log.info(" *** Target node lastModifiedBy property updated: {} ***",lastMod);
					}catch(Exception e){
						log.error(e.getMessage());
					}
				}
				if(autoSave){
					try {
						session.save();
					} catch (Exception e) {
						try {
							session.refresh(true);
						} catch (RepositoryException e1) {
							e1.printStackTrace();
						}
						e.printStackTrace();
					}
				}
			}
		}
		public String getName() {
			return name;
		}

		/************* Deprecated *************/
		@Deprecated
		public void execute(ResourceResolver arg0, LiveRelationship arg1,
				ActionConfig arg2, boolean arg3) throws WCMException {
		}
		@Deprecated
		public void execute(ResourceResolver arg0, LiveRelationship arg1,
				ActionConfig arg2, boolean arg3, boolean arg4)
						throws WCMException {
		}
		@Deprecated
		public String getParameterName() {
			return null;
		}
		@Deprecated
		public String[] getPropertiesNames() {
			return null;
		}
		@Deprecated
		public int getRank() {
			return 0;
		}
		@Deprecated
		public String getTitle() {
			return null;
		}
		@Deprecated
		public void write(JSONWriter arg0) throws JSONException {
		}
	}
}

Note:

Note that when creating a rollout configuration, the name of the LiveAction is the name used for the cq:LiveSyncAction node that you add to a rollout configuration.

Modify the Maven POM file

You need to modify two POM files. The first one is the parent POM file shown in this illustration.

ParentPOM
Parent POM

Add the following POM dependency to the POM file located at C:\AdobeCQ\Rollout.

<dependency>
               <groupId>com.adobe.aem</groupId>
               <artifactId>uber-jar</artifactId>
               <version>6.2.0</version>
               <!-- for AEM6.1 use this version     : <version>6.1.0</version> -->
               <!-- for AEM6.1 SP1 use this version : <version>6.1.0-SP1-B0001</version> -->
               <!-- for AEM6.1 SP2 use this version : <version>6.1.0-SP2</version> -->
               <!-- for AEM6.2 use this version     : <version>6.2.0</version> -->
               <classifier>obfuscated-apis</classifier>
               <scope>provided</scope>
           </dependency>

           <dependency>
               <groupId>org.apache.geronimo.specs</groupId>
               <artifactId>geronimo-atinject_1.0_spec</artifactId>
               <version>1.0</version>
               <scope>provided</scope>
           </dependency>

Next modify the POM file located at C:\AdobeCQ\Rollout\core. The following code represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<!--
 |  Copyright 2015 Adobe Systems Incorporated
 |
 |  Licensed under the Apache License, Version 2.0 (the "License");
 |  you may not use this file except in compliance with the License.
 |  You may obtain a copy of the License at
 |
 |      http://www.apache.org/licenses/LICENSE-2.0
 |
 |  Unless required by applicable law or agreed to in writing, software
 |  distributed under the License is distributed on an "AS IS" BASIS,
 |  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 |  See the License for the specific language governing permissions and
 |  limitations under the License.
-->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>Rollout</groupId>
        <artifactId>Rollout</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../pom.xml</relativePath>
    </parent>
    <artifactId>Rollout.core</artifactId>
    <packaging>bundle</packaging>
    <name>Rollout - Core</name>
    <description>Core bundle for Rollout</description>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <!--
                        <Embed-Dependency>
                            artifactId1,
                            artifactId2;inline=true
                        </Embed-Dependency>
                        -->
                        <Sling-Model-Packages>
                            com.community.msm.core
                        </Sling-Model-Packages>
                    </instructions>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <profiles>
        <!-- Development profile: install only the bundle -->
        <profile>
            <id>autoInstallBundle</id>
            <activation>
                <activeByDefault>false</activeByDefault>
            </activation>
            <build>
                <plugins>
                    <plugin>
                        <groupId>org.apache.sling</groupId>
                        <artifactId>maven-sling-plugin</artifactId>
                        <configuration>
                            <!-- Note that this requires /apps/Rollout/install to exist!!          -->
                            <!--    This is typically the case when ui.apps is deployed first                -->
                            <!--    Otherwise, create /apps/Rollout/install manually (CRXDE|Lite)  -->
                            <slingUrlSuffix>/apps/Rollout/install/</slingUrlSuffix>
                            <failOnError>true</failOnError>
                        </configuration>
                    </plugin>
                </plugins>
            </build>
        </profile>
    </profiles>
    <dependencies>
        <!-- OSGi Dependencies -->

        <!-- OSGi Dependencies -->
         <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>uber-jar</artifactId>
            <classifier>obfuscated-apis</classifier>
        </dependency>
         <dependency>
    <groupId>org.apache.geronimo.specs</groupId>
    <artifactId>geronimo-atinject_1.0_spec</artifactId>
    <version>1.0</version>
    <scope>provided</scope>
</dependency>

<dependency>
	<groupId>com.day.commons.osgi.wrapper</groupId>
	<artifactId>com.day.commons.osgi.wrapper.commons-email</artifactId>
	<version>1.2.0-0002</version>
	<scope>provided</scope>
</dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>biz.aQute</groupId>
            <artifactId>bndlib</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <!-- Other Dependencies -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.jcr</groupId>
            <artifactId>jcr</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>aem-api</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.models.api</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-all</artifactId>
        </dependency>
        <dependency>
            <groupId>junit-addons</groupId>
            <artifactId>junit-addons</artifactId>
        </dependency>
    </dependencies>
</project>

Build the OSGi bundle using Maven

To build the OSGi bundle by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\Rollout.
  2. Run the following maven command: mvn -PautoInstallPackage install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\slingModel62\core\target. The file name of the OSGi component is Rollout.core-1.0-SNAPSHOT.jar.

The command -PautoInstallPackage automatically deploys the OSGi bundle to Experience Manager.

Create the Example Rollout Configuration

Build the example Experience Manager MSM rollout configuration so the Java application logic is invoked. That is, the example configuration uses the LiveActionFactory that you created. To create an example rollout, perform these tasks:

1. In your web browser, open the Tools console (http://localhost:4502/miscadmin#/etc).

2. Select the Tools, MSM, Rollout Configurations folder.

Tools2
The Tools view

3. Click New, New Page and provide values for the Rollout Configuration properties:

  • Title: Example Rollout Configuration
  • Name: examplerolloutconfig
  • Select RolloutConfig Template.

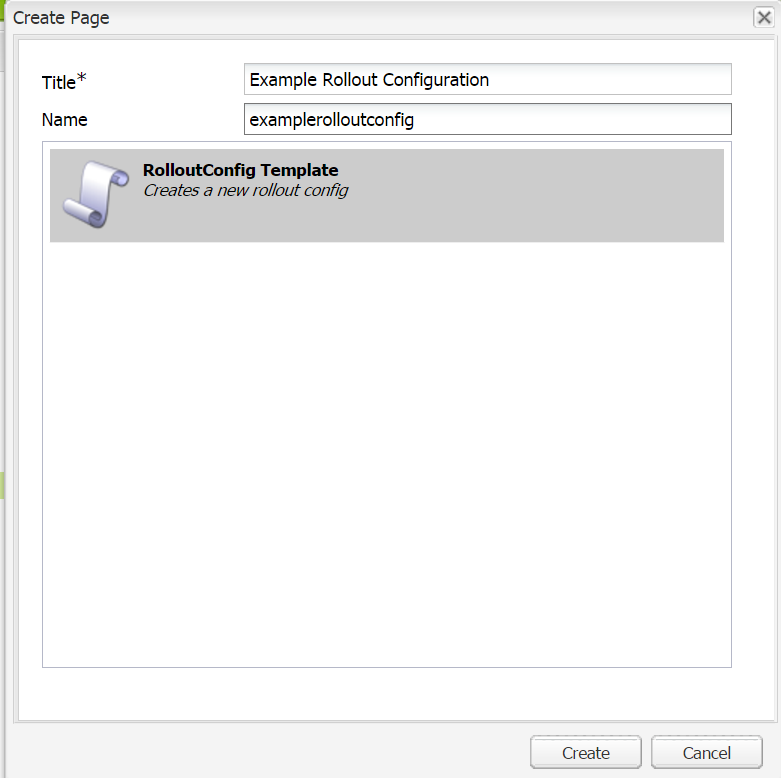

Blueprint2
Rollout Config template

4. Click Create.

5. Open the rollout configuration that you created and then click Edit.

6. In the Rollout Config dialog, use the Sync-Trigger drop-down menu to select On Activation, and then click OK.

editBox
The Edit dialog

Add the Live Action to the Example Rollout Configuration

Configure the rollout configuration that you created in the previous procedure so that it uses the ExampleLiveActionFactory class created earlier in this article.

1. Open CRXDE Lite. (http://localhost:4502/crx/de)

2. Select the jcr:content node below the /etc/msm/rolloutconfigs/examplerolloutconfig/jcr:content node.

3. Click Create, Create Node, configure the following node properties and click OK:

  • Name: exampleLiveAction
  • Type: cq:LiveSyncAction
crxdelite
A cq:LiveSyncAction node

4. Click Save All.

5. Select the exampleLiveAction node and add the following property:

  • Name: repLastModBy
  • Type: Boolean
  • Value: true

This property indicates to the ExampleLiveAction class that the cq:LastModifiedBy property should be replicated from the source to the target node.

6. Click Save All.

Create the Live Copy

Create a Live Copy of a branch of the Geometrixx Demo Site using your rollout configuration. Activate a page of the source branch and observe the log messages that the LiveAction class generates.

1. Open the Websites console. (http://localhost:4502/siteadmin#/content)

2. Select the Websites folder and click New > New Live Copy.

3. For the LiveCopyFrom property, enter /content/geometrixx/en/products.



RolloutTest
Create a LiveCopy

4. On the Sync Config tab, for the Rollout Configs property, click Add Item and then select Example Rollout Configuration. Click Create.



RolloutTest2
Select Example Rollout Configuration

The Products site is created.

5. Activate the Websites/Geometrixx Demo Site/English Products page. For each page and component that is activated, the log file contains messages similar to the following example:




16.08.2013 10:53:33.055 *INFO* [Thread-444535] com.adobe.example.msm.ExampleLiveActionFactory$ExampleLiveAction *** ExampleLiveAction has been executed.***
16.08.2013 10:53:33.055 *INFO* [Thread-444535] com.adobe.example.msm.ExampleLiveActionFactory$ExampleLiveAction *** Target node lastModifiedBy property updated: admin ***

See also

Congratulations, you have just created an Experience Manager custom rollout action. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
