Summary
Discusses how to create an Experience Manager Sling Scheduler Service that monitors the number of AEM stale workflow items and sends an email message if the number of items exceed six.
Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, OSGi, Maven
Version(s) Adobe Experience Manager 5.5, 5.6, 6

Introduction

You can create an Adobe Experience Manager (AEM) OSGi bundle that uses Sling APIs to create a custom Sling Schedule Service. This service performs an AEM job at a scheduled time. In this article, assume that the following use case exists:

1. The Scheduler Service runs each weekday and checks to determine if there are more than six stale workflow items. It uses MBean API logic to perform this task.

2. If there are more than six stale workflow items, an email message is sent to an AEM administrator.

Scheduler

For information about using MBean API with AEM, see Creating Adobe Experience Manager Sling Servlets that invoke MBean operations.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Java home: C:\Programs\Java64-6\jre
Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note:

It is recommended that you use Maven 3.0.3 or greater. For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.adobe.cq -DartifactId=schedule -Dversion=1.0-SNAPSHOT -Dpackage=com.adobe.cq -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

3. When prompted for additional information, specify Y.

4. Once done, you will see a message like:

[INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
[INFO] Final Memory: 10M/184M

5. Change the command prompt to the generated project. For example: C:\AdobeCQ\schedule. Run the following Maven command:
mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

Project

Note:

Do not worry about the errors reported in Eclipse. It does not read the POM file where the APIs are resolved. You build the bundle with Maven. Eclipse is used to edit the Java files and the POM file.

The next step is to add Java application logic to the SimpleDSComponent class that is part of the Maven generated project. In this use case, you inject a Scheduler object into the Scheduler Service using the @Reference annotation.

@Reference
private Scheduler scheduler ;

Add application logic to the activate method that defines the behaviour of your Sling Scheduler service. In this example, the service is programmed to execute at 10:15am every Monday, Tuesday, Wednesday, Thursday and Friday using the following expression.

String schedulingExpression = "0 15 10 ? * MON-FRI";

For information about different ways in which to schedule your Sling Schedule service, see Scheduler Service.

The following method shows the activate method that defines the behaviour of the Scheduler Service.



protected void activate(ComponentContext ctx) {
        this.bundleContext = ctx.getBundleContext();


        //Schedule a Sling Job to invoke an MBean operation to obtain number of Stale Workflow items
      //case 3: with fireJobAt(): executes the job at a specific date (date of deployment + delay of 30 seconds)
        String jobName3 = "case3";



    	String schedulingExpression = "0 15 10 ? * MON-FRI"; //10:15am every Monday, Tuesday, Wednesday, Thursday and Friday

    	final Date fireDate = new Date();

    	Map<String, Serializable> config3 = new HashMap<String, Serializable>();
        final Runnable job = new Runnable() {
            public void run() {

            	int staleItems = checkStaleItems();

            	//if greater than 6 - email AEM admins
            	if (staleItems > 6)
            	{
            		sendMail(staleItems);
            	}

            }
        };
        try {
        	//Add the Job
        	this.scheduler.addJob("myJob", job, null, schedulingExpression, true);

        } catch (Exception e) {
            job.run();
        }

In this example, a Runnable instance named job is created. Its run method contains Java application logic that is invoked when the job is executed. The first thing it does is check the number of AEM stale Workflow items using MBean application logic. Mbean application logic is located within a method named checkStaleItems.

If there are more than six items, then a method named sendMail is invoked. This method uses the JavaMail API to send email messages to an AEM administrator alerting them of the fact that there are more than six items. For information about the Java Mail API, see JavaMail API .

The following Java code represents the Sling Scheduler Service.

package com.adobe.cq;

import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Service;
import org.apache.felix.scr.annotations.Reference;


import org.osgi.framework.BundleContext;
import org.osgi.service.component.ComponentContext;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.Serializable;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;
import java.util.Properties;

import org.apache.sling.commons.scheduler.Scheduler;
import org.osgi.service.component.ComponentContext;

//import MBean API
import javax.management.MBeanServerConnection;
import javax.management.MBeanServer ;
import java.lang.management.ManagementFactory ;
import javax.management.ObjectName;

//Java Mail API
import javax.mail.Message;
import javax.mail.Session;
import javax.mail.Transport;
import javax.mail.internet.InternetAddress;
import javax.mail.internet.MimeMessage;

/**
 * Just a simple DS Component
 */
@Component(metatype=true)
@Service
public class SimpleDSComponent implements Runnable {


    /** Default log. */
    protected final Logger log = LoggerFactory.getLogger(this.getClass());

    private BundleContext bundleContext;

    @Reference
    private Scheduler scheduler ;

    public void run() {
    	log.info("Running...");
    }

    protected void activate(ComponentContext ctx) {
        this.bundleContext = ctx.getBundleContext();


        //Schedule a Sling Job to invoke an MBean operation to obtain number of Stale Workflow items
      //case 3: with fireJobAt(): executes the job at a specific date (date of deployment + delay of 30 seconds)
        String jobName3 = "case3";



    	String schedulingExpression = "0 15 10 ? * MON-FRI"; //10:15am every Monday, Tuesday, Wednesday, Thursday and Friday

    	final Date fireDate = new Date();

    	Map<String, Serializable> config3 = new HashMap<String, Serializable>();
        final Runnable job = new Runnable() {
            public void run() {

            	int staleItems = checkStaleItems();

            	//if greater than 6 - email AEM admins
            	if (staleItems > 6)
            	{
            		sendMail(staleItems);
            	}

            }
        };
        try {
        	//Add the Job
        	this.scheduler.addJob("myJob", job, null, schedulingExpression, true);

        } catch (Exception e) {
            job.run();
        }


    }

    protected void deactivate(ComponentContext ctx) {
        this.bundleContext = null;
    }




    //Use MBean Logic to check the number of stale Workflow Items
    private int checkStaleItems()
    {
    	try
        {
            //Create a MBeanServer class
            MBeanServer server = ManagementFactory.getPlatformMBeanServer();

            ObjectName workflowMBean = getWorkflowMBean(server);

            //Get the number of stale workflowitems from AEM
            Object staleWorkflowCount = server.invoke(workflowMBean, "countStaleWorkflows", new Object[]{null}, new String[] {String.class.getName()});

            int mystaleCount = (Integer)staleWorkflowCount;

            //Return the number of stale items
            return mystaleCount ;

        }
        catch(Exception e)
        {
            e.printStackTrace();
        }
        return -1;
      }


       private static ObjectName getWorkflowMBean(MBeanServerConnection server)
       {
           try
           {
           Set<ObjectName> names = server.queryNames(new ObjectName("com.adobe.granite.workflow:type=Maintenance,*"), null);

           if (names.isEmpty()) {
                   return null;
           }

           return names.iterator().next();
           }
           catch(Exception e)
           {
               e.printStackTrace();
           }
           return null;
  }


       private void sendMail(int count)
       {
    	   // Recipient's email ID needs to be mentioned.
           String to = "SET THE TO ADDRESS";

           // Sender's email ID needs to be mentioned
           String from = "SET THE FROM ADDRESS";

           // Assuming you are sending email from localhost
           String host = "SET SMTP MAIL SERVER";

           // Get system properties
           Properties properties = System.getProperties();

           // Setup mail server
           properties.setProperty("mail.smtp.host", host);
           properties.setProperty("mail.smtp.user", "Enter STMP USER"); // Set the SMTP Mail user


           // Get the default Session object.
          // javax.mail.Authenticator authenticator = new  javax.mail.PasswordAuthentication("username", "password");
           Session session = Session.getDefaultInstance(properties);

           try{
               // Create a default MimeMessage object.
               MimeMessage message = new MimeMessage(session);

               // Set From: header field of the header.
               message.setFrom(new InternetAddress(from));

               // Set To: header field of the header.
               message.addRecipient(Message.RecipientType.TO,
                       new InternetAddress(to));

               // Set Subject: header field
               message.setSubject("Stale AEM Workflow Items");

               // Now set the actual message
               message.setText("Please note that there are "+count +" stale AEM workflows");

               // Send message
               Transport.send(message);
               log.info("Stale mail notification message sent message successfully....");
           }catch (Exception ex) {
               ex.printStackTrace();
           }
       }

}

Note:

Make sure that you enter the required values in the Java Mail API methods. For example, you need to replace SET SMTP MAIL SERVER with the the SMTP Mail server that you want to use as well as the correct email addresses. Otherwise, your Sling Scheduler Service will not work.

Note:

To make this work more efficiently, you can use the JCQ API to read from a JCR node that defines the schedule expression. This way, you can change a property in CRXDE lite to change the schedule of the Sling Service without having to re-compile the OSGi bundle. However, to keep this article simple to understand, the expression is hard coded in the Java code.

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle. In the POM file located at C:\AdobeCQ\schedule, add the following dependencies.

  • org.apache.felix.scr
  • org.apache.felix.scr.annotations
  • org.apache.sling
  • javax.mail

Note:

Modify the POM file that appears in the root of the project in Eclipse.

The following XML represents the POM file to build the custom Sling Scheduler. Copy the XML code to your POM file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>com.adobe.cq</groupId>
        <artifactId>schedule</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>schedule-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>My Project Bundle</name>

   <dependencies>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>

     <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.commons.scheduler</artifactId>
            <version>2.3.3-R1232965</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>

        <dependency>
	<groupId>javax.mail</groupId>
	<artifactId>mail</artifactId>
	<version>1.4</version>
</dependency>



    </dependencies>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>com.adobe.cq.schedule-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/myproject/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                 <configuration>
                    <excludePackageNames>
                        *.impl
                    </excludePackageNames>
                 </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Build the OSGi bundle using Maven

To build the Sling Scheduler OSGi bundle by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\schedule folder.
  2. Run the following maven command: mvn clean install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\schedule\bundle\target. The file name of the OSGi component is schedule-bundle-1.0-SNAPSHOT.

Deploy the bundle to Experience Manager

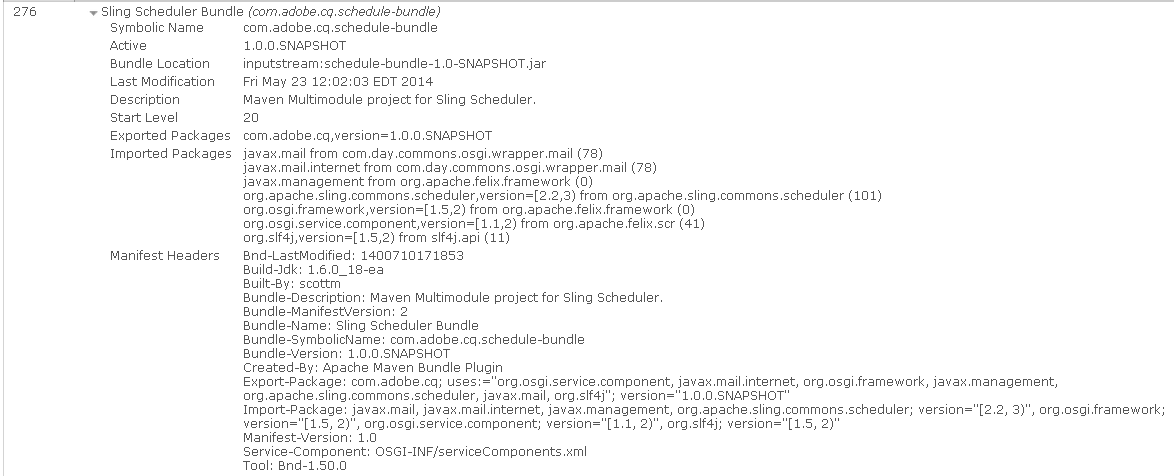

After you deploy the Sling Scheduler bundle, you can see it in the Apache Felix Web Console.

OSGiSchedule


After you place the OSGi bundle in an activate state, the Sling Scheduler will fire 10:15a m every Monday, Tuesday, Wednesday, Thursday and Friday. If there are more than six stale Workflow items, an email is sent to AEM administrators.

Deploy the Sling Scheduler Service by performing these steps:

  1. Login to Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).
  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.
  3. Click the Install/Update button.
  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\schedule\bundle\target).
  5. Click Install.
  6. Click the Refresh Packages button.
  7. Check the bundle with the highest Id.
  8. Click Active.
  9. Your new bundle should now be listed with the status Active.
  10. If the status is not Active, check the CQ error.log for exceptions.

See also

Congratulations, you have just created a custom Sling Schedule Service that uses Mbean logic to monitor the number of Stale Workflow items. Please refer to the AEM community page for more articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
