Article Summary

Summary

Discusses how setup and debug an Adobe Experience Manager project by using Eclipse. Code between Eclipse and the AEM JCR is synchronized using vault.

For information about using IntelliJ instead of Eclipse, see Creating an AEM project using IntelliJ IDE

A special thank you to Jaison Sunny, a member of the AEM community, for providing assistance towards this development article.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, Maven
Tested On Adobe Experience Manager 6

Introduction

You can create an AEM application by using the Java Eclipse Integrated Development Environment (IDE). By building an AEM application using Eclipse, you can access features within the IDE such as code completion and the ability to remote debug the application. That is, you can set a breakpoint on a line of Java code used for an OSGi bundle and you can walk through the code to troubleshoot issues.

You can synchronize code (both Java code and JSP code) in Eclipse with the code in the AEM JCR. For example, assume that you have application logic in Eclipse that represents a JSP component. You can synchronize the code in Eclipse with code in the AEM JCR using the vault tool. That is, you can check in code you write in Eclipse into the AEM JCR. Likewise, if you make a change in AEM using CRXDE lite, you can checkout the code that results in the code in Eclipse being updated. To synchronize code, you configure the vault tool (this is shown later in this development article).

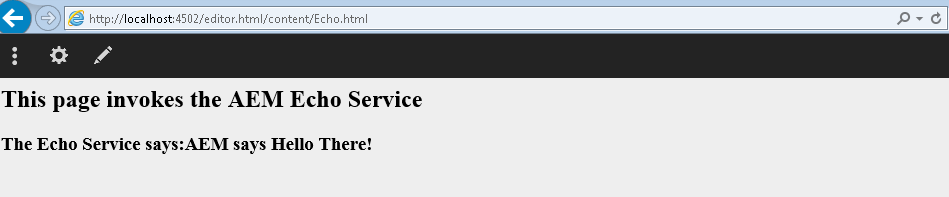

The following illustration shows application logic for an AEM application within the Eclipse.

Eclipse

This article walks you through how to build an AEM application using Eclipse and synchronize the code with the code in the AEM JCR. In addition, it discusses how to setup AEM for remote debugging and starting an AEM application from Eclipse.

Note:

To follow along with this article, download Eclipse from the Downloads page.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that uses the JCR API and is deployed to Experience Manager. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note: For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

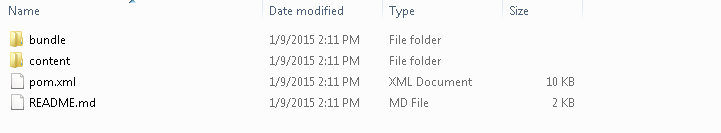

MavenProject

To create an AEM project, open the command prompt and change to a working directory. For example, C:\AdobeCQ. Next, enter the following Maven command:

mvn archetype:generate -DarchetypeRepository=http://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.aem.community -DartifactId=echoproject -Dversion=1.0-SNAPSHOT -Dpackage=com.aem.community -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

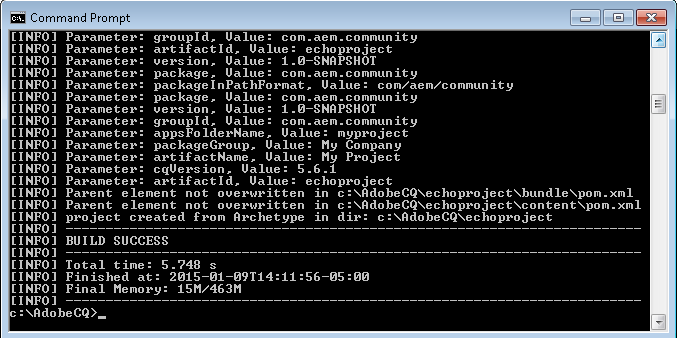

Click Y when prompted to do so in the command prompt. This will create a Maven project named echoproject. You should see the following message in the command prompt.

command

Modify the Java files

Modify these Java files that were created by Maven:

  • echoproject\bundle\src\main\java\com\aem\community\HelloService.java
  • echoproject\bundle\src\main\java\com\aem\community\impl\HelloServiceImpl.java

In the HelloService.java file, add the following method signature:

public String echo(String msg);

Likewise, in the HelloServiceImpl.java, add the following method body:

public String echo(String msg){
 return "AEM says " +msg ;
}

Note:

The AEM application invokes the echo method later in this development article.

Deploy the bundle to AEM

Next, from within the command prompt, change the directory to the echoproject root. For example, C:\AdobeCQ\echoproject. Once deployed, the AEM service is automatically placed into an Active state. Enter the following Maven command:

mvn -PautoInstallPackage install

You can see the bundle running in an active state by going to the following URL: http://localhost:4502/system/console/services.

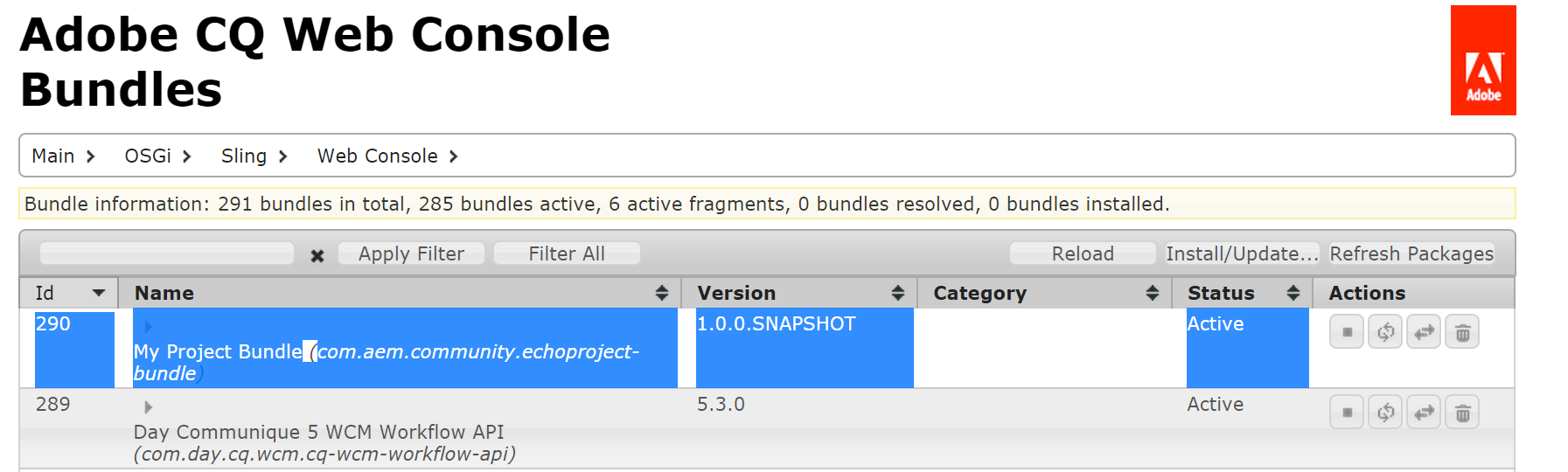

The following illustration shows the OSGi bundle in an active state.

OSGi

Note:

For information about the project files that Maven created, see http://docs.adobe.com/docs/en/aem/6-0/develop/dev-tools/ht-projects-maven.html.

Prepare for JSP support in Eclipse

Modify the POM file located at C:\AdobeCQ\echoproject\content to add support for JSP compilation in Eclipse. The Maven setup described so far creates a content package that can also include components and their corresponding JSPs. However, Maven treats them as any other file that is part of the content package and does not even recognize them as JSPs.

The resulting components work in AEM all the same, but making Maven aware of the JSPs has two major benefits:

  • It allows Maven to fail if the JSPs contain errors, so that these are surfaced at build time and not when they are first compiled in AEM
  • For IDEs that can import Maven projects, this also enables code completion and tag library support in the JSPs

Add the follownig dependencies to this POM file.

<dependency>
    <groupId>org.apache.sling</groupId>
    <artifactId>org.apache.sling.jcr.jcr-wrapper</artifactId>
    <!-- javax.jcr -->
</dependency>
<dependency>
    <groupId>org.apache.sling</groupId>
    <artifactId>org.apache.sling.api</artifactId>
</dependency>
<dependency>
    <groupId>com.day.cq</groupId>
    <artifactId>cq-commons</artifactId>
    <!-- com.day.cq.commons -->
</dependency>
<dependency>
    <groupId>com.day.cq.wcm</groupId>
    <artifactId>cq-wcm-commons</artifactId>
    <!-- com.day.cq.wcm.commons -->
</dependency>
<dependency>
    <groupId>com.day.cq.wcm</groupId>
    <artifactId>cq-wcm-api</artifactId>
    <!-- com.day.cq.wcm.api -->
</dependency>
<dependency>
    <groupId>com.day.commons</groupId>
    <artifactId>day-commons-jstl</artifactId>
    <!-- javax.servlet.jsp.jstl.core -->
</dependency>
<dependency>
    <groupId>com.day.cq.wcm</groupId>
    <artifactId>cq-wcm-taglib</artifactId>
    <!-- com.day.cq.wcm.tags -->
</dependency>
<dependency>
    <groupId>org.apache.sling</groupId>
    <artifactId>org.apache.sling.scripting.jsp.taglib</artifactId>
    <!-- org.apache.sling.scripting.jsp.taglib -->
</dependency>
<dependency>
    <groupId>com.adobe.granite</groupId>
    <artifactId>com.adobe.granite.xssprotection</artifactId>
    <!-- com.adobe.granite.xss -->
</dependency>
<dependency>
    <groupId>com.day.cq.wcm</groupId>
    <artifactId>cq-wcm-core</artifactId>
    <!-- com.day.cq.wcm.core.components -->
</dependency>
<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
    <!-- org.apache.commons.lang3 -->
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-api</artifactId>
</dependency>

In addition, add the following plugin elements to the POM file in the content folder.

<plugin>
      <artifactId>maven-resources-plugin</artifactId>
      <executions>
        <execution>
          <id>copy-resources</id>
          <phase>generate-sources</phase>
          <goals>
            <goal>copy-resources</goal>
          </goals>
          <configuration>
            <outputDirectory>${project.build.directory}/jsps-to-compile</outputDirectory>
            <resources>
              <resource>
                <directory>src/main/content/jcr_root</directory>
                <excludes>
                  <exclude>libs/**</exclude>
                </excludes>
              </resource>
            </resources>
          </configuration>
        </execution>
      </executions>
    </plugin>
    <plugin>
      <groupId>org.apache.sling</groupId>
      <artifactId>maven-jspc-plugin</artifactId>
      <version>2.0.6</version>
      <executions>
        <execution>
          <id>compile-jsp</id>
          <goals>
            <goal>jspc</goal>
          </goals>
          <configuration>
            <jasperClassDebugInfo>false</jasperClassDebugInfo>
            <sourceDirectory>${project.build.directory}/jsps-to-compile</sourceDirectory>
            <outputDirectory>${project.build.directory}/ignoredjspc</outputDirectory>
          </configuration>
        </execution>
      </executions>
    </plugin>
    <plugin>
      <artifactId>maven-clean-plugin</artifactId>
      <executions>
        <execution>
          <id>remove-compiled-jsps</id>
          <goals>
            <goal>clean</goal>
          </goals>
          <phase>process-classes</phase>
          <configuration>
            <excludeDefaultDirectories>true</excludeDefaultDirectories>
            <filesets>
              <fileset>
                <directory>${project.build.directory}/jsps-to-compile</directory>
                <directory>${project.build.directory}/ignoredjspc</directory>
              </fileset>
            </filesets>
          </configuration>
        </execution>
      </executions>
    </plugin>

Import the Maven project into Eclipse

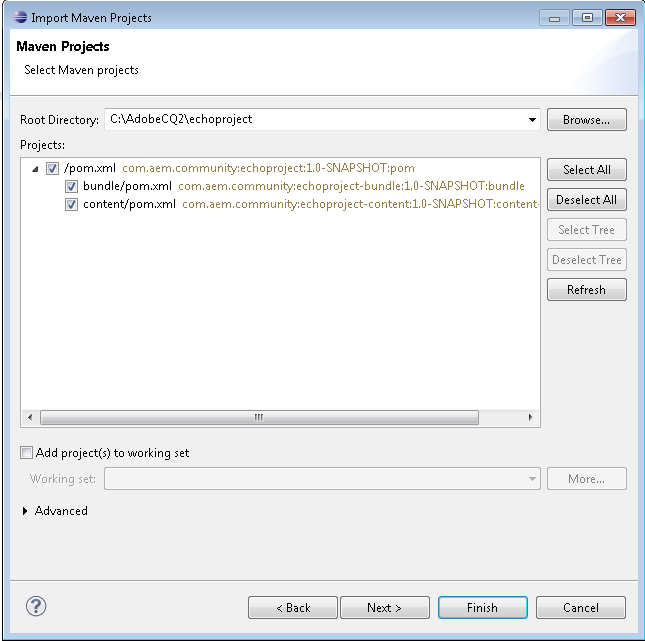

Import the Maven generated project into Eclipse by performing these steps:

1. Start Eclipse.

2. Select File, Import.

3. Select Maven, Existing Maven Project.

4. Browse to the Maven project.



MAven

4. Continue with the default settings and click Finish.

The following illustration shows the echoproject that you created using Maven imported into Eclipse.

EcliProject

To successfully import content from the AEM JCR under apps/myproject, you have to modify the echoproject\content\src\main\content\META-INF\vault\filter.xml file. Add the following lines of bolded XML code:

<?xml version="1.0" encoding="UTF-8"?>
<workspaceFilter version="1.0">
<filter root="/apps/myproject"/>
<filter root="/libs/foundation"/>

</workspaceFilter>

At this point, you have the echoproject in both Eclipse and in AEM JCR (it was placed into AEM when you executed the following maven command: mvn -PautoInstallPackage install).

The following illustration shows the echoproject in AEM at /apps/myproject.

CRXDEMyProject

Now you have the same project located in both Eclipse and AEM JCR. The next task to perform is to synchronize the code by using the vault tool.

Setup the vault tool

The next task to perform is to setup the vault tool so you can use it to synchronize between AEM JCR and Eclipse. For example, later in this development article, a template and page component is created using CRXDE lite. You can synchronize the code using the vault tool.

Note:

Install the filevault tool in your development environment. For details, see How to use the VLT Tool.

Create additional AEM project files in CRXDE Lite

Create a template and page component for the echoproject by using CRXDE lite. Once done, you can synchronize these changes into Eclipse.

Add additional folders to the echoproject application

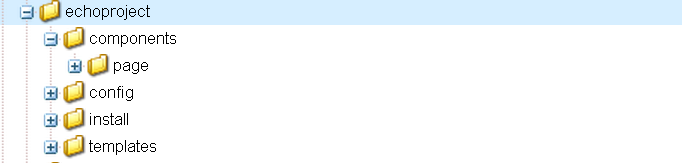

Add two folders under /apps/myproject named templates and components. Under the components folder, add another folder names page. Ensure that your folder structure looks like the following illustration.

CRXDEFolders

To create an AEM application folder structure:

  1. Go to CRXDE Lite at http://localhost:4502/crx/de/index.jsp.
  2. Right-click the echoproject folder (or the parent folder), select Create, Create Folder.
  3. Enter the folder name into the Create Folder dialog box.

Create a template for the echoproject

You can create a template by using CRXDE Lite. An AEM template enables you to define a consistent style for the pages in your application. A template comprises of nodes that specify the page structure. For more information about templates, see Templates.

To create a template, perform these tasks:

1. Go to CRXDE Lite at http://localhost:4502/crx/de/index.jsp.

2. Right-click the template folder (within your application), select Create, Create Template.

3. Enter the following information into the Create Template dialog box:

  • Label: The name of the template to create. Enter templateEcho.
  • Title: The title that is assigned to the template.
  • Description: The description that is assigned to the template.
  • Resource Type: The component's path that is assigned to the template and copied to implementing pages. Enter myproject/components/page/templateEcho.
  • Ranking: The order (ascending) in which this template will appear in relation to other templates. Setting this value to 1 ensures that the template appears first in the list.

5. Add a path to Allowed Paths. Click on the plus sign and enter the following value: /content(/.*)?.

6. Click Next for Allowed Parents.
7. Select OK on Allowed Children.

Add a page component to the echoproject

Components are re-usable modules that implement specific application logic to render the content of your web site. You can think of a component as a collection of scripts (for example, JSPs, Java servlets, and so on) that completely realize a specific function. In order to realize this functionality, it is your responsibility as a CQ developer to create scripts that perform specific functionality. For more information about components, see Components.

By default, a component has at least one default script, identical to the name of the component. To create a render component, perform these tasks:

1. Go to CRXDE Lite.
3. Right-click /apps/echoproject/components/page, then select Create, Create Component.
4. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter templateEcho.
  • Title: The title that is assigned to the component.
  • Description: The description that is assigned to the template.
  • Super Type: foundation/components/page (in AEM 6, you specify this value for page components. In previous versions of AEM, this was not required.)

5. Select Next for Advanced Component Settings and Allowed Parents.
6. Select OK on Allowed Children.
7. Open the templateEcho.jsp located at: /apps/echoproject/components/page/templateEcho/templateEcho.jsp.
8. Enter the following JSP code.

<%@include file="/libs/foundation/global.jsp" %>
<cq:include script="/libs/wcm/core/components/init/init.jsp"/>
<html>
<head>
<title>AEM Echo Page</title>
</head>
<body>
<h2>This page invokes the AEM Echo Service</h2>
<%

com.aem.community.HelloService hello = sling.getService(com.aem.community.HelloService.class);


%>

<h3><%= "The Echo Service says:" +hello.echo("Hello There!")%> </h3>


</body>
</html>

Synchronize the AEM code in Eclipse

At the point, the code in AEM JCR is different from the code in Eclipse. You can now synchronize the changes so they appear in Eclipse. You can execute a vault command from the command line to synchronize the code. From the command line, change the working directory to:

C:\<project dir>\content\src\main\content\jcr_root\apps\myproject

This represents the root of the AEM project. Next, enter the following "vlt full check out" command:

vlt --credentials admin:admin co --force http://localhost:4502/crx/-/jcr:root//apps/myproject

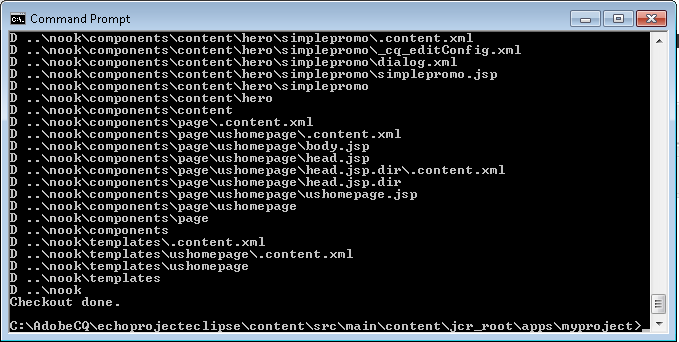

This command results in the vlt tool downloading the content that you created under the app/myproject node. Once done, you will see a message in the command line console that states Checkout done, as shown in the following illustration.

commandline

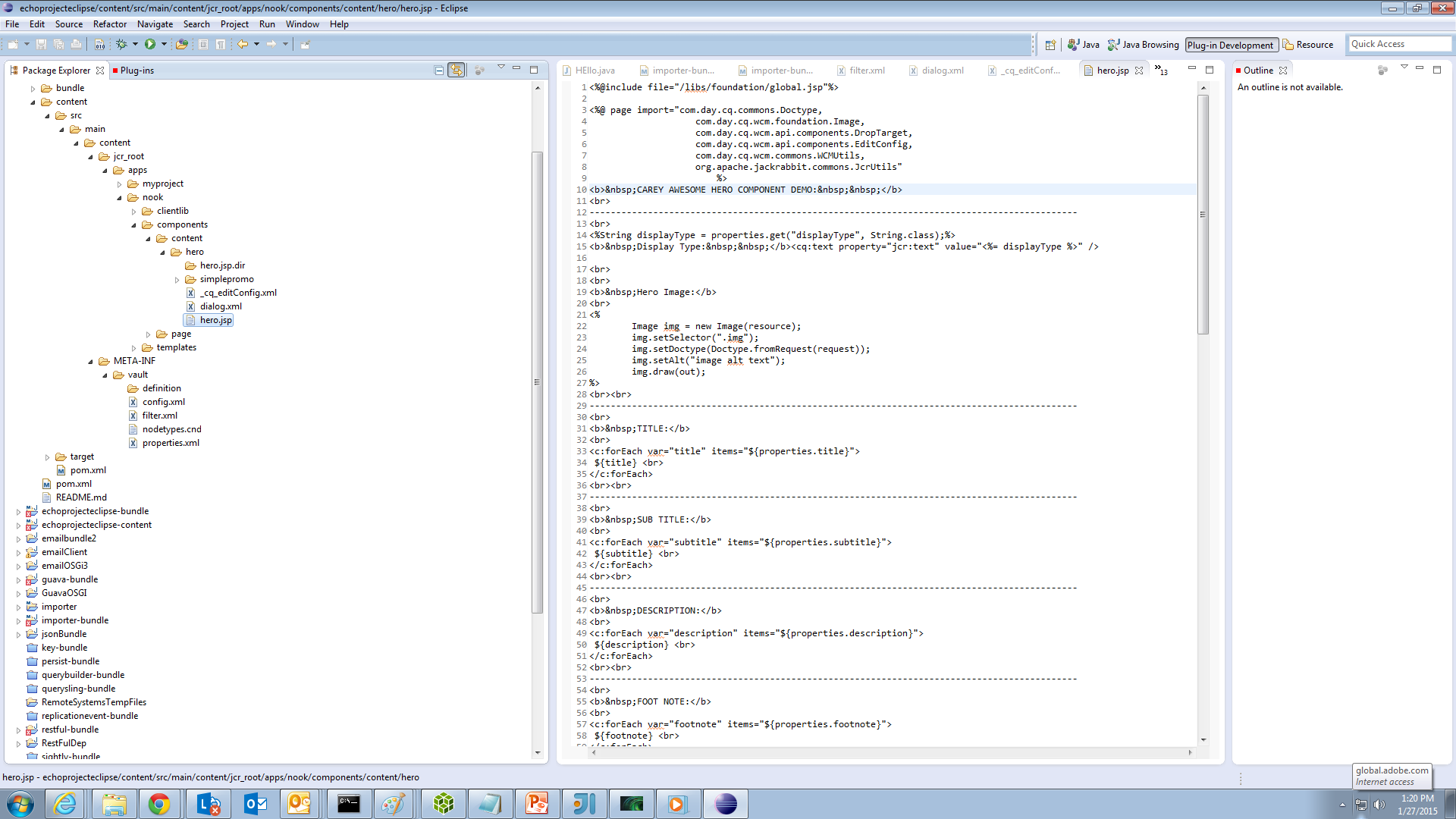

Now you will be able to view the template and page component that you created in CRXDE lite within Eclipse, as shown in this illustration (you may have to refresh your project).

CodeinEclipse

As shown in the previous illustration, you can view the code that you added in CRXDE lite. Now the code is synchronized.  To check in code changes, modify the code in Eclipse. For example, in a templateEcho.jsp file. Next, change the command line to the directory to where this JSP file is located. Enter the following vault check in command:

vlt --credentials admin:admin ci templateEcho.jsp

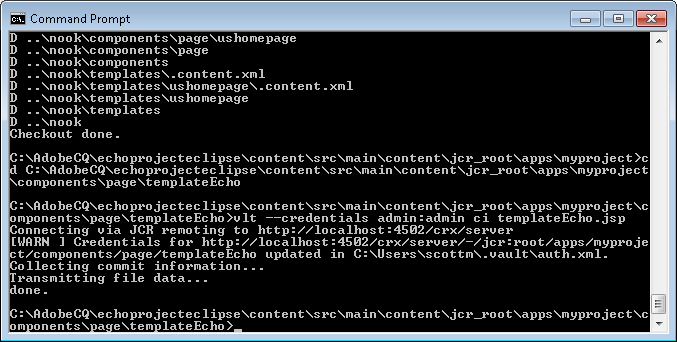

Once done, you will see a message in the command line that states, Transmitting file data...done, as shown in the following illustration.

commandlineci

Note:

There are third-party plug-ins that you can use so you can run vlt from within Eclipse. However, its important to understand how to use vault to check in and check out code without using plug-ins and using the command line tool. Once you understand how to perform these tasks from the command line, you can use a plug-in if you prefer. Or you can continue using the command line. See AEM Developer Tools for Eclipse

Debug the AEM application from Eclipse

You can run the AEM application from Eclipse. To run the application, you have start AEM in debug mode by using the following command from the folder where the AEM quick start is located:

java -Xmx512m -Xdebug -Xrunjdwp:transport=dt_socket,server=y,address=30303,suspend=n -jar cq5-author-p4502.jar

Once the server is started, you can debug the AEM application from Exclipse. The HelloService is invoked and the JSP invokes the echo method, as shown in the following illustration.

EchoApp

To start a remote debugging session from Eclipse, do the following:

  1. Open Eclipse.
  2. Choose Run > Debug Configurations.
  3. Right-click Remote Java Applications and select New.
  4. Select your CQ5 project under Project.
  5. Type in the port from the "address" configuration of the jvm parameters.
  6. To start a debugging session, double-click your new configuration in the Debug Configurations screen after saving it.

See also

Congratulations, you have just created an AEM 6 application and setup remote debugging using Eclipse. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
