Introduction

You can create an Adobe Experience Manager bundle that consumes data from a third-party web service and displays the data in a web page. For example, assume that you use Experience Manager to create a web site for a government department that tracks weather information. In this situation, you can create a bundle that retrieves data from a third-party web service and displays the data within a form located in a web page. The following illustration shows data being retrieved from a third-party web service and displayed in a JSP.

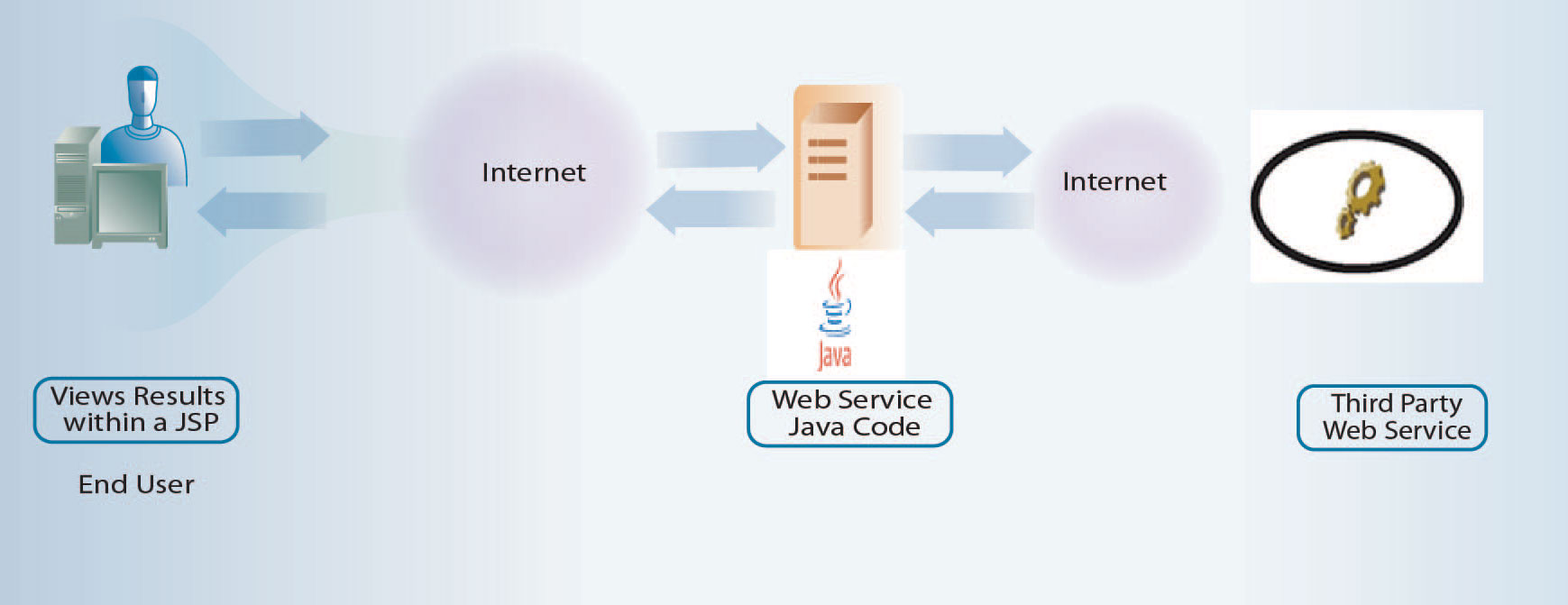

WebServiceBundle2
An Experience Manager application that consumes a third party web service

You can develop an OSGi bundle that contains Java proxy classes that were created by using JAX-WS or AXIS. That is, you can use a tool such as JAX-WS to generate the Java proxy classes that are based on the WSDL of an external web service. Then you can use these Java proxy classes within your OSGi bundle. The OSGi bundle that is created in this development article contains Java proxy classes that consume operations exposed by the following third-party WSDL:

An OSGi bundle lets you dynamically load, unload, configure, and control the Java module without restarting the server. The tool that is used in this development article to create the OSGi bundle is Eclipse. All of the instructions needed to build an OSGi bundle that contains Java web service proxy classes are covered in this development article.

Note:

Before following along with this development article, make sure that you install Adobe Experience Manager 5.5 and have it running. In addition, ensure that you have Eclipse 3.6.1 or higher. Eclipse is used to create the OSGi bundle that contains the Java proxy classes.

Note:

For information on how to place this application into a package (including the OSGi bundle), see Packaging Adobe AEM applications that contain an OSGi bundle.

Note:

For information on how to build a dynamic AEM JSP for this OSGi bundle, see Using JSONWriter objects to display Adobe Experience Manager OSGi data.

Note:

For information about how to invoke LiveCycle ES from Experience Manager using web services, see Integrating LiveCycle into Adobe Experience Manager applications.

Create an application folder structure

You can create an application folder structure that contains templates, components, and pages. Create an application folder structure that displays data from a third-party web service. Before you create application assets such as templates, components, or pages, you create an application, which is essentially a specific folder. You can create this folder structure by using CRXDE Lite.

CQAppSetup
An Experience Manager application structure

The following describes each application folder:

  • Application name: contains all of the resources that an application uses. The resources can be templates, pages, components, and so on
  • components: contains components that your application uses
  • page: contains page components. A page component is a script such as a JSP file
  • global: contains global components that your application uses
  • template: contains templates that you can base page components on
  • src: contains source code that comprises an OSGi component (this development does not create an OSGi bundle using this folder or CRXDE. Rather Eclipse is used)
  • install: contains a compiled OSGi bundles container

To create an application folder structure, perform these steps:

  1. To view the welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite.
  3. Right-click the apps folder (or the parent folder), select Create, Create Folder.
  4. Enter the folder name into the Create Folder dialog box. Enter weatherapp
  5. Repeat steps 1-4 for each folder specified in the previous illustration.
  6. Click the Save All button.

Note:

You have to click the Save All button when working in CRXDE Lite for the changes to be made.

Create a template

You can create a template by using CRXDE Lite. A template enables you to define a consistent style for the pages in your application. A template comprises of nodes that that specify the page structure. For more information about templates, see Templates.

To create an Experience Manager template, perform these steps:

1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click the template folder (within your application), select Create, Create
Template.

4. Enter the following information into the Create Template dialog box:

  • Label: The name of the template to create. Enter weathertemplate.
  • Title: The title that is assigned to the template
  • Description: The description that is assigned to the template
  • Resource Type: The component's path that is assigned to the template and copied to implementing pages. Enter weatherapp/components/page/weathertemplate.
    Ranking: The order (ascending) in which this template will appear in relation to other templates. Setting this value to 1 ensures that the template appears first in the list.

5. Add a path to Allowed Paths. Click on the plus sign and enter the following value: /content(/.*)?.

6. Click Next for Allowed Parents.

7. Select OK on Allowed Children.

Create a render component that uses the template

Components are re-usable modules that implement specific application logic to render the content of your web site. You can think of a component as a collection of scripts (for example, JSPs, Java servlets, and so on) that completely realize a specific function. In order to realize this functionality, it is your responsibility as an Experience Manager developer to create scripts that perform specific functionality. For more information about components, see Components.

By default, a component has at least one default script, identical to the name of the component.
To create a render component:

1. To view the welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click /apps/weatherapp/components/page, then select
Create, Create Component.

4. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter weathertemplate.
  • Title: The title that is assigned to the component
  • Description: The description that is assigned to the template

5. Select Next for Advanced Component Settings and Allowed Parents.

6. Select OK on Allowed Children.

7. Open the weatertemplate.jps located at: /apps/weatherapp /components/page/weathertemplate /weathertemplate.jsp.

8. Enter the following HTML code:

<html>
<head>
<title>Hello World !!!</title>
</head>
<body>
<h1>Hello Web Services</h1>
<h2>This page will contain data from a third-party web service</h2>
</body>
</html>

Create Java proxy classes that consume the soap stack of the external web service

You can use JAX-WS to convert a third-party WSDL to Java proxy classes. These Java classes enable you to invoke operations exposed by the soap stack. In this development article, the operations are exposed by the following WSDL:

http://wsf.cdyne.com/WeatherWS/Weather.asmx?WSDL

Apache Ant lets you create a build script that generates Java proxy classes by referencing the WSDL.

To create Java proxy classes using JAX-WS, perform these steps:
1. Install Apache Ant on the client computer. (See http://ant.apache.org/bindownload.cgi.)
• Add the bin directory to your class path.
• Set the ANT_HOME environment variable to the directory where you installed Ant.
2. Install JDK 1.6 or later.
• Add the JDK bin directory to your class path.
• Add the JRE bin directory to your class path. This bin is located in the [JDK_INSTALL_LOCATION]/jre directory.
• Set the JAVA_HOME environment variable to the directory where you installed the JDK. The JDK 1.6 includes the wsimport program used in the build.xml file. JDK 1.5 does not include that program.
3. Install JAX-WS on the client computer. See http://docs.oracle.com/javaee/6/tutorial/doc/bnayl.html.  (Also see https://jax-ws.java.net.)
4. Use JAX-WS and Apache Ant to generate Java proxy classes. Create an Ant build script to accomplish this task. The following script is a sample Ant build script named build.xml:

<?xml version="1.0" encoding="UTF-8"?>

<project basedir="." default="compile">


<target name="clean" >
<delete dir="classes" />
</target>

<target name="wsdl" depends="clean">
<mkdir dir="classes"/>
<exec executable="wsimport" failifexecutionfails="false" failonerror="true" resultproperty="foundWSIMPORT">
<arg line="-keep -d classes http://wsf.cdyne.com/WeatherWS/Weather.asmx?WSDL"/>
</exec>
<fail unless="foundWSIMPORT">
!!! Failed to execute JDK's wsimport tool. Make sure that JDK 1.6 (or later) is on your PATH !!!
</fail>
</target>

<target name="compile" depends="clean, wsdl" >
<javac destdir="./classes" fork="true" debug="true">
<src path="./src"/>
</javac>
</target>

<target name="run">
<java classname="Client" fork="yes" failonerror="true" maxmemory="200M">
<classpath>
<pathelement location="./classes"/>
</classpath>
</java>
</target>
</project>

5. Create a BAT file to execute the Ant build script. The following command can be located within a BAT file that is responsible for executing the Ant build script:
ant -buildfile "build.xml" wsdl
6. Place the ANT build script in the C:\Program Files\Java\jaxws-ri\bin directory. The script writes the JAVA files to the ./classes folder. The script generates JAVA files that can invoke the operations exposed by the WSDL.
7. Package the JAVA files into a JAR file by using Eclipse. Perform the following tasks:
• Create a new Java project that is used to package the proxy JAVA files into a JAR file.
• Create a source folder in the project.
• Create a cdyne.ws.weatherws package in the source folder. This is the package to which the Java proxy classes belong.
• Select the cdyne.ws.weatherws package and then import the JAVA files that Ant created (see the illustration after this list).
• Set the Java compiler's compliance level to 5.0 or greater.
• Build the project.
• Export the project as a JAR file named WeatherService.jar.

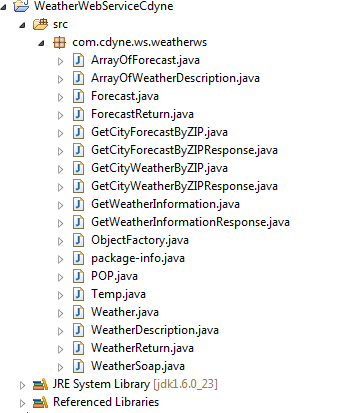

The following illustration shows an Eclipse project that contains all of the Java proxy classes located in a package named cdyne.ws.weatherws. Ensure that your project resembles the following illustration.

ExclipseWSProject

Create the OSGi bundle that contains the Java proxy classes

Create an OSGi bundle that contains WeatherService.jar file. Once you upload the OSGi bundle to Experience Manager, you can call the methods located in Java files that are part of the cdyne.ws.weatherws package. That is, the OSGi bundle is able to invoke operations exposed by the WSDL. To create the OSGi bundle, you can use another Eclipse project. An OSGi bundle is essentially a collection of Java files and a MANIFEST.MF file.

To create an OSGi bundle that contains Java proxy classes using Eclipse, perform these steps:

  1. Start Eclipse (Indigo). The steps below have been tested on Eclipse Java EE IDE for Web Developers version Indigo Service Release 1.
  2. Select File, New, Other.
  3. Under the Plug-in Development folder, choose Plug-in from Existing JAR Archives.
  4. In the JAR selection dialog, click the Add external button, and browse to the WeatherService.jar file that you just created.
  5. Click Next.
  6. In the Plug-in Project properties dialog, ensure that you check the checkbox for Analyze library contents and add dependencies (see the following illustration).
  7. Make sure that the Target Platform is the standard OSGi framework (see the following illustration).
  8.  Ensure the checkboxes for Unzip the JAR archives into the project and Update references to the JAR files are both checked (see the following illustration).

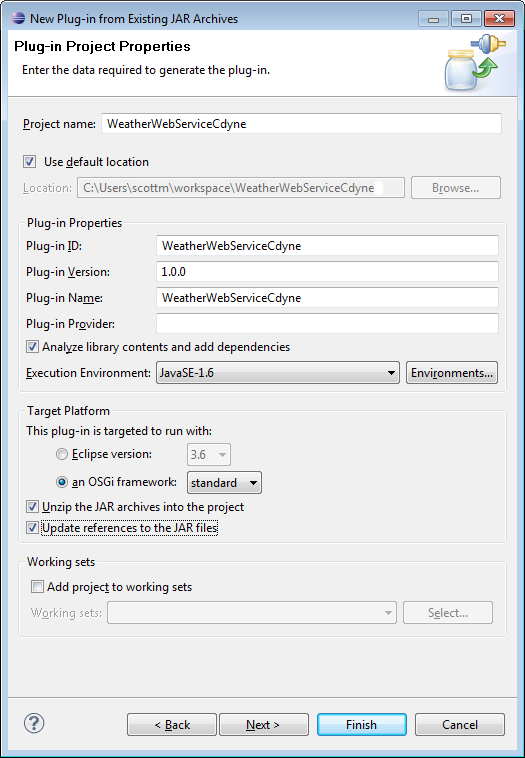

WSBunlde

9. Click Next, and then Finish.

10. Click on the Runtime tab.

11. Make sure that the Exported Packages list is populated.

12. Make sure these have been added under the Export-Package header in MANIFEST.MF. Remove the version information in the MANIFEST.MF file. Version numbers can cause conflicts when you upload the OSGi bundle.

13. Ensure that the Import-Package header in MANIFEST.MF is also populated. The following code represents the MANIFEST.MF file.

Manifest-Version: 1.0
Bundle-ManifestVersion: 2
Bundle-Name: WeatherWebServiceCdyne
Bundle-SymbolicName: WeatherWebServiceCdyne
Bundle-Version: 1.0.0
Export-Package: net.webservicex
Import-Package: javax.xml.namespace,
 javax.xml.bind,
 javax.xml.ws
Bundle-RequiredExecutionEnvironment: JavaSE-1.6

14. Save the project.

15. Build the OSGi bundle by right clicking the project in the left pane, choose Export, Plug-in Development, Deployable plug-ins and fragments and click Next.

16. Select a location for the export (C:\TEMP) and click Finish. (Ignore any error messages).

17. In C:\TEMP\plugins, you should now find the OSGi bundle with a name similar to cdynewebservice_1.0.0.jar.

18. Login to the Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).

19. Sort the bundle list by Id and note the Id of the last bundle.

20. Click the Install/Update button.

21. Check the Start Bundle checkbox.

22. Browse to the bundle JAR file you just built. (C:\TEMP\plugins).

23. Click Install.

24. Click the Refresh Packages button.

25. Check the bundle with the highest Id.

26. Your new bundle should now be listed with the status Active.

27. If the status is not Active, check the CQ error.log for exceptions. If you get “org.osgi.framework.BundleException: Unresolved constraint” errors, check the MANIFEST.MF for strict version requirements which might look as follows: javax.xml.namespace; version=”3.1.0”

28. If the version requirement causes problems, remove it so that the entry looks like this: javax.xml.namespace.

29. If the entry is not required, remove it entirely.

30. Rebuild the bundle.

31. Delete the previous bundle and deploy the new one.

32. If all goes well, the error.log should have log entries such as follows:
*INFO* [FelixDispatchQueue] com.oracle.jdbc BundleEvent STARTED
*INFO* [FelixDispatchQueue] org.apache.felix.framework FrameworkEvent PACKAGES REFRESHED

Note:

Now the Java proxy classes that know how to invoke operations exposed by the WSDL are part of the OSGI service container. You can create Java proxy objects and call their methods from a JSP.

The following illustration shows details about the OSGi bundle that is created in this article.

WSOSGIView

You can view details, such as the Java packages that are part of the OSGi bundle. For example, notice that the com.cdyne.ws.weatherws package is specified in the previous illustration. (Step 18 in the previous procedure described how to login to the Apache Felix Web Console.)

Modify the weathertemplate JSP to call the methods specified in the OSGi bundle

After you build the OSGi bundle and confirm that it has been deployed, you can call its methods from a JSP that is part of a page component. In this development article, the weathertemplate.jsp calls methods defined in the OSGi bundle that invoke operations exposed by the WSDL. Modify this JSP so that it resembles the following JSP code.

<%@include file="/libs/foundation/global.jsp"%>
<h1><%= properties.get("title", currentPage.getTitle()) %></h1>
<%

com.cdyne.ws.weatherws.Weather ww = new com.cdyne.ws.weatherws.Weather();

com.cdyne.ws.weatherws.WeatherSoap ws = ww.getWeatherSoap();

com.cdyne.ws.weatherws.WeatherReturn wr = ws.getCityWeatherByZIP("95101");

%>

<h2>The following describes the weather for 95101 ZIP Code</h2>
<h3><%= "The city is " +wr.getCity()%></h3>
<h3><%= "The state is " +wr.getState()%></h3>
<h3><%= "The description is " +wr.getDescription()%></h3>
<h3><%= "The wind is " +wr.getWind()%></h3>
<h3><%= "The current temp is " +wr.getTemperature()%></h3>
<h3><%= "The current Humidity is " +wr.getRelativeHumidity()%></h3>

Notice how a com.cdyne.ws.weatherws.Weather object can be created and its methods are called. When a method, such as getCity is invoked, an operation exposed by the WSDL is called. The data returned by the web service is displayed in the JSP.

Create a page that displays data retrieved from the OSGi bundle

The final task that you perform in order to see a web page that displays data retrieved from an OSGi bundle is to create a site that contains a page that is based on the weathertemplate (the template created earlier in this development article).

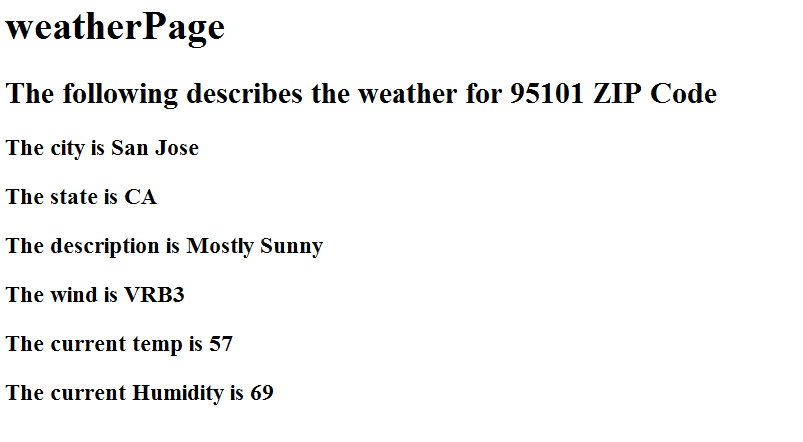

The following illustration shows the data returned by the OSGi bundle being displayed in the web page. The weather information was returned by the web service.

WSClient

To create a web page that displays data retrieved from an OSGi bundle, perform these tasks:

1. To view the welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select Websites.

3. From the left hand pane, select Websites.

4. Select New, New Page.

5. Specify the title of the page in the Title field.

6. Specify the name of the page in the Name field.

7. Select weathertemplate from the template list that appears. This value represents the template that is created in this development article. If you do not see it, then repeat the steps in this development article. For example, if you made a typing mistake when entering in path information when creating the template, the template will not show up in the New Page dialog box.

8. Open the new page that you created by double-clicking it in the right pane. The new page opens in a web browser. You should see a page displaying data similar to the previous illustration.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
