Discusses how to develop an Experience Manager component that uses a data grid based on a CQ.Ext.grid.GridPanel. Also discusses how to populate the grid by using a CQ.Ext.data.Store instance.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
JavaScript, HTML
Tested On Adobe Experience Manager 5.5, 5.6

Note:

The grid component discussed in this article can be downloaded from PackageShare in a package named Using ExtJS Widgets. After you download this package, you will have the files discussed in this article.

Introduction

You can create an Adobe Experience Manager (AEM) custom component that contains a grid control that displays data. The custom component contains a dialog that renders a grid. The data grid is an instance of CQ.Ext.grid.GridPanel. For information, see CQ.Ext.grid.GridPanel.

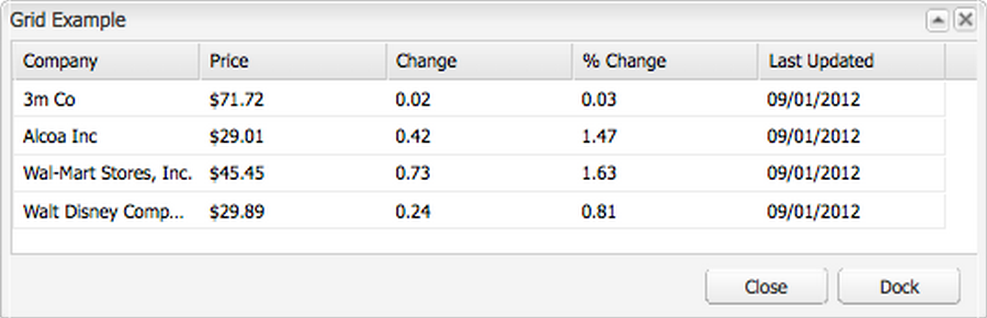

The grid lets an AEM author open the component's dialog and view data, as shown in the following illustration.

Grid



You can populate the grid by using a CQ.Ext.data.Store instance. You can define a JavaScript method that dynamically creates a CQ.Ext.data.Store instance to populate the grid with data obtained at run-time. (The data values in this example are hard coded for simplicity.)

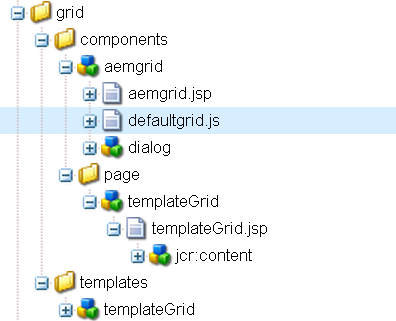

The following illustration shows the project files created in this development article.

projectfiles

The aemgrid is the name of the AEM component that contains a data grid. The aemgrid.jsp and defaultgrid.js files contain JavaScript application logic that is responsible for defining a CQ.Ext.grid.GridPanel instance. In addition, a CQ.Ext.data.Store instance is also created to populate the grid with data. These files are created later in this development article.

This development article steps you through how to build an AEM component that uses a CQ.Ext.grid.GridPanel instance. Perform these steps:

  1. Create a CQ application folder structure.
  2. Create a template.
  3. Create the page component based on the template.
  4. Create a component that uses a grid.
  5. Add a dialog to the grid component.
  6. Add JavaScript code to the component files.
  7. Create a CQ web page that uses the new component.

Create an Experience Manager application folder structure

Create an Experience Manager application folder structure that contains templates, components, and pages by using CRXDE Lite.

CQAppSetup



The following describes each application folder:

  • application name: contains all of the resources that an application uses. The resources can be templates, pages, components, and so on.
  • components: contains components that your application uses.
  • page: contains page components. A page component is a script such as a JSP file.
  • global: contains global components that your application uses.
  • template: contains templates on which you base page components.
  • src: contains source code that comprises an OSGi component (this development article does not create an OSGi bundle using this folder).
  • install: contains a compiled OSGi bundles container.

To create an application folder structure:

  1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite.
  3. Right-click the apps folder (or the parent folder), select Create, Create Folder.
  4. Enter the folder name into the Create Folder dialog box. Enter grid.
  5. Repeat steps 1-4 for each folder specified in the previous illustration.
  6. Click the Save All button.

Note:

You have to click the Save All button when working in CRXDE Lite for the changes to be made.

Create a template

You can create a template by using CRXDE Lite. A CQ template enables you to define a consistent style for the pages in your application. A template comprises of nodes that specify the page structure. For more information about templates, see https://helpx.adobe.com/experience-manager/6-3/sites/developing/using/templates.html.

To create a template, perform these tasks:

1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click the template folder (within your application), select Create, Create Template.

4. Enter the following information into the Create Template dialog box:

  • Label: The name of the template to create. Enter templateGrid.
  • Title: The title that is assigned to the template.
  • Description: The description that is assigned to the template.
  • Resource Type: The component's path that is assigned to the template and copied to implementing pages. Enter grid/components/page/templateGrid.
  • Ranking: The order (ascending) in which this template will appear in relation to other templates. Setting this value to 1 ensures that the template appears first in the list.

5. Add a path to Allowed Paths. Click on the plus sign and enter the following value: /content(/.*)?.

6. Click Next for Allowed Parents.

7. Select OK on Allowed Children.

Create the page component based on the template

Components are re-usable modules that implement specific application logic to render the content of your web site. You can think of a component as a collection of scripts (for example, JSPs, Java servlets, and so on) that completely realize a specific function. In order to realize this functionality, it is your responsibility as a CQ developer to create scripts that perform specific functionality. For more information about components, see https://helpx.adobe.com/experience-manager/6-3/sites/developing/using/components.html.

By default, a component has at least one default script, identical to the name of the component. To create a render component, perform these tasks:

1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click /apps/grid/components/page, then select Create, Create Component.

4. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter templateGrid.
  • Title: The title that is assigned to the component.
  • Description: The description that is assigned to the template.

5. Select Next for Advanced Component Settings and Allowed Parents.

6. Select OK on Allowed Children.

7. Open the templateHook.jsp located at: /apps/grid/components/page/templateGrid/templateGrid.jsp.

8. Enter the following HTML code.

<html>
<%@include file="/libs/foundation/global.jsp" %>
<cq:include script="/libs/wcm/core/components/init/init.jsp"/>
<body>
<h1>Here is where the component will go</h1>
<cq:include path="par" resourceType="foundation/components/parsys" />
</body>
</html>

Create a component that uses a grid

After you setup the AEM folder structure, create the AEM component that uses a grid. Perform these tasks using CRXDE Lite:

1. Right click on /apps/grid/components and then select New, Component.

2. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter aemgrid.
  • Title: The title that is assigned to the component. Enter AEM Grid component.
  • Description: The description that is assigned to the template. Enter AEM Grid component.
  • Super Resource Type: Enter foundation/components/parbase.
  • Group: The group in the side kick where the component appears. Enter General. (The aemgrid component is located under the General heading in the sidekick.)
  • Allowed parents: Enter */*parsys.

3. Click Ok.

Note:

The remaining part of this article talks about how to create the aemgrid component that uses a grid. The aemgrid.jsp file located at /apps/grid/components/aemgrid.jsp is populated with JavaScript logic later in this development article.

Add a dialog to the AEM grid component

A dialog lets an author click on the component during design time and enter values that are used by the component. The component created in this development article lets a user enter values that influence the look of the grid. For example, the user can specify the width, in pixels, of the grid.

The following illustration shows the JCR nodes that represent the dialog created in this section.

GridDialog


To add a dialog to the aemgrid component, perform these tasks:

  1. Select /apps/grid/components/aemgrid, right click and select Create, Create Dialog.
  2. In the Title field, enter aemgrid.
  3. Click Ok.
  4. Delete all nodes under /apps/grid/components/aemgrid/dialog/ (new nodes are created).

Create the Overview tab

Create the first (and only) tab in the dialog titled Tree Overview. This dialog contains input controls that impact the grid. The following illustration shows this tab in the CQ dialog.

Dialog

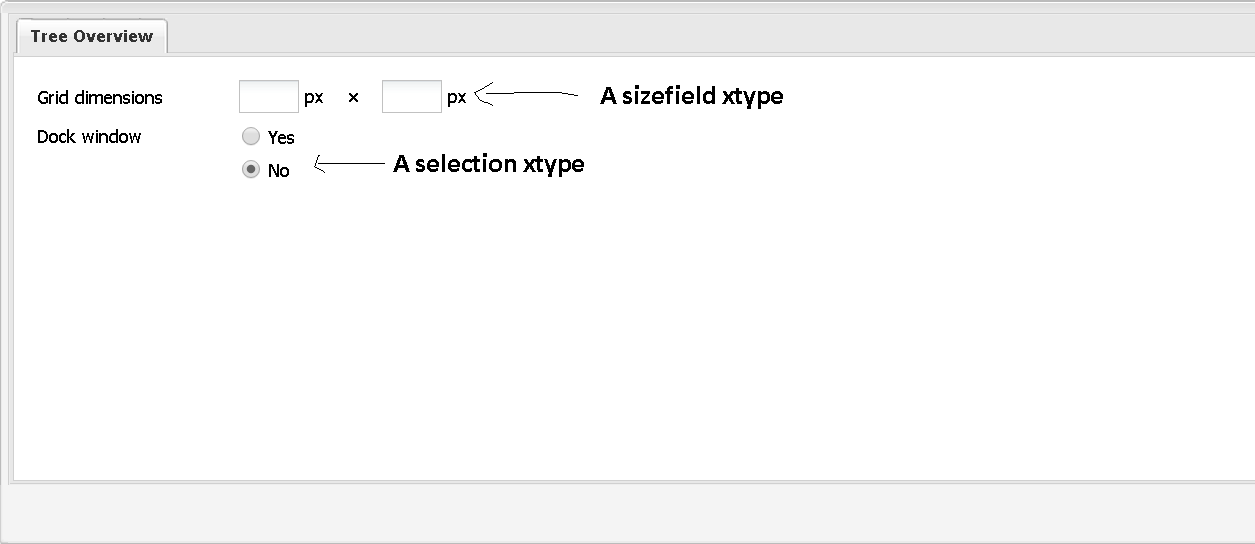

In the previous illustration, notice the Grid dimensions control. This control is based on a sizetype xtype control. A sizetype control lets the user enter the width and height for the grid. For information, see Class CQ.form.SizeField.

The Dock window control is based on a selection xtype. In this example, selecting the Yes option results in the grid being docked. For information, see Class CQ.form.Selection.

To create the Overview tab, perform these tasks:

1. Click on the following node: /apps/grid/components/aemgrid/dialog/.

2. Right click and select Create, Create Node. Enter the following values:

  • Name: items
  • Type: cq:WidgetCollection

3.  Click on the following node: /apps/grid/components/aemgrid/dialog/items.

4. Right click and select Create, Create Node. Enter the following values:

  • Name: size
  • Type: cq:Widget

5. Select the /apps/grid/components/aemgrid/dialog/items/size node.

6. Add the following properties to the size node.

Name Type Value Description
fieldLabel String Grid dimensions Specifies the label for the control.
xtype String sizefield Specifies the data type for the control.

7. Click on the following node: /apps/grid/components/aemgrid/dialog/items.

8. Right click and select Create, Create Node. Enter the following values:

  • Name: docked
  • Type: cq:Widget

9. Select the /apps/grid/components/aemgrid/dialog/items/docked node.

10. Add the following properties to the docked node.

Name Type Value Description
fieldLabel String Dock window Specifies the label for the control.
defaultValue String false Specfies which option is checked.
name String ./docked
Specifies the name of the control.
type String radio Specifies the type of selection. The value radio specifies a radio button.
xtype String selection Specifies the xtype of the control.

11. Click on the following node: /apps/grid/components/aemgrid/dialog/items/docked.

12. Right click and select Create, Create Node. Enter the following values:

  • Name: options
  • Type: cq:WidgetCollection

13. Click on the following node: /apps/grid/components/aemgrid/dialog/items/docked/options.

14. Right click and select Create, Create Node. Enter the following values:

  • Name: v1
  • Type: nt:unstructured.

15. Add the following properties to the V1 node.

Name Type Value Description
text Sting yes The text that is displayed.
value String true The value that corresponds to this option.

16. Click on the following node: /apps/grid/components/aemgrid/dialog/items/docked/options.

17. Right click and select Create, Create Node. Enter the following values:

  • Name: v2
  • Type: nt:unstructured.

18. Add the following properties to the V2 node.

Name Type Value Description
text Sting no The text that is displayed.
value String false The value that corresponds to this option.

Add JavaScript code to the component files

To develop an AEM component that uses a grid, you develop these files:

  • defaultgrid.js: contains JavaScript logic that creates a CQ.Ext.grid.GridPanel instance.
  • aemgrid.jsp: defines JavaScript logic that defines the behaviour of the grid.

defaultgrid.js

The defaultgrid.js file contains application logic that defines both the data grid and the data source that populates the grid with data. The following JavaScript code examples defines a CQ.Ext.grid.GridPanel instance.

var gridPanel = new CQ.Ext.grid.GridPanel({
        border:true,
        store: store,
        columns: [
            {
                id:'company',
                header: "Company",
                dataIndex: 'company'
            },{
                header: "Price",
                renderer: CQ.Ext.util.Format.usMoney,
                dataIndex: 'price'
            },{
                header: "Change",
                dataIndex: 'change'
            },{
                header: "% Change",
                dataIndex: 'pctChange'
            },{
                header: "Last Updated",
                renderer: CQ.Ext.util.Format.dateRenderer('m/d/Y'),
                dataIndex: 'lastChange'
            }
        ],
        viewConfig: {
            forceFit: true
        },
        sm: new CQ.Ext.grid.RowSelectionModel({singleSelect:true}),
        iconCls:'icon-grid'
    });

Notice the store populates the grid with data. You set the store property with a CQ.Ext.data.Store instance. The following JavaScript code example creates a Store instance.

//myData defines data that is displayed in the data grid
var myData = [
      ['3m Co',71.72,0.02,0.03,'9/1 12:00am'],
      ['Alcoa Inc',29.01,0.42,1.47,'9/1 12:00am'],
      ['Wal-Mart Stores, Inc.',45.45,0.73,1.63,'9/1 12:00am'],
      ['Walt Disney Company (The) (Holding Company)',29.89,0.24,0.81,'9/1 12:00am']
    ];

//The Data model that is used to populate the grid. It uses myData as the data source
    var store = new CQ.Ext.data.Store({
        proxy: new CQ.Ext.data.MemoryProxy(myData),
        reader: new CQ.Ext.data.ArrayReader({}, [
            {name: 'company'},
            {name: 'price', type: 'float'},
            {name: 'change', type: 'float'},
            {name: 'pctChange', type: 'float'},
            {name: 'lastChange', type: 'date', dateFormat: 'n/j h:ia'}
        ])
    });

The following code represents the defaultgrid.js that defines the data grid that is used in the AEM component.

//------------------------------------------------------------------------------
// default grid showing basic config

function getGridPanel() {
    var myData = [
      ['3m Co',71.72,0.02,0.03,'9/1 12:00am'],
      ['Alcoa Inc',29.01,0.42,1.47,'9/1 12:00am'],
      ['Wal-Mart Stores, Inc.',45.45,0.73,1.63,'9/1 12:00am'],
      ['Walt Disney Company (The) (Holding Company)',29.89,0.24,0.81,'9/1 12:00am']
    ];


    //The Data model that is used to populate the grid
    var store = new CQ.Ext.data.Store({
        proxy: new CQ.Ext.data.MemoryProxy(myData),
        reader: new CQ.Ext.data.ArrayReader({}, [
            {name: 'company'},
            {name: 'price', type: 'float'},
            {name: 'change', type: 'float'},
            {name: 'pctChange', type: 'float'},
            {name: 'lastChange', type: 'date', dateFormat: 'n/j h:ia'}
        ])
    });

    //load the data
    store.load();

    var gridPanel = new CQ.Ext.grid.GridPanel({
        border:true,
        store: store,
        columns: [
            {
                id:'company',
                header: "Company",
                dataIndex: 'company'
            },{
                header: "Price",
                renderer: CQ.Ext.util.Format.usMoney,
                dataIndex: 'price'
            },{
                header: "Change",
                dataIndex: 'change'
            },{
                header: "% Change",
                dataIndex: 'pctChange'
            },{
                header: "Last Updated",
                renderer: CQ.Ext.util.Format.dateRenderer('m/d/Y'),
                dataIndex: 'lastChange'
            }
        ],
        viewConfig: {
            forceFit: true
        },
        sm: new CQ.Ext.grid.RowSelectionModel({singleSelect:true}),
        iconCls:'icon-grid'
    });
    gridPanel.getColumnModel().defaultSortable = true;
    return gridPanel;
}

aemgrid.jsp

The aemgrid.jsp contains application logic that controls the behaviour of the aemgrid component, including the grid. First, the values defined in the dialog are obtained by using the properties.get method, as shown in the following code example.

// load properties defined by the aemgrid dialog
int width = properties.get("width", 600);
int height = properties.get("height", 300);
boolean docked = properties.get("docked", false);

These values control the behaviour of the data grid. The width and height values specify its size. The docked value specifies whether it's docked.

The following method, named getGridPanel, returns a CQ.Ext.grid.GridPanel instance to a variable named gridPanel. This method is defined in the defaultgrid.js file.

var gridPanel = getGridPanel();

To ensure that the defaultgrid.js file is referenced, the following script tag is included:

<script type="text/javascript" src="/apps/grid/components/aemgrid/defaultgrid.js"></script>

To display a CQ.Ext.grid.GridPanel instance, create a CQ.Ext.Window instance. The width, height, and docked variables are used to create a CQ.Ext.Window instance. This is how the values specified in the component's dialog are hooked into the data grid.

Aslo notice that the gridPanel variable is used, as shown in the following code example.

grid = new CQ.Ext.Window({
            id:"<%= node.getName() %>-grid",
            title:"Grid Example 24",
            layout:"fit",
            hidden:true,
            collapsible:true,
            renderTo:"CQ",
            width:<%= width %>,
            height:<%= height %>,
            x:<%= docked ? 0 : 220 %>,
            y:<%= docked ? 0 : 200 %>,
            closeAction:'hide',
            items: gridPanel,
            listeners: {
                beforeshow: function() {
                    gridPanel.getStore().load();
                }
            },
            buttons:[{
                text:"Close",
                handler: function() {
                    grid.hide();
                }
            },{
                text:"Dock",
                handler: function() {
                    grid.setPosition(0,0);
                }
            }]
        });

Notice that this code defines a window for the data grid. The items property is assigned the gridPanel, which stores an instance of CQ.Ext.grid.GridPanel. This is how a data grid is associated with the window that is defined by using a CQ.Ext.Window data type.

Notice that two buttons are defined.

buttons:[{
text:"Close",
handler: function() {
grid.hide();
}
},{
text:"Dock",
handler: function() {
grid.setPosition(0,0);
}
}]

The first button closes the data grid when the button is clicked. Likewise, the Dock window sets the data grid to positition 0. Using methods that belong to CQ.Ext.grid.GridPanel, you can further control the behaviour of the grid.

The following code represents the aemgrid.jsp file.



<%@include file="/libs/foundation/global.jsp"%><%

    Node node = resource.adaptTo(Node.class);
    // load properties
    int width = properties.get("width", 600);
    int height = properties.get("height", 300);
    boolean docked = properties.get("docked", false);

%>
<h3>Exercise 5: Grid Overview</h3><%
%><p>Learn about:
    <ul>
        <li>The grid config</li>
        <li>The store config</li>
        <li>The expected data format
<code><pre>
{
    results: 3,
    root: [
        { 'id': 1, 'firstname': 'Bill', occupation: 'Gardener' },
        { 'id': 2, 'firstname': 'Frank', occupation: 'Programmer' },
        { 'id': 3, 'firstname': 'Ben' , occupation: 'Horticulturalist' }
    ]
}
</pre></code>
        The above data would require the following store config to consume:
<code><pre>
var store = new CQ.Ext.data.JsonStore({
    reader: {
        totalProperty:"results",
        root:"root",
        id:"id"
    },
    url:"/content/test.json"
});
</pre></code>
        </li>
    </ul>
</p>
 <script type="text/javascript" src="/apps/grid/components/aemgrid/defaultgrid.js"></script>
 <script type="text/javascript">

    var grid = CQ.Ext.getCmp("<%= node.getName() %>-grid");
    if (!grid) {

        var gridPanel = getGridPanel();

        grid = new CQ.Ext.Window({
            id:"<%= node.getName() %>-grid",
            title:"Grid Example 24",
            layout:"fit",
            hidden:true,
            collapsible:true,
            renderTo:"CQ",
            width:<%= width %>,
            height:<%= height %>,
            x:<%= docked ? 0 : 220 %>,
            y:<%= docked ? 0 : 200 %>,
            closeAction:'hide',
            items: gridPanel,
            listeners: {
                beforeshow: function() {
                    gridPanel.getStore().load();
                }
            },
            buttons:[{
                text:"Close",
                handler: function() {
                    grid.hide();
                }
            },{
                text:"Dock",
                handler: function() {
                    grid.setPosition(0,0);
                }
            }]
        });
        grid.show();
    } else {
        grid.setWidth(<%= width %>);
        grid.setHeight(<%= height %>);
        grid.setPosition(<%= docked ? 0 : 500 %>,<%= docked ? 0 : 100 %>);
        grid.show();
    }

</script>

Add the files to the project

  1. To view the CQ welcome page, enter the URL: http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite.
  3. Double-click /apps/grid/components/aemgrid/aemgrid.jsp.
  4. Replace the JSP code with the new code shown in this section.
  5. Select apps/grid/components/aemgrid. Add a new file named defaultgrid.js.
  6. Add the code shown in this section to this file.
  7. Click Save All.

Create a CQ web page that uses the aemgrid component

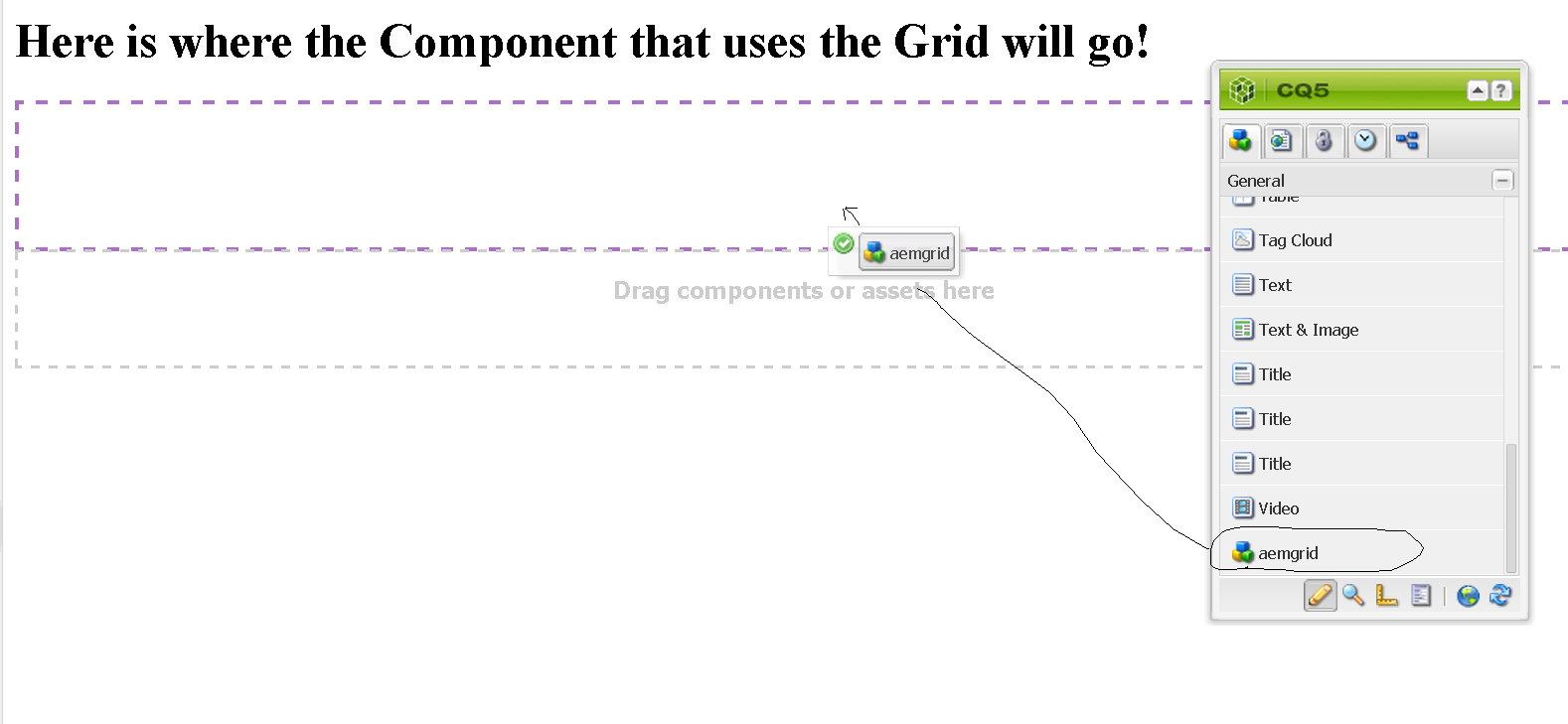

The final task is to create a site that contains a page that is based on the templateGrid (the template created earlier in this development article). This CQ page will let you select the aemgrid that you just created from the CQ sidekick, as shown in the following illustration.

sidekick

  1. Go to the CQ welcome page at http://[host name]:[port]; for example, http://localhost:4502.
  2. Select Websites.
  3. From the left hand pane, select Websites.
  4. Select New Page.
  5. Specify the title of the page in the Title field.
  6. Specify the name of the page in the Name field.
  7. Select templateGrid from the template list that appears. This value represents the template that is created in this development article. If you do not see it, then repeat the steps in this development article. For example, if you made a typing mistake when entering in path information, the template will not show up in the New Page dialog box.
  8. Open the new page that you created by double-clicking it in the right pane. The new page opens in a web browser. Drag the aemgrid component from the sidekick under the General category.
  9. Double click on the aemgrid component. Enter values into the dialog. Once done, the data grid is displayed.

See also

Congratulations, you have just created an AEM xtype component that uses a grid. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
