Article summary

Summary

Discusses how to create a color picker widget that can be used within a Touch UI dialog.

A special thank you to Praveen Dubey, a top AEM community member, for contributing AEM code that is used in this article.  It's great community members like Praveen that helps the overall AEM community. If you would like to contribute in this manner to help the AEM community, please reach out to the AEM community manager, Scott Macdonald (scottm@adobe.com).

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (Intermediate)
Required Skills
JCR nodes, JavaScript, HTML
Tested On Adobe Experience Manager 6.1

Note:

You can download an AEM package that contains the code used in this article. Download the package and deploy using package manager. The purpose of this code is to show the community these concepts in action. That is, it's to illustrate how to write an AEM Touch UI component that has a color picker widget. This community code is for teaching purposes only and not meant to go into production as is. You can view the sample community application by using the following URL: http://localhost:4502/editor.html/content/sightlymf.html (assuming you deploy on author).

Download

Introduction

You can create an Adobe Experience Manager (AEM) 6 Touch UI component that contains a color picker in the dialog. This lets AEM authors easily select a color from a color wheel. The color is specified as a HEX value that is used by the component, as shown in the following illustration.

client
A Touch UI dialog that contains a color picker

To successfully implement the color picker in an AEM Touch UI dialog, you need to use Granite API logic, as discussed later in this development article.

Install the AEM color picker package

Install the AEM packages that are shown at the start of this community article. For information, see INSTALLING PACKAGES.

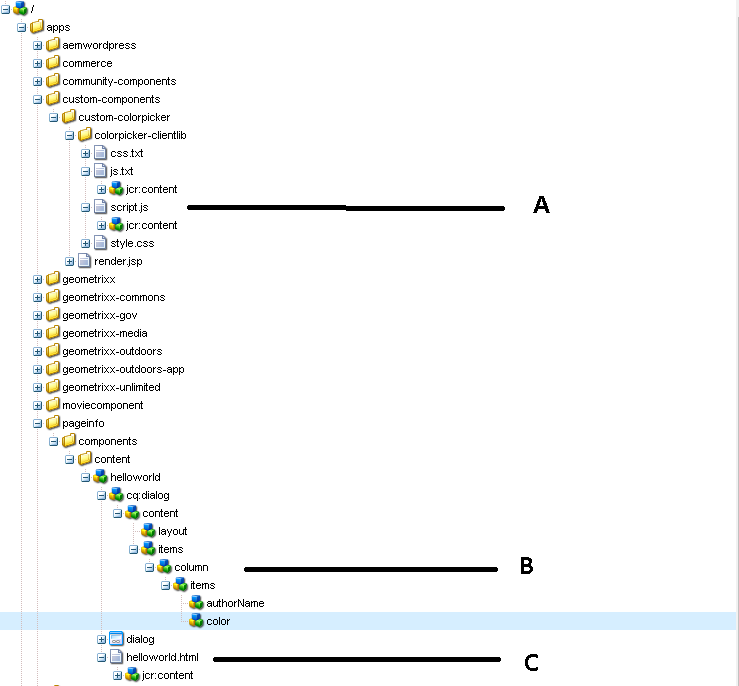

Once you install these packages, you can view the following project files.

projectfiles



The following describes the project files:

  • A - an AEM clientlibs folder that contains a JQuery plug-in responsible for the color picker
  • B - the AEM TouchUI dialog.
  • C - an AEM Sightly file.



In addition, the package also installs DAM assets in this location:

/content/dam/pageinfo

The following illustration shows these assets

assets
Assets used by the color picker

Color picker component dialog

The color picker component's dialog lets an author select a specific color value from a color wheel. The color value is expressed as a HEX value. For example, #eaf359.

The following illustration shows the JCR nodes that represents the component's dialog.

dialog
JCR nodes that make up the dialog

Notice the color node at /apps/pageinfo/components/content/helloworld/cq:dialog/content/items/column/items/color.

The Sling resource type for this node is /apps/custom-components/custom-colorpicker. In the custom-colorpicker resource, there is a clientlibs folder that contains application logic that defines the color picker.

Colorpicker clientlib

The colorpicker clientlibs folder contains a JQuery plug-in:

https://acko.net/blog/farbtastic-jquery-color-picker-plug-in/

This plug-in defines the color picker wheel. This is located at the following JCR location: /apps/custom-components/custom-colorpicker/colorpicker-clientlib.

Script JS

The main application logic is in script.js.

jQuery.fn.farbtastic = function (callback) {
  $.farbtastic(this, callback);
  return this;
};

jQuery.farbtastic = function (container, callback) {
  var container = $(container).get(0);
  return container.farbtastic || (container.farbtastic = new jQuery._farbtastic(container, callback));
}

jQuery._farbtastic = function (container, callback) {
  // Store farbtastic object
  var fb = this;

  // Insert markup
  $(container).html('<div class="farbtastic"><div class="color"></div><div class="wheel"></div><div class="overlay"></div><div class="h-marker marker"></div><div class="sl-marker marker"></div></div>');
  var e = $('.farbtastic', container);
  fb.wheel = $('.wheel', container).get(0);
  // Dimensions
  fb.radius = 84;
  fb.square = 100;
  fb.width = 194;

  // Fix background PNGs in IE6
  if (navigator.appVersion.match(/MSIE [0-6]\./)) {
    $('*', e).each(function () {
      if (this.currentStyle.backgroundImage != 'none') {
        var image = this.currentStyle.backgroundImage;
        image = this.currentStyle.backgroundImage.substring(5, image.length - 2);
        $(this).css({
          'backgroundImage': 'none',
          'filter': "progid:DXImageTransform.Microsoft.AlphaImageLoader(enabled=true, sizingMethod=crop, src='" + image + "')"
        });
      }
    });
  }

  /**
   * Link to the given element(s) or callback.
   */
  fb.linkTo = function (callback) {
    // Unbind previous nodes
    if (typeof fb.callback == 'object') {
      $(fb.callback).unbind('keyup', fb.updateValue);
    }

    // Reset color
    fb.color = null;

    // Bind callback or elements
    if (typeof callback == 'function') {
      fb.callback = callback;
    }
    else if (typeof callback == 'object' || typeof callback == 'string') {
      fb.callback = $(callback);
      fb.callback.bind('keyup', fb.updateValue);
      if (fb.callback.get(0).value) {
        fb.setColor(fb.callback.get(0).value);
      }
    }
    return this;
  }
  fb.updateValue = function (event) {
    if (this.value && this.value != fb.color) {
      fb.setColor(this.value);
    }
  }

  /**
   * Change color with HTML syntax #123456
   */
  fb.setColor = function (color) {
    var unpack = fb.unpack(color);
    if (fb.color != color && unpack) {
      fb.color = color;
      fb.rgb = unpack;
      fb.hsl = fb.RGBToHSL(fb.rgb);
      fb.updateDisplay();
    }
    return this;
  }

  /**
   * Change color with HSL triplet [0..1, 0..1, 0..1]
   */
  fb.setHSL = function (hsl) {
    fb.hsl = hsl;
    fb.rgb = fb.HSLToRGB(hsl);
    fb.color = fb.pack(fb.rgb);
    fb.updateDisplay();
    return this;
  }

  /////////////////////////////////////////////////////

  /**
   * Retrieve the coordinates of the given event relative to the center
   * of the widget.
   */
  fb.widgetCoords = function (event) {
    var x, y;
    var el = event.target || event.srcElement;
    var reference = fb.wheel;

    if (typeof event.offsetX != 'undefined') {
      // Use offset coordinates and find common offsetParent
      var pos = { x: event.offsetX, y: event.offsetY };

      // Send the coordinates upwards through the offsetParent chain.
      var e = el;
      while (e) {
        e.mouseX = pos.x;
        e.mouseY = pos.y;
        pos.x += e.offsetLeft;
        pos.y += e.offsetTop;
        e = e.offsetParent;
      }

      // Look for the coordinates starting from the wheel widget.
      var e = reference;
      var offset = { x: 0, y: 0 }
      while (e) {
        if (typeof e.mouseX != 'undefined') {
          x = e.mouseX - offset.x;
          y = e.mouseY - offset.y;
          break;
        }
        offset.x += e.offsetLeft;
        offset.y += e.offsetTop;
        e = e.offsetParent;
      }

      // Reset stored coordinates
      e = el;
      while (e) {
        e.mouseX = undefined;
        e.mouseY = undefined;
        e = e.offsetParent;
      }
    }
    else {
      // Use absolute coordinates
      var pos = fb.absolutePosition(reference);
      x = (event.pageX || 0*(event.clientX + $('html').get(0).scrollLeft)) - pos.x;
      y = (event.pageY || 0*(event.clientY + $('html').get(0).scrollTop)) - pos.y;
    }
    // Subtract distance to middle
    return { x: x - fb.width / 2, y: y - fb.width / 2 };
  }

  /**
   * Mousedown handler
   */
  fb.mousedown = function (event) {
    // Capture mouse
    if (!document.dragging) {
      $(document).bind('mousemove', fb.mousemove).bind('mouseup', fb.mouseup);
      document.dragging = true;
    }

    // Check which area is being dragged
    var pos = fb.widgetCoords(event);
    fb.circleDrag = Math.max(Math.abs(pos.x), Math.abs(pos.y)) * 2 > fb.square;

    // Process
    fb.mousemove(event);
    return false;
  }

  /**
   * Mousemove handler
   */
  fb.mousemove = function (event) {
    // Get coordinates relative to color picker center
    var pos = fb.widgetCoords(event);

    // Set new HSL parameters
    if (fb.circleDrag) {
      var hue = Math.atan2(pos.x, -pos.y) / 6.28;
      if (hue < 0) hue += 1;
      fb.setHSL([hue, fb.hsl[1], fb.hsl[2]]);
    }
    else {
      var sat = Math.max(0, Math.min(1, -(pos.x / fb.square) + .5));
      var lum = Math.max(0, Math.min(1, -(pos.y / fb.square) + .5));
      fb.setHSL([fb.hsl[0], sat, lum]);
    }
    return false;
  }

  /**
   * Mouseup handler
   */
  fb.mouseup = function () {
    // Uncapture mouse
    $(document).unbind('mousemove', fb.mousemove);
    $(document).unbind('mouseup', fb.mouseup);
    document.dragging = false;
  }

  /**
   * Update the markers and styles
   */
  fb.updateDisplay = function () {
    // Markers
    var angle = fb.hsl[0] * 6.28;
    $('.h-marker', e).css({
      left: Math.round(Math.sin(angle) * fb.radius + fb.width / 2) + 'px',
      top: Math.round(-Math.cos(angle) * fb.radius + fb.width / 2) + 'px'
    });

    $('.sl-marker', e).css({
      left: Math.round(fb.square * (.5 - fb.hsl[1]) + fb.width / 2) + 'px',
      top: Math.round(fb.square * (.5 - fb.hsl[2]) + fb.width / 2) + 'px'
    });

    // Saturation/Luminance gradient
    $('.color', e).css('backgroundColor', fb.pack(fb.HSLToRGB([fb.hsl[0], 1, 0.5])));

    // Linked elements or callback
    if (typeof fb.callback == 'object') {
      // Set background/foreground color
      $(fb.callback).css({
        backgroundColor: fb.color,
        color: fb.hsl[2] > 0.5 ? '#000' : '#fff'
      });

      // Change linked value
      $(fb.callback).each(function() {
        if (this.value && this.value != fb.color) {
            console.log("change");
          this.value = fb.color;
        }
      });
    }
    else if (typeof fb.callback == 'function') {
      fb.callback.call(fb, fb.color);
    }
  }

  /**
   * Get absolute position of element
   */
  fb.absolutePosition = function (el) {
    var r = { x: el.offsetLeft, y: el.offsetTop };
    // Resolve relative to offsetParent
    if (el.offsetParent) {
      var tmp = fb.absolutePosition(el.offsetParent);
      r.x += tmp.x;
      r.y += tmp.y;
    }
    return r;
  };

  /* Various color utility functions */
  fb.pack = function (rgb) {
    var r = Math.round(rgb[0] * 255);
    var g = Math.round(rgb[1] * 255);
    var b = Math.round(rgb[2] * 255);
    return '#' + (r < 16 ? '0' : '') + r.toString(16) +
           (g < 16 ? '0' : '') + g.toString(16) +
           (b < 16 ? '0' : '') + b.toString(16);
  }

  fb.unpack = function (color) {
    if (color.length == 7) {
      return [parseInt('0x' + color.substring(1, 3)) / 255,
        parseInt('0x' + color.substring(3, 5)) / 255,
        parseInt('0x' + color.substring(5, 7)) / 255];
    }
    else if (color.length == 4) {
      return [parseInt('0x' + color.substring(1, 2)) / 15,
        parseInt('0x' + color.substring(2, 3)) / 15,
        parseInt('0x' + color.substring(3, 4)) / 15];
    }
  }

  fb.HSLToRGB = function (hsl) {
    var m1, m2, r, g, b;
    var h = hsl[0], s = hsl[1], l = hsl[2];
    m2 = (l <= 0.5) ? l * (s + 1) : l + s - l*s;
    m1 = l * 2 - m2;
    return [this.hueToRGB(m1, m2, h+0.33333),
        this.hueToRGB(m1, m2, h),
        this.hueToRGB(m1, m2, h-0.33333)];
  }

  fb.hueToRGB = function (m1, m2, h) {
    h = (h < 0) ? h + 1 : ((h > 1) ? h - 1 : h);
    if (h * 6 < 1) return m1 + (m2 - m1) * h * 6;
    if (h * 2 < 1) return m2;
    if (h * 3 < 2) return m1 + (m2 - m1) * (0.66666 - h) * 6;
    return m1;
  }

  fb.RGBToHSL = function (rgb) {
    var min, max, delta, h, s, l;
    var r = rgb[0], g = rgb[1], b = rgb[2];
    min = Math.min(r, Math.min(g, b));
    max = Math.max(r, Math.max(g, b));
    delta = max - min;
    l = (min + max) / 2;
    s = 0;
    if (l > 0 && l < 1) {
      s = delta / (l < 0.5 ? (2 * l) : (2 - 2 * l));
    }
    h = 0;
    if (delta > 0) {
      if (max == r && max != g) h += (g - b) / delta;
      if (max == g && max != b) h += (2 + (b - r) / delta);
      if (max == b && max != r) h += (4 + (r - g) / delta);
      h /= 6;
    }
    return [h, s, l];
  }

  // Install mousedown handler (the others are set on the document on-demand)
  $('*', e).mousedown(fb.mousedown);

    // Init color
  fb.setColor('#000000');

  // Set linked elements/callback
  if (callback) {
    fb.linkTo(callback);
  }
}

style.css

The style.css defines the CSS for the color picker plug-in. Notice that the assets located in the AEM DAM are also referenced. For example:

background: url(/content/dam/pageinfo/wheel.png) no-repeat;
width: 195px;
height: 195px;
}

The following code represents the style.css file.



.farbtastic {
  position: relative;
}
.farbtastic * {
  position: absolute;
  cursor: crosshair;
}
.farbtastic, .farbtastic .wheel {
  width: 195px;
  height: 195px;
}
.farbtastic .color, .farbtastic .overlay {
  top: 47px;
  left: 47px;
  width: 101px;
  height: 101px;
}
.farbtastic .wheel {
  background: url(/content/dam/pageinfo/wheel.png) no-repeat;
  width: 195px;
  height: 195px;
}
.farbtastic .overlay {
  background: url(/content/dam/pageinfo/mask.png) no-repeat;
}
.farbtastic .marker {
  width: 17px;
  height: 17px;
  margin: -8px 0 0 -8px;
  overflow: hidden;
  background: url(/content/dam/pageinfo/marker.png) no-repeat;
}

Sightly code

The Sightly code is located in this file:

/apps/pageinfo/components/content/helloworld/helloworld.html

The following represents this code.

<p> Color : ${properties.color}</p>
<p style="color:${properties.color @ context='styleToken'};"> Text : ${properties.text}</p>

In this example, the color value that an author selects from the dialog is displayed.

page
Sightly code displaying color values

Note:

You can view the Touch UI component that uses the color picker at http://localhost:4502/editor.html/content/sightlymf.html (you need to install the package).

See also

Congratulations, you have just created an AEM 6 Touch UI component. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.
