Article summary

Summary

Discusses how to create an Adobe Experience Manager OSGi bundle that is able to perform AEM user operations. The Jackrabbit UserManager API is used within the OSGi bundle.

This article uses an Adobe Maven Archetype project to build an OSGi bundle. If you are not familiar with an Adobe Maven Archetype project, it is recommended that you read the following article: Creating your first AEM Service using an Adobe Maven Archetype project.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, Sling, HTML
Tested On Adobe Experience Manager  5.5, 5.6

Introduction

You can develop an Adobe Experience Manager (AEM) OSGi bundle that uses the Jackrabbit UserManager APIs to perform AEM user operations. This API provides access to both AEM users and groups and is located in the org.apache.jackrabbit.api.security.user Java package. For more information, see Interface UserManager.

Using an OSGi bundle that contains these APIs, you can retrieve AEM user identifer values and perform a task using these values. In this development article, the retrieved AEM user identifier values are written to the Experience Manager log file.

7.12.2013 17:25:09.689 *INFO* [0:0:0:0:0:0:0:1 [1387319109155] GET /content/Blog.html HTTP/1.1] com.aem.users.SearchUsersImpl Retrieved USER admin

17.12.2013 17:25:09.689 *INFO* [0:0:0:0:0:0:0:1 [1387319109155] GET /content/Blog.html HTTP/1.1] com.aem.users.SearchUsersImpl Retrieved USER replication-receiver

17.12.2013 17:25:09.708 *INFO* [0:0:0:0:0:0:0:1 [1387319109155] GET /content/Blog.html HTTP/1.1] com.aem.users.SearchUsersImpl Retrieved USER anonymous

17.12.2013 17:25:09.709 *INFO* [0:0:0:0:0:0:0:1 [1387319109155] GET /content/Blog.html HTTP/1.1] com.aem.users.SearchUsersImpl Retrieved USER zachary.w.mitchell@spambob.com

Note:

Instread of writing out data values to the CQ log file, you can display data generated from an OSGi bundle within a CQ web page. Typically the data is displayed in a control, such as a data grid control. For information, see Querying Adobe Experience Manager Data using the JCR API.

This development article guides you through creating an AEM application that retrieves CQ user data by using the Jackrabbit UserManager API. Application logic that retrieves AEM user data is implemented as an OSGi bundle that is built using Declarative Services (DS) and Maven. DS is used to inject a ResourceResolverFactory instance into the service. The OSGi bundle is a managed component, which means that the OSGi service container creates the ResourceResolverFactory instance.

Create an AEM application folder structure

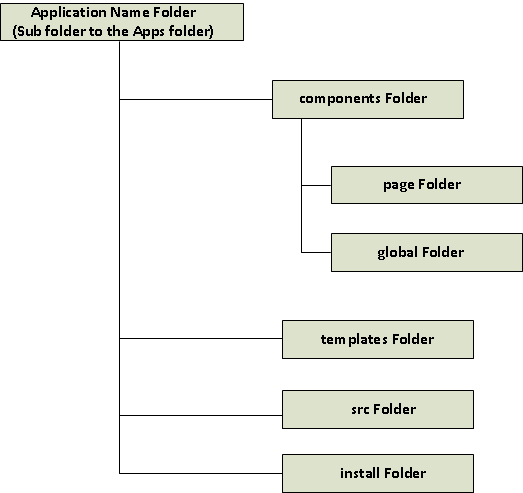

Create an AEM application folder structure that contains templates, components, and pages by using CRXDE Lite.

CQAppSetup

The following describes each application folder:

  • application name: contains all of the resources that an application uses. The resources can be templates, pages, components, and so on.
  • components: contains components that your application uses.
  • page: contains page components. A page component is a script such as a JSP file.
  • global: contains global components that your application uses.
  • template: contains templates on which you base page components.
  • src: contains source code that comprises an OSGi component (this development article does not create an OSGi bundle using this folder).
  • install: contains a compiled OSGi bundles container.

To create an AEM application folder structure:

  1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite (if you are using AEM 5.6, click Tools from the left menu).
  3. Right-click the apps folder (or the parent folder), select Create, Create Folder.
  4. Enter the folder name into the Create Folder dialog box. Enter userapp
  5. Repeat steps 1-4 for each folder specified in the previous illustration.
  6. Click the Save All button.

Note:

You have to click the Save All button when working in CRXDE Lite for the changes to be made.

Create a template

You can create a template by using CRXDE Lite. A CQ template enables you to define a consistent style for the pages in your application. A template comprises of nodes that specify the page structure. For more information about templates, see http://dev.day.com/docs/en/cq/current/developing/templates.html.

To create a template, perform these tasks:
1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
2. Select CRXDE Lite (if you are using AEM 5.6, click Tools from the left menu).
3. Right-click the template folder (within your application), select Create, Create
Template.
4. Enter the following information into the Create Template dialog box:

  • Label: The name of the template to create. Enter templateUserApp
  • Title: The title that is assigned to the template.
  • Description: The description that is assigned to the template.
  • Resource Type: The component's path that is assigned to the template and copied to implementing pages. Enter userapp/components/page/templateUserApp.
  • Ranking: The order (ascending) in which this template will appear in relation to other templates. Setting this value to 1 ensures that the template appears first in the list.

5. Add a path to Allowed Paths. Click on the plus sign and enter the following value: /content(/.*)?.
6. Click Next for Allowed Parents.
7. Select OK on Allowed Children.


Create a render component that uses the template

Components are re-usable modules that implement specific application logic to render the content of your web site. You can think of a component as a collection of scripts (for example, JSPs, Java servlets, and so on) that completely realize a specific function. In order to realize this functionality, it is your responsibility as a CQ developer to create scripts that perform specific functionality. For more information about components, see http://dev.day.com/docs/en/cq/current/developing/components.html.

By default, a component has at least one default script, identical to the name of the component. To create a render component, perform these tasks:
1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
2. Select CRXDE Lite (if you are using AEM 5.6, click Tools from the left menu).
3. Right-click /apps/userapp/components/page, then select
Create, Create Component.
4. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter templateUserApp
  • Title: The title that is assigned to the component.
  • Description: The description that is assigned to the template.

5. Select Next for Advanced Component Settings and Allowed Parents.
6. Select OK on Allowed Children.
7. Open the templateUserApp.jsp located at: /apps/userapp/components/page/templateUserApp/templateUserApp.jsp.
8. Enter the following JSP code

<html>
<head>
<title>Hello World !!!</title>
</head>
<body>
<h1>Hello CQ Users!!!</h1>
<h2>This page will retrieves CQ users</h2>
</body>
</html>

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that uses the JCR API and is deployed to Experience Manager. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"



Note:

For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

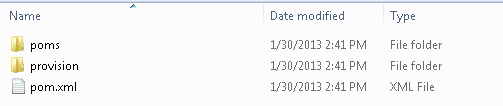

plugin1

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.aem.users -DartifactId=users -Dversion=1.0-SNAPSHOT -Dpackage=com.aem.users -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

3. When prompted for additional information, specify Y.

4. Once done, you will see a message like:
[INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
[INFO] Final Memory: 10M/184M

5. Change the command prompt to the generated project. For example: C:\AdobeCQ\users. Run the following Maven command:

mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.


Add Java files to the Maven project using Eclipse

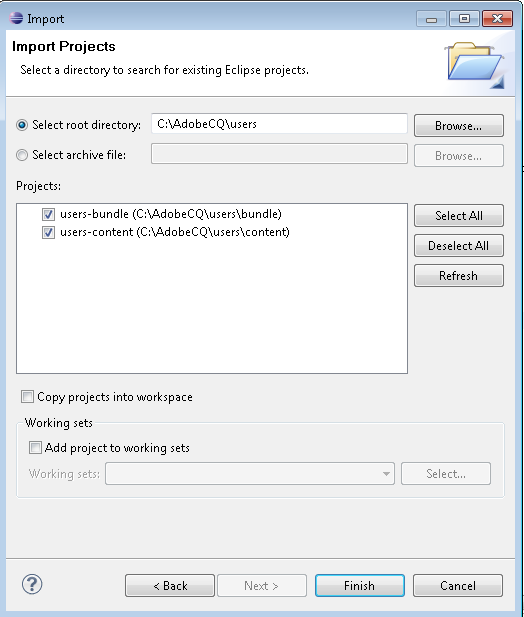

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

Users

The next step is to add Java files to the com.aem.users package. The Java files that you create in this section use the Jackrabit UserManager API. For information, see Interface UserManager.

Add the following Java files to the com.aem.users package:

  • A Java interface named SearchUsers.
  • A Java class named SearchUsersImpl that implements the SearchUsers interface.

SeachUsers interface

The following code represents the SeachUsers interface. This interface contains a method signature named getCQUsers. The implementation logic for this method is located in the SeachUsersImpl class. The getCQUsers method uses the Jackrabbit UserManager API to retrieve AEM users.

package com.aem.users;

public interface SearchUsers {

	public String getCQUsers();

}

SeachUsersImpl class

The SearchUsersImpl class uses the following Apache Felix SCR annotations to create the OSGi component:

  • @Component – defines the class as a component
  • @Service - defines the service interface that is provided by the component
  • @Reference – injects a service into the component

In this development article, a ResourceResolverFactory instance is injected into the getCQUsers method. This instance is required to create a Session instance that lets you create a UserManager instance. To inject a ResourceResolverFactory instance, you use the @Reference annotation to define a class member, as shown in the following example.

//Inject a Sling ResourceResolverFactory
@Reference
private ResourceResolverFactory resolverFactory;

Within the getCQUsers method, invoke the ResourceResolver object's adaptTo method to create a Session object, as shown here.

private Session session;

java.util.Iterator<Authorizable> users = null ;

//Inject a Sling ResourceResolverFactory
@Reference
private ResourceResolverFactory resolverFactory;

@Override
public String getCQUsers() {

try
{
    //Invoke the adaptTo method to create a Session
    ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);
   session = resourceResolver.adaptTo(Session.class);

Note:

When you open a JCR session, there is a reference to the JCR repository object. Every session will consume some memory unless the logout() method is called explicitly. If you do not call this call and create lots of sessions, you risk an out-of-memory exception by your JVM, which terminates the CQ instance. A single leaked session isn’t a problem, but if you have hundreds or thousands of leaked sessions, it might turn into a problem. For more information, see CQ development patterns – Sling ResourceResolver and JCR sessions.

The getCQUsers method writes out the identifier values of AEM users to the AEM log file. The following code represents the SearchUsersImpl class.

package com.aem.users;

import org.w3c.dom.Document;
import org.w3c.dom.Element;


import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.StringWriter;
import java.util.Iterator;
import java.util.List;
import java.util.ArrayList;

import java.util.HashMap;
import java.util.Map;

import javax.jcr.Repository;
import javax.jcr.SimpleCredentials;
import javax.jcr.Node;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;

import org.apache.jackrabbit.commons.JcrUtils;

import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;

import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Service;
import javax.jcr.RepositoryException;
import org.apache.felix.scr.annotations.Reference;
import org.apache.jackrabbit.commons.JcrUtils;

import javax.jcr.Session;
import javax.jcr.Node;


//Sling Imports
import org.apache.sling.api.resource.ResourceResolverFactory ;
import org.apache.sling.api.resource.ResourceResolver;
import org.apache.sling.api.resource.Resource;

//Jackrabbit User APIs
import org.apache.jackrabbit.api.JackrabbitSession ;
import org.apache.jackrabbit.api.security.user.UserManager  ;
import org.apache.jackrabbit.api.security.user.User;
import  org.apache.jackrabbit.api.security.user.Authorizable ;



//This is a component so it can provide or consume services
@Component

@Service
public class SearchUsersImpl implements SearchUsers {


/** Default log. */
protected final Logger log = LoggerFactory.getLogger(this.getClass());

private Session session;
private java.util.Iterator<Authorizable> users = null ;

//Inject a Sling ResourceResolverFactory
@Reference
private ResourceResolverFactory resolverFactory;

@Override
public String getCQUsers() {

 try
 {
  //Invoke the adaptTo method to create a Session
  ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);
  session = resourceResolver.adaptTo(Session.class);

  //Create a UserManager instance from the session object
  UserManager userManager = ((JackrabbitSession) session).getUserManager();

   users= userManager.findAuthorizables("jcr:primaryType", "rep:User");

  while (users.hasNext()) {

      Authorizable auth = users.next();
      if (!auth.isGroup()) {

      	//Get the ID of the user
        String id = auth.getID();
        log.info("Retrieved USER "+id) ;
            }
        }

    // Log out
    session.logout();
    return "All AEM Users are written to the log file" ;
}
catch(Exception e)
{
		 log.info("CQ ERROR: "+e.getMessage())  ;
}

return null;
 }
}

Note:

Notice the following line of Java code:

UserManager userManager = ((JackrabbitSession) session).getUserManager

This cast to a JackrabbitSession is only successful from within an OSGi service container. If you attempt to use this code from an external Java application, then a Java exception is thrown:

java.lang.ClassCastException: org.apache.jackrabbit.jcr2spi.SessionImpl cannot be cast to org.apache.jackrabbit.api.JackrabbitSession

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle. In the POM file located at C:\AdobeCQ\users\bundle, add the following dependencies.

  • org.apache.felix.scr
  • org.apache.felix.scr.annotations
  • org.apache.jackrabbit
  • org.apache.sling

The following XML represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>com.aem.users</groupId>
        <artifactId>users</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>users-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>AEM Training Bundle</name>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>

        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>com.aem.users.users-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/aem-training/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
        </plugins>
    </build>

<dependencies>
        <dependency>
            <groupId>com.day.cq</groupId>
            <artifactId>cq-search</artifactId>
            <version>5.5.4</version>
            <scope>provided</scope>
        </dependency>



        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>

        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-core</artifactId>
    <version>2.4.3</version>
    </dependency>

    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-jcr-commons</artifactId>
    <version>2.4.3</version>
    </dependency>

    <dependency>
        <groupId>org.apache.sling</groupId>
        <artifactId>org.apache.sling.jcr.api</artifactId>
        <version>2.0.4</version>
      </dependency>

      <dependency>
         <groupId>javax.jcr</groupId>
         <artifactId>jcr</artifactId>
         <version>2.0</version>
      </dependency>

         <dependency>
            <groupId>org.apache.jackrabbit</groupId>
            <artifactId>jackrabbit-api</artifactId>
            <version>2.2.0</version>
        </dependency>



 <dependency>
      <groupId>org.apache.sling</groupId>
      <artifactId>org.apache.sling.api</artifactId>
      <version>2.1.0</version>
    </dependency>
    </dependencies>





   <repositories>
        <repository>
            <id>adobe</id>
            <name>Adobe Public Repository</name>
            <url>http://repo.adobe.com/nexus/content/groups/public/</url>
            <layout>default</layout>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>adobe</id>
            <name>Adobe Public Repository</name>
            <url>http://repo.adobe.com/nexus/content/groups/public/</url>
            <layout>default</layout>
        </pluginRepository>
    </pluginRepositories>

</project>

Build the OSGi bundle using Maven

To build the OSGi component by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\user folder.
  2. Run the following maven command: mvn clean install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\user\bundle\target. The file name of the OSGi component is users-content-1.0-SNAPSHOT.zip.

Deploy the bundle to Experience Manager

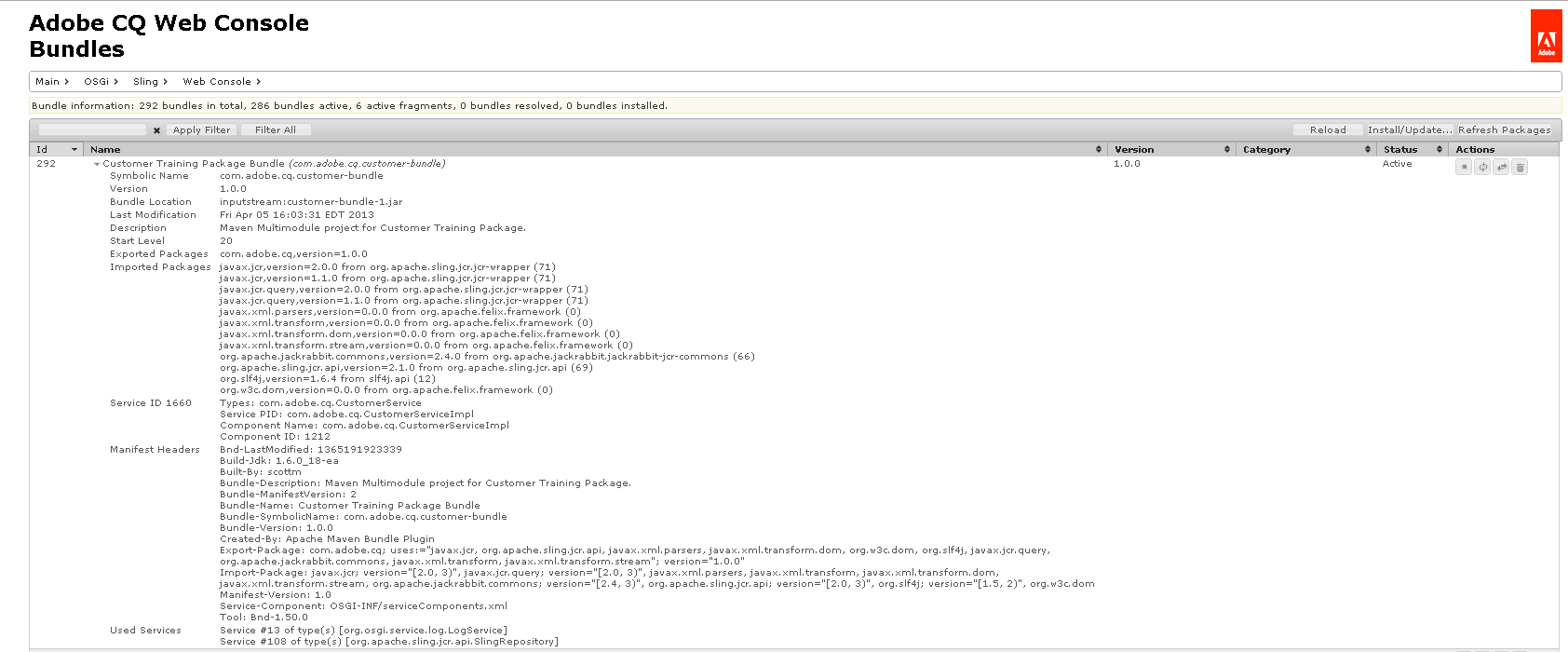

Once you deploy the OSGi bundle, you are able to invoke the getCQUsers method defined in the SearchUsersImpl class (this is shown later in this development article). After you deploy the OSGi bundle, you will be able to see it in the Apache Felix Web Console.

OSGI

Deploy the OSGi bundle to Experience Manager by performing these steps:

  1. Login to the Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).
  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.
  3. Click the Install/Update button.
  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\users\bundle\target).
  5. Click Install.
  6. Click the Refresh Packages button.
  7. Check the bundle with the highest Id.
  8. Click Active. Your new bundle should now be listed with the status Active.
  9. If the status is not Active, check the error.log for exceptions.



Note:

The name of the service defined within the OSGi bundle is com.aem.users.SearchUsers.

Modify the templateUserApp JSP file

Modify the templateUserApp JSP file to create a com.aem.users.SearchUsers instance by using the sling.getService method, as shown in the following example:

com.aem.users.SearchUsers user = sling.getService(com.aem.users.SearchUsers.class);

You pass the fully qualified name of the service to sling.getService method. Because the OSGi bundle is a managed component that injects a ResourceResolverFactory into the service, you must use the sling.getService method to create a com.aem.users.SearchUsers object. If you attempt to create a SearchUsers using the new operation, the OSGi bundle is not considered a managed component and will not successfully inject a ResourceResolverFactory instance. A Java null pointer exception is thrown.

After you create a SearchUsers object by using sling.getService, you can invoke the getCQUsers method exposed by the service.

The following code represents the templateUserApp JSP file.

.

<%@include file="/libs/foundation/global.jsp" %>
<cq:include script="/libs/wcm/core/components/init/init.jsp"/>
<html>
<head>
<title>AEM UserManager Page</title>
</head>
<body>
<h2>This page invokes the getCQUsers method</h2>
<cq:include path="par" resourceType="foundation/components/parsys" />

<%

com.aem.users.SearchUsers user = sling.getService(com.aem.users.SearchUsers.class);



%>

<h3><%= "The return value of the Search Users is: " +user.getCQUsers()%> -- all AEM Users are written to the log file</h3>


</body>
</html>

Modify the templateUserApp JSP file

  1. To view the welcome page, enter the URL: http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite. (If you are using AEM 5.6, click Tool in the left menu)
  3. Double-click apps/userapp/components/page/templateUserApp/templateUserApp.jsp.
  4. Replace the JSP code with the new code shown in this section.
  5. Click Save All.



Create an AEM web page based on the templateUserApp template

The final task is to create a site that contains a page that is based on the templateUserApp template (the template created earlier in this development article). When you open this web page, the getCQUsers method that belongs to the com.aem.users.SearchUsers service is invoked. This method uses the Jackrabbit UserManager API to get all AEM identifier values. These values are written to the Experience Manager log file (crx-quickstart\logs\error.log).

Create an AEM web page based on the templateUserApp template by performing these tasks:

  1. Go to the welcome page at http://[host name]:[port]; for example, http://localhost:4502.
  2. Select Websites. (If you are using AEM 5.6, click Tools from the menu on the left.)
  3. From the left hand pane, select Websites.
  4. Select New Page.
  5. Specify the title of the page in the Title field.
  6. Specify the name of the page in the Name field.
  7. Select templateUserApp from the template list that appears. This value represents the template that is created in this development article. If you do not see it, then repeat the steps in this development article. For example, if you made a typing mistake when entering in path information, the template will not show up in the New Page dialog box.
  8. Open the new page that you created by double-clicking it in the right pane. The new page opens in a web browser.

See also

Congratulations, you have just created an AEM OSGi bundle by using an Adobe Maven Archetype project. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications by using an Adobe Maven Archetype project.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
