Summary

Discusses how to develop an AEM HTML Template Language (HTL - formerly known as Sightly) component that uses the WCMUsePojo class and a Maven 10 Archetype project. Also discusses how to use the Experience Manager Urber 6.2 JAR. Also discusses how to use the Experience Manager Urber 6.2 JAR.

A special thank you to community members Ranta Kumar Kotla for testing this Community Article to ensure it works.

HTL is the AEM template language that can be used to replace use of JSP when developing an AEM component. HTL helps you to separate your design from your application logic. For more information, see Introduction to the HTML Template Language.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (beginner - intermediate)
Required Skills
JCR nodes, JavaScript, HTML
Tested On Adobe Experience Manager 6.2
Video N/A

Note:

You can download an AEM package that contains the code used in this article. Download the package and deploy using package manager. The purpose of this code is to show the community these concepts in action. That is, it's to illustrate how to write a HTL component that uses the WCMUsePojo API and posts data to a sling servlet. This community code is for teaching purposes only and not meant to go into production as is.

You can view the sample community application by using the following URL: http://localhost:4502/editor.html/content/ajaxHTL/en.html (assuming you deploy on author).

Download

Introduction

You can create an Adobe Experience Manager (AEM) HTML Template Language (HTL) component that is able to post data to a Sling Servlet and display data returned by the servlet. An HTL component can perform POST/GET operation using AJAX. For example, you can perform a search operation by posting a user ID. Then the servlet can perform a lookup on a data set and return the data. This article walks you through how to build an AEM HTL component that can post data to an AEM Sling Servlet and then display the results, as shown in the following illustration.

client
A HTL component performing a POST operation

This development article steps you through how to build an AEM 6.2 HTL component by using an AEM Maven Archetype 10 project. This HTL uses a Java class that extends com.adobe.cq.sightly.WCMUsePojo.

Note:

The Java class com.adobe.cq.sightly.WCMUse is deprecated.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note:

It is recommended that you use Maven 3.0.3 or greater. For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Note:

The Adobe repository URL is now made secured. Change http://repo.adobe.com/nexus/content/groups/public/ to https://repo.adobe.com/nexus/content/groups/public/.

Create an AEM Maven 10 archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

files
Maven Archetype 10 generated files

The following list describes the Archetype 10 project arguments:

  • groupId - Base Maven groupId
  • artifactId - Base Maven ArtifactId
  • version - the version of your project
  • package - Java Source Package
  • appsFolderName - /apps folder name
  • artifactName - Maven Project Name
  • componentGroupName - AEM component group name
  • contentFolderName - /content folder name
  • cssId - prefix used in generated css
  • packageGroup - Content Package Group name
  • siteName - AEM site name

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeGroupId=com.adobe.granite.archetypes -DarchetypeArtifactId=aem-project-archetype -DarchetypeVersion=10 -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/

3. When prompted, specify the following information:

  • groupId - ajaxHTL
  • artifactId - ajaxHTL
  • version - 1.0-SNAPSHOT
  • package - com.foo.htl
  • appsFolderName - ajaxHTL
  • artifactName - ajaxHTL
  • componentGroupName - ajaxHTL
  • contentFolderName - ajaxHTL
  • cssId - ajaxHTL
  • packageGroup - ajaxHTL
  • siteName - ajaxHTL

4. WHen prompted, specify Y.

5. Once done, you will see a message like:

[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 01:42 min
[INFO] Finished at: 2016-04-25T14:34:19-04:00
[INFO] Final Memory: 16M/463M
[INFO] ------------------------------------------------------------------------

6. Change the working directory to ajaxHTL and then enter the following command.

mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

project
Eclipse Import Project Dialog

The Eclipse project that you work in to build the OSGi bundle that uses HTL API is ajaxHTL.core. You do not have to work in the other projects under ajaxHTL.

Note:

Do not worry about the errors reported in Eclipse. It does not read the POM file where the APIs are resolved. You build the bundle with Maven. Eclipse is used to edit the Java files and the POM file.

The next step is to overwrite the Java file named SimpleServlet located in the com.foo.htl.core.servlets package. The Java class represents the Sling Servlet that the HTL posts data. This class supports the doPost method that lets you submit data from an Experience Manager web page to the Sling servlet. For information about this class, see Class SlingAllMethodsServlet.

The Sling Servlet encodes submitted data into JSON formatted data by using an org.json.simple.JSONObject instance, as shown in the following code example.

//Encode the submitted form data to JSON
JSONObject obj=new JSONObject();
obj.put("id","id");
obj.put("firstname",firstName);
obj.put("lastname",lastName);
obj.put("address",address);
obj.put("cat",cat);
obj.put("state",state);
obj.put("details",details);
obj.put("date",date);
obj.put("city",city);

//Get the JSON formatted data
String jsonData = obj.toJSONString();

The following Java code represents the SimpleServlet class that extends org.apache.sling.api.servlets.SlingAllMethodsServlet.



package com.foo.htl.core.servlets;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.HttpURLConnection;
import java.net.URL;
import java.rmi.ServerException;
import java.util.Dictionary;

import org.apache.felix.scr.annotations.Properties;
import org.apache.felix.scr.annotations.Property;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.sling.SlingServlet;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.servlets.SlingSafeMethodsServlet;
import org.apache.sling.commons.osgi.OsgiUtil;
import org.apache.sling.jcr.api.SlingRepository;
import org.apache.felix.scr.annotations.Reference;
import org.osgi.service.component.ComponentContext;
import javax.jcr.Session;
import javax.jcr.Node;
import org.json.simple.JSONObject;
import java.util.UUID;

@SlingServlet(paths="/bin/htlSearchServlet", methods = "POST", metatype=true)
public class SimpleServlet extends org.apache.sling.api.servlets.SlingAllMethodsServlet {
     private static final long serialVersionUID = 2598426539166789515L;

     @Reference
     private SlingRepository repository;

     public void bindRepository(SlingRepository repository) {
            this.repository = repository;
            }

     @Override
     protected void doPost(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {

      try
      {
         //Get the submitted form data that is sent from the
              //CQ web page
          String id = UUID.randomUUID().toString();
          String firstName = request.getParameter("firstName");
          String lastName = request.getParameter("lastName");
          String address = request.getParameter("address");
          String cat = request.getParameter("cat");
          String state = request.getParameter("state");
          String details = request.getParameter("details");
          String date = request.getParameter("date");
          String city = request.getParameter("city");

          //Encode the submitted form data to JSON
          JSONObject obj=new JSONObject();
          obj.put("id",id);
          obj.put("firstname",firstName);
          obj.put("lastname",lastName);
          obj.put("address",address);
          obj.put("cat",cat);
          obj.put("state",state);
          obj.put("details",details);
          obj.put("date",date);
          obj.put("city",city);

             //Get the JSON formatted data
          String jsonData = obj.toJSONString();

             //Return the JSON formatted data
         response.getWriter().write(jsonData);
      }
      catch(Exception e)
      {
          e.printStackTrace();
      }
    }
}

The Java class uses a SlingServlet annotation:

@SlingServlet(paths="/bin/htlSearchServlet", methods = "POST", metatype=true)

The paths property corresponds to the URL that you specify when using an AJAX request. For information about different ways to register sling servlets, see Servlet Registration.

To use an AJAX request to post data to this Sling Servlet, you use this syntax:

//Use JQuery AJAX request to post data to a Sling Servlet
$.ajax({
type: 'POST',
url:'/bin/htlSearchServlet',
data:'id='+ claimId+'&firstName='+ myFirst+'&lastName='+ myLast+'&address='+ address+'&cat='+ cat+'&state='+ state+'&details='+ details+'&date='+ date+'&city='+ city,
success: function(msg){
alert(msg); //display the data returned by the servlet
}
});

Notice that the url in the AJAX request maps to the path property in the SlingServlet annotation. The type in the AJAX request maps to the methods property in the SlingServlet annotation. Finally notice that the AJAX request specifies the form data that is submitted. Each form field is retrieved in the doPost method by using the request.getParameter method.

Add the org.json.simple.JSONObject data type to Experience Manager

Add the org.json.simple.JSONObject class to AEM. The reason is because the doPost method in the Sling Servlet uses this class to encode form data to JSON formatted data. If you do not add this class to AEM, then you are unable to place the OSGi bundle that contains the Sling Servlet into an Active state.

To add the org.json.simple.JSONObject class to AEM, add it to a bundle fragment and then deploy the bundle fragment to AEM, as discussed in this section. First, download the json-simple JAR from the following URL:

https://code.google.com/p/json-simple/

Note: Download version json-simple-1.1.1.jar.

To create an OSGi bundle fragment that contains the org.json.simple.JSONObject class, perform these tasks:

1. Start Eclipse (Indigo). The steps below have been tested on Eclipse Java EE IDE for Web Developers version Indigo Service Release 1.

2. Select File, New, Other.

3. Under the Plug-in Development folder, choose Plug-in from Existing JAR Archives. Name your project jsonBundle.

4. In the JAR selection dialog, click the Add external button, and browse to the json-simple JAR file that you downloaded.

5. Click Next.

6. In the Plug-in Project properties dialog, ensure that you check the checkbox for Analyze library contents and add dependencies.

7. Make sure that the Target Platform is the standard OSGi framework.

8. Ensure the checkboxes for Unzip the JAR archives into the project and Update references to the JAR files are both checked.

9. Click Next, and then Finish.

10. Click the Runtime tab.

11. Make sure that the Exported Packages list is populated.

12. Make sure these packages have been added under the Export-Package header in MANIFEST.MF. Remove the version information in the MANIFEST.MF file. Version numbers can cause conflicts when you upload the OSGi bundle.

13. Also make sure that the Import-Package header in MANIFEST.MF is also populated, as shown here (notice that Export-Package is org.json.simple).

Bundle-ManifestVersion: 2
Bundle-Name: JsonObject
Bundle-SymbolicName: jsonObject
Bundle-Version: 1.0.0
Export-Package: org.json.simple,
org.json.simple.parser
Bundle-RequiredExecutionEnvironment: JavaSE-1.6

14. Save the project.

15. Build the OSGi bundle by right-clicking the project in the left pane, choose Export, Plug-in Development, Deployable plug-ins and fragments, and click Next.

16. Select a location for the export (C:\TEMP) and click Finish. (Ignore any error messages).

17. In C:\TEMP\plugins, you should now find the OSGi bundle.

18. Login to Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).

19. Sort the bundle list by Id and note the Id of the last bundle.

20. Click the Install/Update button.

21. Check the Start Bundle checkbox.

22. Browse to the bundle JAR file you just built. (C:\TEMP\plugins).

23. Click Install.

24. Click the Refresh Packages button.

25. Check the bundle with the highest Id.

26. Your new bundle should now be listed with the status Active.

27. If the status is not Active, check the CQ error.log for exceptions. If you get “org.osgi.framework.BundleException: Unresolved constraint” errors, check the MANIFEST.MF for strict version requirements which might follow: javax.xml.namespace; version=”3.1.0”

28. If the version requirement causes problems, remove it so that the entry looks like this: javax.xml.namespace.

29. If the entry is not required, remove it entirely.

30. Rebuild the bundle.

31. Delete the previous bundle and deploy the new one.

Modify the Maven POM file

Add the following POM dependency to the POM file located at C:\AdobeCQ\ajaxHTL.

<dependency>
               <groupId>com.adobe.aem</groupId>
               <artifactId>uber-jar</artifactId>
               <version>6.2.0</version>
               <!-- for AEM6.1 use this version     : <version>6.1.0</version> -->
               <!-- for AEM6.1 SP1 use this version : <version>6.1.0-SP1-B0001</version> -->
               <!-- for AEM6.1 SP2 use this version : <version>6.1.0-SP2</version> -->
               <!-- for AEM6.2 use this version     : <version>6.2.0</version> -->
               <classifier>obfuscated-apis</classifier>
               <scope>provided</scope>
           </dependency>

           <dependency>
               <groupId>org.apache.geronimo.specs</groupId>
               <artifactId>geronimo-atinject_1.0_spec</artifactId>
               <version>1.0</version>
               <scope>provided</scope>
           </dependency>

You need to modify two POM files. The first one is the parent POM file shown in this illustration.

ParentPOM
Parent POM

Add the dependency shown above to the Parent POM file. Next, modify the POM file located at C:\AdobeCQ\ajaxHTL\core. The following code represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<!--
 |  Copyright 2015 Adobe Systems Incorporated
 |
 |  Licensed under the Apache License, Version 2.0 (the "License");
 |  you may not use this file except in compliance with the License.
 |  You may obtain a copy of the License at
 |
 |      http://www.apache.org/licenses/LICENSE-2.0
 |
 |  Unless required by applicable law or agreed to in writing, software
 |  distributed under the License is distributed on an "AS IS" BASIS,
 |  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 |  See the License for the specific language governing permissions and
 |  limitations under the License.
-->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>ajaxHTL</groupId>
        <artifactId>ajaxHTL</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../pom.xml</relativePath>
    </parent>
    <artifactId>ajaxHTL.core</artifactId>
    <packaging>bundle</packaging>
    <name>ajaxHTL - Core</name>
    <description>Core bundle for ajaxHTL</description>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <!--
                        <Embed-Dependency>
                            artifactId1,
                            artifactId2;inline=true
                        </Embed-Dependency>
                        -->
                        <Sling-Model-Packages>
                            com.foo.htl.core
                        </Sling-Model-Packages>
                    </instructions>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <profiles>
        <!-- Development profile: install only the bundle -->
        <profile>
            <id>autoInstallBundle</id>
            <activation>
                <activeByDefault>false</activeByDefault>
            </activation>
            <build>
                <plugins>
                    <plugin>
                        <groupId>org.apache.sling</groupId>
                        <artifactId>maven-sling-plugin</artifactId>
                        <configuration>
                            <!-- Note that this requires /apps/ajaxHTL/install to exist!!          -->
                            <!--    This is typically the case when ui.apps is deployed first                -->
                            <!--    Otherwise, create /apps/ajaxHTL/install manually (CRXDE|Lite)  -->
                            <slingUrlSuffix>/apps/ajaxHTL/install/</slingUrlSuffix>
                            <failOnError>true</failOnError>
                        </configuration>
                    </plugin>
                </plugins>
            </build>
        </profile>
    </profiles>
    <dependencies>
       <!-- OSGi Dependencies -->

        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>uber-jar</artifactId>
            <classifier>obfuscated-apis</classifier>
        </dependency>
         <dependency>
            <groupId>org.apache.geronimo.specs</groupId>
            <artifactId>geronimo-atinject_1.0_spec</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>biz.aQute</groupId>
            <artifactId>bndlib</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <!-- Other Dependencies -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.jcr</groupId>
            <artifactId>jcr</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>aem-api</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.models.api</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-all</artifactId>
        </dependency>
        <dependency>
            <groupId>junit-addons</groupId>
            <artifactId>junit-addons</artifactId>
        </dependency>
        <dependency>
            <groupId>com.googlecode.json-simple</groupId>
            <artifactId>json-simple</artifactId>
            <version>1.1</version>
        </dependency>
    </dependencies>
</project>

Build the OSGi bundle using Maven

To build the OSGi bundle by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\ajaxHTL.
  2. Run the following maven command: mvn -PautoInstallPackage install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\ajaxHTL\core\target. The file name of the OSGi component is ajaxHTL.core-1.0-SNAPSHOT.jar.

The command -PautoInstallPackage automatically deploys the OSGi bundle to AEM.

Create the HTL Front End Component

When you use the Maven Archetype 10 archetype to create an AEM project, a default front end project is created, as shown in the following illustration.

files
Default files created by Adobe Maven 10 Archetype project

Note:

For information about the default files created by the Maven 10 Archetype project, see this community article: Creating your first AEM 6.2 Project using Adobe Maven Archetype 10.

Add HTL code

For the purpose of this article, the HTL code is written within a Maven Archetype 10 default component located here:

/apps/ajexHTL/components/content/helloworld



Add the following HTML code that creates a basic form.

<sly data-sly-use.clientLib="/libs/granite/sightly/templates/clientlib.html" data-sly-call="${clientLib.js @ categories='htlajax'}" data-sly-unwrap/>
<p data-sly-test="${properties.text}">Text property: ${properties.text}</p>


<h1>AEM HTL AJAX Example</h1>

</div>

<form method="#">

 <table border="1" align="left">

 <tr>
 <td>
<label for="ClaimNum" id="ClaimNumLabel" >A. Claim Number</label>
 </td>
 <td>
 <input id="ClaimNum" name="A1. Claim Number" readonly=true type="text" value="">
 </td>
 </tr>
 <tr>
 <td>
<label for="DateId" id="DateIncident">A.2. Date of Incident</label>
 </td>
 <td>
 <input id="DateId" name="A.2 Date of Incident"  type="text" value="">
 </td>
 </tr>

  <tr>
 <td>
<label for="FirstName" id="FirstNameLabel" >B2. First Name</label>
 </td>
 <td>
<input id="FirstName" name="B1. First Name    " type="text" value="">
 </td>
 </tr>

 <tr>
 <td>
<label for="LastName" id="LastNameLabel" name="LastNameeLabel">C1. Last Name     </label>
 </td>
 <td>
<input id="LastName" name="C1. Last Name     " type="text" value="">
 </td>
 </tr>

 <tr>
 <td>
<label for="Cat_Id">D1. Category </label>
 </td>
 <td>
<select id="Cat_Id" name="Category ">
              <option value="Home">Home Claim</option>
              <option value="Auto">Auto Claim</option>
              <option value="Boat">Boat Claim</option>
              <option value="Personal">Personnal Claim</option>
            </select>
 </td>
 </tr>

 <tr>
 <td>
<label for="Address" id="AddressLabel" name="AddressLabel">E1. Address   </label>
 </td>
 <td>
<input id="Address" name="Address   " type="text" value="">
 </td>
 </tr>

 <tr>
 <td>
<label for="City" id="CityLabel" name="CityLabel">F1. City   </label>
 </td>
 <td>
<input id="City" name="City   " type="text" value="">
 </td>
 </tr>

 <tr>
 <td>
<label for="Explain" id="ExplainLabel" name="ExplainLabel">G1. Additional Details  </label>
 </td>
 <td>
 <input id="Explain" name="Explain   " type="text" value="">
 </td>
 </tr>

 <tr>
 <td>
<label for="State_Id">H1. State </label>
 </td>
 <td>
 <select id="State_Id" name="State ">
              <option value="Alabama">Alabama</option>
              <option value="Alaska">Alaska</option>
              <option value="Arizona">Arizona</option>
              <option value="Arkansas">Arkansas</option>
              <option value="California">California</option>
              <option value="Colorado">Colorado</option>
              <option value="Connecticut">Connecticut</option>
              <option value="Delaware">Delaware</option>
              <option value="District of Columbia">District of Columbia</option>
              <option value="Florida">Florida</option>
              <option value="Georgia">Georgia</option>
              <option value="Hawaii">Hawaii</option>
              <option value="Idaho">Idaho</option>
              <option value="Illinois">Illinois</option>
              <option value="Indiana">Indiana</option>
              <option value="Iowa">Iowa</option>
              <option value="Kansas">Kansas</option>
              <option value="Kentucky">Kentucky</option>
              <option value="Louisiana">Louisiana</option>
              <option value="Maine">Maine</option>
              <option value="Maryland">Maryland</option>
              <option value="Massachusetts">Massachusetts</option>
              <option value="Michigan">Michigan</option>
              <option value="Minnesota">Minnesota</option>
              <option value="Mississippi">Mississippi</option>
              <option value="Missouri">Missouri</option>
              <option value="Montana">Montana</option>
              <option value="Nebraska">Nebraska</option>
              <option value="Nevada">Nevada</option>
              <option value="New Hampshire">New Hampshire</option>
              <option value="New Jersey">New Jersey</option>
              <option value="New Mexico">New Mexico</option>
              <option value="New York">New York</option>
              <option value="North Carolina">North Carolina</option>
              <option value="North Dakota">North Dakota</option>
              <option value="Ohio">Ohio</option>
              <option value="Oklahoma">Oklahoma</option>
              <option value="Oregon">Oregon</option>
              <option value="Pennsylvania">Pennsylvania</option>
              <option value="Rhode Island">Rhode Island</option>
              <option value="South Carolina">South Carolina</option>
              <option value="South Dakota">South Dakota</option>
              <option value="Tennessee">Tennessee</option>
              <option value="Texas">Texas</option>
              <option value="Utah">Utah</option>
              <option value="Vermont">Vermont</option>
              <option value="Virginia">Virginia</option>
              <option value="Washington">Washington</option>
              <option value="West Virginia">West Virginia</option>
              <option value="Wisconsin">Wisconsin</option>
              <option value="Wyoming">Wyoming</option>
            </select>
 </td>
 </tr>

 <tr>
 <td></td>

  <td>
<textarea id="json" rows="4" cols="50">
</textarea>
 </td>

 </tr>

 <tr>
 <td></td>
 <td>
<input type="button" value="Submit"  name="submit" id="submit" value="Submit">

 </td>

 </tr>

 </table>

</form>

In this example, notice:

<sly data-sly-use.clientLib="/libs/granite/sightly/templates/clientlib.html" data-sly-call="${clientLib.js @ categories='htlajax'}" data-sly-unwrap/>

references a AEM ClientLibs folder named htlajax. This ClientLibs contains script that performs the AJAX operation and posts data that a user enters into the web page. THis is how you perform AJAX operations from an HTL component.

Create the ClientLibs folder

In order to perform an AJEX operation to work with a HTL component, you need to create a ClientLibs folder. Add a cq:ClientLibraryFolder node to the Helloworld component located at:

/apps/ajexHTL/components/content/helloworld

In this folder, add the following two files:

  • js.txt - references the script.js file
  • script.js - contains JavaScript logic that you want to use as part of your HTL component

The following code represents the script.js file

function createUUID() {

    var s = [];
    var hexDigits = "0123456789abcdef";
    for (var i = 0; i < 36; i++) {
        s[i] = hexDigits.substr(Math.floor(Math.random() * 0x10), 1);
    }
    s[14] = "4";  // bits 12-15 of the time_hi_and_version field to 0010
    s[19] = hexDigits.substr((s[19] & 0x3) | 0x8, 1);  // bits 6-7 of the clock_seq_hi_and_reserved to 01
    s[8] = s[13] = s[18] = s[23] = "-";

    var uuid = s.join("");
    return uuid;
}


$(document).ready(function() {

    $('body').hide().fadeIn(5000);

   $('#submit').click(function() {
    var failure = function(err) {
             alert("Unable to retrive data "+err);
   };

    //Get the user-defined values that represent claim data to persist in the Adobe CQ JCR
    var myFirst= $('#FirstName').val() ;
    var myLast= $('#LastName').val() ;
    var date= $('#DateId').val() ;
    var cat= $('#Cat_Id').val() ;
    var state= $('#State_Id').val() ;
    var details= $('#Explain').val() ;
    var city= $('#City').val() ;
    var address= $('#Address').val() ;
    var claimId = createUUID();


    //Use JQuery AJAX request to post data to a Sling Servlet
    $.ajax({
         type: 'POST',
         url:'/bin/htlSearchServlet',
         data:'id='+ claimId+'&firstName='+ myFirst+'&lastName='+ myLast+'&address='+ address+'&cat='+ cat+'&state='+ state+'&details='+ details+'&date='+ date+'&city='+ city,
         success: function(msg){

           var json = jQuery.parseJSON(msg);
            var msgId=   json.id;
            var lastName = json.lastname;
            var firstName = json.firstname;

            $('#ClaimNum').val(msgId);
            $('#json').val("Filed by " + firstName + " " + lastName);
         }
     });
  });

});

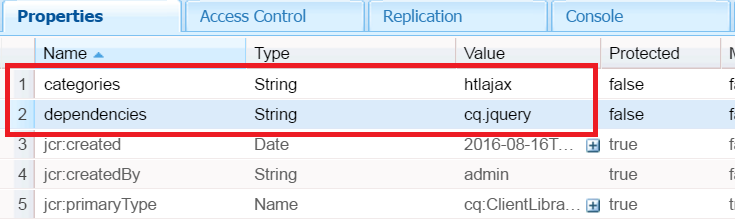

Assign the value htlajax to the categories property of the clientlibs node. In addition, assign the value cq.jquery to the dependencies property. This property is required to use AEM JQuery library that lets you use JQuery in the script.

crxde
Properties that belong to the ClientLibs folder

View the output of the HTL component

To access the component, enter the following URL:

http://localhost:4502/editor.html/content/ajaxHTL/en.html

The following illustration shows the HTL component.



client
The HTL component created in this article

See also

Congratulations, you have just created an AEM sample application that uses a HTL component that uses the WCMUsePojo API and performs an AJAX operation. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
