Article summary

Summary

Discusses how to create an Adobe Experience Manager OSGi bundle that uses the JQOM API.

A special thank you to Lokesh, a top AEM community member, for contributing AEM code that is used in this article.

In addition to using the JQOM API to search the AEM JCR, you can also use:

This article was updated to use an AEM System user to create a session object. This reflects best practice.

This article uses an Adobe Maven Archetype project to build an OSGi bundle. If you are not familiar with an Adobe Maven Archetype project, it is recommended that you read the following article: Creating your first AEM Service using an Adobe Maven Archetype project.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, Sling, HTML
AEM Version(s) Adobe Experience Manager 6.0, and 6.1

Note:

You can download an AEM package that contains the OSGi bundle that are used in this article. Download the ZIP file, extract it, and deploy the JAR file using the felix console as described in this artice. The purpose of this code is to show the community these concepts in action. That is, it's to illustrate how to create an OSGi bundle that uses the JQOM API. This community code is for teaching purposes only and not meant to go into production as is.



* jqom-bundle-1.0-SNAPSHOT.zip
A ZIP file that contains the OSGi bundle.

Introduction

You can create an AEM application that searches the CQ repository for JCR data and displays results to the end user. For example, you can search CQ pages under a specific repository node (for example, nodes under /content) and look for a specific search term. All content that satisfy the search criteria are included in the search results. To search the Experience Manager repository, you use the JCR Query Object Model (JQOM) API. For information about the API, see Interface QueryObjectModel

JQOM is an AEM query language that is like ‘prepared statements’ and SQL2 is like ‘statements’ in JDBC queries. For example, a use case may require all JCR nodes from ‘Geometrixx’ which has the property pageTitle.


Selector selector = qf.selector("cq:PageContent", "s");
Constraint constriant = qf.descendantNode("s", "/content/geometrixx");
constriant = qf.and(constriant, qf.propertyExistence("s", "pageTitle"));
QueryObjectModel qm = qf.createQuery(selector, constriant, null, null);

QueryObjectModelFactory gets the instance of the JCR Object Model.  The Selector is used to set the type of node that the query needs to look at. The s parameter is simply an alias. Constraint is used to add all the constraints which is like a where condition into the query model. Finally a query is created with the selector and constraint that captures the response as a QueryObjectModel.



Overview

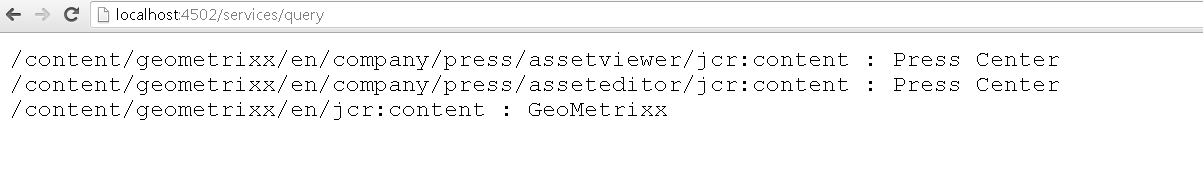

JQOM Results

Note:

It is also recommended that you read Class AbstractQueryObjectModelFactory.

This development article guides you through creating an OSGi bundle that contains a custom Sling Servlet that uses the JQOM API.

Note:

If you install the package that is available with this article, you can skip all steps.

Create a dedicated AEM user account

Create a dedicated AEM user account that can access AEM JCR data. To use the JQOM API, the user account must have read privileges, as shown in the following illustration.

System_User
An AEM system user

To create an AEM system user account, perform these tasks:

  1. Open http://localhost:4502/crx/explorer/index.jsp.

  2. Login as admin.

  3. Click User Administration.

  4. Click Create System User.

  5. Set the UserId to data61.

  6. Click Save.

  7. Access the AEM user page at http://localhost:4502/useradmin.

  8. Select the data61 system user.

  9. From the right-hand pane, select the Permissions tab.

  10. Expand the content tab.

  11. Click all the checkboxes that represent the permissions to the AEM JCR.

  12. Click the Save button located in the top menu bar (located above the Path heading).

Configure the AEM Sling Map Service

The next step is to configure the Apache Sling Service User Mapper service by adding a new entry. Specify the following value:

com.adobe.cq.jqom.jqom-bundle:jqom=data61

where:

  • com.adobe.cq.jqom.jqom-bundle – is the Bundle-SymbolicName value of the OSGi bundle this is developed in the upcoming sections of this article.
  • jqom – the name of the sub service (you reference this value in a Java Map object)
  • data61 – the user account with data read privileges for the AEM JCR (in AEM 6.1, this must be a System User).
mapping

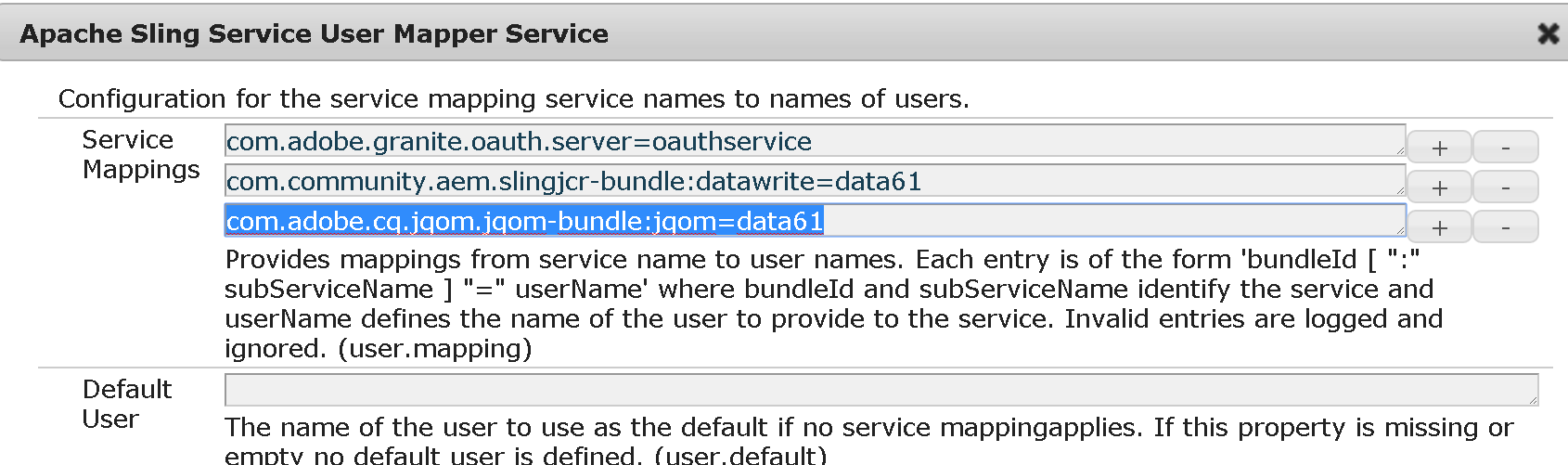

AEM Sling User Mapping

To create an entry in the Apache Sling Mapper service, perform these tasks:

  1. Go to the Apache Sling Mapper service at http://localhost:4502/system/console/configMgr.

  2. Click OSGI, Configurations.

  3. Scroll to an entry named Apache Sling Service User Mapper Service.

  4. Enter the value com.adobe.cq.jqom.jqom-bundle:jqom=data61.

  5.  Click Save.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that uses the JCR API and is deployed to Experience Manager. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"



Note:

For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

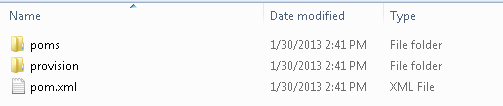

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

plugin1

To create an Experience Manager archetype project, perform these steps:

  1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

  2. Run the following Maven command:

    mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.adobe.cq.jqom -DartifactId=jqom -Dversion=1.0-SNAPSHOT -Dpackage=com.adobe.cq.jqom -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

  3. When prompted for additional information, specify Y.

  4. Once done, you will see a message like:

    [INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
    [INFO] Final Memory: 10M/184M

  5. Change the command prompt to the generated project. For example: C:\AdobeCQ\jqom. Run the following Maven command:
    mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

project

Note:

Delete all packages other than com.adobe.cq.jqom. Next make sure to delete all generated JAVA files. Make sure that the only Java file in this package is QueryServlet.

The next step is to add a Java interface named QueryServlet to the  com.adobe.cq.jqom package. This class represents the custom Sling Servlet that extends SlingAllMethodsServlet and uses the JQOM API.



The Java class uses a SlingServlet annotation:

@SlingServlet(paths="/services/query", methods = "GET", metatype=true)

The paths property corresponds to the URL that you specify. That is, to see the results of the search, you can use a GET request:

http://localhost:4502/services/query

The following Java code represents the custom Sling Servlet that uses the JQOM API.

package com.adobe.cq.jqom;

import java.io.IOException;
import java.io.PrintWriter;

import javax.jcr.Node;
import javax.jcr.NodeIterator;
import javax.jcr.Property;
import javax.jcr.PropertyIterator;
import javax.jcr.Session;
import javax.jcr.SimpleCredentials;
import javax.jcr.query.RowIterator;
import javax.jcr.query.qom.Constraint;
import javax.jcr.query.qom.QueryObjectModel;
import javax.jcr.query.qom.QueryObjectModelFactory;
import javax.jcr.query.qom.Selector;
import javax.servlet.ServletException;

import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.sling.SlingServlet;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.resource.ResourceResolverFactory;
import org.apache.sling.api.servlets.SlingAllMethodsServlet;
import org.apache.sling.jcr.api.SlingRepository;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;


//Sling Imports
import org.apache.sling.api.resource.ResourceResolverFactory;
import org.apache.sling.api.resource.ResourceResolver;
import org.apache.sling.api.resource.Resource;


@SlingServlet(paths={"/services/query"}, methods={"GET"})
	public class QueryServlet extends SlingAllMethodsServlet {

	/**
	 *
	 */
	private static final long serialVersionUID = 1L;

	@Reference
	private ResourceResolverFactory resolverFactory;

	@Reference
	private SlingRepository repo;

	private final Logger log = LoggerFactory.getLogger(QueryServlet.class);

	@Override
	public void doGet(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServletException, IOException{

		log.info("####### Inside Servlet ########");
		Session session = null;


		Map<String, Object> param = new HashMap<String, Object>();
		param.put(ResourceResolverFactory.SUBSERVICE, "jqom");
		ResourceResolver resolver = null;

		try {

		    //Invoke the getServiceResourceResolver method to create a Session instance
		    resolver = resolverFactory.getServiceResourceResolver(param);
		    session = resolver.adaptTo(Session.class);

			log.info("####### session ######### : " + session.getUserID());


			Node root = session.getRootNode();
			Node currentNode = root.getNode("content");
			QueryObjectModelFactory qf = currentNode.getSession().getWorkspace().getQueryManager().getQOMFactory();
			Selector selector = qf.selector("cq:PageContent", "s");
			Constraint constriant = qf.descendantNode("s", "/content/geometrixx");
			constriant = qf.and(constriant, qf.propertyExistence("s", "pageTitle"));



			QueryObjectModel qm = qf.createQuery(selector, constriant, null, null);
			log.info("######### Query ######### : " + qm.getStatement());
			NodeIterator nodes = qm.execute().getNodes();
			log.info("### query result : " + nodes.getSize());
			PrintWriter pw = response.getWriter();
			for (int i = 0; i < nodes.getSize(); i++) {
				Node node = nodes.nextNode();
				log.info("##### NOde Path ####### : " + node.getPath() + node.getProperty("pageTitle").getString());
				pw.println(node.getPath() + " : " + node.getProperty("pageTitle").getString());
			}

		}catch(Exception e){
			log.error(e.getMessage());
		}finally{
			if(session.isLive()){
				session.logout();
			}
		}

	}


}

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle. In the POM file located at C:\AdobeCQ\jqom\bundle, add the following dependencies.

  • org.apache.felix.scr
  • org.apache.felix.scr.annotations
  • org.apache.jackrabbit
  • org.apache.sling

The following XML represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>com.adobe.cq.jqom</groupId>
        <artifactId>jqom</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>jqom-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>My Project Bundle</name>

   <dependencies>

       <dependency>
	<groupId>org.apache.sling</groupId>
	<artifactId>org.apache.sling.api</artifactId>
	<version>2.3.0</version>
	<scope>provided</scope>
</dependency>

           <dependency>
        <groupId>com.adobe.aem</groupId>
        <artifactId>aem-api</artifactId>
        <version>6.0.0.1</version>
        <scope>provided</scope>
    </dependency>


   <dependency>
    <groupId>org.apache.sling</groupId>
    <artifactId>org.apache.sling.api</artifactId>
    <version>2.8.0</version>
</dependency>


        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>


        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-core</artifactId>
    <version>2.4.3</version>
    </dependency>

    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-jcr-commons</artifactId>
    <version>2.4.3</version>
    </dependency>
   <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>



      <dependency>
         <groupId>javax.jcr</groupId>
         <artifactId>jcr</artifactId>
         <version>2.0</version>
      </dependency>

       <dependency>
            <groupId>com.day.cq.wcm</groupId>
            <artifactId>cq-wcm-api</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.day.cq</groupId>
            <artifactId>cq-commons</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>servlet-api</artifactId>
    <version>2.5</version>
</dependency>


    </dependencies>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>com.adobe.cq.jqom.jqom-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/myproject/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                 <configuration>
                    <excludePackageNames>
                        *.impl
                    </excludePackageNames>
                 </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Build the OSGi bundle using Maven

To build the OSGi bundle by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\jqom folder.

  2. Run the following maven command: mvn clean install.

  3. The OSGi component can be found in the following folder: C:\AdobeCQ\jqom\bundle\target. The file name of the OSGi component is jqom-bundle-1.0-SNAPSHOT.jar.

Deploy the bundle to Experience Manager

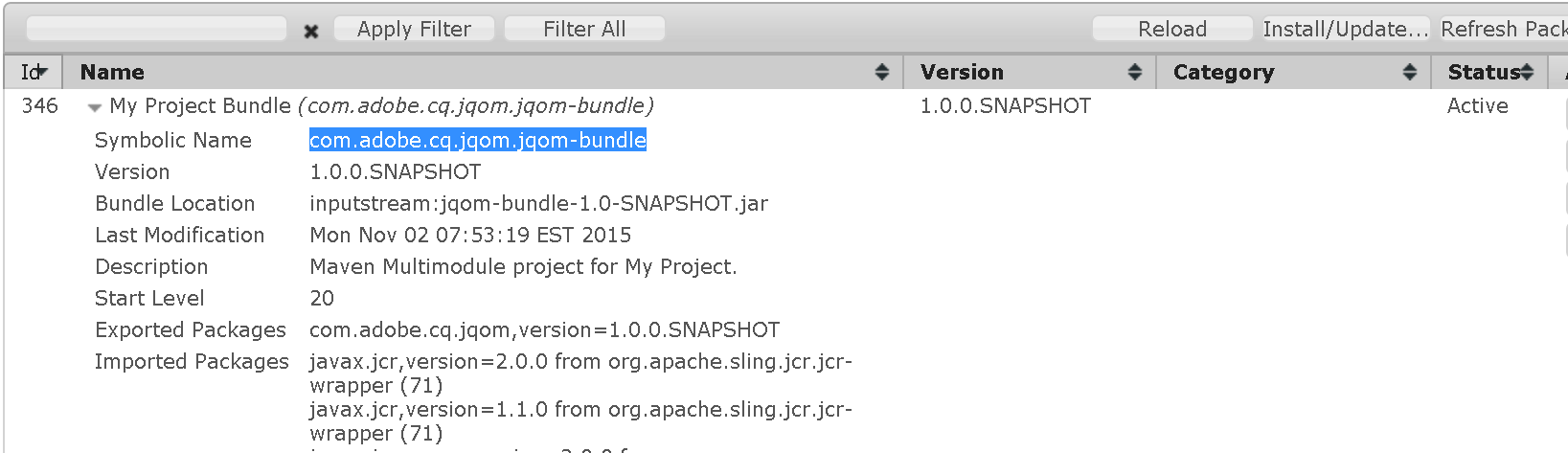

Once you deploy and activate the OSGi bundle, you can specify a GET request to see the results returned by using the JQOM API. After you deploy the OSGi bundle, you will be able to see it in the Apache Felix Web Conole.

OSGi

Deploy the OSGi bundle by performing these steps:

  1. Login to Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).

  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.

  3. Click the Install/Update button.

  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\jqom\bundle\target).

  5. Click Install.

  6. Click the Refresh Packages button.

  7. Check the bundle with the highest Id.

  8. Click Active. Your new bundle should now be listed with the status Active.

  9. If the status is not Active, check the CQ error.log for exceptions.

After you activate the OSGi bundle, you will see the result set by specifying this GET request:

http://localhost:4502/services/query

See also

Congratulations, you have just created an AEM OSGi bundle that is searches the AEM JCR by using the JQOM API. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
