Article summary

Summary

Discusses how to create an AEM project by using Maven Adobe Archetype 11.

This article covers the following development tasks:

  • how to use Maven Archetype 11 command to create an AEM project
  • how to use HTML Template Language (HTL- formerly known as Sightly) and Sling Models
  • how to use JUNIT tests within Java files
  • how to use a scheduler service
  • how to use Sling Servlets
  • how to use a basic event handler
  • how to perform component inheritence
  • how to reference partial page files in a HTL page component
  • how to work with ClientLibs in a HTL component

HTL is the AEM template language that can be used to replace use of JSP when developing an AEM component. HTL helps you to separate your design from your application logic. For more information, see Introduction to the HTML Template Language.

A special thank you to Ratna Kumar Kotla, and Prince Shivhare, top AEM community members, for contributing towards this article to ensure it works.

Digital Marketing Solution(s) Adobe Experience Manager 6.3
Audience Developer
Required Skills Java, HTML, JavaScript
Version 6.3

Introduction

You can create an AEM 6.3 project by using Adobe Maven Archetype 11. This development article walks you through creating an AEM 6.3 project by using Archetype 11 and explains the default AEM files and services. Using an Archetype 11 project, you are given a set of files to start with:

2 Pages

  • English and French pages with filler text

2 Templates

  • For homepage and content pages
  • Homepages are only allowed on top level, and content pages below

Page component

  • Built with HTL templates and simple server-side JavaScript logic
  • The CSS class on the body element changes based on page template
  • Internationalized footer text as example

Structure Components

  • Topnav: simple custom HTL component
  • Logo: based on foundation

Content Components

  • helloworld: example of custom HTL component with SlingModels for the logic
  • colctrl, textimage, text, image,
  • title: use the HTL foundation components

Configurations

  • Device emulators displayed in the authoring interface
  • Allow direct drag & drop of assets from the content finder into parsys (6.1 TouchUI)
  • Dictionnary structure for internationalizing hardcoded strings

Client libraries

  • Responsive layout with colctr that break for narrow pages
  • CSS class names follow AEM naming conventions
  • Component-specific styles stored within each component
    Master ClientLib under /etc/designs merges all client libraries into one file

Bundle with some examples

  • Models: Models for more complex business logic of components
  • Servlets: Rendering the output of specific requests
  • Filters: Applied to the requests before dispatching to the servlet or script
  • Schedulers: Cron-job like tasks

Tests

  • Unit tests
  • Integration tests
  • Client-side Hobbes tests within developer mode

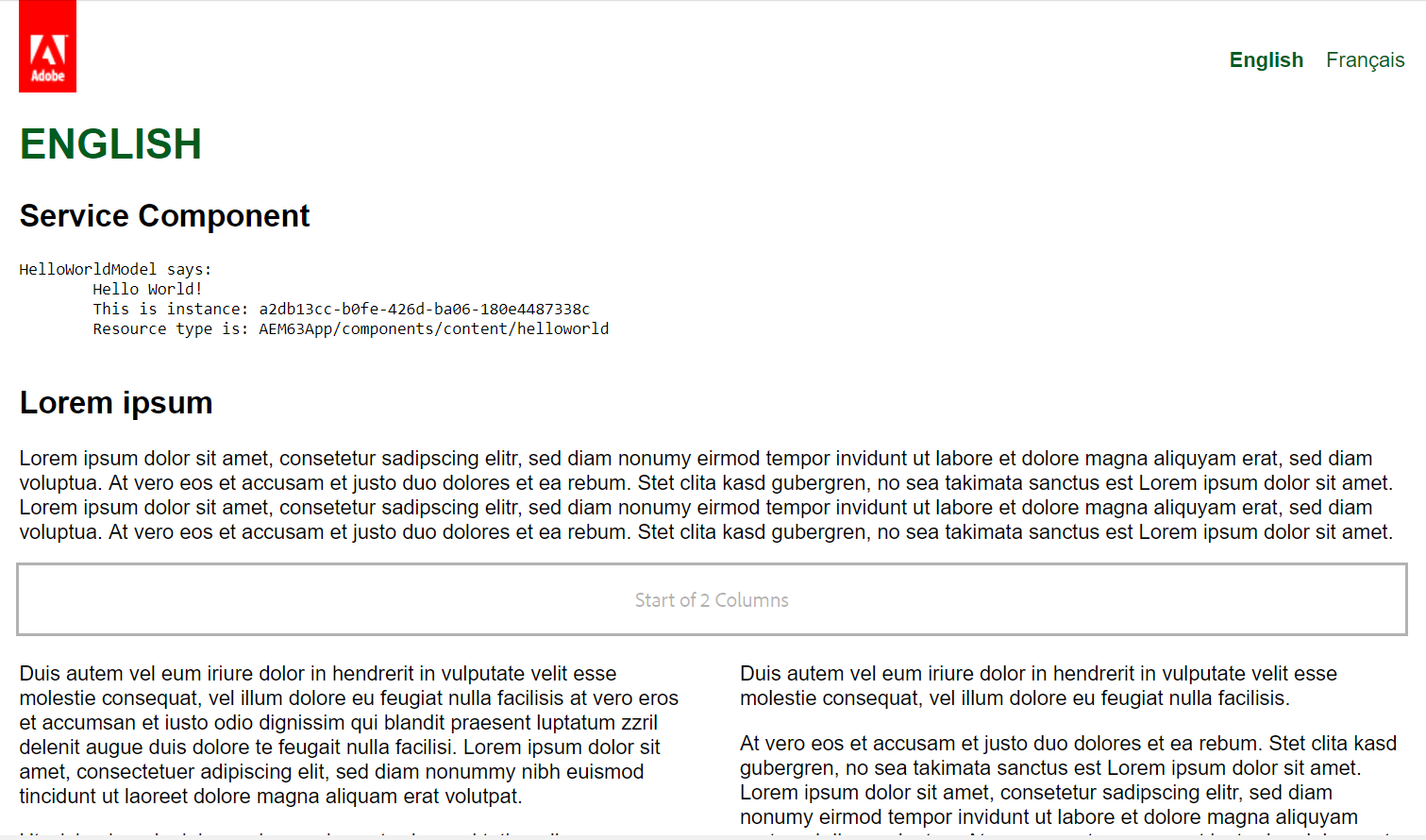

The following illustration represents a default AEM page that is created by the Archetype 11 project.

app
A default page created by Maven Archetype 11

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note: It is recommended that you use Maven 3.0.3 or greater. For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Note:

The Adobe repository URL is now made secured. Change http://repo.adobe.com/nexus/content/groups/public/ to https://repo.adobe.com/nexus/content/groups/public/.

Create an AEM Maven 11 archetype project

ou can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

M10
Files generated by Maven 11 Archetype

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn org.apache.maven.plugins:maven-archetype-plugin:2.4:generate -DarchetypeGroupId=com.adobe.granite.archetypes -DarchetypeArtifactId=aem-project-archetype -DarchetypeVersion=11 -DarchetypeCatalog=https://repo.adobe.com/nexus/content/groups/public/

3. When prompted, specify the following information:

  • groupId - AEM63App
  • artifactId - AEM63App
  • version - 1.0-SNAPSHOT
  • package - com.aem.community
  • appsFolderName - AEM63App
  • artifactName - AEM63App
  • componentGroupName - AEM63App
  • contentFolderName - AEM63App
  • cssId - AEM63App
  • packageGroup - AEM63App
  • siteName - AEM63App

4. WHen prompted, specify Y.

5. Once done, you will see a message like:

[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 01:42 min
[INFO] Finished at: 2016-04-25T14:34:19-04:00
[INFO] Final Memory: 16M/463M
[INFO] ------------------------------------------------------------------------

6. Change the working directory to AEM63App and then enter the following command.

mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

project
Eclipse Import Project Dialog

Note:

Do not worry about the errors reported in Eclipse. It does not read the POM file where the APIs are resolved. You build the bundle with Maven. Eclipse is used to edit the Java files and the POM file.

After you import the project into Eclipse, notice each module is a separate Eclipse project:

  • core - where Java files that are used in OSGi services and sling servlets are located
  • launcher - where additional Java files are located
  • tests - Java files for tests like JUNIT tests
  • apps - content under /apps
  • content - content under /content

When you want to create an OSGi service, you work under core. Likewise, if you want to create a HTL component, you can work under apps.

By default, the Archetype 11 project creates a number of Java files that you can use as a starting point in your project (these Java files are located under core).

The following illustration shows the packages.

java
Default Java source files

LoggingFilter class

The LoggingFilter class performs a simple servlet filter operation that logs incoming requests. The following code represents this class.

package com.aem.community.core.filters;

import java.io.IOException;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;

import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.engine.EngineConstants;
import org.osgi.framework.Constants;
import org.osgi.service.component.annotations.Component;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * Simple servlet filter component that logs incoming requests.
 */
@Component(service = Filter.class,
           property = {
                   Constants.SERVICE_DESCRIPTION + "=Demo to filter incoming requests",
                   EngineConstants.SLING_FILTER_SCOPE + "=" + EngineConstants.FILTER_SCOPE_REQUEST,
                   Constants.SERVICE_RANKING + "=-700"

           })
public class LoggingFilter implements Filter {

    private final Logger logger = LoggerFactory.getLogger(getClass());

    @Override
    public void doFilter(final ServletRequest request, final ServletResponse response,
                         final FilterChain filterChain) throws IOException, ServletException {

        final SlingHttpServletRequest slingRequest = (SlingHttpServletRequest) request;
        logger.debug("request for {}, with selector {}", slingRequest
                .getRequestPathInfo().getResourcePath(), slingRequest
                .getRequestPathInfo().getSelectorString());

        filterChain.doFilter(request, response);
    }

    @Override
    public void init(FilterConfig filterConfig) {
    }

    @Override
    public void destroy() {
    }

}

SimpleResourceListener

The SimpleResourceListener class is a service to demonstrate how changes in the resource tree can be listened for. It registers an event handler service and uses these annotations.

The following Java code represents the SimpleResourceListener class.

/*
 *  Copyright 2015 Adobe Systems Incorporated
 *
 *  Licensed under the Apache License, Version 2.0 (the "License");
 *  you may not use this file except in compliance with the License.
 *  You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 *  Unless required by applicable law or agreed to in writing, software
 *  distributed under the License is distributed on an "AS IS" BASIS,
 *  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *  See the License for the specific language governing permissions and
 *  limitations under the License.
 */
package com.aem.community.core.listeners;

import org.apache.sling.api.SlingConstants;
import org.osgi.framework.Constants;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.event.Event;
import org.osgi.service.event.EventConstants;
import org.osgi.service.event.EventHandler;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * A service to demonstrate how changes in the resource tree
 * can be listened for. It registers an event handler service.
 * The component is activated immediately after the bundle is
 * started through the immediate flag.
 * Please note, that apart from EventHandler services,
 * the immediate flag should not be set on a service.
 */
@Component(service = EventHandler.class,
           immediate = true,
           property = {
                   Constants.SERVICE_DESCRIPTION + "=Demo to listen on changes in the resource tree",
                   EventConstants.EVENT_TOPIC + "=org/apache/sling/api/resource/Resource/*"
           })
public class SimpleResourceListener implements EventHandler {

    private final Logger logger = LoggerFactory.getLogger(getClass());

    public void handleEvent(final Event event) {
        logger.debug("Resource event: {} at: {}", event.getTopic(), event.getProperty(SlingConstants.PROPERTY_PATH));
    }
}

HelloWorldModel class

The HelloWorldModel is a sample class that uses Sling Models. This class uses Sling Model annotations such as @Model. For information, see Sling Models.

The following class represents the HelloWorldModel class.

package com.aem.community.core.models;

import javax.annotation.PostConstruct;
import javax.inject.Inject;
import javax.inject.Named;

import org.apache.sling.api.resource.Resource;
import org.apache.sling.models.annotations.Default;
import org.apache.sling.models.annotations.Model;
import org.apache.sling.settings.SlingSettingsService;

@Model(adaptables=Resource.class)
public class HelloWorldModel {

    @Inject
    private SlingSettingsService settings;

    @Inject @Named("sling:resourceType") @Default(values="No resourceType")
    protected String resourceType;

    private String message;

    @PostConstruct
    protected void init() {
        message = "\tHello World!\n";
        message += "\tThis is instance: " + settings.getSlingId() + "\n";
        message += "\tResource type is: " + resourceType + "\n";
    }

    public String getMessage() {
        return message;
    }
}

SimpleScheduledTask

This class is an AEM scheduler for cron-job like tasks that get executed regularly. It also demonstrates how property values can be set. Users can set the property values in /system/console/configMg. For more information about Sling Scheduler functionality, see Scheduler Service.

The following Java code represents this class.

package com.aem.community.core.schedulers;

import org.osgi.service.component.annotations.Activate;
import org.osgi.service.component.annotations.Component;
import org.osgi.service.metatype.annotations.AttributeDefinition;
import org.osgi.service.metatype.annotations.Designate;
import org.osgi.service.metatype.annotations.ObjectClassDefinition;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * A simple demo for cron-job like tasks that get executed regularly.
 * It also demonstrates how property values can be set. Users can
 * set the property values in /system/console/configMgr
 */
@Designate(ocd=SimpleScheduledTask.Config.class)
@Component(service=Runnable.class)
public class SimpleScheduledTask implements Runnable {

    @ObjectClassDefinition(name="A scheduled task",
                           description = "Simple demo for cron-job like task with properties")
    public static @interface Config {

        @AttributeDefinition(name = "Cron-job expression")
        String scheduler_expression() default "*/30 * * * * ?";

        @AttributeDefinition(name = "Concurrent task",
                             description = "Whether or not to schedule this task concurrently")
        boolean scheduler_concurrent() default false;

        @AttributeDefinition(name = "A parameter",
                             description = "Can be configured in /system/console/configMgr")
        String myParameter() default "";
    }

    private final Logger logger = LoggerFactory.getLogger(getClass());

    private String myParameter;

    @Override
    public void run() {
        logger.debug("SimpleScheduledTask is now running, myParameter='{}'", myParameter);
    }

    @Activate
    protected void activate(final Config config) {
        myParameter = config.myParameter();
    }

}

Note:

For more informatrion about using a Scheduler Service within AEM, see Scheduling Adobe Experience Manager Jobs using Apache Sling

SimpleServlet

The SimpleServlet class represents a simple AEM servlet created using Apache Sling APIs. This servlet using resoure type binding to invoke the servlet. In this example, it binds to AEM63App/structure/page. The following Java code represents the SimpleServlet class.

package com.aem.community.core.servlets;

import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.resource.Resource;
import org.apache.sling.api.servlets.HttpConstants;
import org.apache.sling.api.servlets.SlingAllMethodsServlet;
import org.apache.sling.api.servlets.SlingSafeMethodsServlet;
import org.apache.sling.api.resource.ValueMap;
import org.osgi.framework.Constants;
import org.osgi.service.component.annotations.Component;

import javax.servlet.Servlet;
import javax.servlet.ServletException;
import java.io.IOException;

/**
 * Servlet that writes some sample content into the response. It is mounted for
 * all resources of a specific Sling resource type. The
 * {@link SlingSafeMethodsServlet} shall be used for HTTP methods that are
 * idempotent. For write operations use the {@link SlingAllMethodsServlet}.
 */
@Component(service=Servlet.class,
           property={
                   Constants.SERVICE_DESCRIPTION + "=Simple Demo Servlet",
                   "sling.servlet.methods=" + HttpConstants.METHOD_GET,
                   "sling.servlet.resourceTypes="+ "AEM63App/components/structure/page",
                   "sling.servlet.extensions=" + "txt"
           })
public class SimpleServlet extends SlingSafeMethodsServlet {

    private static final long serialVersionUid = 1L;

    @Override
    protected void doGet(final SlingHttpServletRequest req,
            final SlingHttpServletResponse resp) throws ServletException, IOException {
        final Resource resource = req.getResource();
        resp.setContentType("text/plain");
        resp.getWriter().write("Title = " + resource.adaptTo(ValueMap.class).get("jcr:title"));
    }
}

Note:

For more information about creating an AEM servlet that binds to resources, see Binding Adobe Experience Manager Servlets to ResourceTypes.

Modify the Maven POM file

Add the following POM dependency to the POM file located at C:\AdobeCQ\AEM63App.

<dependency>
               <groupId>com.adobe.aem</groupId>
               <artifactId>uber-jar</artifactId>
               <version>6.3.0</version>
               <!-- for AEM6.1 use this version     : <version>6.1.0</version> -->
               <!-- for AEM6.1 SP1 use this version : <version>6.1.0-SP1-B0001</version> -->
               <!-- for AEM6.1 SP2 use this version : <version>6.1.0-SP2</version> -->
               <!-- for AEM6.2 use this version     : <version>6.2.0</version> -->
               <classifier>obfuscated-apis</classifier>
               <scope>provided</scope>
           </dependency>

           <dependency>
               <groupId>org.apache.geronimo.specs</groupId>
               <artifactId>geronimo-atinject_1.0_spec</artifactId>
               <version>1.0</version>
               <scope>provided</scope>
           </dependency>

When you add new Java classes under core, you need to modify a POM file to successfully build the OSGi bundle. You modify the POM file located at C:\AdobeCQ\AEM63App\core.

The following code represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<!--
 |  Copyright 2015 Adobe Systems Incorporated
 |
 |  Licensed under the Apache License, Version 2.0 (the "License");
 |  you may not use this file except in compliance with the License.
 |  You may obtain a copy of the License at
 |
 |      http://www.apache.org/licenses/LICENSE-2.0
 |
 |  Unless required by applicable law or agreed to in writing, software
 |  distributed under the License is distributed on an "AS IS" BASIS,
 |  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 |  See the License for the specific language governing permissions and
 |  limitations under the License.
-->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>AEM63App</groupId>
        <artifactId>AEM63App</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../pom.xml</relativePath>
    </parent>
    <artifactId>AEM63App.core</artifactId>
    <packaging>bundle</packaging>
    <name>AEM63App - Core</name>
    <description>Core bundle for AEM63App</description>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <executions>
                    <execution>
                        <id>bundle-manifest</id>
                        <phase>process-classes</phase>
                        <goals>
                            <goal>manifest</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <instructions>
                        <!-- Import any version of javax.inject, to allow running on multiple versions of AEM -->
                        <Import-Package>javax.inject;version=0.0.0,*</Import-Package>
                        <Sling-Model-Packages>
                            com.aem.community.core
                        </Sling-Model-Packages>
                    </instructions>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <dependencies>
        <!-- OSGi Dependencies -->
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>osgi.cmpn</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>osgi.annotation</artifactId>
        </dependency>
        <!-- Other Dependencies -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.jcr</groupId>
            <artifactId>jcr</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>com.adobe.aem</groupId>
            <artifactId>uber-jar</artifactId>
            <classifier>apis</classifier>
        </dependency>
        <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.models.api</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-core</artifactId>
        </dependency>
        <dependency>
            <groupId>junit-addons</groupId>
            <artifactId>junit-addons</artifactId>
        </dependency>
    </dependencies>
</project>

Build the OSGi bundle using Maven

To build the OSGi bundle by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\AEM63App.
  2. Run the following maven command: mvn -PautoInstallPackage install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\AEM63App\core\target. The file name of the OSGi component is AEM63App.core-1.0-SNAPSHOT.jar.

The command -PautoInstallPackage automatically deploys the OSGi bundle to AEM.

View the Active OSGi bundle

After you deploy the OSGi bundle by using the Maven command, you can see it in an active state in the Adobe Apache Felix Web Console.



felix
The OSGi bundle in an Active State

View your OSGi bundle by performing these steps:

  1. Login to Adobe Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).
  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.

Understand the UI Apps content

The Maven Archetype 11 project creates default files under /apps, as shown in this illustration.

files
Default files under /apps

The following list describes these files:

  • A - default components that you can use in your project. You can also modify these components to meet your business requirements.
  • B - files that create page content, inlcuding footers, top navigation, and so on. For example, you can find footer content in this file: /apps/AEM63App/components/structure/page/partials/footlibs.html.
  • C - configuration information for the OSGi service.
  • D - default i18n files
  • E - defines two templates: page content and page home.

AEM63App default components

The following default components are created under components/content:

  • helloworld - a basic component that displays text
  • image - a basic image component
  • text - a basic text component
  • textimage - a basic textimage component
  • title - a basic title component

Note:

If you install the package at the start of this article, you do not have to manually create this dialog JCR node structure. If you are not familiar with how to create a component dialog by using CRXDE lite, please see Creating your first Adobe Experience Manager Touch UI component.

helloworld component

The helloworld component is a basic HTL component that displays text. Notice the following code.

<p data-sly-test="${properties.text}">Text property: ${properties.text}</p>

<pre data-sly-use.hello="com.aem.community.core.models.HelloWorldModel">
HelloWorldModel says:
${hello.message}
</pre>

The first thing to notice about this code is:

<pre data-sly-use.hello="com.adobecq.community.core.models.HelloWorldModel">

In this example, data-sly-use.hello references the Java class named HelloWorldModel. (This class is explained earlier in this article). The HelloWorldModel uses Sling Models. This line of code:

${hello.message}

returns the value of the getMessage method in the HelloWorldModel class. This value is displayed by the helloworld component.

Note:

You can see the output of the helloworld component in the illustration shown at the start of this development article.

Image component

The image component is a basic HTL component that displays an image, as shown in this illustration.

iamge
The default image component

If you look under components/content/image, you will not see any code for the component. This is because this component inherits from the main image component. This is made possible by setting the component's sling:resourceSuperType property to wcm/foundation/components/image. This is how component inheritence works with AEM. For more information about component inheritence, see AEM Components - the Basics.

text component

The text component lets an author enter text into an AEM web page. Like the image component, this component inherits from the main component by setting the sling:resourceSuperType property to wcm/foundation/components/text.

textimage component

The textimage component lets an author enter text and an image into an AEM web page. Like the image component, this component inherits from the main component by setting the sling:resourceSuperType property to wcm/foundation/components/textimage.

title component

The title component lets an author enter a title into an AEM web page. Like the image component, this component inherits from the main component by setting the sling:resourceSuperType property to wcm/foundation/components/title.

AEM63App structure components

Under /apps/AEM63App/components/structure, there are additional components. Notice the page component, as shown here.

page
Default files for the Page component

The page component is a HTL component that references the other files (under the partials folder) by using the sly data-sly-include statement.

<html lang="en">
    <head>
        <sly data-sly-include="partials/head.html" data-sly-unwrap/>
        <sly data-sly-include="partials/headlibs.html" data-sly-unwrap/>
    </head>
    <body class="page ${currentPage.template.name}">
        <sly data-sly-include="partials/main.html" data-sly-unwrap/>
        <sly data-sly-include="partials/footlibs.html" data-sly-unwrap/>
    </body>
</html>

For example, notice that the footlibs.html file is at the bottom. This represents the page's footer. The following code shows this file.

<!--/* Include the site client libraries (loading only the JS in the footer, CSS was loaded in the header) */-->
<sly data-sly-use.clientLib="/libs/granite/sightly/templates/clientlib.html" data-sly-call="${clientLib.js @ categories='AEM62CSS.all'}" data-sly-unwrap/>

<!--/* Include Adobe Dynamic Tag Management libraries for the footer */-->
<sly data-sly-resource="${@ resourceType='cq/cloudserviceconfigs/components/servicecomponents'}" data-sly-unwrap/>

In this example, notice data-sly-use.clientLib. This is how you reference an AEM clientlib in AEM. In this example, it is referencing /libs/granite/sightly/templates/clientlib.html. However, you can reference your own client libs folder tha contains other JavaScript libraries that you want to use in your AEM project.

Default ClientLibs for AEM63App

The Archetype 11 project create a default clientlib location for your AEM project. This clientlibs folder is located at the following location:

/etc/designs/AEM63App

If you need to add additional CSS or JS files to your project, you can add them there. When you package up your project, include this folder as well.

Running the default web page

You can view the default web page by using the following URL:

http://localhost:4502/content/AEM63App/en.html

Notice that this page displays the HelloWorld component.

See also

Join the AEM community at: Adobe Experience Manager Community

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
