Article summary

Summary

Discusses how to develop a Java Swing application that posts multiple files to the AEM DAM. The Sling Servlet uses the AssetManager API to place the uploaded files into the AEM DAM.

To learn how to write a custom Sling Servlet that downloads DAM assets, see Downloading Adobe Experience Manager DAM Assets using Sling Servlets and the Query Builder API.

This article has been updated to create a Java Swing application that posts multiple files to a custom AEM Sling Servlet that uses the AssetManager API.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, Maven, XML
Tested On Adobe Experience Manager 5.5, 5.6, 6.x
Video https://youtu.be/smrFuVLfiBc

Note:

You can download both the required Sling Servlet and the Java Swing Client that is discussed in this article. This is a sample application (same code as shown in this article). Notice there are two downloads. One is the OSGi bundle located in a ZIP file. Unzip the file and retrieve the JAR file. Deploy the JAR (OSGi bundle) to AEM using the Felix console.

The second download is the Java Swing Client. Unzip this file and extract to a folder of your choice. Read the ReadME.txt file. Before running this client, ensure that the OSGi bundle is deployed. Also, make sure that the XML file you use is correct. Specify the file location and all files to upload to the AEM DAM.

* DAMSlingServelt.zip
The AEM Sling Servlet
* AEMDAMBatchUploadClient.zip
The Java GUI client

Introduction

Adobe Experience Manager contains a Digital Asset Manager (DAM) that stores your organization's digital assets such as image files, video files, and so on. You can create a Java Swing application that lets you upload multiple digital assets (for example, image files) from your organization repository to the AEM DAM. Some organizations have thousands of digital assets and as a result, it is not practical to upload them one at a time using the AEM web client or Curl. For information about using the AEM web client to upload digital assets to the AEM DAM, see How to upload a Digital Asset.

Instead, you can develop a Sling Servlet that uses the AssetManager API. You can post files to the Sling Servlet by developing a Java Swing application. For information, see AssetManager API.

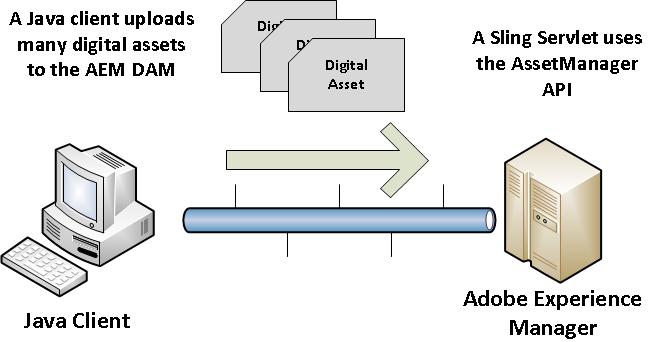

This client application uploads multiple digital assets to the AEM DAM.

ClientUploadDam3

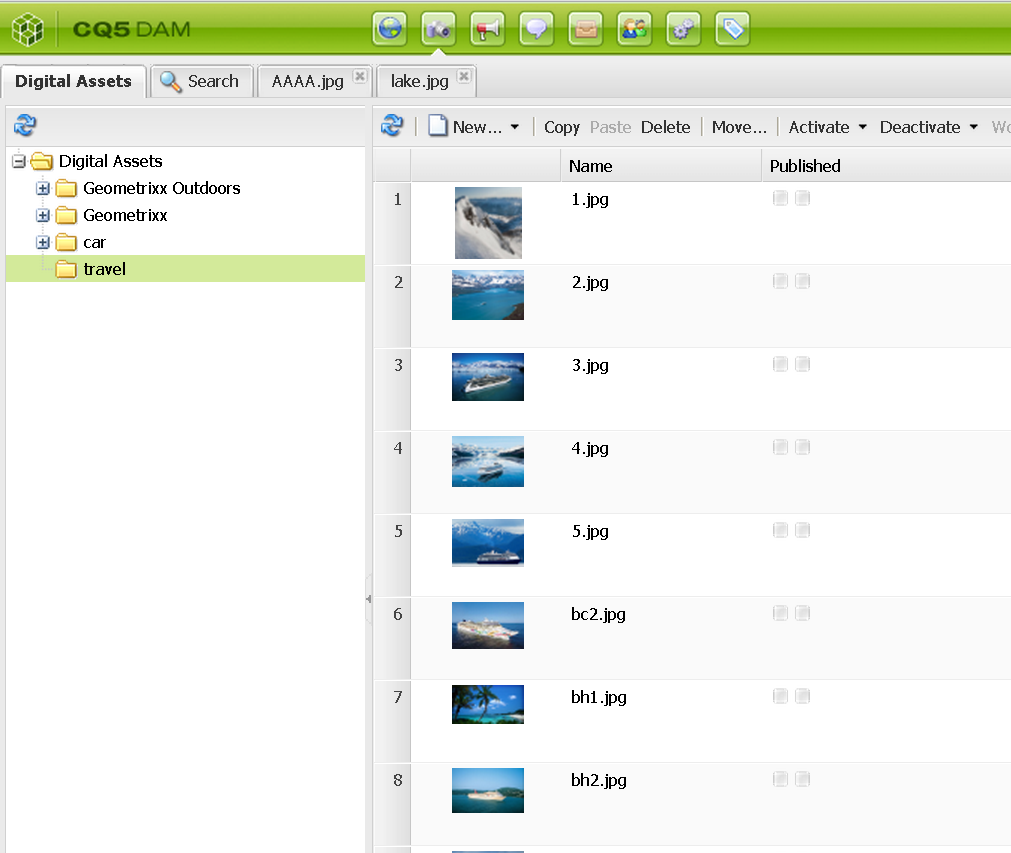

This development article creates the following Java Swing application.

MultipleSwingClient

The Java Swing application reads an XML file and posts each file to an AEM Sling Servlet. The location of the DAM folder is specified in the client. For example, in the previous illustration, notice that the AEM path is /content/dam/travel.

Also notice that you specify the MIME type using the Java client application. Once you click the Post Files button, you select an XML file that contains file information. Next, the client application parses the XML file and uploads each file to an AEM Sling Servlet. The Sling Servlet uses the AssetManager API to persist the posted file to the AEM DAM.

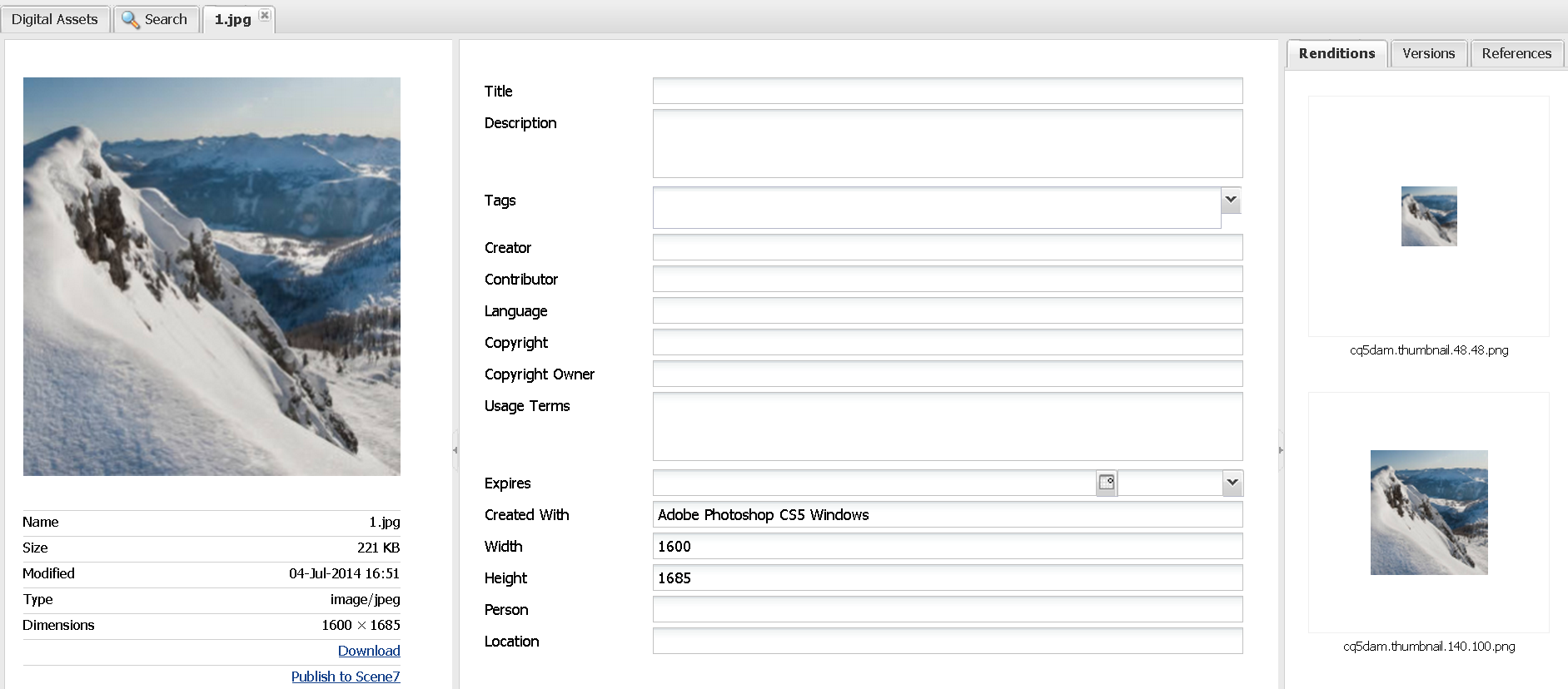

When you use the AssetManager API to persist a file in the AEM DAM, AEM automatically creates different renditions for the asset, as shown in this illustration (this represents the image file named 1.jpg).

DAMRen


The Java application parses an XML file that specifies the following information:

  • The location of where the digital assets are located.
  • The files to upload to the AEM DAM. This value is dynamic and you can add more elements to upload additional files.

The Java client application uses the following XML file.

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<root>
<FileLocation>C:\DAMFiles\</FileLocation>

<Files>
   <File>
      <name>1.jpg</name>
  </File>
  <File>
      <name>2.jpg</name>
  </File>
   <File>
      <name>3.jpg</name>
   </File>
   <File>
      <name>4.jpg</name>
  </File>
   <File>
      <name>5.jpg</name>
  </File>
   <File>
      <name>bc2.jpg</name>
   </File>
    <File>
      <name>bh1.jpg</name>
  </File>

   <File>
      <name>bh2.jpg</name>
   </File>

   <File>
      <name>bh3.jpg</name>
   </File>

   <File>
      <name>bh4.jpg</name>

   </File>

   <File>
      <name>bh5.jpg</name>

   </File>

   <File>
      <name>cc1.jpg</name>

   </File>

   <File>
      <name>cc2.jpg</name>

   </File>

   <File>
      <name>cc3.jpg</name>

   </File>

   <File>
      <name>cc4.jpg</name>

   </File>

   <File>
      <name>cc5.jpg</name>

   </File>

   <File>
      <name>hc1.jpg</name>

   </File>

   <File>
      <name>hc2.jpg</name>

   </File>

   <File>
      <name>hc3.jpg</name>

   </File>

   <File>
      <name>hc4.jpg</name>

   </File>

   <File>
      <name>hc5.jpg</name>

   </File>

</Files>

</root>

All the information that is required for the Java application is specified in this XML file. For each file that is uploaded to the AEM DAM, a file is specified in a File element. The location on the file system is specified by the FileLocation element.

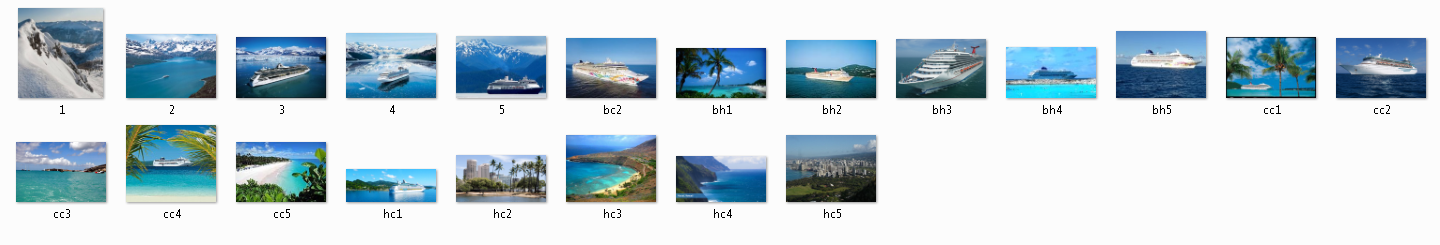

In this example, assume that the digital assets that are uploaded to the AEM DAM are located in a folder in the root of C:\ named DAMFiles (C:\DamFiles). Also assume that these digital assets are image files with a JPG file extension.

Assets

Create the client application using Java Swing classes

The first step is to create an IntelliJ Maven Java project as shown here.

ClientProject




Create an IntelliJ project by performing these tasks:

  1. Start IntelliJ IDEA.

  2. Click File, New Project.

  3. Select Maven Module.

  4. In Project Name, type SwingFileUpload.

  5. In Project Location, specify a location for your project. In this example, C:\SwingFileUpload is specified.

  6. In the Project SDK, specify the location to your Java SDK location.

  7. Click Next.

  8. Click Finish.

Next, add the following dependencies to the POM file in your IntelliJ project:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>SwingFileUpload</groupId>
    <artifactId>SwingFileUpload</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.0-alpha4</version>
        </dependency>



        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpmime</artifactId>
            <version>4.1-beta1</version>
        </dependency>



    </dependencies>
    <repositories>
        <repository>
            <id>google-releases</id>
            <name>Google Releases</name>
            <url>https://oss.sonatype.org/content/repositories/google-releases</url>
        </repository>
    </repositories>
</project>

Notice that these dependencies include the org.apache.httpcomponents. This dependency lets you use post files from the desktop to an AEM Sling Servlet.

Create the PostDamFiles instance

The PostDamFile class extends JFrame and represents the frame of your Java application. For information about the JFrame class, see JFrame.

The PostDamFile class also contains a Java main method that represents the entry point into your Java application, as shown here.

 public static void main(String[] args) {

        SwingUtilities.invokeLater(new Runnable() {
            public void run() {
                //Turn off metal's use of bold fonts
                UIManager.put("swing.boldMetal", Boolean.FALSE);
                createAndShowGUI();
            }
        });
    }

The following Java method parses the selected XML file and creates a Java File object for each File element. For each file, the client application posts the file to an AEM Sling Servlet. The Sling Servlet used in this use case does not require authentication. As a result, the Sling Servlet is configured so that authentication is not required. (The syntax is shown later.)

The URL to the AEM server (and port) is specified by the user. The URL to the Sling Servlet is /bin/upmanydamfiles  and is specified when developing the Sling Servlet by defining the @SlingServlet annotation value (this is shown later in this development article).

To post a file, you use an org.apache.http.impl.client.DefaultHttpClient instance. Invoke this object's execute method and pass the HttpPost instance. This instance contains two values that are posted to the Sling Servlet:

  1. The file to post.
  2. The path of the DAM folder.
 //Posts the selected file to AEM
    private static void postAEM(File file, String host, String path, String mimeType)
    {
        try {

            ar = new ArrayList<String>();
            String aemPostUrl = host+"/bin/upmanydamfiles";
            HttpPost post = new HttpPost(aemPostUrl);

            //Loop through the  XML document to post each file to the Sling Servlet
            DocumentBuilderFactory dbFactory = DocumentBuilderFactory.newInstance();
            DocumentBuilder dBuilder = dbFactory.newDocumentBuilder();
            Document doc = dBuilder.parse(file);       //Convert the file to a Document object

            NodeList fields = doc.getElementsByTagName("File");

            //Get the the location of where the digital assets are located.
            String fileLocation = getNodeText("FileLocation", doc);

            int length = fields.getLength();
            for(int i = 0; i < length; i++)
            {
                org.w3c.dom.Node node = (org.w3c.dom.Node)fields.item(i);
                String fileName = getChildStringValueForElement(node, "name");

                ar.add(fileName);
                //Read the File from the File System
                File myFile = new File(fileLocation+fileName);

                org.apache.http.entity.mime.MultipartEntity entity = new org.apache.http.entity.mime.MultipartEntity ();
                byte[] b = new byte[(int)myFile.length()];
                org.apache.http.entity.mime.content.FileBody fileBody = new org.apache.http.entity.mime.content.FileBody(myFile, mimeType) ;
                org.apache.http.entity.mime.content.StringBody imageTitle = new org.apache.http.entity.mime.content.StringBody(path);

                entity.addPart("imageTitle", imageTitle);
                entity.addPart("image", fileBody);
                post.setEntity(entity);



                org.apache.http.impl.client.DefaultHttpClient client = new org.apache.http.impl.client.DefaultHttpClient();
                org.apache.http.HttpResponse response = null;

                response = client.execute(post); // post the file to the AEM DAM
            }




            System.out.println("Done") ;
        } catch (Exception e) {
            e.printStackTrace();
        }

    }

The following Java code represents the entire PostDamFiles class.

import java.io.*;
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import javax.swing.SwingUtilities;
import org.apache.http.client.methods.*;

//DOM Imports
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.DocumentBuilder;
import org.w3c.dom.Document;
import org.w3c.dom.NodeList;
import  java.util.ArrayList;

/*
 * Posts a file to an AEM Sling Servlet
 */
public class PostDamFiles extends JPanel
        implements ActionListener {
    static private final String newline = "\n";
    JButton postButton, clearButton;
    JTextArea log;
    JTextField hostField;
    JTextField path;
    JFileChooser fc;
    static ArrayList<String> ar ;

    static  String aemURL;

    JTextField queryField;
    JComboBox patternList;
    int m_stars = -1;

    String[] mimeType = {
            "image/jpeg",
            "image/bmp",
            "image/jnp",

    };

    public PostDamFiles() {
        super(new BorderLayout());

        //Create the log first, because the action listeners
        //need to refer to it.
        log = new JTextArea(5,20);
        log.setMargin(new Insets(5,5,5,5));
        log.setEditable(false);
        JScrollPane logScrollPane = new JScrollPane(log);

        //Create a file chooser
        fc = new JFileChooser();

        //Create the post button.
        postButton = new JButton("Post Files...",
                createImageIcon("images/Open16.gif"));
        postButton.addActionListener(this);

        //Create the clear button.
        clearButton = new JButton("Clear...",
                createImageIcon("images/Save16.gif"));
        clearButton.addActionListener(this);

        //For layout purposes, put the buttons in a separate panel
        JPanel buttonPanel = new JPanel(); //use FlowLayout

        buttonPanel.setLayout(new GridLayout(5, 2));
        buttonPanel.add(new JLabel("Enter the AEM URL: "));
        buttonPanel.add(hostField = new JTextField());
        hostField.setText("http://localhost:4502"); // Set default for AEM URL
        buttonPanel.add(new JLabel("Enter the AEM Path: "));
        buttonPanel.add(path = new JTextField());
        path.setText("/content/dam/travel/"); // Set default for AEM DAM


        buttonPanel.add(new JLabel("File MIME type: "));
        buttonPanel.add(patternList = new JComboBox(mimeType));

        buttonPanel.add(postButton);
        buttonPanel.add(clearButton);

        //Add the buttons and the log to this panel.
        add(buttonPanel, BorderLayout.PAGE_START);
        add(logScrollPane, BorderLayout.CENTER);
    }

    public void actionPerformed(ActionEvent e) {

        //Handle open button action.
        if (e.getSource() == postButton) {
            int returnVal = fc.showOpenDialog(PostDamFiles.this);

            if (returnVal == JFileChooser.APPROVE_OPTION) {


                //Get the XML file that drives the upload process
                File file = fc.getSelectedFile();



                //Get the path & server value
                String myPath = path.getText();
                String aemUrl = hostField.getText();
                String mimeType =(String) patternList.getSelectedItem() ;

                //This is where a real application would open the file.
                log.append("Reading XML file...");
                postAEM(file, aemUrl, myPath, mimeType);


                log.append("Successfully posted these files to the AEM DAM:  " + newline);

                for (int r=0; r < ar.size(); r++)
                {
                    String fileName = (String) ar.get(r)   ;
                    log.append(fileName + newline);
                }


            } else {
                log.append("Open command cancelled by user." + newline);
            }
            log.setCaretPosition(log.getDocument().getLength());

            //Handle clear button action.
        } else if (e.getSource() == clearButton) {
            log.setText("");
        }
    }

    /** Returns an ImageIcon, or null if the path was invalid. */
    protected static ImageIcon createImageIcon(String path) {
        java.net.URL imgURL = PostDamFiles.class.getResource(path);
        if (imgURL != null) {
            return new ImageIcon(imgURL);
        } else {
            System.err.println("Couldn't find file: " + path);
            return null;
        }
    }

    /**
     * Create the GUI and show it.  For thread safety,
     * this method should be invoked from the
     * event dispatch thread.
     */
    private static void createAndShowGUI() {
        //Create and set up the window.
        JFrame frame = new JFrame("AEM File Uploader");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        //Add content to the window.
        frame.add(new PostDamFiles());

        //Display the window.
        frame.pack();
        frame.setVisible(true);
    }


    //Posts the selected file to AEM
    private static void postAEM(File file, String host, String path, String mimeType)
    {
        try {

            ar = new ArrayList<String>();
            String aemPostUrl = host+"/bin/upmanydamfiles";
            HttpPost post = new HttpPost(aemPostUrl);

            //Loop through the  XML document to post each file to the Sling Servlet
            DocumentBuilderFactory dbFactory = DocumentBuilderFactory.newInstance();
            DocumentBuilder dBuilder = dbFactory.newDocumentBuilder();
            Document doc = dBuilder.parse(file);       //Convert the file to a Document object

            NodeList fields = doc.getElementsByTagName("File");

            //Get the the location of where the digital assets are located.
            String fileLocation = getNodeText("FileLocation", doc);

            int length = fields.getLength();
            for(int i = 0; i < length; i++)
            {
                org.w3c.dom.Node node = (org.w3c.dom.Node)fields.item(i);
                String fileName = getChildStringValueForElement(node, "name");

                ar.add(fileName);
                //Read the File from the File System
                File myFile = new File(fileLocation+fileName);
               //InputStream stream= new FileInputStream(myFile);

                org.apache.http.entity.mime.MultipartEntity entity = new org.apache.http.entity.mime.MultipartEntity ();
                byte[] b = new byte[(int)myFile.length()];
                org.apache.http.entity.mime.content.FileBody fileBody = new org.apache.http.entity.mime.content.FileBody(myFile, mimeType) ;
                org.apache.http.entity.mime.content.StringBody imageTitle = new org.apache.http.entity.mime.content.StringBody(path);

                entity.addPart("imageTitle", imageTitle);
                entity.addPart("image", fileBody);
                post.setEntity(entity);



                org.apache.http.impl.client.DefaultHttpClient client = new org.apache.http.impl.client.DefaultHttpClient();
                org.apache.http.HttpResponse response = null;

                response = client.execute(post); // post the file to the AEM DAM
            }




            System.out.println("Done") ;
        } catch (Exception e) {
            e.printStackTrace();
        }

    }

    public static String getChildStringValueForElement(org.w3c.dom.Node base, String name)
    {
        String value = null;
        NodeList nodeList = base.getChildNodes();
        int length = nodeList.getLength();
        for(int i = 0; i < length; i++)
        {
            org.w3c.dom.Node node = nodeList.item(i);
            if(1 != node.getNodeType() || !name.equals(node.getNodeName()))
                continue;
            org.w3c.dom.Node elNode = node.getFirstChild();
            if(elNode == null)
                continue;
            value = elNode.getNodeValue();
            break;
        }
        return value;
    }


    //THis method returns the value of a node in the given XML
    public static String getNodeText(String tagName, Document doc)
    {
        String res = "";
        NodeList nodes = doc.getElementsByTagName(tagName);
        if(nodes.getLength() > 0)
        {
            org.w3c.dom.Node node = nodes.item(0);
            NodeList children = node.getChildNodes();
            int length = children.getLength();
            for(int i = 0; i < length; i++)
            {
                org.w3c.dom.Node child = children.item(i);
                if(child.getNodeType() == 3)
                    res = child.getNodeValue();
            }
        }
        return res;
    }

    public static void main(String[] args) {

        SwingUtilities.invokeLater(new Runnable() {
            public void run() {
                //Turn off metal's use of bold fonts
                UIManager.put("swing.boldMetal", Boolean.FALSE);
                createAndShowGUI();
            }
        });
    }
}

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Java home: C:\Programs\Java64-6\jre
Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"

Note: It is recommended that you use Maven 3.0.3 or greater. For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

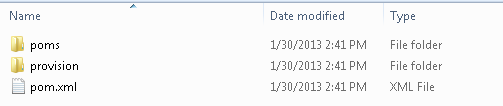

plugin1



To create an Experience Manager archetype project, perform these steps:

  1.  Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

  2. Run the following Maven command:

    mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.adobe.cq.sling.uploadall -DartifactId=uploadallfiles -Dversion=1.0-SNAPSHOT -Dpackage=com.adobe.cq.sling.uploadall -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

  3. When prompted for additional information, specify Y.

  4. Once done, you will see a message like:

    [INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
    [INFO] Final Memory: 10M/184M

  5. Change the command prompt to the generated project. For example: C:\AdobeCQ\uploadallfiles. Run the following Maven command:
    mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

DAMPro2

The next step is to add a Java file to the com.adobe.cq.sling.uploadall package. The Java class that you create in this section extends the Sling class named org.apache.sling.api.servlets.SlingAllMethodsServlet. This class supports the doPost method that lets you submit a file from the Java Swing application.

For information about this class, see Class SlingAllMethodsServlet.

Create a Java class named HandleFile that extends org.apache.sling.api.servlets.SlingAllMethodsServlet. Within the doPost method, create Java Sling application logic that reads the file that is uploaded to the Sling servlet. The fully qualified names of the Java objects are used so you understand the data types used in this code fragment.

@Override
 protected void doPost(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {

      try
         {
         final boolean isMultipart = org.apache.commons.fileupload.servlet.ServletFileUpload.isMultipartContent(request);
         PrintWriter out = null;
         int index = 1 ;

           out = response.getWriter();
           if (isMultipart) {
             final java.util.Map<String, org.apache.sling.api.request.RequestParameter[]> params = request.getRequestParameterMap();

             for (final java.util.Map.Entry<String, org.apache.sling.api.request.RequestParameter[]> pairs : params.entrySet()) {

                 final String k = pairs.getKey();

                 final org.apache.sling.api.request.RequestParameter[] pArr = pairs.getValue();

                 final org.apache.sling.api.request.RequestParameter param0 = pArr[0];

                 //Determine if the posted value is a file or the JCR Path
                 boolean formField = param0.isFormField(); //Is this a form field or a posted file

                 if (formField)
                 {
                     String libLoc = param0.getString();
                     clientLibPath = libLoc ; //Set the class member - its the first posted value from the client
                     log.info("FIELD VALUE IS: "+libLoc )  ;

                 }
                 else
                 {
                     // final org.apache.sling.api.request.RequestParameter param1 = pArr[1];
                  final InputStream stream = param0.getInputStream();
                  String mimeType = param0.getContentType();

                  log.info("THE CONTENT TYPE IS: "+mimeType )  ;

                  //Save the uploaded file into the Adobe CQ DAM
                  writeToClientLib(stream,param0.getFileName(),clientLibPath,mimeType  );
                 }
                 index ++;
             }
           }
         }

         catch (Exception e) {
             e.printStackTrace();
         }

     }

The uploaded file is placed into an InputStream instance named stream. Next, the uploaded file is written to the AEM DAM using the AssetManager API. The following Java code represents a method named writeToDam. This method uses the AssetManager API to place the file into the AEM DAM.

//Save the uploaded file into the specified client lib path
private String writeToClientLib(InputStream is, String fileName, String path, String mimetype)
{
try
{
	 //Inject a ResourceResolver
    ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);

    //Use AssetManager to place the file into the AEM DAM
    com.day.cq.dam.api.AssetManager assetMgr = resourceResolver.adaptTo(com.day.cq.dam.api.AssetManager.class);
    String newFile = path+fileName ;
    assetMgr.createAsset(newFile, is, mimetype, true);

    // Return the path to the document that was stored in CRX.
    return newFile;
}
catch(Exception e)
{
    e.printStackTrace();
}
return null;
}

The Java class uses a SlingServlet annotation:

@SlingServlet(paths="/bin/upmanydamfiles", methods = "POST", metatype=true)

The paths property corresponds to the URL that you specify from the Java Swing application that you created earlier in this development article.

The following Java code represents the HandleFile class that extends org.apache.sling.api.servlets.SlingAllMethodsServlet.

package com.adobe.cq.sling.uploadall;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.HttpURLConnection;
import java.net.URL;
import java.rmi.ServerException;
import java.util.Dictionary;
import java.util.Calendar;
import java.io.*;

import org.apache.felix.scr.annotations.Properties;
import org.apache.felix.scr.annotations.Property;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.sling.SlingServlet;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.servlets.SlingSafeMethodsServlet;
import org.apache.sling.commons.osgi.OsgiUtil;
import org.apache.sling.jcr.api.SlingRepository;
import org.apache.felix.scr.annotations.Reference;
import org.osgi.service.component.ComponentContext;
import javax.jcr.Session;
import javax.jcr.Node;
import org.apache.commons.fileupload.FileItem;
import org.apache.commons.fileupload.disk.DiskFileItemFactory;
import org.apache.commons.fileupload.servlet.ServletFileUpload;
import org.apache.commons.fileupload.util.Streams;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Service;
import javax.jcr.ValueFactory;
import javax.jcr.Binary;

import javax.servlet.Servlet;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.FileOutputStream;
import java.util.Iterator;
import java.util.List;
import java.io.OutputStream;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.StringWriter;

import java.util.ArrayList;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.jcr.Repository;
import javax.jcr.SimpleCredentials;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;

import org.apache.jackrabbit.commons.JcrUtils;

import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;



import javax.jcr.Session;
import javax.jcr.Node;

//Sling Imports
import org.apache.sling.api.resource.ResourceResolverFactory ;
import org.apache.sling.api.resource.ResourceResolver;
import org.apache.sling.api.resource.Resource;

//AssetManager
import com.day.cq.dam.api.AssetManager;

//This is a component so it can provide or consume services
@SlingServlet(paths="/bin/upmanydamfiles", methods = "POST", metatype=true)
@Property(name = "sling.auth.requirements", value = "-/bin/upmanydamfiles")
public class HandleFile extends org.apache.sling.api.servlets.SlingAllMethodsServlet {
 private static final long serialVersionUID = 2598426539166789515L;

 private Session session;

 private String clientLibPath = "";

 /** Default log. */
 protected final Logger log = LoggerFactory.getLogger(this.getClass());

 //Inject a Sling ResourceResolverFactory
 @Reference
 private ResourceResolverFactory resolverFactory;

 @Override
 protected void doGet(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {


     }


 @Override
 protected void doPost(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {

      try
         {
         final boolean isMultipart = org.apache.commons.fileupload.servlet.ServletFileUpload.isMultipartContent(request);
         PrintWriter out = null;
         int index = 1 ;

           out = response.getWriter();
           if (isMultipart) {
             final java.util.Map<String, org.apache.sling.api.request.RequestParameter[]> params = request.getRequestParameterMap();

             for (final java.util.Map.Entry<String, org.apache.sling.api.request.RequestParameter[]> pairs : params.entrySet()) {

                 final String k = pairs.getKey();

                 final org.apache.sling.api.request.RequestParameter[] pArr = pairs.getValue();

                 final org.apache.sling.api.request.RequestParameter param0 = pArr[0];

                 //Determine if the posted value is a file or the JCR Path
                 boolean formField = param0.isFormField(); //Is this a form field or a posted file

                 if (formField)
                 {
                     String libLoc = param0.getString();
                     clientLibPath = libLoc ; //Set the class member - its the first posted value from the client
                     log.info("FIELD VALUE IS: "+libLoc )  ;

                 }
                 else
                 {
                     // final org.apache.sling.api.request.RequestParameter param1 = pArr[1];
                  final InputStream stream = param0.getInputStream();
                  String mimeType = param0.getContentType();

                  log.info("THE CONTENT TYPE IS: "+mimeType )  ;

                  //Save the uploaded file into the Adobe CQ DAM
                  writeToClientLib(stream,param0.getFileName(),clientLibPath,mimeType  );
                 }
                 index ++;
             }
           }
         }

         catch (Exception e) {
             e.printStackTrace();
         }

     }


//Save the uploaded file into the specified client lib path
private String writeToClientLib(InputStream is, String fileName, String path, String mimetype)
{
try
{
	 //Inject a ResourceResolver
    ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);

    //Use AssetManager to place the file into the AEM DAM
    com.day.cq.dam.api.AssetManager assetMgr = resourceResolver.adaptTo(com.day.cq.dam.api.AssetManager.class);
    String newFile = path+fileName ;
    assetMgr.createAsset(newFile, is, mimetype, true);

    // Return the path to the document that was stored in CRX.
    return newFile;
}
catch(Exception e)
{
    e.printStackTrace();
}
return null;
}

}

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle that contains the Sling servlet. In the POM file located at C:\AdobeCQ\uploadallfiles, add the following dependencies.

  • org.apache.felix.scr
  • org.apache.felix.scr.annotations
  • org.apache.jackrabbit
  • org.apache.sling

The following XML represents this POM file.



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>com.adobe.cq.sling.uploadall</groupId>
        <artifactId>uploadallfiles</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>uploadallfiles-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>DAM Trainig Bundle</name>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>

        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>com.adobe.cq.sling.uploadall.uploadallfiles-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/adobe-traininig/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <dependencies>
        <dependency>
            <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>

    <dependency>
        <groupId>org.apache.sling</groupId>
        <artifactId>org.apache.sling.commons.osgi</artifactId>
        <version>2.2.0</version>
    </dependency>

    <dependency>
        <groupId>org.apache.sling</groupId>
        <artifactId>org.apache.sling.jcr.api</artifactId>
        <version>2.0.4</version>
      </dependency>


    <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.2</version>
        </dependency>

        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



      <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.api</artifactId>
            <version>2.2.4</version>
            <scope>provided</scope>
        </dependency>


    <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>


        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-core</artifactId>
    <version>2.4.3</version>
    </dependency>

    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-jcr-commons</artifactId>
    <version>2.4.3</version>
    </dependency>
   <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>

    <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.api</artifactId>
            <version>2.2.4</version>
            <scope>provided</scope>
        </dependency>

      <dependency>
         <groupId>javax.jcr</groupId>
         <artifactId>jcr</artifactId>
         <version>2.0</version>
      </dependency>

       <dependency>
            <groupId>com.day.cq.wcm</groupId>
            <artifactId>cq-wcm-api</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.day.cq</groupId>
            <artifactId>cq-commons</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>
         <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>

        <dependency>
            <groupId>com.day.cq.dam</groupId>
            <artifactId>cq-dam-api</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>

    <repositories>
        <repository>
            <id>adobe</id>
            <name>Adobe Public Repository</name>
            <url>http://repo.adobe.com/nexus/content/groups/public/</url>
            <layout>default</layout>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>adobe</id>
            <name>Adobe Public Repository</name>
            <url>http://repo.adobe.com/nexus/content/groups/public/</url>
            <layout>default</layout>
        </pluginRepository>
    </pluginRepositories>

</project>

Build the OSGi bundle using Maven

To build the OSGi component by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\uploadallfiles folder.

  2. Run the following maven command: mvn clean install.

  3. The OSGi component can be found in the following folder: C:\AdobeCQ\uploadallfiles\bundle\target. The file name of the OSGi component is uploadallfiles-bundle-1.0-SNAPSHOT.jar.

Deploy the bundle to Experience Manager

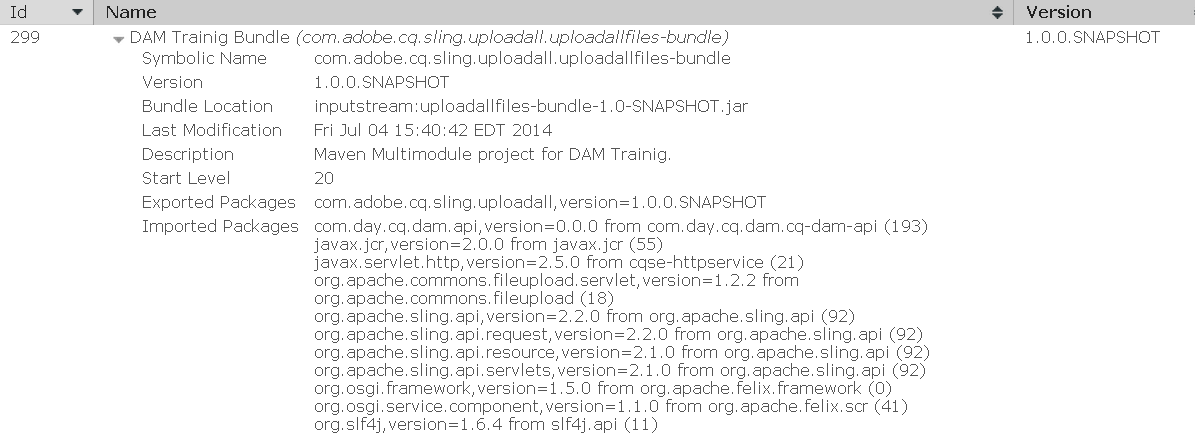

Once you deploy the OSGi bundle, you can use the Java Swing client application to upload many files to the AEM DAM. After you deploy the OSGi bundle, you will be able to see it in the Apache Felix Web Console.

OSGi

Deploy the OSGi bundle that contains the Sling Servlet by performing these steps:

  1. Login to the Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).

  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.

  3. Click the Install/Update button.

  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\uploadallfiles\bundle\target).

  5. Click Install.

  6. Click the Refresh Packages button.

  7. Check the bundle with the highest Id.

  8. Click Active.

  9. Your new bundle should now be listed with the status Active.

  10. If the status is not Active, check the error.log for exceptions.

Execute the Java Swing application

Run the Java Swing application and click the Post Files button. This opens a Java Dialog box that lets you select the XML file.

DAMLoc

After you select the XML file that contains the images files to upload to the AEM DAM, a message appears in the Java client that specifies the files that are uploaded. You will also see the files in the AEM DAM, as shown in the following illustration.

DamFiles

See also

Congratulations, you have just created a Java Swing application that posts multiple files to an AEM Sling Servlet. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
