Article summary

Summary

Discusses how to create an Adobe Experience Manager OSGi bundle that contains an OakLogin module.

A special thank you to Lokesh BS, a member of the AEM community for contributing AEM code that is used in this article.

This article uses an Adobe Maven Archetype project to build an OSGi bundle. If you are not familiar with an Adobe Maven Archetype project, it is recommended that you read the following article: Creating your first AEM Service using an Adobe Maven Archetype project.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java
Tested On AEM 6, 6.1

Introduction

You can develop an Adobe Experience Manager (AEM) OSGi bundle that contains an Oak login APIs that provides third party integration with systems, such as LDAP. For example, assume that you configure AEM to use LDAP to authenticate users. When an LDAP user logs into AEM, the Oak login module is invoked. To create an Oak login module, you use the org.apache.felix.jaas.LoginModuleFactory API.

Note:

For information about configuring AEM 6.x to use LDAP, see Configuring Adobe Experience Manager 6 to use Apache Directory Service.

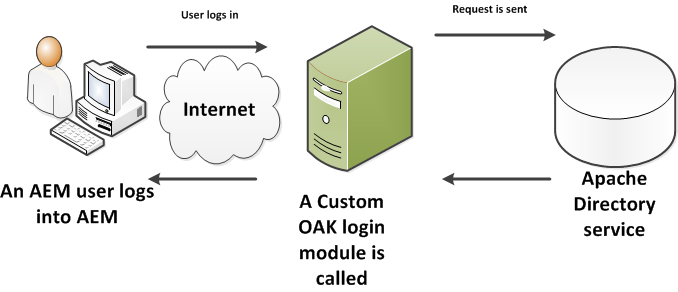

The following illustration shows a user logging into AEM that invokes a custom Oak login module.

OAKLogin

This development article guides you through creating a custom Oak login module for AEM. Application logic is implemented as an OSGi bundle that uses the Oak APIs.

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that uses the JCR API and is deployed to Experience Manager. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"



Note:

For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

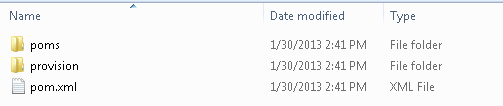

plugin1

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=org.testsite.customlogin.authentication.impl -DartifactId=oaklogin -Dversion=1.0-SNAPSHOT -Dpackage=org.testsite.customlogin.authentication.impl -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

3. When prompted for additional information, specify Y.

4. Once done, you will see a message like:
[INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
[INFO] Final Memory: 10M/184M

5. Change the command prompt to the generated project. For example: C:\AdobeCQ\oaklogin. Run the following Maven command:
mvn eclipse:eclipse

After you run this command, you can import the project into Eclipse as discussed in the next section.


Add Java files to the Maven project using Eclipse

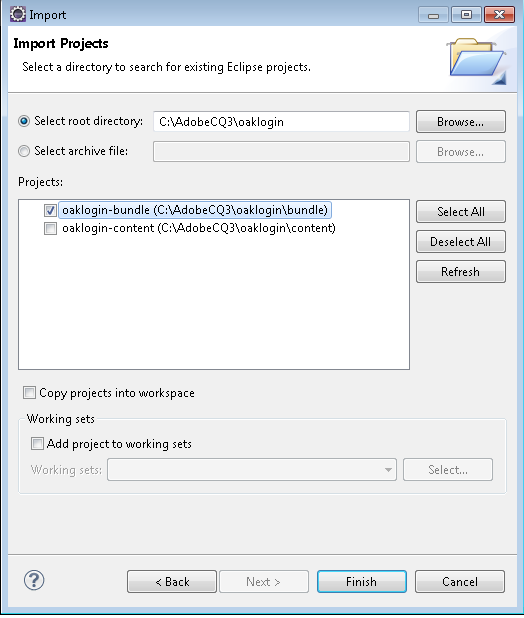

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

project

Note:

Delete all other files that were generated by Maven. Only keep the org.testsite.customlogin.authentication.impl package and the two files created in this section.

The next step is to add two Java files to the org.testsite.customlogin.authentication.impl package. You use the Oak security APIs in these Java files. Add these Java files to this package:



CustomExternalLoginModuleFactory

The CustomExternalLoginModuleFactory Java class uses these annotations:

@Component(
label = "Apache Jackrabbit Oak Custom External Login Module",
metatype = true,
policy = ConfigurationPolicy.REQUIRE,
configurationFactory = true
)
@Service

The following code represents the CustomExternalLoginModuleFactory class. Notice this class contains OSGi activate and deactivate methods.

package org.testsite.customlogin.authentication.impl;

import java.util.Hashtable;

import javax.jcr.Repository;
import javax.management.MalformedObjectNameException;
import javax.management.ObjectName;
import javax.security.auth.spi.LoginModule;

import org.apache.felix.jaas.LoginModuleFactory;
import org.apache.felix.scr.annotations.Activate;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.ConfigurationPolicy;
import org.apache.felix.scr.annotations.Deactivate;
import org.apache.felix.scr.annotations.Property;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.Service;
import org.apache.jackrabbit.oak.osgi.OsgiWhiteboard;
import org.apache.jackrabbit.oak.spi.security.ConfigurationParameters;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalIdentityProviderManager;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncManager;

import org.apache.jackrabbit.oak.spi.whiteboard.Registration;
import org.apache.jackrabbit.oak.spi.whiteboard.Whiteboard;
import org.osgi.service.component.ComponentContext;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

//import com.google.common.collect.ImmutableMap;

/**
 * Implements a LoginModuleFactory that creates {@link CustomExternalLoginModule}s and allows to configure login modules
 * via OSGi config.
 */
@Component(
        label = "Apache Jackrabbit Oak Custom External Login Module",
        metatype = true,
        policy = ConfigurationPolicy.REQUIRE,
        configurationFactory = true
)
@Service
public class CustomExternalLoginModuleFactory implements LoginModuleFactory {

    private static final Logger log = LoggerFactory.getLogger(CustomExternalLoginModuleFactory.class);

    @SuppressWarnings("UnusedDeclaration")
    @Property(
            intValue = 50,
            label = "JAAS Ranking",
            description = "Specifying the ranking (i.e. sort order) of this login module entry. The entries are sorted " +
                    "in a descending order (i.e. higher value ranked configurations come first)."
    )
    public static final String JAAS_RANKING = LoginModuleFactory.JAAS_RANKING;

    @SuppressWarnings("UnusedDeclaration")
    @Property(
            value = "SUFFICIENT",
            label = "JAAS Control Flag",
            description = "Property specifying whether or not a LoginModule is REQUIRED, REQUISITE, SUFFICIENT or " +
                    "OPTIONAL. Refer to the JAAS configuration documentation for more details around the meaning of " +
                    "these flags."
    )
    public static final String JAAS_CONTROL_FLAG = LoginModuleFactory.JAAS_CONTROL_FLAG;

    @SuppressWarnings("UnusedDeclaration")
    @Property(
            label = "JAAS Realm",
            description = "The realm name (or application name) against which the LoginModule  is be registered. If no " +
                    "realm name is provided then LoginModule is registered with a default realm as configured in " +
                    "the Felix JAAS configuration."
    )
    public static final String JAAS_REALM_NAME = LoginModuleFactory.JAAS_REALM_NAME;

    @Property(
            label = "Identity Provider Name",
            description = "Name of the identity provider (for example: 'ldap')."
    )
    public static final String PARAM_IDP_NAME = CustomExternalLoginModule.PARAM_IDP_NAME;

    @Property(
            value = "default",
            label = "Sync Handler Name",
            description = "Name of the sync handler."
    )
    public static final String PARAM_SYNC_HANDLER_NAME = CustomExternalLoginModule.PARAM_SYNC_HANDLER_NAME;

    @Reference
    private SyncManager syncManager;

    @Reference
    private ExternalIdentityProviderManager idpManager;

    @Reference
    private Repository repository;

    /**
     * default configuration for the login modules
     */
    private ConfigurationParameters osgiConfig;

    /**
     * whiteboard registration handle of the manager mbean
     */
    private Registration mbeanRegistration;

    /**
     * Activates the LoginModuleFactory service
     * @param context the component context
     */
    @SuppressWarnings("UnusedDeclaration")
    @Activate
    private void activate(ComponentContext context) {
        //noinspection unchecked
    	log.info("######## Inside Custom External Login Module Factory #######");
        osgiConfig = ConfigurationParameters.of(context.getProperties());
        String idpName = osgiConfig.getConfigValue(PARAM_IDP_NAME, "");
        String sncName = osgiConfig.getConfigValue(PARAM_SYNC_HANDLER_NAME, "");

        Whiteboard whiteboard = new OsgiWhiteboard(context.getBundleContext());

    }

    @SuppressWarnings("UnusedDeclaration")
    @Deactivate
    private void deactivate() {
        /*if (mbeanRegistration != null) {
            mbeanRegistration.unregister();
            mbeanRegistration = null;
        }*/
    }

    /**
     * {@inheritDoc}
     *
     * @return a new {@link ExternalLoginModule} instance.
     */
    @Override
    public LoginModule createLoginModule() {
        return new CustomExternalLoginModule(osgiConfig);
    }

}

CustomExternalLoginModule

This class exposes a method named login that is invoked when a user attempts to login to AEM. You can add application logic to address your requirements. In this example, user credentials are retrieved and checked. Also notice that  messages are written to the AEM log file.



package org.testsite.customlogin.authentication.impl;


import java.security.Principal;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;

import javax.annotation.Nonnull;
import javax.jcr.Credentials;
import javax.jcr.SimpleCredentials;
import javax.security.auth.Subject;
import javax.security.auth.callback.CallbackHandler;
import javax.security.auth.login.LoginException;

import org.apache.jackrabbit.api.security.user.UserManager;
import org.apache.jackrabbit.oak.api.AuthInfo;
import org.apache.jackrabbit.oak.api.CommitFailedException;
import org.apache.jackrabbit.oak.api.Root;
import org.apache.jackrabbit.oak.namepath.NamePathMapper;
import org.apache.jackrabbit.oak.plugins.value.ValueFactoryImpl;
import org.apache.jackrabbit.oak.spi.security.ConfigurationParameters;
import org.apache.jackrabbit.oak.spi.security.authentication.AbstractLoginModule;
import org.apache.jackrabbit.oak.spi.security.authentication.AuthInfoImpl;
import org.apache.jackrabbit.oak.spi.security.authentication.ImpersonationCredentials;
import org.apache.jackrabbit.oak.spi.security.authentication.PreAuthenticatedLogin;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalIdentityException;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalIdentityProvider;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalIdentityProviderManager;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalIdentityRef;
import org.apache.jackrabbit.oak.spi.security.authentication.external.ExternalUser;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncContext;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncException;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncHandler;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncManager;
import org.apache.jackrabbit.oak.spi.security.authentication.external.SyncedIdentity;
import org.apache.jackrabbit.oak.spi.whiteboard.Whiteboard;
import org.apache.jackrabbit.oak.spi.whiteboard.WhiteboardUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * CustomExternalLoginModule implements a LoginModule that uses and external identity provider for login.
 */
public class CustomExternalLoginModule extends AbstractLoginModule {

    private static final Logger log = LoggerFactory.getLogger(CustomExternalLoginModule.class);

    // todo: make configurable
    private static final int MAX_SYNC_ATTEMPTS = 50;

    /**
     * Name of the parameter that configures the name of the external identity provider.
     */
    public static final String PARAM_IDP_NAME = "idp.name";

    /**
     * Name of the parameter that configures the name of the synchronization handler.
     */
    public static final String PARAM_SYNC_HANDLER_NAME = "sync.handlerName";

    /**
     * internal configuration when invoked from a factory rather than jaas
     */
    private ConfigurationParameters osgiConfig;

    /**
     * The external identity provider as specified by the {@link #PARAM_IDP_NAME}
     */
    private ExternalIdentityProvider idp;

    /**
     * The configured sync handler as specified by the {@link #PARAM_SYNC_HANDLER_NAME}
     */
    private SyncHandler syncHandler;

    /**
     * The external user as resolved in the login call.
     */
    private ExternalUser externalUser;

    /**
     * Login credentials
     */
    private Credentials credentials;

    /**
     * Default constructor for the OSGIi LoginModuleFactory case and the default non-OSGi JAAS case.
     */
    @SuppressWarnings("UnusedDeclaration")
    public CustomExternalLoginModule() {
    }

    /**
     * Creates a new ExternalLoginModule with the given OSGi config.
     * @param osgiConfig the config
     */
    public CustomExternalLoginModule(ConfigurationParameters osgiConfig) {
        this.osgiConfig = osgiConfig;
    }

    //--------------------------------------------------------< LoginModule >---
    @Override
    public void initialize(Subject subject, CallbackHandler callbackHandler, Map<String, ?> ss, Map<String, ?> opts) {
        super.initialize(subject, callbackHandler, ss, opts);
        log.info("######## Inside Custom External Login Module Initialize Method #######");
        // merge options with osgi options if needed
        if (osgiConfig != null) {
            options = ConfigurationParameters.of(osgiConfig, options);
        }

        Whiteboard whiteboard = getWhiteboard();
        if (whiteboard == null) {
            log.error("External login module needs whiteboard. Will not be used for login.");
            return;
        }

        String idpName = options.getConfigValue(PARAM_IDP_NAME, "");
        if (idpName.length() == 0) {
            log.error("External login module needs IPD name. Will not be used for login.");
        } else {
            ExternalIdentityProviderManager idpMgr = WhiteboardUtils.getService(whiteboard, ExternalIdentityProviderManager.class);
            if (idpMgr == null) {
                log.error("External login module needs IDPManager. Will not be used for login.");
            } else {
                idp = idpMgr.getProvider(idpName);
                if (idp == null) {
                    log.error("No IDP found with name {}. Will not be used for login.", idpName);
                }
            }
        }

        String syncHandlerName = options.getConfigValue(PARAM_SYNC_HANDLER_NAME, "");
        if (syncHandlerName.length() == 0) {
            log.error("External login module needs SyncHandler name. Will not be used for login.");
        } else {
            SyncManager syncMgr = WhiteboardUtils.getService(whiteboard, SyncManager.class);
            if (syncMgr == null) {
                log.error("External login module needs SyncManager. Will not be used for login.");
            } else {
                syncHandler = syncMgr.getSyncHandler(syncHandlerName);
                if (syncHandler == null) {
                    log.error("No SyncHandler found with name {}. Will not be used for login.", syncHandlerName);
                }
            }
        }
    }

    @Override
    public boolean login() throws LoginException {
    	log.info("######## Inside Custom External Login Module Login Method #######");
        if (idp == null || syncHandler == null) {
        	log.info("######## Idp or SyncHandler null #######");
            return false;
        }
        credentials = getCredentials();

        // check if we have a pre authenticated login from a previous login module
        final String userId;
        final PreAuthenticatedLogin preAuthLogin = getSharedPreAuthLogin();
        if (preAuthLogin != null) {
            userId = preAuthLogin.getUserId();
        } else {
            userId = credentials instanceof SimpleCredentials ? ((SimpleCredentials) credentials).getUserID() : null;
        }
        if (userId == null && credentials == null) {
            log.debug("No credentials found for external login module. ignoring.");
            return false;
        }

        try {
            SyncedIdentity sId = null;
            UserManager userMgr = getUserManager();
            if (userId != null && userMgr != null) {
                sId = syncHandler.findIdentity(userMgr, userId);
                // if there exists an authorizable with the given userid but is
                // not an external one or if it belongs to another IDP, we just ignore it.
                if (sId != null) {
                    ExternalIdentityRef externalIdRef = sId.getExternalIdRef();
                    if (externalIdRef == null) {
                        log.debug("ignoring local user: {}", sId.getId());
                        return false;
                    } else if (!idp.getName().equals(externalIdRef.getProviderName())) {
                        if (log.isDebugEnabled()) {
                            log.debug("ignoring foreign identity: {} (idp={})", externalIdRef.getString(), idp.getName());
                        }
                        return false;
                    }
                }
            }

            if (preAuthLogin != null) {
            	log.info("######## Inside Custom External Login Module PreAuthLogin Method #######");
                externalUser = idp.getUser(preAuthLogin.getUserId());
            } else {
            	log.info("######## Inside Custom External Login Module Else PreAuthLogin Method #######");
                externalUser = idp.authenticate(credentials); // Authentication of LDAP user happens here
                log.info(" External User : " + externalUser);
            }

            if (externalUser != null) {
                log.debug("IDP {} returned valid user {}", idp.getName(), externalUser);

                if (credentials != null) {
                    //noinspection unchecked
                    sharedState.put(SHARED_KEY_CREDENTIALS, credentials);
                }

                //noinspection unchecked
                sharedState.put(SHARED_KEY_LOGIN_NAME, externalUser.getId());
                //Before or after syncing the user, you can customize here
                syncUser(externalUser);

                return true;
            } else {
               // if (log.isDebugEnabled()) {
                    if (userId != null) {
                        log.info("IDP {} returned null for simple creds of {}", idp.getName(), userId);
                    } else {
                        log.info("IDP {} returned null for {}", idp.getName(), credentials);
                    }
               // }

                if (sId != null) {
                    // invalidate the user if it exists as synced variant
                    log.debug("local user exists for '{}'. re-validating.", sId.getId());
                    validateUser(sId.getId());
                }
                return false;
            }
        } catch (ExternalIdentityException e) {

        	log.error("Error while authenticating with",
                     idp.getName(), e);
            return false;
        } catch (LoginException e) {

        	 log.debug("IDP {} throws login exception for '{}': {}",
                     e.getMessage());
            throw e;
        } catch (Exception e) {

        	log.debug("SyncHandler {} throws sync exception for '{}'", e);
            LoginException le = new LoginException("Error while syncing user.");
            le.initCause(e);
            throw le;
        }
    }

    @Override
    public boolean commit() throws LoginException {
    	log.info("######## Inside Custom External Login Module Commit Method #######");
        if (externalUser == null) {
            return false;
        }
        Set<? extends Principal> principals = getPrincipals(externalUser.getId());
        if (!principals.isEmpty()) {
            if (!subject.isReadOnly()) {
                subject.getPrincipals().addAll(principals);
                if (credentials != null) {
                    subject.getPublicCredentials().add(credentials);
                }
                setAuthInfo(createAuthInfo(externalUser.getId(), principals), subject);
            } else {
                log.debug("Could not add information to read only subject {}", subject);
            }
            return true;
        }
        return false;
    }

    @Override
    public boolean abort() throws LoginException {
        clearState();
        // do we need to remove the user again, in case we created it during login() ?
        return true;
    }

    /**
     * Initiates synchronization of the external user.
     * @param user the external user
     * @throws SyncException if an error occurs
     */
    private void syncUser(@Nonnull ExternalUser user) throws SyncException {
    	log.info("######## Inside Custom External Login Module SyncUser Method #######");
        Root root = getRoot();
        if (root == null) {
            throw new SyncException("Cannot synchronize user. root == null");
        }
        UserManager userManager = getUserManager();
        if (userManager == null) {
            throw new SyncException("Cannot synchronize user. userManager == null");
        }

        int numAttempt = 0;
        while (numAttempt++ < MAX_SYNC_ATTEMPTS) {
            SyncContext context = null;
            try {
                context = syncHandler.createContext(idp, userManager, new ValueFactoryImpl(root, NamePathMapper.DEFAULT));
                context.sync(user);
                root.commit();
                if (log.isDebugEnabled()) {
                    log.debug("syncUser({}) {}", user.getId());
                }
                return;
            } catch (CommitFailedException e) {
                root.refresh();
            } finally {
                if (context != null) {
                    context.close();
                }
            }
        }
        throw new SyncException("User synchronization failed during commit after " + MAX_SYNC_ATTEMPTS + " attempts");
    }

    /**
     * Initiates synchronization of a possible remove user
     * @param id the user id
     */
    private void validateUser(@Nonnull String id) throws SyncException {
    	log.info("######## Inside Custom External Login Module Validate User Method #######");
        SyncContext context = null;
        try {
            Root root = getRoot();
            if (root == null) {
                throw new SyncException("Cannot synchronize user. root == null");
            }
            UserManager userManager = getUserManager();
            if (userManager == null) {
                throw new SyncException("Cannot synchronize user. userManager == null");
            }
            context = syncHandler.createContext(idp, userManager, new ValueFactoryImpl(root, NamePathMapper.DEFAULT));
            context.sync(id);
            root.commit();
            if (log.isDebugEnabled()) {
                log.debug("validateUser({}) {}", id);
            }
        } catch (CommitFailedException e) {
            throw new SyncException("User synchronization failed during commit.", e);
        } finally {
            if (context != null) {
                context.close();
            }
        }

    }

    @Nonnull
    private AuthInfo createAuthInfo(@Nonnull String userId, @Nonnull Set<? extends Principal> principals) {
        Credentials creds;
        log.info("######## Inside Custom External Login Module CreateAuthInfo Method #######");
        if (credentials instanceof ImpersonationCredentials) {
            creds = ((ImpersonationCredentials) credentials).getBaseCredentials();
        } else {
            creds = credentials;
        }
        Map<String, Object> attributes = new HashMap<String, Object>();
        Object shared = sharedState.get(SHARED_KEY_ATTRIBUTES);
        if (shared instanceof Map) {
            for (Object key : ((Map) shared).keySet()) {
                attributes.put(key.toString(), ((Map) shared).get(key));
            }
        } else if (creds instanceof SimpleCredentials) {
            SimpleCredentials sc = (SimpleCredentials) creds;
            for (String attrName : sc.getAttributeNames()) {
                attributes.put(attrName, sc.getAttribute(attrName));
            }
        }
        return new AuthInfoImpl(userId, attributes, principals);
    }

    //------------------------------------------------< AbstractLoginModule >---

    @Override
    protected void clearState() {
        super.clearState();
        externalUser = null;
        credentials = null;
    }

    /**
     * @return An immutable set containing only the {@link SimpleCredentials} class.
     */
    @Nonnull
    @Override
    protected Set<Class> getSupportedCredentials() {
        // TODO: maybe delegate getSupportedCredentials to IDP
        Class scClass = SimpleCredentials.class;
        return Collections.singleton(scClass);
    }
}

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle. In the POM file located at C:\AdobeCQ\oaklogin\bundle, add the following dependencies.

  • org.apache.jackrabbit.oak
  • org.apache.felix.scr.annotations
  • org.apache.jackrabbit
  • org.apache.sling

The following XML represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>org.testsite.customlogin.authentication</groupId>
        <artifactId>oaklogin</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>oaklogin-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>My Project Bundle</name>

    <dependencies>

                <dependency>
			<groupId>org.apache.felix</groupId>
			<artifactId>org.apache.felix.jaas</artifactId>
			<version>0.0.2</version>
			<scope>provided</scope>
		</dependency>
        <dependency>
			<groupId>org.apache.jackrabbit</groupId>
			<artifactId>oak-auth-external</artifactId>
			<version>1.2.2</version>
		</dependency>
		<dependency>
		    <groupId>com.google.code.findbugs</groupId>
		    <artifactId>jsr305</artifactId>
		    <version>3.0.0</version>
		</dependency>




        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>biz.aQute</groupId>
            <artifactId>bndlib</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.jcr</groupId>
            <artifactId>jcr</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.api</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.jcr.api</artifactId>
        </dependency>
    </dependencies>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>org.testsite.customlogin.authentication.oaklogin-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/myproject/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                 <configuration>
                    <excludePackageNames>
                        *.impl
                    </excludePackageNames>
                 </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Build the OSGi bundle using Maven

To build the OSGi component by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\oaklogin folder.
  2. Run the following maven command: mvn clean install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\oaklogin\bundle\target. The file name of the OSGi component is oaklogin-bundle-1.0-SNAPSHOT.jar.

Deploy the bundle to Experience Manager

Once you deploy the OSGi bundle, you are able to invoke the AEM servlet and create an AEM user and group. After you deploy the OSGi bundle, you will be able to see it in the Apache Felix Web Conole.

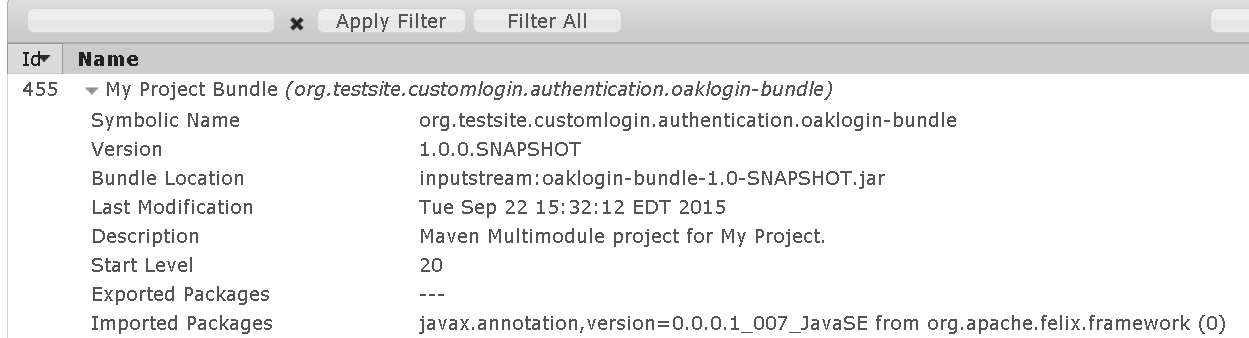

OSGi

Deploy the OSGi bundle by performing these steps:

  1. Login to Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).
  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.
  3. Click the Install/Update button.
  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\oaklogin\bundle\target).
  5. Click Install.
  6. Click the Refresh Packages button.
  7. Check the bundle with the highest Id.
  8. Click Active. Your new bundle should now be listed with the status Active.
  9. If the status is not Active, check the CQ error.log for exceptions.



Verify the Oak login module

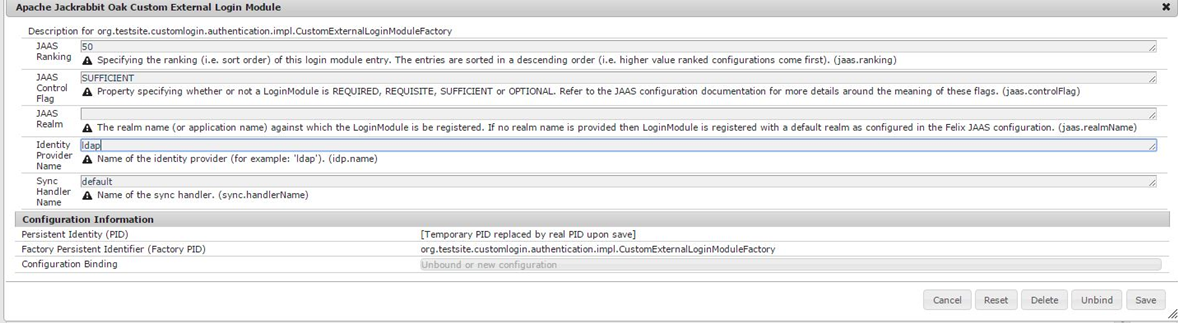

After you deploy the bundle,  go to /system/console/configMgr and search for Apache Jackrabbit Oak Custom External Login Module (or the label you have given for the Component in your Factory class). Make sure Factory PID represents your custom Factory class.

verify
Apache Jackrabbit Oak Custom External Login Module

Note:

To test the new Login module, configure AEM to use LDAP users. Once you login in with an LDAP user, search the AEM log file for messages like this one produced by the Oak login module:

23.09.2015 15:41:37.444 *INFO* [qtp13914997-69] org.testsite.customlogin.authentication.impl.CustomExternalLoginModule ######## Inside Custom External Login Module Initialize Method #######

For information about how to perform this task, see Configuring Adobe Experience Manager 6 to use Apache Directory Service.

See also

Congratulations, you have just created an AEM OSGi bundle that uses the Oak security API to create a custom login module. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
