Discusses how to create an AEM application that lets users select image files and upload them to a Java Sling Servlet. Once uploaded, the Servlet uses the AssetManager API to store the image file in the Experience Manager DAM.

This article discusses how to perform these tasks:

  • how to write a sling servlet to handle input streams
  • how to use Asset Manager API to handle assets
  • how to post files to a sling servlet from a JSP
  • in AEM 6.x - how to handle CSRF token requirements when using AJAX

To learn how to write a custom Sling Servlet that downloads AEM DAM assets, see Downloading Adobe Experience Manager DAM Assets using Sling Servlets and the Query Builder API

This article uses an Adobe Maven Archetype project to build an OSGi bundle. If you are not familiar with an Adobe Maven Archetype project, it is recommended that you read the following article: Creating your first AEM Service using an Adobe Maven Archetype project.

Digital Marketing Solution(s) Adobe Experience Manager (Adobe CQ)
Audience
Developer (intermediate)
Required Skills
Java, JCR API, JavaScript, AJAX, HTML
Version Experience Manager 5.5, 5.6, 6.0, 6.1

Note:

You can download an AEM package that contains code and the OSGi bundle that are used in this article. Download the package and deploy using package manager. The purpose of this code is to show the community these concepts in action. That is, it's to illustrate how to write an OSGi bundle that contains a custom sling servlet that uses com.day.cq.dam.api.AssetManager API to work with digital assets. The objective of this community code is for teaching purposes only and not meant to go into production as is.

You can view the sample community application by using the following URL: http://localhost:4502/content/UploadAssetManager.html (assuming you deploy on author).

Before running this example, be sure to create the following path in the AEM JCR: /content/dam/travel.

Download

Introduction

You can create an Adobe Experience Manager (AEM) application that lets a user select a file from their local desktop and upload it to AEM Digital Asset Manager (DAM). The file is posted to a custom Sling Servlet that persists an image file in the AEM DAM.

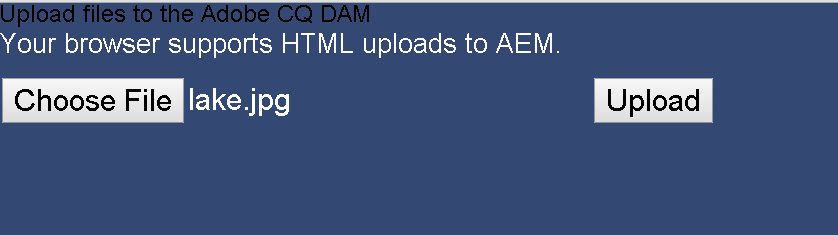

uploadLake

In this example, notice that a file named lake.jpg is selected. Once the file is uploaded, the Sling Servlet persists the file in the AEM DAM, as shown in the following illustration.

DAM2

Note:

Before following along with this development article, create a folder in the AEM DAM named travel located at /content/dam/.

When you use the AssetManager API to persist a file in the AEM DAM, AEM automatically creates different renditions for the asset, as shown in this illustration.



Renditions

This development article walks you through how to create this AEM application that lets a user select and upload a file to the AEM DAM. Once uploaded, the Java Sling Servlet places the file into the AEM DAM using the AssetManager API.

Note:

This development article dicusses how to create a page component that lets the user choose a file to upload to the AEM DAM. In contrast, you can create a Java application using the AssetManger API that uploads multiple files to the AEM DAM. For information, see http://helpx.adobe.com/experience-manager/using/multiple-digital-assets.html.

Create an Experience Manager application folder structure

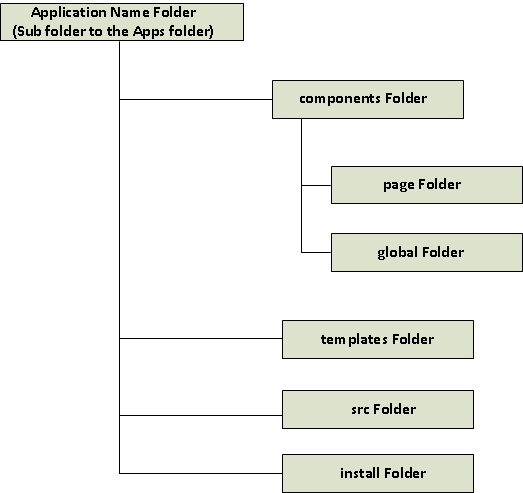

Create an Experience Manager application folder structure that contains templates, components, and pages by using CRXDE Lite.

CQAppSetup

The following describes each application folder:

  • application name: contains all of the resources that an application uses. The resources can be templates, pages, components, and so on.
  • components: contains components that your application uses.
  • page: contains page components. A page component is a script such as a JSP file.
  • global: contains global components that your application uses.
  • template: contains templates on which you base page components.
  • src: contains source code that comprises an OSGi component (this development article does not create an OSGi bundle using this folder).
  • install: contains a compiled OSGi bundles container.


To create an application folder structure:

  1. To view the welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite.
  3. Right-click the apps folder (or the parent folder), select Create, Create Folder.
  4. Enter the folder name into the Create Folder dialog box. Enter slingFile
  5. Repeat steps 1-4 for each folder specified in the previous illustration.
  6. Click the Save All button.


Note:

You have to click the Save All button when working in CRXDELite for the changes to be made.

Create a template

You can create a template by using CRXDE Lite. An AEM template enables you to define a consistent style for the pages in your application. A template comprises of nodes that specify the page structure. For more information about templates, see Templates.

To create a template, perform these tasks:

1. To view the welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click the template folder (within your application), select Create, Create Template.

4. Enter the following information into the Create Template dialog box:

  • Label: The name of the template to create. Enter templateUpload
  • Title: The title that is assigned to the template.
  • Description: The description that is assigned to the template.
  • Resource Type: The component's path that is assigned to the template and copied to implementing pages. Enter slingFile/components/page/templateUpload.
  • Ranking: The order (ascending) in which this template will appear in relation to other templates. Setting this value to 1 ensures that the template appears first in the list.

5. Add a path to Allowed Paths. Click on the plus sign and enter the following value: /content(/.*)?.

6. Click Next for Allowed Parents.

7. Select OK on Allowed Children.

Create a render component that uses the template

Components are re-usable modules that implement specific application logic to render the content of your web site. You can think of a component as a collection of scripts (for example, JSPs, Java servlets, and so on) that completely realize a specific function. In order to realize this functionality, it is your responsibility as an AEM developer to create scripts that perform specific functionality. For more information about components, see Components.

By default, a component has at least one default script, identical to the name of the component. To create a render component, perform these tasks:

1. To view the CQ welcome page, enter the URL http://[host name]:[port] into a web browser. For example, http://localhost:4502.

2. Select CRXDE Lite.

3. Right-click /apps/slingFile/components/page, then select Create, Create Component.

4. Enter the following information into the Create Component dialog box:

  • Label: The name of the component to create. Enter templateUpload.
  • Title: The title that is assigned to the component.
  • Description: The description that is assigned to the template.

5. Select Next for Advanced Component Settings and Allowed Parents.

6. Select OK on Allowed Children.

7. Open the slingTemplateJCR.jsp located at: /apps/slingFile/components/page/templateUpload/templateUpload.jsp.

8. Enter the following JSP code.

<html>
<head>
<title>Hello World !!!</title>
</head>
<body>
<h1>Hello Sling Servlet!!!</h1>
<h2>This page will upload a file to Adobe CQ</h2>
</body>
</html>

Setup Maven in your development environment

You can use Maven to build an OSGi bundle that contains a Sling Servlet. Maven manages required JAR files that a Java project needs in its class path. Instead of searching the Internet trying to find and download third-party JAR files to include in your project’s class path, Maven manages these dependencies for you.

You can download Maven 3 from the following URL:

http://maven.apache.org/download.html

After you download and extract Maven, create an environment variable named M3_HOME. Assign the Maven install location to this environment variable. For example:

C:\Programs\Apache\apache-maven-3.0.4

Set up a system environment variable to reference Maven. To test whether you properly setup Maven, enter the following Maven command into a command prompt:

%M3_HOME%\bin\mvn -version

This command provides Maven and Java install details and resembles the following message:

Java home: C:\Programs\Java64-6\jre
Default locale: en_US, platform encoding: Cp1252
OS name: "windows 7", version: "6.1", arch: "amd64", family: "windows"



Note:

For more information about setting up Maven and the Home variable, see: Maven in 5 Minutes.

Next, copy the Maven configuration file named settings.xml from [install location]\apache-maven-3.0.4\conf\ to your user profile. For example, C:\Users\scottm\.m2\.

You have to configure your settings.xml file to use Adobe’s public repository. For information, see Adobe Public Maven Repository at http://repo.adobe.com/.

The following XML code represents a settings.xml file that you can use.

<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.home}/conf/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ~/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->
  <servers>
    <!-- server
     | Specifies the authentication information to use when connecting to a particular server, identified by
     | a unique name within the system (referred to by the 'id' attribute below).
     |
     | NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are
     |       used together.
     |
    <server>
      <id>deploymentRepo</id>
      <username>repouser</username>
      <password>repopwd</password>
    </server>
    -->

    <!-- Another sample, using keys to authenticate.
    <server>
      <id>siteServer</id>
      <privateKey>/path/to/private/key</privateKey>
      <passphrase>optional; leave empty if not used.</passphrase>
    </server>
    -->
  </servers>

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->
  <mirrors>
    <!-- mirror
     | Specifies a repository mirror site to use instead of a given repository. The repository that
     | this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used
     | for inheritance and direct lookup purposes, and must be unique across the set of mirrors.
     |
    <mirror>
      <id>mirrorId</id>
      <mirrorOf>repositoryId</mirrorOf>
      <name>Human Readable Name for this Mirror.</name>
      <url>http://my.repository.com/repo/path</url>
    </mirror>
     -->
  </mirrors>

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->


<profile>

                <id>adobe-public</id>

                <activation>

                    <activeByDefault>true</activeByDefault>

                </activation>

                <repositories>

                  <repository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </repository>

                </repositories>

                <pluginRepositories>

                  <pluginRepository>

                    <id>adobe</id>

                    <name>Nexus Proxy Repository</name>

                    <url>http://repo.adobe.com/nexus/content/groups/public/</url>

                    <layout>default</layout>

                  </pluginRepository>

                </pluginRepositories>

            </profile>

</profiles>

  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>

Create an Experience Manager archetype project

You can create an Experience Manager archetype project by using the Maven archetype plugin. In this example, assume that the working directory is C:\AdobeCQ.

Maven

To create an Experience Manager archetype project, perform these steps:

1. Open the command prompt and go to your working directory (for example, C:\AdobeCQ).

2. Run the following Maven command:

mvn archetype:generate -DarchetypeRepository=https://repo.adobe.com/nexus/content/groups/public/ -DarchetypeGroupId=com.day.jcr.vault -DarchetypeArtifactId=multimodule-content-package-archetype -DarchetypeVersion=1.0.2 -DgroupId=com.adobe.cq.sling.upload -DartifactId=upload -Dversion=1.0-SNAPSHOT -Dpackage=com.adobe.cq.sling.upload -DappsFolderName=myproject -DartifactName="My Project" -DcqVersion="5.6.1" -DpackageGroup="My Company"

3. When prompted for additional information, specify Y.

4. Once done, you will see a message like:
[[INFO] Total time: 14:46.131s
[INFO] Finished at: Wed Mar 27 13:38:58 EDT 2013
[INFO] Final Memory: 10M/184M

5. Change the command prompt to the generated project. For example: C:\AdobeCQ\upload. Run the following Maven command:
mvn eclipse:eclipse

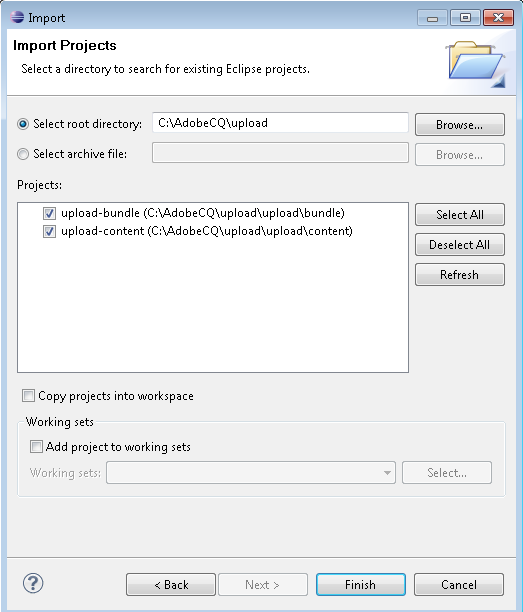

After you run this command, you can import the project into Eclipse as discussed in the next section.

Add Java files to the Maven project using Eclipse

To make it easier to work with the Maven generated project, import it into the Eclipse development environment, as shown in the following illustration.

project

The next step is to add a Java file to the com.adobe.cq.sling.upload package. The Java class that you create in this section extends the Sling class named org.apache.sling.api.servlets.SlingAllMethodsServlet. This class supports the doPost method that lets you submit data from an AEM web page to the Sling servlet. In this example, a file is uploaded from an AEM web page to the sling servlet.

For information about this class, see Class SlingAllMethodsServlet.

Create a Java class named HandleDamFile that extends org.apache.sling.api.servlets.SlingAllMethodsServlet. Within the doPost method, create Java Sling application logic that  reads the file that is uploaded to the Sling servlet. The fully qualified names of the Java objects are used so you understand the data types used in this code fragment.



@Override
     protected void doPost(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {


    	 try
    	 {
    	 final boolean isMultipart = org.apache.commons.fileupload.servlet.ServletFileUpload.isMultipartContent(request);
    	 PrintWriter out = null;

    	   out = response.getWriter();
    	   if (isMultipart) {
    	     final java.util.Map<String, org.apache.sling.api.request.RequestParameter[]> params = request.getRequestParameterMap();
    	     for (final java.util.Map.Entry<String, org.apache.sling.api.request.RequestParameter[]> pairs : params.entrySet()) {
    	       final String k = pairs.getKey();
    	       final org.apache.sling.api.request.RequestParameter[] pArr = pairs.getValue();
    	       final org.apache.sling.api.request.RequestParameter param = pArr[0];
    	       final InputStream stream = param.getInputStream();

    	       	//Save the uploaded file into the Adobe CQ DAM
    	        out.println("The Sling Servlet placed the uploaded file here: " + writeToDam(stream,param.getFileName()));

    	     }
    	   }
    	 }

         catch (Exception e) {
             e.printStackTrace();
         }

     }

The uploaded file is placed into an InputStream instance named stream. Next, the uploaded file is written to the AEM DAM using the AssetManager API. The following Java code represents a method named writeToDam. This method uses the AssetManager API to place the file into the following DAM location:

/content/dam/travel

The writeToDam method accepts the InputStream instance (the uploaded file) and the uploaded file name as parameters.

//Save the uploaded file into the AEM DAM using AssetManager API
private String writeToDam(InputStream is, String fileName)
{
try
{
    //Inject a ResourceResolver
    ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);

    //Use AssetManager to place the file into the AEM DAM
    com.day.cq.dam.api.AssetManager assetMgr = resourceResolver.adaptTo(com.day.cq.dam.api.AssetManager.class);
    String newFile = "/content/dam/travel/"+fileName ;
    assetMgr.createAsset(newFile, is,"image/jpeg", true);

    // Return the path to the file was stored
    return newFile;
}
catch(Exception e)
{
    e.printStackTrace();
}
return null;
}

The following Java code represents the HandleFile class that extends org.apache.sling.api.servlets.SlingAllMethodsServlet.

package com.adobe.cq.sling.upload;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.HttpURLConnection;
import java.net.URL;
import java.rmi.ServerException;
import java.util.Dictionary;
import java.util.Calendar;
import java.io.*;

import org.apache.felix.scr.annotations.Properties;
import org.apache.felix.scr.annotations.Property;
import org.apache.felix.scr.annotations.Reference;
import org.apache.felix.scr.annotations.sling.SlingServlet;
import org.apache.sling.api.SlingHttpServletRequest;
import org.apache.sling.api.SlingHttpServletResponse;
import org.apache.sling.api.servlets.SlingSafeMethodsServlet;
import org.apache.sling.commons.osgi.OsgiUtil;
import org.apache.sling.jcr.api.SlingRepository;
import org.apache.felix.scr.annotations.Reference;
import org.osgi.service.component.ComponentContext;
import javax.jcr.Session;
import javax.jcr.Node;
import org.apache.commons.fileupload.FileItem;
import org.apache.commons.fileupload.disk.DiskFileItemFactory;
import org.apache.commons.fileupload.servlet.ServletFileUpload;
import org.apache.commons.fileupload.util.Streams;
import org.apache.felix.scr.annotations.Component;
import org.apache.felix.scr.annotations.Service;
import javax.jcr.ValueFactory;
import javax.jcr.Binary;

import javax.servlet.Servlet;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.FileOutputStream;
import java.util.Iterator;
import java.util.List;
import java.io.OutputStream;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.StringWriter;

import java.util.ArrayList;

import javax.jcr.Repository;
import javax.jcr.SimpleCredentials;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;

import org.apache.jackrabbit.commons.JcrUtils;

import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;


import javax.jcr.Session;
import javax.jcr.Node;

//Sling Imports
import org.apache.sling.api.resource.ResourceResolverFactory ;
import org.apache.sling.api.resource.ResourceResolver;
import org.apache.sling.api.resource.Resource;

//AssetManager
import com.day.cq.dam.api.AssetManager;

//This is a component so it can provide or consume services
@SlingServlet(paths="/bin/updamfile", methods = "POST", metatype=true)
public class HandleDamFile extends org.apache.sling.api.servlets.SlingAllMethodsServlet {
 private static final long serialVersionUID = 2598426539166789515L;

 private Session session;

 //Inject a Sling ResourceResolverFactory
 @Reference
 private ResourceResolverFactory resolverFactory;

 @Override
 protected void doGet(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {


     }


 @Override
 protected void doPost(SlingHttpServletRequest request, SlingHttpServletResponse response) throws ServerException, IOException {

      try
         {
         final boolean isMultipart = org.apache.commons.fileupload.servlet.ServletFileUpload.isMultipartContent(request);
         PrintWriter out = null;

           out = response.getWriter();
           if (isMultipart) {
             final java.util.Map<String, org.apache.sling.api.request.RequestParameter[]> params = request.getRequestParameterMap();
             for (final java.util.Map.Entry<String, org.apache.sling.api.request.RequestParameter[]> pairs : params.entrySet()) {
               final String k = pairs.getKey();
               final org.apache.sling.api.request.RequestParameter[] pArr = pairs.getValue();
               final org.apache.sling.api.request.RequestParameter param = pArr[0];
               final InputStream stream = param.getInputStream();

                   //Save the uploaded file into the Adobe CQ DAM
                out.println("The Sling Servlet placed the uploaded file here: " + writeToDam(stream,param.getFileName()));

             }
           }
         }

         catch (Exception e) {
             e.printStackTrace();
         }

     }


//Save the uploaded file into the AEM DAM using AssetManager APIs
private String writeToDam(InputStream is, String fileName)
{
try
{
    //Inject a ResourceResolver
    ResourceResolver resourceResolver = resolverFactory.getAdministrativeResourceResolver(null);

    //Use AssetManager to place the file into the AEM DAM
    com.day.cq.dam.api.AssetManager assetMgr = resourceResolver.adaptTo(com.day.cq.dam.api.AssetManager.class);
    String newFile = "/content/dam/travel/"+fileName ;
    assetMgr.createAsset(newFile, is,"image/jpeg", true);

    // Return the path to the file was stored
    return newFile;
}
catch(Exception e)
{
    e.printStackTrace();
}
return null;
}

}

The Java class uses a SlingServlet annotation:

@SlingServlet(paths="/bin/updamfile", methods = "POST", metatype=true)

The paths property corresponds to the URL that you specify when using an AJAX request. That is, to use an AJAX request to post data to this Sling Servlet, you use this syntax:

//Use JQuery AJAX request to post data to a Sling Servlet
$.ajax({
    type: 'POST',
    url:'/bin/updamfile',
    processData: false,
    contentType: false,
    data:formData,
    success: function(msg){
        alert(msg); //display the data returned by the servlet
}
});

Notice that the url in the AJAX request maps to the path property in the SlingServlet annotation. The type in the AJAX request maps to the methods property in the SlingServlet annotation. Finally notice that the AJAX request specifies the form data that is submitted. The uploaded file is located in the formData variable.


Note:

This AJAX request is used in the client web page that is created later in this development article.

Modify the Maven POM file

Modify the POM files to successfully build the OSGi bundle that contains the Sling servlet. In the POM file located at C:\AdobeCQ\upload, add the following dependencies.

  • org.apache.felix.scr
  • org.apache.felix.scr.annotations
  • org.apache.jackrabbit
  • org.apache.sling

The following XML represents this POM file.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd ">
    <modelVersion>4.0.0</modelVersion>
    <!-- ====================================================================== -->
    <!-- P A R E N T P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->
    <parent>
        <groupId>com.adobe.cq.sling.upload</groupId>
        <artifactId>upload</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <!-- ====================================================================== -->
    <!-- P R O J E C T D E S C R I P T I O N -->
    <!-- ====================================================================== -->

    <artifactId>upload-bundle</artifactId>
    <packaging>bundle</packaging>
    <name>My Project Bundle</name>

   <dependencies>
        <dependency>
            <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>

    <dependency>
        <groupId>org.apache.sling</groupId>
        <artifactId>org.apache.sling.commons.osgi</artifactId>
        <version>2.2.0</version>
    </dependency>

    <dependency>
        <groupId>org.apache.sling</groupId>
        <artifactId>org.apache.sling.jcr.api</artifactId>
        <version>2.0.4</version>
      </dependency>


    <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.2</version>
        </dependency>

        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



      <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.api</artifactId>
            <version>2.2.4</version>
            <scope>provided</scope>
        </dependency>


    <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.compendium</artifactId>
        </dependency>
        <dependency>
            <groupId>org.osgi</groupId>
            <artifactId>org.osgi.core</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.felix</groupId>
            <artifactId>org.apache.felix.scr.annotations</artifactId>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
        </dependency>


        <dependency>
         <groupId>org.apache.felix</groupId>

         <artifactId>org.osgi.core</artifactId>

         <version>1.4.0</version>
      </dependency>



    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-core</artifactId>
    <version>2.4.3</version>
    </dependency>

    <dependency>
    <groupId>org.apache.jackrabbit</groupId>
    <artifactId>jackrabbit-jcr-commons</artifactId>
    <version>2.4.3</version>
    </dependency>
   <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>

    <dependency>
            <groupId>org.apache.sling</groupId>
            <artifactId>org.apache.sling.api</artifactId>
            <version>2.2.4</version>
            <scope>provided</scope>
        </dependency>

      <dependency>
         <groupId>javax.jcr</groupId>
         <artifactId>jcr</artifactId>
         <version>2.0</version>
      </dependency>

       <dependency>
            <groupId>com.day.cq.wcm</groupId>
            <artifactId>cq-wcm-api</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.day.cq</groupId>
            <artifactId>cq-commons</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>

         <dependency>
            <groupId>com.day.cq.dam</groupId>
            <artifactId>cq-dam-api</artifactId>
            <version>5.5.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <!-- ====================================================================== -->
    <!-- B U I L D D E F I N I T I O N -->
    <!-- ====================================================================== -->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-scr-plugin</artifactId>
                <executions>
                    <execution>
                        <id>generate-scr-descriptor</id>
                        <goals>
                            <goal>scr</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.felix</groupId>
                <artifactId>maven-bundle-plugin</artifactId>
                <extensions>true</extensions>
                <configuration>
                    <instructions>
                        <Bundle-SymbolicName>com.adobe.cq.sling.upload.upload-bundle</Bundle-SymbolicName>
                    </instructions>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.sling</groupId>
                <artifactId>maven-sling-plugin</artifactId>
                <configuration>
                    <slingUrl>http://${crx.host}:${crx.port}/apps/myproject/install</slingUrl>
                    <usePut>true</usePut>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-javadoc-plugin</artifactId>
                 <configuration>
                    <excludePackageNames>
                        *.impl
                    </excludePackageNames>
                 </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Build the OSGi bundle using Maven

Build the OSGi bundle by using Maven. When Maven builds the bundle, it also creates a  serviceComponents.xml file based on the annotations that are included in the com.adobe.cq.slingupload.HandleFile class. The following XML represents this file.

<?xml version="1.0" encoding="UTF-8"?>
<components xmlns:scr="http://www.osgi.org/xmlns/scr/v1.0.0">
    <scr:component enabled="true" name="com.adobe.cq.upload.SimpleDSComponent">
        <implementation class="com.adobe.cq.upload.SimpleDSComponent"/>
        <service servicefactory="false">
            <provide interface="java.lang.Runnable"/>
        </service>
        <property name="service.pid" value="com.adobe.cq.upload.SimpleDSComponent"/>
    </scr:component>
    <scr:component enabled="true" name="com.adobe.cq.upload.HandleFile">
        <implementation class="com.adobe.cq.upload.HandleFile"/>
        <service servicefactory="false">
            <provide interface="javax.servlet.Servlet"/>
        </service>
        <property name="sling.servlet.paths" value="/bin/upfile"/>
        <property name="sling.servlet.methods" value="POST"/>
        <property name="service.pid" value="com.adobe.cq.upload.HandleFile"/>
        <reference name="resolverFactory" interface="org.apache.sling.api.resource.ResourceResolverFactory" cardinality="1..1" policy="static" bind="bindResolverFactory" unbind="unbindResolverFactory"/>
    </scr:component>
</components>

Notice that the implementation class element specifies com.adobe.cq.sling.upload.HandleFile. This lines up with the Java class that extends org.apache.sling.api.servlets.SlingAllMethodsServlet that was created in an earlier step.

To build the OSGi component by using Maven, perform these steps:

  1. Open the command prompt and go to the C:\AdobeCQ\upload folder.
  2. Run the following maven command: mvn clean install.
  3. The OSGi component can be found in the following folder: C:\AdobeCQ\upload\bundle\target. The file name of the OSGi component is upload-bundle-1.0-SNAPSHOT.jar.


Deploy the bundle to Experience Manager

Once you deploy the OSGi bundle, you can upload a JPG file to the Sling Servlet (this is shown later in this development article). After you deploy the OSGi bundle, you will be able to see it in the Apache Felix Web Conole.

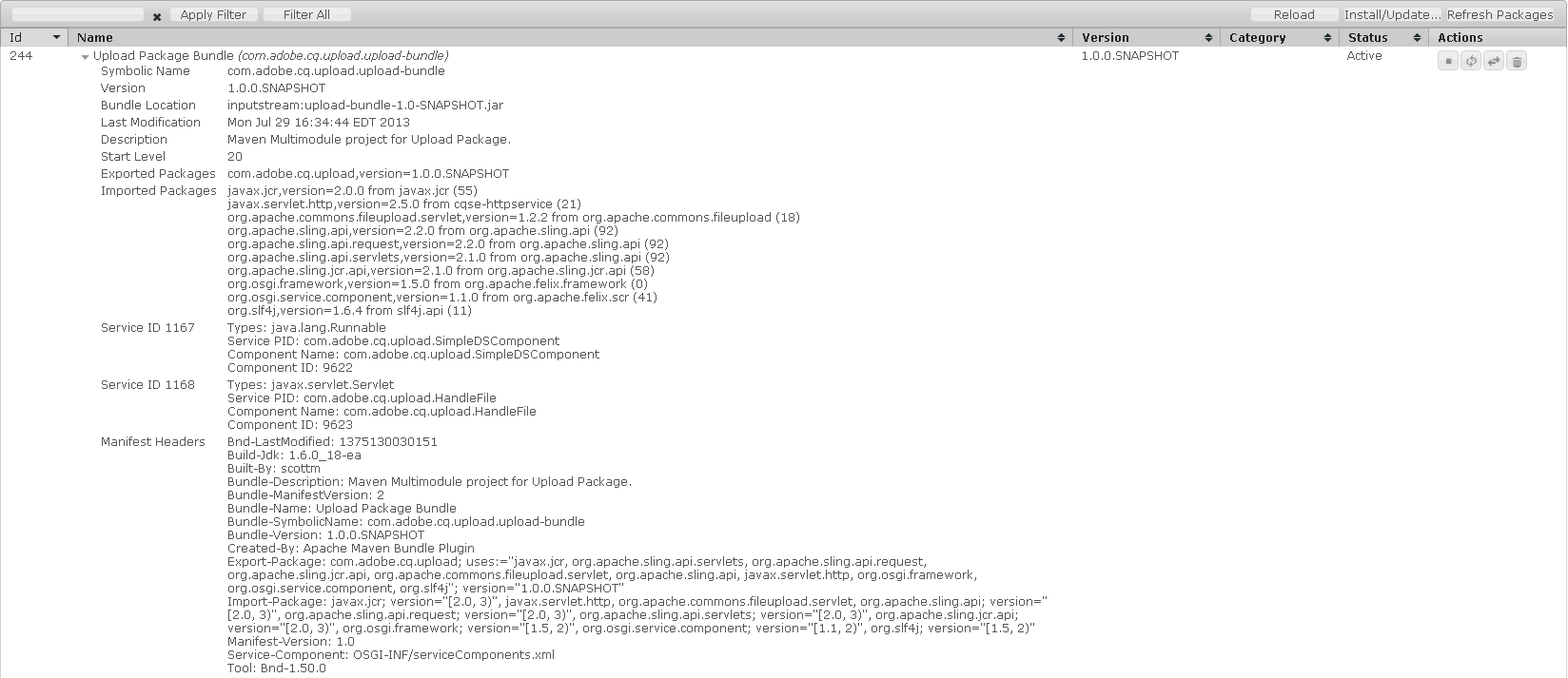

OSGi

Deploy the OSGi bundle that contains the Sling Servlet by performing these steps:

  1. Login to Apache Felix Web Console at http://server:port/system/console/bundles (default admin user = admin with password= admin).
  2. Click the Bundles tab, sort the bundle list by Id, and note the Id of the last bundle.
  3. Click the Install/Update button.
  4. Browse to the bundle JAR file you just built using Maven. (C:\AdobeCQ\upload\bundle\target).
  5. Click Install.
  6. Click the Refresh Packages button.
  7. Check the bundle with the highest Id.
  8. Click Active.
  9. Your new bundle should now be listed with the status Active.
  10. If the status is not Active, check the CQ error.log for exceptions.



Add JQuery files to a CQ:ClientLibraryFolder node

Add the JQuery framework file to a cq:ClientLibraryFolder node. The JQuery framework file that is added is named jquery-1.6.3.min.js.

To add the JQuery framework to your component, add a cq:ClientLibraryFolder node to your component. After you create the node, set properties that allow the JSP script to find the JQuery library file.

Name Type Value
dependencies String[] cq.jquery
categories String[] jquerysamples

Text files

Add a text file to the clientlibs folder that maps to the JQuery JS file. The name of the text file is js.txt. The js.txt file contains the JS JQeury file name: jquery-1.6.3.min.js.

Add the files to the ClientLibs folder

  1. Right-click /apps/slingFile/components then select New, Node.
  2. Make sure that the node type is cq:ClientLibraryFolder and name the node clientlibs.
  3. Right click on clientlibs and select Properties. Add the two properties specified in the previous table to the node.
  4. On your file system, navigate to the folder where the JQuery JS file is located. Drag and drop the jquery-1.6.3.min.js file to the clientlibs node by using CRXDE.
  5. Add a TXT file to the clientlibs folder named js.txt. The content of the js.txt file is the JQuery JS file name.

Modify the templateUpload JSP to post a file to the Sling Servlet

Modify the templateUpload.jsp file to post a file to the Sling Servlet that was created in this development article. In this example, a JQuery AJAX Post request is used and the file is posted to the Sling Servlet's doPost method (the method defined in the HandleDamFile Java class).

The following code represents the AJAX request.



$.ajax({
    type: 'POST',
    url:'/bin/updamfile',
    processData: false,
    contentType: false,
    data:formData,
    success: function(msg){
        alert(msg); //display the data returned by the servlet
    }
});

AEM 6.x code

IN AEM 6.x, you need to use the out of the box JQuery library to handle the required CSRF token. If you do not use use this, you will receive a 403 HTTP error when you attempt to post a file to the AEM Sling servlet using an AJAX request. To successfully post a file, ensure that you use this line of code in your JSP.

<cq:includeClientLib categories="cq.jquery" />

The following code represents the JSP for AEM 6.x. Notice that the url specifies the value of the path attribute in the SlingServlet annotation defined in the HandleDamFile method.

<%@include file="/libs/foundation/global.jsp"%>
<cq:includeClientLib categories="cq.jquery" />
<script type="text/javascript">

<script>
jQuery(function ($) {

      });

</script>

<body>
<div>
<h2>Upload files to the Adobe CQ DAM</h2>
        <p id="support-notice">Your browser does not support Ajax uploads :-(The form will be submitted as normal.</p>

        <!-- The form starts -->
        <form action="/" method="POST" enctype="multipart/form-data" id="form-id">

            <!-- The file to upload -->
            <p><input id="file-id" type="file" name="our-file" />

                <!--
                  Also by default, we disable the upload button.
                  If Ajax uploads are supported we'll enable it.
                -->
                <input type="button" value="Upload" id="upload-button-id" disabled="disabled" /></p>

            <script>
                // Function that will allow us to know if Ajax uploads are supported
                function supportAjaxUploadWithProgress() {
                    return supportFileAPI() && supportAjaxUploadProgressEvents() && supportFormData();

                    // Is the File API supported?
                    function supportFileAPI() {
                        var fi = document.createElement('INPUT');
                        fi.type = 'file';
                        return 'files' in fi;
                    };

                    // Are progress events supported?
                    function supportAjaxUploadProgressEvents() {
                        var xhr = new XMLHttpRequest();
                        return !! (xhr && ('upload' in xhr) && ('onprogress' in xhr.upload));
                    };

                    // Is FormData supported?
                    function supportFormData() {
                        return !! window.FormData;
                    }
                }

                // Actually confirm support
                if (supportAjaxUploadWithProgress()) {
                    // Ajax uploads are supported!
                    // Change the support message and enable the upload button
                    var notice = document.getElementById('support-notice');
                    var uploadBtn = document.getElementById('upload-button-id');
                    notice.innerHTML = "Your browser supports HTML uploads to AEM.";
                    uploadBtn.removeAttribute('disabled');

                    // Init the Ajax form submission
                    initFullFormAjaxUpload();

                    // Init the single-field file upload
                    initFileOnlyAjaxUpload();
                }

                function initFullFormAjaxUpload() {
                    var form = document.getElementById('form-id');
                    form.onsubmit = function() {
                        // FormData receives the whole form
                        var formData = new FormData(form);

                        // We send the data where the form wanted
                        var action = form.getAttribute('action');

                        // Code common to both variants
                        sendXHRequest(formData, action);

                        // Avoid normal form submission
                        return false;
                    }
                }

                function initFileOnlyAjaxUpload() {
                    var uploadBtn = document.getElementById('upload-button-id');
                    uploadBtn.onclick = function (evt) {
                        var formData = new FormData();

                        // Since this is the file only, we send it to a specific location
                        //   var action = '/upload';

                        // FormData only has the file
                        var fileInput = document.getElementById('file-id');
                        var file = fileInput.files[0];
                        formData.append('our-file', file);

                        // Code common to both variants
                        sendXHRequest(formData);
                    }
                }

                // Once the FormData instance is ready and we know
                // where to send the data, the code is the same
                // for both variants of this technique
                function sendXHRequest(formData) {

                    var test = 0;

                    $.ajax({
                            type: 'POST',
                            url:'/bin/updamfile',
                            processData: false,
                            contentType: false,
                            data:formData,
                            success: function(msg){
                              alert(msg); //display the data returned by the servlet
                        }
                    });

                }

                // Handle the start of the transmission
                function onloadstartHandler(evt) {
                    var div = document.getElementById('upload-status');
                    div.innerHTML = 'Upload started!';
                }

                // Handle the end of the transmission
                function onloadHandler(event) {
                    //Refresh the URL for Form Preview
                    var msg = event.target.responseText;

                   alert(msg);
                }

                // Handle the progress
                function onprogressHandler(evt) {
                    var div = document.getElementById('progress');
                    var percent = evt.loaded/evt.total*100;
                    div.innerHTML = 'Progress: ' + percent + '%';
                }

                // Handle the response from the server
                function onreadystatechangeHandler(evt) {
                    var status = null;

                    try {
                        status = evt.target.status;
                    }
                    catch(e) {
                        return;
                    }

                    if (status == '200' && evt.target.responseText) {
                        var result = document.getElementById('result');
                        result.innerHTML = '<p>The server saw it as:</p><pre>' + evt.target.responseText + '</pre>';
                    }
                }
            </script>

            <!-- Placeholders for messages set by event handlers -->
            <p id="upload-status"></p>
            <p id="progress"></p>
            <pre id="result"></pre>

        </form>

</div>


</body>
</html>

AEM 5.x code

Notice that the url specifies the value of the path attribute in the SlingServlet annotation defined in the HandleDamFile method.

<%@include file="/libs/foundation/global.jsp"%>
<cq:includeClientLib categories="jquerysamples" />
<script type="text/javascript">

<script>
jQuery(function ($) {

      });

</script>

<body>
<div>
<h2>Upload files to the Adobe CQ DAM</h2>
        <p id="support-notice">Your browser does not support Ajax uploads :-(<br/>The form will be submitted as normal.</p>

        <!-- The form starts -->
        <form action="/" method="POST" enctype="multipart/form-data" id="form-id">

            <!-- The file to upload -->
            <p><input id="file-id" type="file" name="our-file" />

                <!--
                  Also by default, we disable the upload button.
                  If Ajax uploads are supported we'll enable it.
                -->
                <input type="button" value="Upload" id="upload-button-id" disabled="disabled" /></p>

            <script>
                // Function that will allow us to know if Ajax uploads are supported
                function supportAjaxUploadWithProgress() {
                    return supportFileAPI() && supportAjaxUploadProgressEvents() && supportFormData();

                    // Is the File API supported?
                    function supportFileAPI() {
                        var fi = document.createElement('INPUT');
                        fi.type = 'file';
                        return 'files' in fi;
                    };

                    // Are progress events supported?
                    function supportAjaxUploadProgressEvents() {
                        var xhr = new XMLHttpRequest();
                        return !! (xhr && ('upload' in xhr) && ('onprogress' in xhr.upload));
                    };

                    // Is FormData supported?
                    function supportFormData() {
                        return !! window.FormData;
                    }
                }

                // Actually confirm support
                if (supportAjaxUploadWithProgress()) {
                    // Ajax uploads are supported!
                    // Change the support message and enable the upload button
                    var notice = document.getElementById('support-notice');
                    var uploadBtn = document.getElementById('upload-button-id');
                    notice.innerHTML = "Your browser supports HTML uploads to AEM.";
                    uploadBtn.removeAttribute('disabled');

                    // Init the Ajax form submission
                    initFullFormAjaxUpload();

                    // Init the single-field file upload
                    initFileOnlyAjaxUpload();
                }

                function initFullFormAjaxUpload() {
                    var form = document.getElementById('form-id');
                    form.onsubmit = function() {
                        // FormData receives the whole form
                        var formData = new FormData(form);

                        // We send the data where the form wanted
                        var action = form.getAttribute('action');

                        // Code common to both variants
                        sendXHRequest(formData, action);

                        // Avoid normal form submission
                        return false;
                    }
                }

                function initFileOnlyAjaxUpload() {
                    var uploadBtn = document.getElementById('upload-button-id');
                    uploadBtn.onclick = function (evt) {
                        var formData = new FormData();

                        // Since this is the file only, we send it to a specific location
                        //   var action = '/upload';

                        // FormData only has the file
                        var fileInput = document.getElementById('file-id');
                        var file = fileInput.files[0];
                        formData.append('our-file', file);

                        // Code common to both variants
                        sendXHRequest(formData);
                    }
                }

                // Once the FormData instance is ready and we know
                // where to send the data, the code is the same
                // for both variants of this technique
                function sendXHRequest(formData) {

                    var test = 0;

                	$.ajax({
                            type: 'POST',
                            url:'/bin/updamfile',
                            processData: false,
                            contentType: false,
                            data:formData,
                            success: function(msg){
                              alert(msg); //display the data returned by the servlet
                        }
                    });

                }

                // Handle the start of the transmission
                function onloadstartHandler(evt) {
                    var div = document.getElementById('upload-status');
                    div.innerHTML = 'Upload started!';
                }

                // Handle the end of the transmission
                function onloadHandler(event) {
                	//Refresh the URL for Form Preview
                    var msg = event.target.responseText;

                   alert(msg);
                }

                // Handle the progress
                function onprogressHandler(evt) {
                    var div = document.getElementById('progress');
                    var percent = evt.loaded/evt.total*100;
                    div.innerHTML = 'Progress: ' + percent + '%';
                }

                // Handle the response from the server
                function onreadystatechangeHandler(evt) {
                    var status = null;

                    try {
                        status = evt.target.status;
                    }
                    catch(e) {
                        return;
                    }

                    if (status == '200' && evt.target.responseText) {
                        var result = document.getElementById('result');
                        result.innerHTML = '<p>The server saw it as:</p><pre>' + evt.target.responseText + '</pre>';
                    }
                }
            </script>

            <!-- Placeholders for messages set by event handlers -->
            <p id="upload-status"></p>
            <p id="progress"></p>
            <pre id="result"></pre>

        </form>

</div>


</body>
</html>

Modify the templateUpload JSP file



  1. To view the CQ welcome page, enter the URL: http://[host name]:[port] into a web browser. For example, http://localhost:4502.
  2. Select CRXDE Lite.
  3. Double-click /apps/slingFile/components/page/templateUpload/templateUpload.jsp.
  4. Replace the JSP code with the new code shown in this section.
  5. Click Save All.

Create a web page that lets users upload files to the DAM

The final task is to create a site that contains a page that is based on the templateUpload (the template created earlier in this development article). When the user selects a file and submits it, the file is persisted in the Experience Manager DAM.

Create a web page that lets users upload files to the Experience Manager DAM:

  1. Go to the Websites page at http://localhost:4502/siteadmin#/content.
  2. Select New Page.
  3. Specify the title of the page in the Title field.
  4. Specify the name of the page in the Name field.
  5. Select templateUpload from the template list that appears. This value represents the template that is created in this development article. If you do not see it, then repeat the steps in this development article. For example, if you made a typing mistake when entering in path information, the template will not show up in the New Page dialog box.
  6. Open the new page that you created by double-clicking it in the right pane. The new page opens in a web browser.

See also

Congratulations, you have just created an AEM OSGi bundle that contains a sling servlet by using an Adobe Maven Archetype project. Please refer to the AEM community page for other articles that discuss how to build AEM services/applications by using an Adobe Maven Archetype project.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
