The Reconciliation activity is essentially used for Data Management purposes and implies two different use cases:
-
Adding relations: a Links tab allows you to add links between the inbound data and several other Adobe Campaign database dimensions.
For example, a file containing purchasing data may also contain information to identify the products purchased as well as the buyer. Two additional dimensions (besides that of Purchases) are therefore concerned by the file data: the Products and Profiles dimensions. Relations then need to be created between these and the Purchases dimension (refer to the following example).
When defining a relation, a column is added to the inbound data in order to reference the foreign key of the linked dimension.
Note:
This operation implies that the data of the linked dimensions are already in the database. For example, if you import a file of purchases showing which product was purchased, at what time, by which client, etc., the product as well as the client must already exist in the database.
For example, the Reconciliation activity can be placed after a load data activity with the aim of importing non-standard data into the database.
-
Drag and drop a Reconciliation activity into your workflow, following a transition containing a population whose targeting dimension does not directly come from Adobe Campaign. For more on this, referr to Targeting dimensions and resources.
-
If you would like to simply identify the inbound data, go to the Identification tab and check the Identify the document from the working data box.

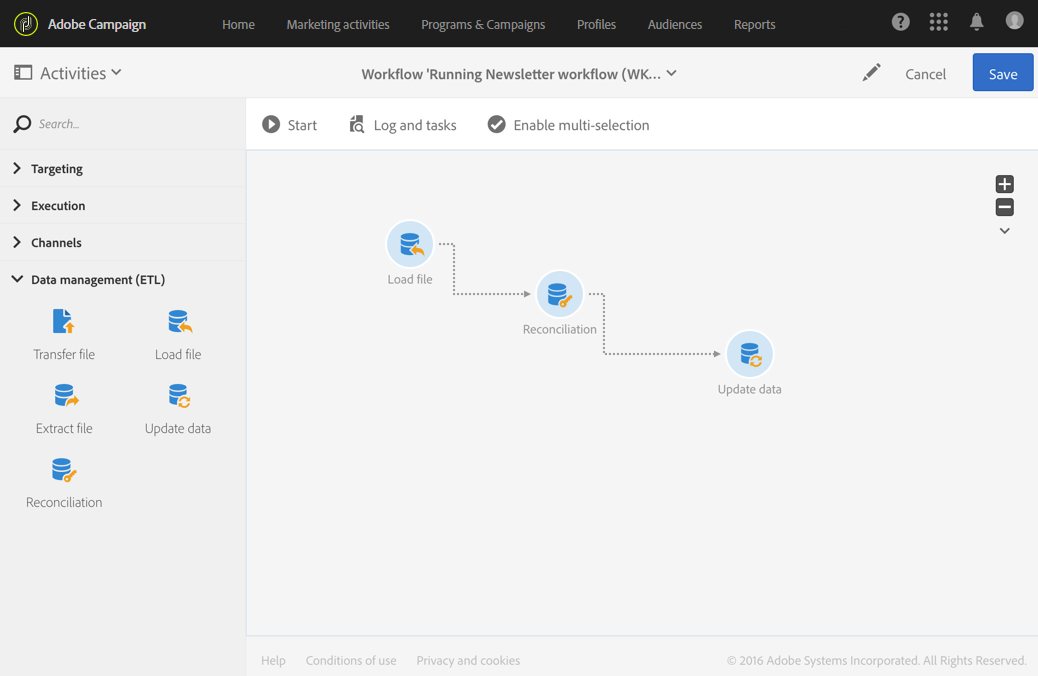

button from the quick actions that appear.The following example demonstrates a workflow that updates the database using the purchasing data in a file. The purchasing data contains data referencing elements from other dimensions, such as the client emails and product codes.
Note:
The Transactions and Products resources used in this example do not exist in the Adobe Campaign database by default. They were therefore created beforehand using the Custom resources function. The profiles that correspond to the email addresses in the imported file, as well as the products, were loaded into the database beforehand.
-
A Load file activity, which loads and detects the data of the file to import. The imported file contains the following data:
date;client;product 2015-05-19 09:00:00;mail1@email.com;ZZ1 2015-05-19 09:01:00;mail2@email.com;ZZ2 2015-05-19 09:01:01;mail3@email.com;ZZ2 2015-05-19 09:01:02;mail4@email.com;ZZ2 2015-05-19 09:02:00;mail5@email.com;ZZ3 2015-05-19 09:03:00;mail6@email.com;ZZ4 2015-05-19 09:04:00;mail7@email.com;ZZ5 2015-05-19 09:05:00;mail8@email.com;ZZ7 2015-05-19 09:06:00;mail9@email.com;ZZ6
-
A Reconciliation activity to bind purchasing data to database profiles as well as products. It is therefore necessary to define a relation between the file data and the profile table as well as the product table. This configuration is carried out in the activity's Relations tab:
Columns are added to the inbound data in order to reference the foreign keys of the linked dimensions.
-
An Update data activity allows you to define the database fields to update using the imported data. As the data was already identified as belonging to the Transactions dimension in the previous activity, here you can use the Directly using the targeting dimension identification option.
By using the option that automatically detects fields to update, the links configured in the previous activity (to profiles and products) are added to the list of Fields to update . You must also make sure that the field that corresponds to the transaction date is correctly added to this list.

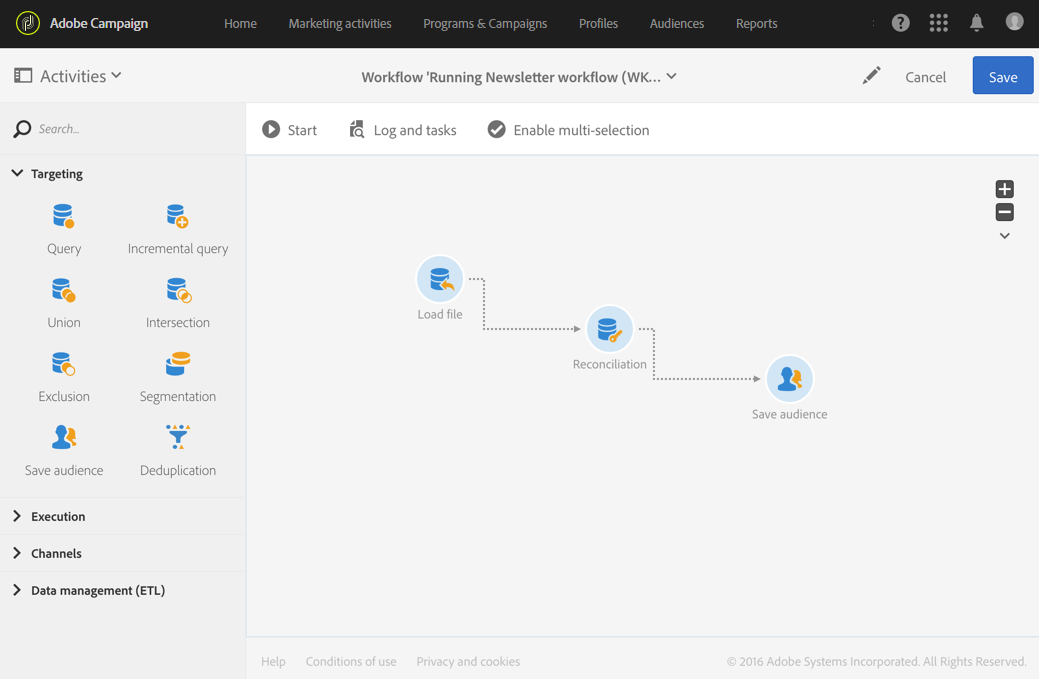

The following example demonstrates a workflow that creates an audience of profiles directly from an imported file containing new clients. It is made up of the following activities:
-
A Load file activity, which loads and detects the data of the file to import. The imported file contains the following data:
lastname;firstname;email;dateofbirth jackman;megan;megan.jackman@testmail.com;07/08/1975 phillips;edward;phillips@testmail.com;09/03/1986 weaver;justin;justin_w@testmail.com;11/15/1990 martin;babeth;babeth_martin@testmail.net;11/25/1964 reese;richard;rreese@testmail.com;02/08/1987 cage;nathalie;cage.nathalie227@testmail.com;07/03/1989 xiuxiu;andrea;andrea.xiuxiu@testmail.com;09/12/1992 grimes;daryl;daryl_890@testmail.com;12/06/1979 tycoon;tyreese;tyreese_t@testmail.net;10/08/1971
