Overlay motion elements onto mobile app content to optimize engagement with your audience by highlighting important elements of your tutorial videos.
Search on Adobe Stock
Search for Motion Graphics templates on Adobe Stock.
On stock.adobe.com, use the top navigation to click Videos. On the video landing page, click on the Motion Graphics Templates collection to see all motion graphics.
Next, on the Motion Graphics collection page, narrow your results with the search term “measurement”.
Make sure that “Premiere Pro” is selected in the filters on the left side of the screen.
License the selection, which will automatically download it to your computer.
Note: You can also search and license directly inside Adobe Premiere Pro within the Essential Graphics panel Browse tab.
Import your template
In the menu bar, click Window > Workspaces > Graphics
- Locate your Essential Graphics panel
- Click the Browse tab

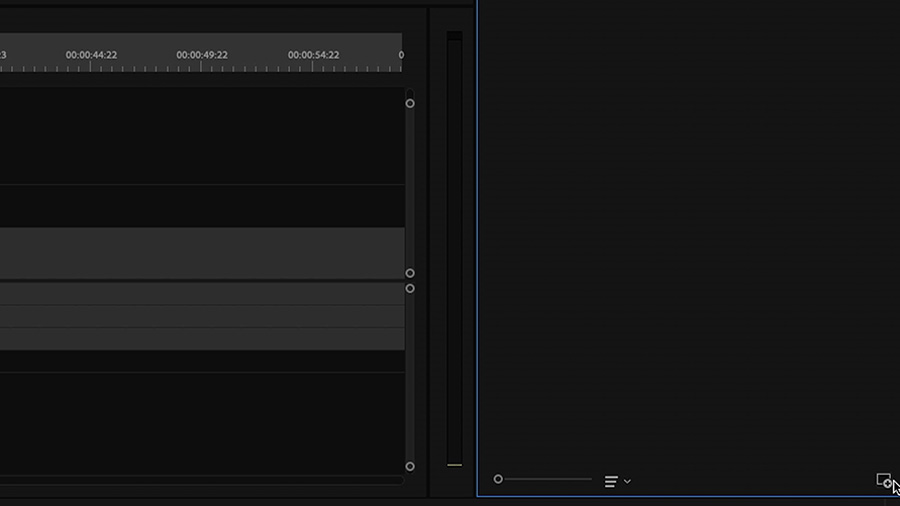

- In the lower right corner of the panel, click the Plus button to import your downloaded Motion Graphics template.
Navigate to its location on your hard drive and select it.
Place the template on your sequence
In your Essential Graphics panel, click the Browse tab. Scroll to (or search for) your newly imported motion infographic template.

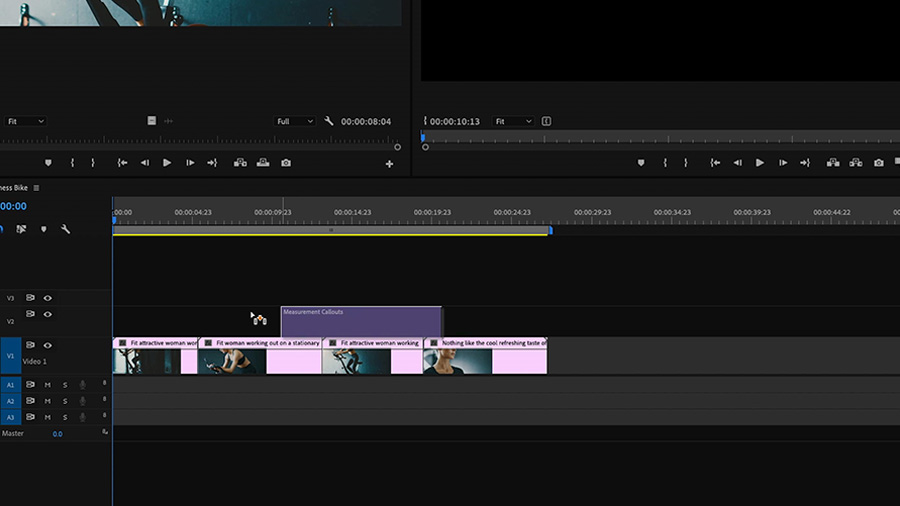

Drag and drop the template onto your timeline.
Customize the templates

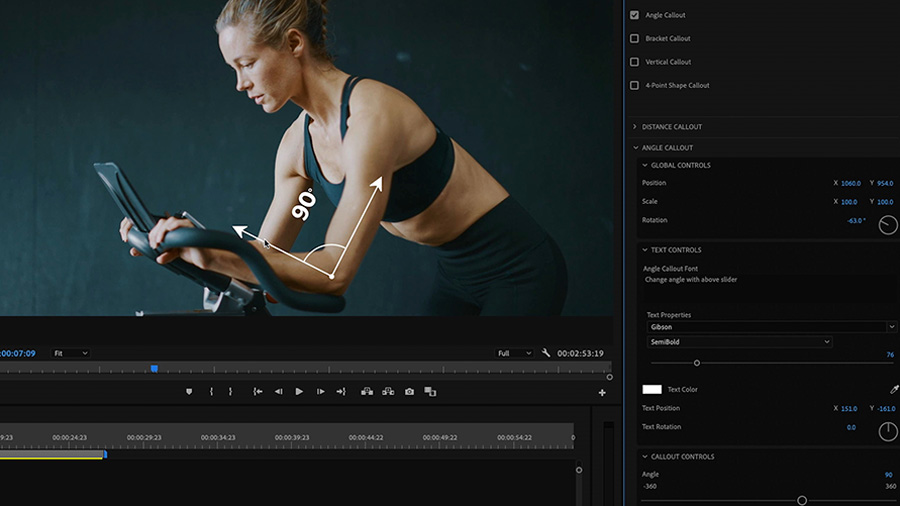

Use the Essential Graphics panel’s Edit tab to customize the look and feel of your new Motion Graphics template.
In our example, we’re highlighting the body mechanics of our bike rider to show optimal form in this tutorial.
We’ve made the following adjustments to show the 90 degree angle of the rider’s arms:
Position: X 1060.0 Y 954
Text Size: 76
Text Position: X 151.0 Y -161.0
Callout Color: White
Stroke Thickness: 4
Choose End Cap: 6
End Cap Size: X 77.0 Y 77.0
End Cap Stroke Width: 4
Duplicate the template
Now we’ll duplicate your template in the timeline to add a few more measurement call-outs.
Copy and paste your existing template on the timeline and use the Edit tab in the Essential Graphics panel to customize the look and feel of the template a second time.
In our example, we’ve chosen an alternate option of the five visually distinct elements in this template pack to highlight the importance of a straight back when riding:
Position: X 1562.0 Y 431
Text: straight back
Text Size: 63
Text Color: We used our color picker to select a blue that matches the background
Text Y Position: 16
Box Color: White
Text Box Padding: 15
Callout Color: White
Callout Width: 1193
Line Stroke Width: 6
Choose End Cap Style: 1
End Cap Stroke Width: 4
End Cap Size: X 63.0 Y 63.0
Number of Marks: 0
Motion track your template

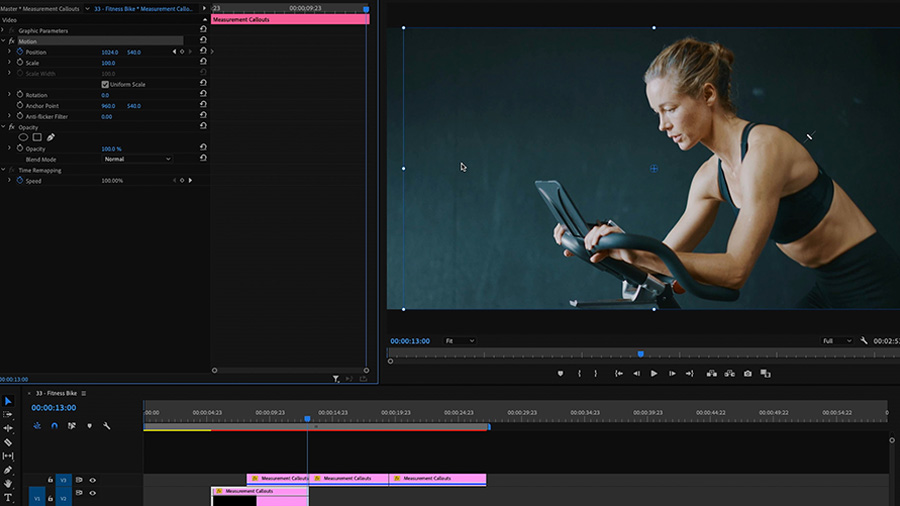

Select the first frame of the Motion Graphics template in your timeline, and click on the Motion line in the Effects Controls tab.
Click the keyframe for the Motion icon to set the first keyframe. With the word “Motion” selected in the Effects Controls tab, use your mouse in the Program Tab to position the first frame of the template action over your desired spot on the video clip.
Next move to the last frame of the Motion Graphics template in your timeline. With the word “Motion” still selected in the Effects Controls tab, click and drag the template to the position you’d like to end on in the final frame of motion.
You may need to add a few keyframes in between the first and last frame using the above technique to smooth out the motion.
Find the perfect music track
In Adobe Premiere Pro, select the Audio Workspace preset, or choose Workspace > Essential Sound to reveal the all new Essential Sound panel with Adobe Stock audio built right in. Make sure you click Browse at the top of the panel so you can explore the extensive library.
You’ll notice that the Browse tab in the Essential Sound panel has a search bar, as well as three options to help limit your results: Mood, Genre, and Filters

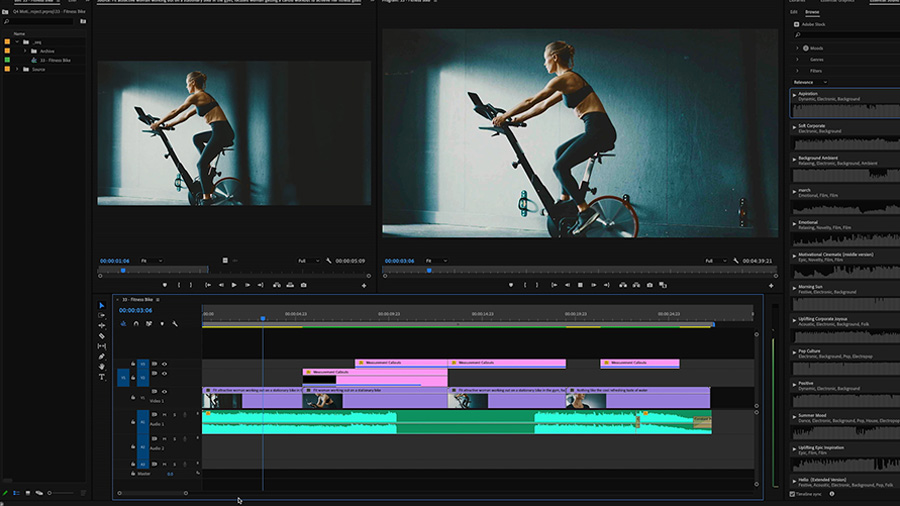

Once you find a track that you want to cut into your timeline, simply drag and drop it from the Essential Sound panel, directly into your timeline.
Play the video
Tap the spacebar to play your video through. Check for pacing and for any necessary edits to your Motion Graphics templates and keyframe tracking.
Export your video with an Adobe Premiere Pro preset for social media or desktop presentations.
We’re using a 1080p HD Vimeo preset that outputs a video we can use anywhere on the web.
You’ve overlaid motion elements onto a mobile app video to optimize your audience engagement!
