Vector Warp
Vector Warp (Grayscale)
In: Filters/Effects
Complex
Description
Vector warp is an advanced distortion effect, similar to Warp and Directional Warp, with the main difference being that it is driven by a (color) vector bitmap rather than a grayscale map. This means it is more powerful and versatile than its atomic node cousins.
The Vector Map is similar to a Normalmap, but it does not need to be normalised and only the R and Green (X and Y) channel are used. Blue and Alpha channels can be left black if you want. Constructing a good Vector Map can be the biggest challenge in using this node; you can either convert grayscale maps to Normal, or construct the map by combining channels with RGBA Merge. Alternatively, something like a "Flow Map" is also useable.
This node can be useful when you want to do very specific distortions with varying directions, where standard Warp nodes don't cut it.
Parameters
Inputs
- Input: Color Input
Map to distort. - Vector Map: Color Input
Distortion driver map. Color channels Red and Blue are used.
Parameters
- Intensity: 0.0 - 1.0
Intensity multiplier for the Vector Map. - Vector Format: DirectX, OpenGL
Swaps the Green channel between Up and Down interpretation.

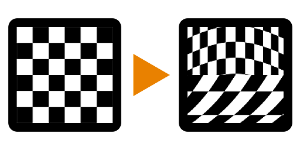

Example Images
|
---|
