Custom Brushes

The Brush Tool (B) in Adobe Animate CC allows you to custom-define a brush by setting parameters of the brush such as shape and angle. You can create natural artwork in your projects by customizing the brush tool to suit your drawing needs. You can choose, edit, and create a custom brush in Animate through the Property Inspector, when the brush tool is selected in the toolbox.

By default, the Brush tool provides you several brushes (eight preset sizes) in customized shapes to suit your various drawing needs. You can see several brush shapes when you choose the Brush Tool from the toolbox and within the "Brush" setting in Property Inspector.

You can choose a brush from the Brush drop-down list and start drawing the artwork on the stage.

Animate CC provides a wide range of Brush sizes with more granular control and includes the following enhancements:

• New brush sizes in the range of 1-200 pixels
• Live preview when adjusting brush sizes
• Brush and Eraser tool cursors uses outline mode view and is non-obstructive when you draw in context with other artworks
• Remembers Brush settings such as last used brush size, shape, and mode across Animate sessions
• Improved drawing experience, especially for shorter brush strokes

In Animate CC, the smoothing factor has been changed from a text box with a 0-100 range to a slider ranging from Low to High with 5 steps.

You can create custom brushes with custom-defined size, angle, and flatness as follows:

1. Click the Brush Tool (B) from the toolbox and click the New file button next to the Brush setting in the Property Inspector.

2. In the Nib Options dialog box, select a shape, specify an angle, and flatness percentage. You can see a preview of the brush as you set the parameters.

3. Click OK. The new custom brush is selected in the Property Inspector as the default brush for the current document.

You can use the Zoom size with stage check box to scale the brush size proportionately to the changing zoom level of the stage. You can also draw seamlessly adjusting to any zoom level.

Disable the 'Zoom size with stage' check box in the brush Property Inspector to revert to the earlier default behavior of brushes.

You can resize the brush to the desired size by adjusting the Size option.

Use the Size slider bar to resize the brush to the desired size. You can preview and edit the value of the brush size next to the slider bar.

1. In the Property Inspector, click the button with a pencil icon next to the brush options to select the custom brush that you want to modify.

2. In the Nib Options dialog box, modify the properties such as shape, angle, and flatness and click OK.

1. To delete a custom brush you have created, select the Brush Tool (B) from the toolbox. Choose the custom brush that you want to delete within Fill and Stroke in the Property Inspector.
2. Click the delete button that is enabled. The selected custom brush is deleted from the list.

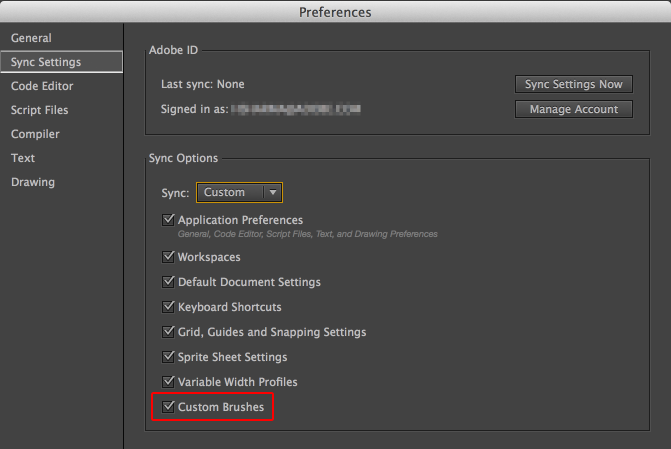

Custom brushes you create can be synchronized to the cloud (your Creative Cloud account) through the Animate preferences. To do that, navigate to Edit > Preferences on Windows or Animate > Preferences on a Mac. The option to synchronize custom brushes within "Sync Settings" section is shown below:
