Ruler guides are different from grids in that they can be positioned freely on a page or on a pasteboard. You can create two kinds of ruler guides: page guides, which appear only on the page on which you create them, or spread guides, which span all pages and the pasteboard of a multiple-page spread. You can drag any ruler guide to the pasteboard. A ruler guide is displayed or hidden with the layer on which it was created.
New ruler guides always appear on the target spread. For example, if several spreads are visible in the document window and you drag a new guide into the window, the new guide becomes visible only on the target spread.

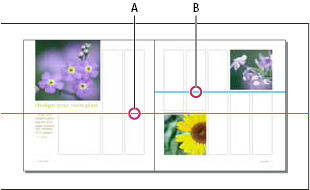

A. Spread guide B. Page guide
To create a page guide, position the pointer inside a horizontal or vertical ruler and then drag to the desired location on the target spread. If you drop the guide onto the pasteboard, it spans the pasteboard and spread; it will act as a page guide if you later drag it onto a page.
To create a spread guide, drag from the horizontal or vertical ruler, keeping the pointer in the pasteboard but positioning the guide at the desired location on the target spread.
To toggle between horizontal and vertical guides, select the guide and hold down Alt (Windows) or Option (Mac OS).
To create a spread guide when the pasteboard is not visible (for example, when you’ve zoomed in), press Ctrl (Windows) or Command (Mac OS) as you drag from the horizontal or vertical ruler to the target spread.
To create a spread guide without dragging, double-click a specific position on the horizontal or vertical ruler. If you want to snap the guide to the nearest tick mark, hold down the Shift key when you double-click the ruler.

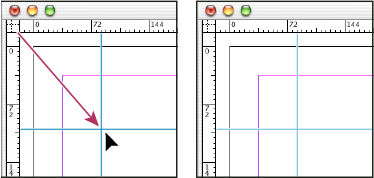

To create vertical and horizontal guides simultaneously, press Ctrl (Windows) or Command (Mac OS) as you drag from the target spread’s ruler intersection to the desired location.
To reposition a ruler guide numerically, select the guide and enter values for X and Y in the Control panel.

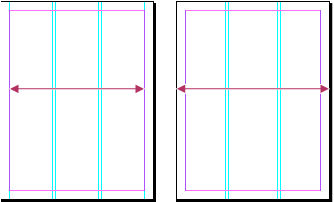

Columns created with the Create Guides command are not the same as those created with the Layout > Margins And Columns command. For example, columns created using Create Guides cannot control text flow when a text file is placed. Use the Margins And Columns command to create major column divisions appropriate for autoflow text, and use the Create Guides command to create column grids and other layout aids.
The Create Guides command can create page guides only; it cannot create spread guides.
To space existing guides a uniform distance apart, select the guides (by dragging or pressing Shift as you click with the mouse). Then, select Use Spacing from the Control panel, type the space value in the text box, and press Enter or Return to confirm. Click either Distribute Horizontal Centers or Distribute Vertical Centers to the left of the Use Spacing option.
You can change the attributes of individual ruler guides, and you can move, cut, copy, paste, or delete multiple ruler guides simultaneously. Cut or copied ruler guides can be pasted to other pages or documents, but not to other programs. To change attributes of specific guides, you must select the guides you want to change. When no guides are selected, the Ruler Guides command sets the defaults for new guides only.
Unselected ruler guides appear light blue by default. Selected ruler guides are highlighted in their layer color. When a guide is selected, the Reference Point icon in the Control panel changes to or , representing the selected guide.
If you can’t select a ruler guide and the View > Grids & Guides > Lock Guides command is already deselected, the guide might be on that page’s master, or on a layer where guides are locked.
To move a ruler guide, drag it.
To move multiple ruler guides, shift-select the guides you want to move, and then drag them.
Move selected guides just as you would any other selected object, including nudging with the arrow keys and using the Control or Transform panels.
To make a guide snap to a ruler tick mark, press Shift as you drag it. Or select the guide, press and hold down the Shift key, and then click the mouse button.
To move a spread guide, drag the part of the guide that’s on the pasteboard, or press Ctrl (Windows) or Command (Mac OS) as you drag the guide from within the page.
To move guides to another page or document, select one or more guides, choose Edit > Copy or Edit > Cut, go to another page, and then choose Edit > Paste. If you’re pasting onto a page of the same size and orientation as the guides’ original page, the guides appear in the same position.
The Paste Remembers Layers option affects the layer on which pasted guides appear.
If you cannot delete a guide, it may be locked, it may be on a master page, or it may be on a locked layer.
To change options for one or more existing ruler guides, select those ruler guides.
To set default options for new ruler guides, deselect all guides by clicking in an empty area.
You can set the current magnification as the view threshold for new ruler guides by pressing Alt (Windows) or Option (Mac OS) as you drag the ruler guides you’ve selected.
By default, ruler guides appear in front of all other guides and objects. However, some ruler guides may block your view of such objects as lines with narrow stroke widths. You can change the Guides in Back preference to display ruler guides in front of or behind all other objects. However, regardless of the Guides in Back setting, objects and ruler guides are always in front of margin and column guides. Also, although putting guides on different layers organizes them structurally, it does not affect their visual stacking order—the Guides in Back preference stacks all ruler guides as a single set in relation to all page objects.
A. Ruler guides B. Page objects C. Margin and column guides D. Page
To precisely align objects to guides, use the Snap To Guides and Snap To Document Grid commands. Object edges will snap to (be pulled toward) the nearest grid intersection or guide when you draw, move, or resize the objects.
The exact range within which an object snaps to guides is called the snap-to zone, which you can adjust. When you select both the Snap To Guides and the Snap To Document Grid commands, the grid takes precedence.
Keep the following guidelines in mind as you align objects to guides and grids:
To snap an object to a guide, drag an object toward a guide until one or more of the object’s edges is within the guide’s snap-to zone.
Guides must be visible for objects to snap to them. However, objects can snap to the document and baseline grids whether the grids are visible or not.
Objects on one layer snap to ruler guides visible on any other layer. If you don’t want objects to snap to guides on a certain layer, hide that layer’s guides.
To snap the text baseline to the baseline grid, choose Grid Alignment > Roman Baseline from the Control panel menu or Paragraph panel menu. Alternatively, set Grid Alignment to Roman Baseline from the column style Grid Settings.
For the baselines of text to snap to the baseline grid, press the Align to Baseline Grid button for individual paragraphs or paragraph styles.
The Snap To Guides command controls both snapping to guides and snapping to the baseline grid.
The Smart Guides feature makes it easy to snap objects to items in your layout. As you drag or create an object, temporary guides appear, indicating that the object is aligned with an edge or center of the page or with another page item.
By default, the Smart Guides feature is selected. You can turn off smart guides, or you can turn off any of the smart guide categories:
Smart Object Alignment
Smart object alignment allows for easy snapping to page item centers or edges. In addition to snapping, smart guides dynamically draw to indicate which object is being snapped to.
Smart dimension feedback appears when you’re resizing, creating, or rotating page items. For example, if you rotate one object on your page 24 degrees, a rotation icon appears as you rotate another object close to 24 degrees. This hint lets you snap the object to the same rotation angle of the adjacent object. Similarly, as you resize an object next to another object, a line segment with arrows at each end lets you snap the object to the same width or height as the adjacent object.
Smart spacing lets you quickly arrange page items with the help of temporary guides that indicate when the spacing between objects is even.
Smart cursor feedback appears in a gray box as X and Y values when you’re moving or resizing object or as a measurement when you’re rotating values. The Show Transformation Values option in Interface preferences lets you turn smart cursors on and off.
For a video tutorial on using smart guides, see www.adobe.com/go/lrvid4029_id.
To turn off smart cursors, which displays the X and Y values of objects you mouse over, deselect Show Transformation Values in Interface preferences.
Smart Guides take effect only on page items and intersections that are in the current page view. If you have many objects on a page and are trying to align an object to another object or objects in particular, zoom in on that area specifically.If you don’t want Smart Guides to snap to column guides, turn off Snap To Guides temporarily by choosing View > Grids & Guides > Snap To Guides.The Smart Guides feature is accurate regardless of zoom percentage, so it isn’t necessary to zoom in to see if two objects are really aligned at their left edges, for example.
