Set up and use Head Mounted Display for immersive video

The Adobe Immersive Environment in Premiere Pro allows you to view, review and scrub through your timeline in a Head Mount Display (HMD) and still maintain the ability to use keyboard-driven editing for tasks like dynamic trimming, and adding markers.

You can use a VR headset to view your 360º video while working in Premiere Pro. To use a VR headset, your system must meet the VR system requirements, and you need to install Steam software.

Premiere Pro supports the following VR headsets on Windows:

• HTC Vive
• Oculus Rift
• Windows Mixed Reality headsets

Follow the high-level instructions in the table to install and set up your VR environment.

Download and configure Steam

Start Adobe Immersive Environment in Premiere Pro

After you enable  Adobe Immersive Environment, anytime you edit footage, SteamVR automatically opens and starts communicating with Premiere Pro.

However, only footage that is 360 mono or stereo is viewable within the HMD.

Use the Adobe Immersive Navigator

After you have set up the Adobe Immersive Environment correctly, you can see the head-set controllers in the immersive environment.

You can then use the following panels and functionalities while working in the Adobe Immersive environment:

• The Timeline panel
• The Navigator panel

The Timeline panel

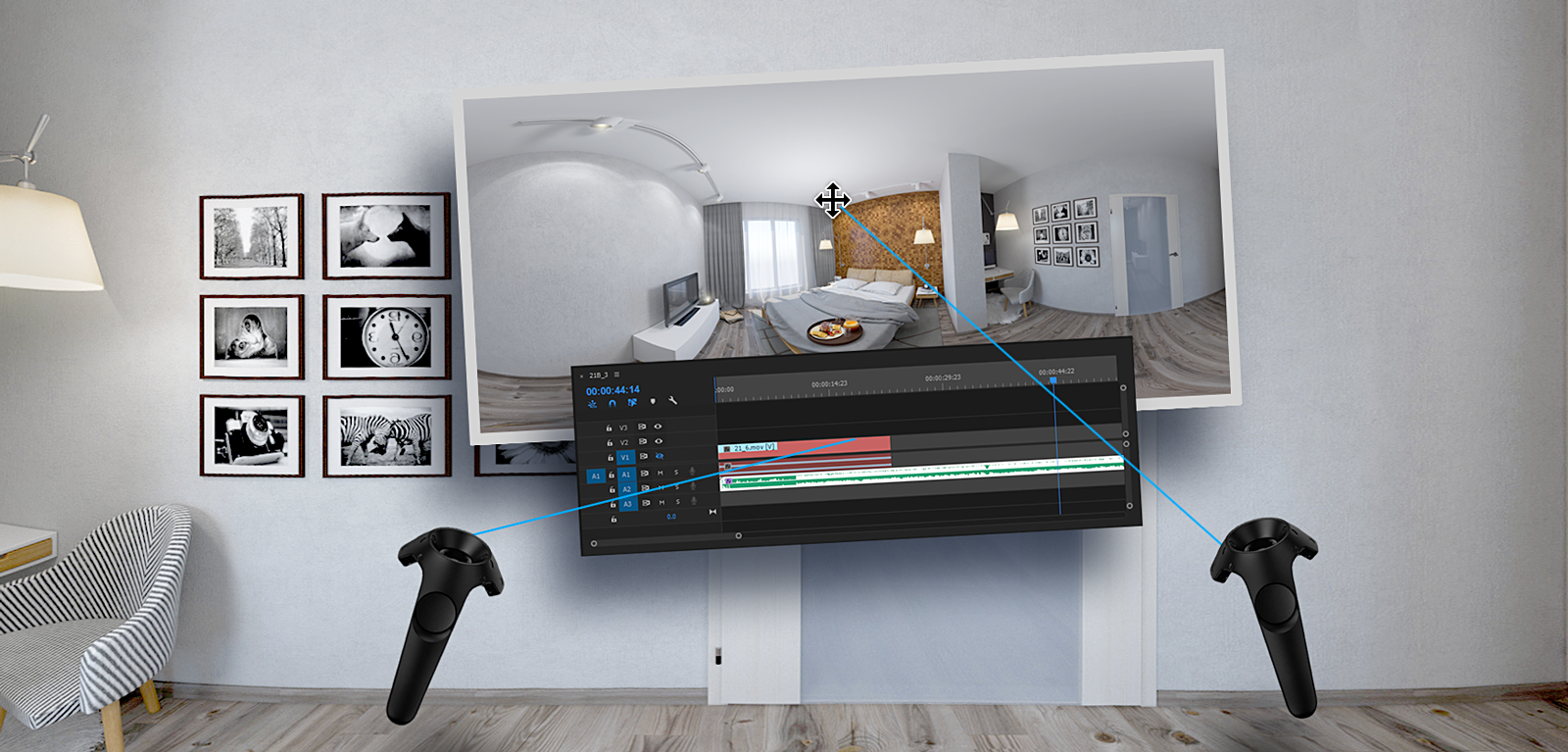

To view the Timeline panel in the immersive environment, click Timeline on the controller. Invoking the Timeline from the controller always put the timeline in front of you, in the same local orientation it was last left in.

You can show and hide the timeline or move it around and place it according to your convenience.

Add and edit spatial markers

With the VR timeline active in Adobe Immersive Environment, you can activate Marker Mode.

Marker mode allows you to point to areas of the frame, either spherical or rectilinear projection, and add a visual spatial marker. In addition, you can open a panel and modify the color of the marker.

After you place a new spatial marker, you can move it to different parts of the frame. You can add multiple spatial markers, or delete them. To delete a marker, select the small trashbin icon, located under the color panel.

You can set a custom name, and duration for a marker.

The Navigator panel

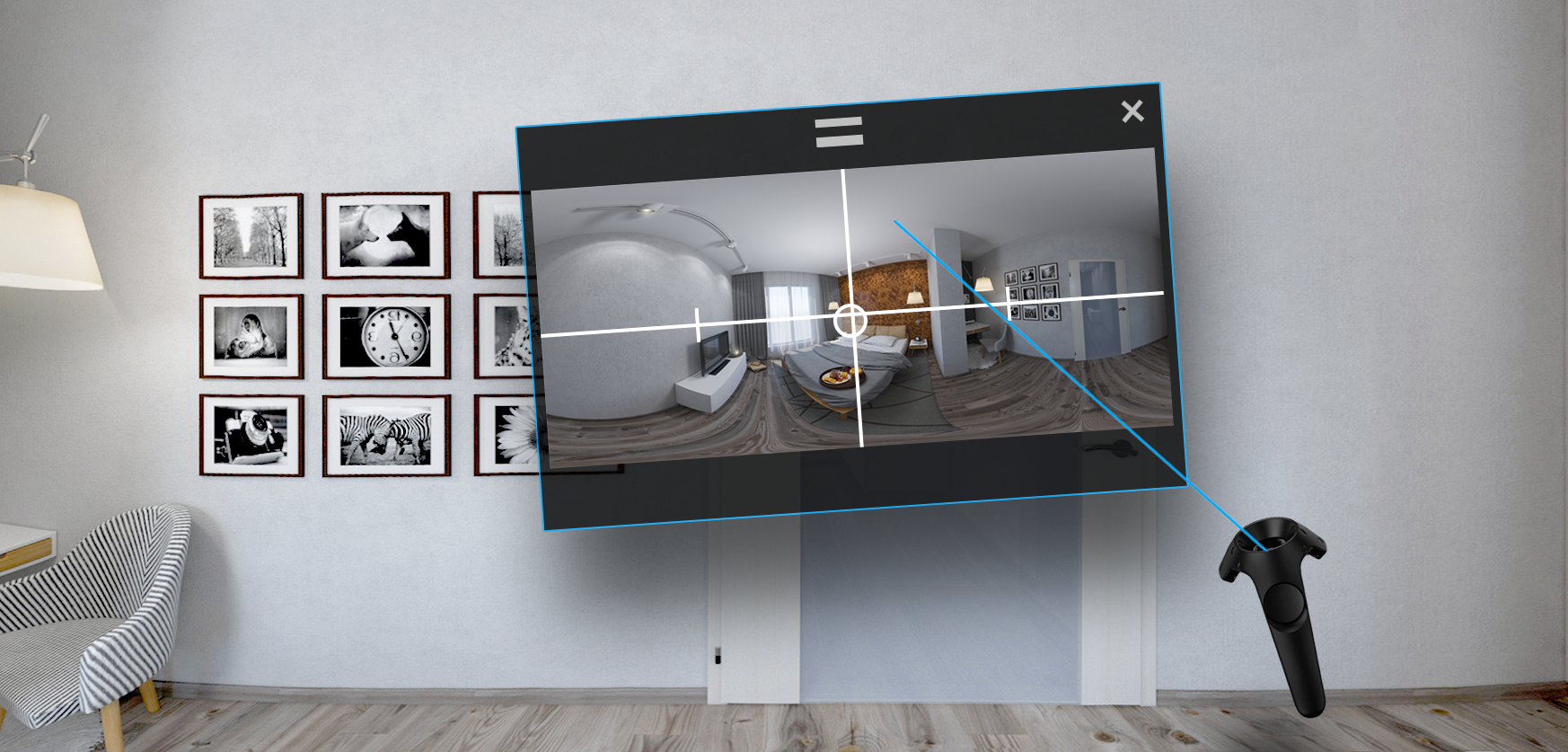

The Navigator panel shows the entire footage at the current frame in a rectilinear format.

You can use this panel to keep an eye on footage outside the current field of view and reorient the footage to be more comfortable while viewing.

To access the Navigator panel, click the Navigation icon in the upper-right corner of the Timeline panel.

The Navigator panel consists of the following:

• An equirectangular view of the footage that can be triggered on
• Dot where the editor is currently looking in the frame
• Lines indicating the "forward" or "true north" position. In most cases, this will be facing the editors desk or monitor.
• A Reset button when the view has been altered by the editor.
• Close button: closes the panel
• Grabber to re-position the panel

To access the Navigator panel, click the Navigation icon in the upper-right corner of the Timeline panel.

Trigger anywhere on the footage frame to change what appears in front of the editor.

This feature allows you to view and check footage that is normally behind you. After you change the view, the 360 footage around the editor rotates in yaw to the desired location.

The dot representing the current field of view also moves to the new location, and the lines representing "true north" also change.

Dock or move the Timeline and Navigator panels

Use the grabber handles on the Timeline and Navigator panels to move them around. You can move the panels in any orientation or position. You just need to trigger on the grabber of the panel and move the panel to a new location, then release the trigger.

You can also dock the panels to your controller.  Each controller can have a single panel docked to it. A docked panel appear on the controller in front and at a slightly rotated angle. The primary use for docking a panel is to put the Navigator panel in your non-dominant hand. This allows you to see the entire content around you, without needing to look around. Having panels on the controller helps keep the UI at a comfortable place.

To dock a panel, trigger on the grabber icon at the top of the panel and drag it to a second controller. A blue square appears on the second controller. When the white ray of the first controller touches the blue square, the panel snaps into position on the second controller. Release the trigger and it stays docked. To remove the a docked panel, grab the panel again and drag it until it snaps away from the controller.
