Annotations and drawing markup tools overview

Note:

In Reader, complete commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

You use annotation and drawing markup tools (Comment pane) to add comments. Comments are notes and drawings that communicate ideas or provide feedback for PDFs. You can type a text message using the Sticky Note tool. Alternatively, you can use a drawing tool to add a line, circle, or other shape and then type a message in the associated pop-up note. Text-editing tools let you add editing marks to indicate changes that you want in the source document. Most commenting and markup tools don’t appear in the toolbar until you add them.

Note:

If you open a PDF in a browser for a shared review that has ended, the commenting tools are unavailable.

Most comments include two parts: the icon, or markup, that appears on the page, and the text message that appears in a pop-up note when you click or double-click the icon or place the pointer over the icon.

After you add a comment, it stays selected until you click elsewhere on the page. Acrobat highlights a selected comment with a blue halo to help you find the markup on the page. A wireframe with selection handles appears on drawing markups and stamps, so that you can adjust the size and shape.

In Acrobat Pro, you can add tags to your comments so that readers with motion or vision limitations can read them using assistive technologies.

Annotations panel
Annotations panel

A. Add Sticky Note B. Highlight text C. Attach file D. Record audio E. Add Stamp tool and menu F. Insert text at cursor G. Replace text H. Strikethrough I. Underline J. Add note to text
<span class="uicontrol">Drawing Markups</span> panel
<span class="uicontrol">Drawing Markups</span> panel

A. Add text box B. Add text callout C. Draw line D. Draw arrow E. Draw oval F. Draw rectangle G. Draw cloud H. Draw polygon I. Draw connected lines J. Draw free form K. Erase free form

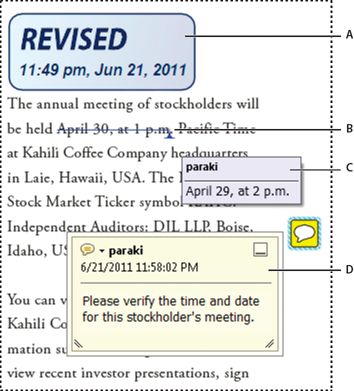

Types of comments in a PDF
Types of comments in a PDF

A. Stamp B. Text edit C. Comment rollover (tool tip) D. Sticky note

Additional resources

For videos and tutorials on commenting, see these resources:

Show annotations and drawing markup tools

Annotations and markup tools don’t appear by default, except when you open a PDF in a managed review workflow.

  • Click the Comment task pane button, and then click the Annotations or Drawing Markup panels.

Select an annotation or drawing markup tool

  • Choose Comment > Annotations > [tool].
  • Choose Comment > Drawing Markups > [tool].

Note:

After you make an initial comment, the tool changes back to the Select tool so that you can move, resize, or edit your comment. (The Pencil and Highlight Text tools stay selected.)

Keep an annotation tool selected

You can add multiple comments without reselecting the tool.

  1. Select the tool you want to use (but don’t use it yet).
  2. Right-click (Windows) or Control-click (Mac OS) and choose Keep Tool Selected.

Commenting preferences

Commenting preferences affect both the appearance of and the way you view annotations and markups in PDFs.

Note:

A reviewer can place comments anywhere within the document frame. As a result, sometimes you need to scroll or zoom out to see comments that are located off the page.

In the Preferences dialog box under Categories, select Commenting.

Font, Font Size

In Windows, you can determine the font and the size of text in pop-up notes. In Mac OS, you can select only Large, Medium, or Small settings for the font. This setting applies to all new and existing comments.

Pop-up Opacity

Determines the opacity of comment pop-up notes in values from 1 to 100. When a pop-up note is open but not selected, an opacity value of 100 makes the note opaque, while lower values make it more transparent.

Enable Text Indicators And Tooltips

Shows a tool tip when you place the pointer over a comment that includes a pop-up note. The tool tip contains the author name, comment status, and two lines of the text. Selected by default.

Print Notes And Pop-ups

Specifies that pop-up notes associated with comments, and icons for note, audio, and file attachments print exactly as they appear on the page.

Instead of selecting this option, you can print comment text in various layouts by choosing File > Print, and clicking Summarize Comments.

Show Lines Connecting Comment Markups To Their Pop-ups On Mouse Rollover

When you place the pointer over a comment markup (such as a highlight or a note icon), the shaded connector line appears. Selected by default.

Ensure That Pop-ups Are Visible As The Document Is Scrolled

As you scroll a PDF, the pop-up notes on a given page shift to stay in view within the document pane. Selected by default.

Automatically Open Comment Pop-ups For Comments Other Than Notes

A pop-up note appears when you create a comment using a drawing tool, the Stamp tool, or the Pencil tool.

Hide Comment Pop-ups When Comments List Is Open

Helps reduce screen clutter when a page includes many comments. Selected by default.

Automatically Open Pop-ups On Mouse Rollover

When you place the pointer over a comment of any type, including drawing markups and stamps, the pop-up note opens.

Always Use Log-in Name For Author Name

Determines which name appears in the pop-up note you create. If this option is selected, the Login Name in the Identity panel of the Preferences dialog box is used. If this option isn’t selected, the default name you specify for Author in a comment properties dialog box is used. Selected by default.

Create New Pop-ups Aligned To The Edge Of The Document

Aligns pop-up notes with the right side of the document window, regardless of where the comment markup (such as a note icon or highlighting comment) is added. If this option is deselected, the pop-up note appears next to the comment markup. Selected by default.

Copy Encircled Text Into Drawing Comment Pop-Ups

Copies text that you circle using the drawing tools in the pop-up note associated with the drawing markup.

Copy Selected Text Into Highlight, Cross-Out, And Underline Comment Pop-ups

Copies selected text to the pop-up note associated with text editing comments, such as those created by the Highlight Text tool.

Change the look of your comments

Note:

In Reader, complete commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

You can change the color and appearance of comments or markups before or after you create them. You can set the new look as the default appearance for that tool.

Note:

To change how your name appears in comments, open the Preferences dialog box, select Commenting, and then deselect Always Use Log-in Name For Author Name.

Properties

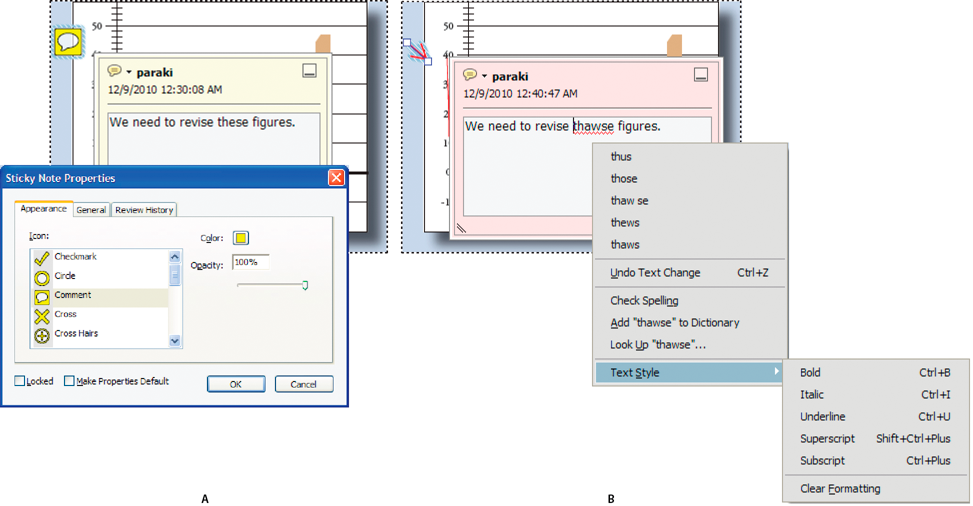

Properties

A. With note icon selected B. With pop-up text selected

Change a comment’s look and set it as the default

  1. After you create a comment, choose Properties from the Options menu of the pop-up note.
  2. In the Properties dialog box, do any of the following, and then click Close:
    • Click the Appearance tab to change such options as the color and type of icon used. The type of comment selected determines which options are available.

    • Click the General tab to change the name of the author and subject of the comment.

    • Click the Review History tab to see the history of changes people have made to the status of a comment during a review.

    • Select Locked at the bottom of the Properties dialog box to prevent the comment from being edited or deleted.

    • Select Make Properties Default at the bottom of the Properties dialog box to apply these properties to all subsequent comments of this type.

Set the default look for a tool

  1. In Annotations and Drawing Markup panels in the Comment task pane, right-click the tool that you want to use, and choose Tool Default Properties.
  2. Set the properties as desired, and click OK.

    All comments you create using this tool display the properties you set. Existing comments aren’t affected, nor is the appearance of text in pop-up notes.

Add a sticky note

Note:

In Reader, complete commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

The most common type of comment is the sticky note. A sticky note has a note icon that appears on the page and a pop-up note for your text message. You can add a sticky note anywhere on the page or in the document area.

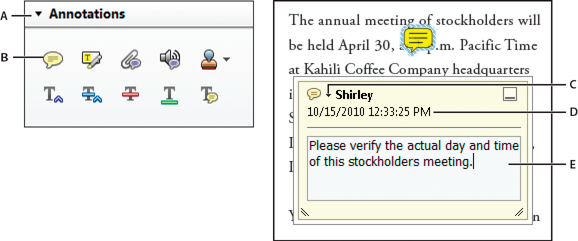

 <span class="uicontrol">Sticky Note</span> tool
Use the <span class="uicontrol">Sticky Note</span> tool to add a text message in a pop-up note.

A. Annotations panel B. Sticky Note tool C. Options menu D. Time stamp E. Text message

Add a sticky note comment

  1. Select the Sticky Note tool  in the Annotations panel, and either click where you want to place the note or drag to create a custom-sized note.
  2. Type text in the pop-up note. You can also use the Select tool  to copy and paste text from a PDF into the note.

    Note:

    If you close the pop-up note, your text remains.

Edit a sticky note comment

  1. Click or double-click the note icon.
  2. Make changes, as needed:
    • To resize the pop-up note, drag the lower-left or lower-right corner.

    • To change the text formatting, choose View > Show/Hide > Toolbar Items > Properties Bar, select the text, and then select the property you want in the toolbar.

    Note:

    Use the Commenting panel in the Preferences dialog box to change the font size, default pop-up behavior, and other settings for creating and viewing comments

    When you’re finished, click the minimize button in the upper-right corner of the pop-up note, or click outside the pop-up note.

Delete a sticky note

  1. Select the Sticky Note tool , the Hand tool , or the Select tool .
  2. Select the note icon, and press Delete.

    Alternatively, double-click the note icon and choose Delete from the Options menu of the pop-up note.

Add a text comment

Use the Add Text Comment tool <<ICON>> to type text anywhere on the PDF page. The Add Text Comment tool is similar to the Add Text Box tool.

  1. Choose Comment > Annotations, and then select the Add Text Comment tool.
  2. Click on the page, to place the cursor
  3. In the Add Text Comment tools, specify the font, font size, and other text attributes.

Add a line, arrow, or shape

Note:

In Reader, drawing tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

When selecting a drawing tool, consider the effect you want.

  1. Choose Comment > Drawing Markups, and select a drawing tool:



    • The Rectangle tool , the Oval tool , the Arrow tool , and the Line tool  let you create simple shapes.

    • The Cloud tool  and Polygon tool  create closed shapes with multiple segments. The Polygon Line tool  creates open shapes with multiple segments.

    • The Pencil tool  creates free-form drawings, and the Pencil Eraser tool  removes the pencil markups.



    Note:

    To specify the line width, color, and other properties before you draw, right-click the drawing tool, choose Properties, and set the desired options in the Properties dialog box.

  2. Draw in the PDF:
    • To create a cloud or polygon shape, click to create the start point, move the pointer, and click to create each segment. To finish drawing the shape, click the start point, or right-click and choose Complete from the menu. Double-click to end a polygon line.

    • To draw a line, arrow, or rectangle, either drag across the area where you want the markup to appear, or click twice: once to create the start point and once to create the end point.

    • To draw a square or circle, or to draw a line that’s horizontal, vertical, or at a 45° angle, press Shift while you draw.

    • To draw free-form lines using the Pencil tool , drag where you want to begin drawing. You can release the mouse button, move the pointer to a new location, and continue drawing. To erase parts of the drawing, select the Pencil Eraser tool  and drag across the areas of the drawing that you want to remove.

  3. To edit or resize the markup, select it and drag one of the handles to make your adjustments.
  4. To add a pop-up note to the markup, select the Hand tool, and double-click the markup.
  5. (Optional) Click the close button in the pop-up note. A note icon appears to the right of the markup to indicate the presence of text in the pop-up note.

    Note:

    To delete a drawing markup, select it and press Delete.

Group and ungroup markups

You can group two or more markups so that your comments function as a single comment. You might group markups temporarily to move them to a new location or to modify their properties rather than editing each one individually. Grouping also helps to distinguish your markups from other reviewers’ markups in a document review.

Note:

You cannot group text edit markups.

Group markups

  1. Using the Select tool or the Hand tool, select a markup.
  2. Ctrl-click/Command-click to select the markups you want to group.
  3. Right-click within the selection, and choose Group.

Ungroup markups

  • Right-click the grouped selection, and choose Ungroup.

Add comments in a text box or callout

Note:

In Reader, commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

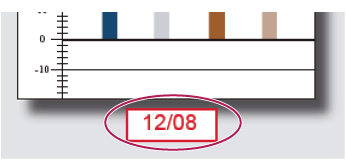

You can use the Text Box tool to create a box that contains text. You can position it anywhere on the page and adjust it to any size. A text box remains visible on the document page; it doesn’t close like a pop-up note.

Another way to add a text box is simply to paste copied text into the PDF. Text font and size are based on the system default settings.

Add comments with Text Box tool

Note:

You can add comments to Japanese, Chinese, and Korean text with the Text Box tool, but you must have the Asian-language resource files installed. Text boxes allow for horizontal text only.

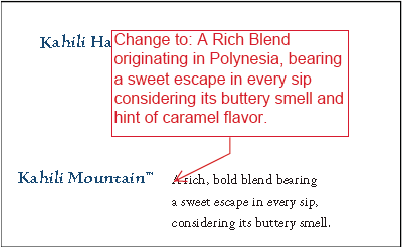

You can use the Callout tool  to create a callout text box. Callout text boxes are especially useful when you want to single out—but not obscure—a particular area of a document. Callout text boxes have three parts: a text box, a knee line, and an end-point line. You can resize each part by dragging a handle. The knee line can be resized in one direction only; horizontal knee lines can be resized horizontally only; vertical knee lines can be resized vertically only. The text box expands vertically as you type so that all text remains visible.

You can move the text box itself or together with the end-point line. The text box moves around a stationary anchor point—the arrow on the end-point line—which is created when you first click in the PDF. You can modify the color and appearance of the text box and add arrows or leaders to the end-point line.

Add callouts with text box

Add a text box

  1. Choose Comment > Drawing Markups > Add Text Box  .
  2. Click in the PDF.
  3. Choose View > Show/Hide > Toolbar Items  >Properties Bar, and set the color, alignment, and font attributes for the text.
  4. Type the text.

    Text wraps automatically when it reaches the right edge of the box.

  5. (Optional) To make further changes to the text box:
    • Using the Select tool or the Text Box tool, click an edge of the text box to select it, and then drag a corner to resize it. Use the Properties toolbar to change the border and fill options.

    • Double-click the text box to edit the text or change the text attributes. Drag across text to select it, and then select options from the Properties toolbar.

  6. To delete the text box, select it, and then press Delete.

    Note:

    You can also paste a block of text by selecting and copying the text in any application, selecting the Hand tool in Acrobat, and choosing Edit > Paste.

Add a callout

  1. Choose Comment >Drawing Markups > Callout tool .
  2. Click once to set the location of the end point, and click again to set the location of the text box.
  3. Choose View > Show/Hide > Toolbar Items >Properties Bar, and select the color, alignment, and font attributes for the text.
  4. Type the text.

    Text wraps automatically when it reaches the right edge of the box.

  5. (Optional) To make further changes to the text box:
    • To resize the callout, select it and drag any of the handles that appear.

    • To move the text box, click inside the box and drag it.

    • To move the entire callout, click either the end-point line or an edge of the text box, and drag it.

    • To change the color, opacity, or line characteristics, use the Select tool to right-click the callout, choose Properties, and select the options you want.

Add an audio comment

Note:

In Reader, commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

You can use the Record Audio Comment tool to add a prerecorded WAV or AIFF file as a comment or to record and place an audio comment in a document. Audio attachments appear in the Comments list and can be played back on any platform. However, the appropriate hardware and software for playing audio files must be installed.

Add a prerecorded audio comment

  1. Choose Comment > Annotations > Record Audio  and then click in the PDF where you want to place the audio comment.
  2. Click Browse (Windows) or Choose (Mac OS), and select the audio file you want to add.
  3. (Optional) To hear the audio comment, click the Play button . When you’re finished, click Stop and then click OK.
  4. Specify options in the Properties dialog box, and then click OK.

Record an audio comment

  1. Choose Comment > Annotations > Record Audio  and then click in the PDF where you want to place the audio comment.
  2. In the dialog box that appears, click the Record button  and then speak into the microphone. When you’ve finished recording, click the Stop button , and then click OK.
  3. Specify options in the Properties dialog box, and then click OK.

Add comments in a file attachment

Note:

In Reader, commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

Use the Attach File tool to embed a file at a selected location in a PDF, so that the reader can open it for viewing. By adding attachments as a comment, you can reference longer documents that can’t easily be pasted into a pop-up note or text box. If you move the PDF to a new location, the embedded file automatically goes with it. To view an attachment, the reader must have an application installed that can open the attachment.

Note:

Be sure to use the Attach tool in the Annotations panel when attaching files for a document review. Document-level file attachments that you attach using the paper clip icon (Attach A File tool) from the Tools > Content panel aren’t tracked with other comments in a review workflow and may cause your attached comments to be lost.

  1. Choose Comment > Annotations >Attach File .
  2. Click in the PDF where you want to place the attachment.
  3. Select the file that you want to attach, and then click Select. If you’re attaching a PDF, you can highlight areas of interest in the file using comments.
  4. In the File Attachment Properties dialog box, select the settings for the file icon that appears in the PDF.

    The comment attachment also appears in the Attachments tab with a page number indicating its location.

    Note:

    To delete the attachment, right-click the attached comment icon, and choose Delete.

Paste images as comments

Note:

In Reader, commenting tools are available only in PDFs that have commenting enabled. PDFs in a review workflow typically include commenting rights.

You can use the Paste Clipboard Image As Stamp tool to add images to a PDF. You can copy most image formats from drawing and image-editing applications, such as Adobe Photoshop and Adobe Illustrator. If you want to add the image to PDFs repeatedly, create a custom stamp of the image.

Note:

The Paste Clipboard Image As Stamp tool isn’t available until you copy an image.

  1. Copy an image by doing one of the following:
    • In Acrobat, choose Edit > Take a Snapshot  , and select an image from a PDF.

    • In another application, select an image and choose Edit > Copy.

  2. Open a PDF.
  3. Choose Comment > Annotations > Stamps > Paste Clipboard Image As Stamp Tool.
  4. Click in the PDF where you want the image to appear.
  5. Do any of the following:
    • To move the image, drag it.

    • To resize the image, select it and then drag one of its handles. Press the Shift key when resizing the image to maintain the original proportions.

    • To change the image properties, right-click it and choose Properties.

    • To delete the image, right-click it and choose Delete.

This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License  Twitter™ and Facebook posts are not covered under the terms of Creative Commons.

Legal Notices   |   Online Privacy Policy
