Effects Rack overview

The Effects Rack lets you insert, edit, and reorder up to 16 effects, optimize mix levels, and store favorite presets. Most rack controls appear in both the Waveform and Multitrack editors.

Controls shared by the Waveform and Multitrack editors

A. Rack Preset controls B. Effect slots C. Level controls D. Main Power button

Controls unique to the Waveform Editor

In the Waveform Editor, the Effects Rack provides a Process menu that that lets you modify a selection or the entire file, and an Apply button that permanently applies effects.

Controls unique to the Waveform Editor

A. Apply button permanently applies effects B. Process menu lets you modify selection or entire file

Controls unique to the Multitrack Editor

The Effects Rack provides Pre-render Track and FX Pre/Post-Fader buttons that you use to optimize and route effects. Each clip and track has its own Effects Rack, which is saved with the session.

Note:

Buses and the Master track lack a Pre-render option because processing effects from all source tracks would reduce performance.

Controls unique to the Multitrack Editor

A. FX Pre/Post-Fader B. Pre-render

Set input, output, and mix levels in racks

  • To optimize volume, adjust Input and Output levels so their meters peak without clipping.
  • To change the percentage of processed audio, drag the Mix slider. 100% (Wet) equals fully processed audio; 0% (Dry) equals original, unprocessed audio.

Insert, bypass, reorder, or remove effects in racks

In the Effects Rack, you manage groups of effects by using individual effect slots.

Note:

In the Multitrack Editor, the fx section of the Editor panel or Mixer provides quick access to slots in the Effects Rack.

Reordering and inserting effects in racks:

A. Reorder by dragging B. Insert with the slot menu
  • To insert an effect, choose it from a slot’s pop‑up menu. Then adjust effect settings as desired.

    Note:

    To later reaccess effect settings, double-click the effect name in the rack.

  • To bypass an effect, click its Power button .

  • To bypass all effects, click the main Power button in the lower left corner of a rack, or the fx power button in the Editor panel or Mixer.

  • To bypass a selected group of effects, choose Toggle Power State of Selected Effects from the panel menu .

    Note:

    Bypass effects to quickly compare processed and unprocessed audio.

  • To remove a single effect, choose Remove Effect from a slot’s pop‑up menu. Or select the slot, and press Delete.

  • To remove all effects, choose Remove All Effects from the panel menu .

  • To reorder effects, drag them to different slots.

    Note:

    Reordering effects produces different sonic results. (For an example, place Reverb prior to Phaser, and vice versa.)

Use effect presets

Many effects provide presets that let you store and recall favorite settings. In addition to effect‑specific presets, the Effects Rack provides rack presets that store groups of effects and settings.

  • To apply a preset, choose it from the Presets menu.

  1. To save current settings as a preset, click the New Preset button .

  • To delete a preset, select it, and click the Delete button .

    Note:

    To modify an existing preset, apply it, adjust settings as desired, and then save a new preset with the same name.

Control effect settings with graphs

Many Adobe Audition effects provide graphs where you can adjust parameters. By adding and moving control points on the graph, you can precisely tailor effect settings.

Graph control points function together with related numerical settings. If you change or disable a numerical setting, the related graph control follows suit.

Moving a control point changes the related settings, and vice versa.

  • To move a point on a graph, drag it to a new location.

    Note:

    The following techniques don’t apply to the DeHummer, Mastering, Full Reverb, Parametric Equalizer, and Track EQ graphs.

  • To add a control point to a graph, click in the grid at the location where you want to place the point.

  • To enter numeric values for a control point, right‑click it, and choose Edit Point

  • To remove a point from a graph, drag it off the graph.

  • To return a graph to its default state, click the Reset button .

About spline curves for graphs

By default, graphs display straight lines between control points. However, some graphs provide a Spline Curves option that creates a curve between control points for smoother transitions.

When you use spline curves, lines don’t travel directly through control points. Instead, the points control the shape of the curve. To move the curve closer to a control point, click near it to create a cluster of control points.

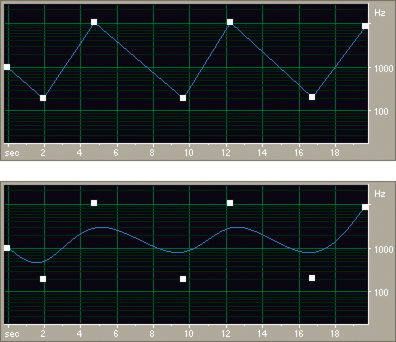

Graph with straight lines compared to graph with spline curves
