VR Review interface | Substance 3D Viewer

Reviewers' VR review interface consists of various panels that you can open, close, and move around your scene. The following panels are available while in a review:

• The Quick access panel
• The Comments panel
• The Preferences panel

The Quick access panel

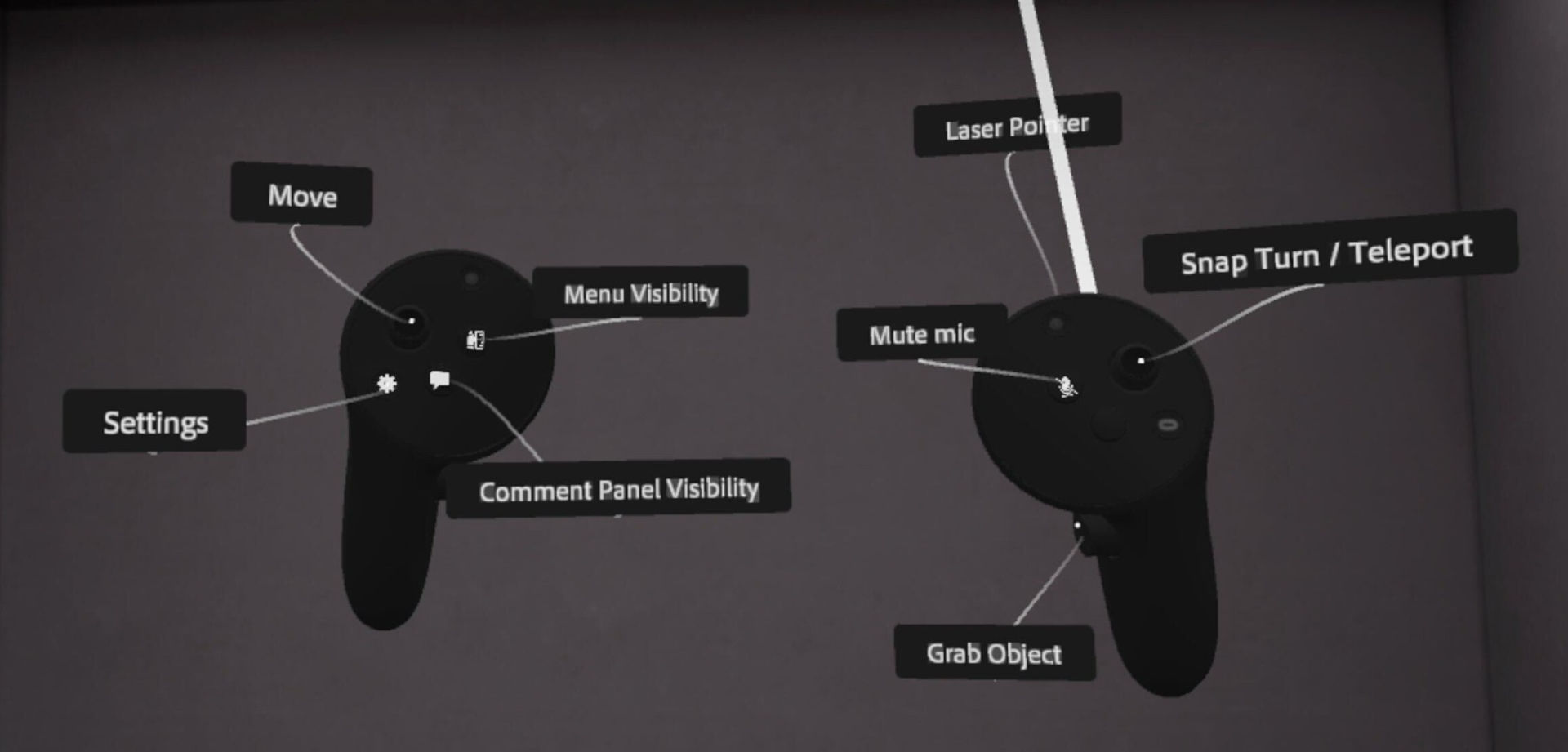

The Quick access panel can be opened or closed with S1, and always appears next to your secondary controller.

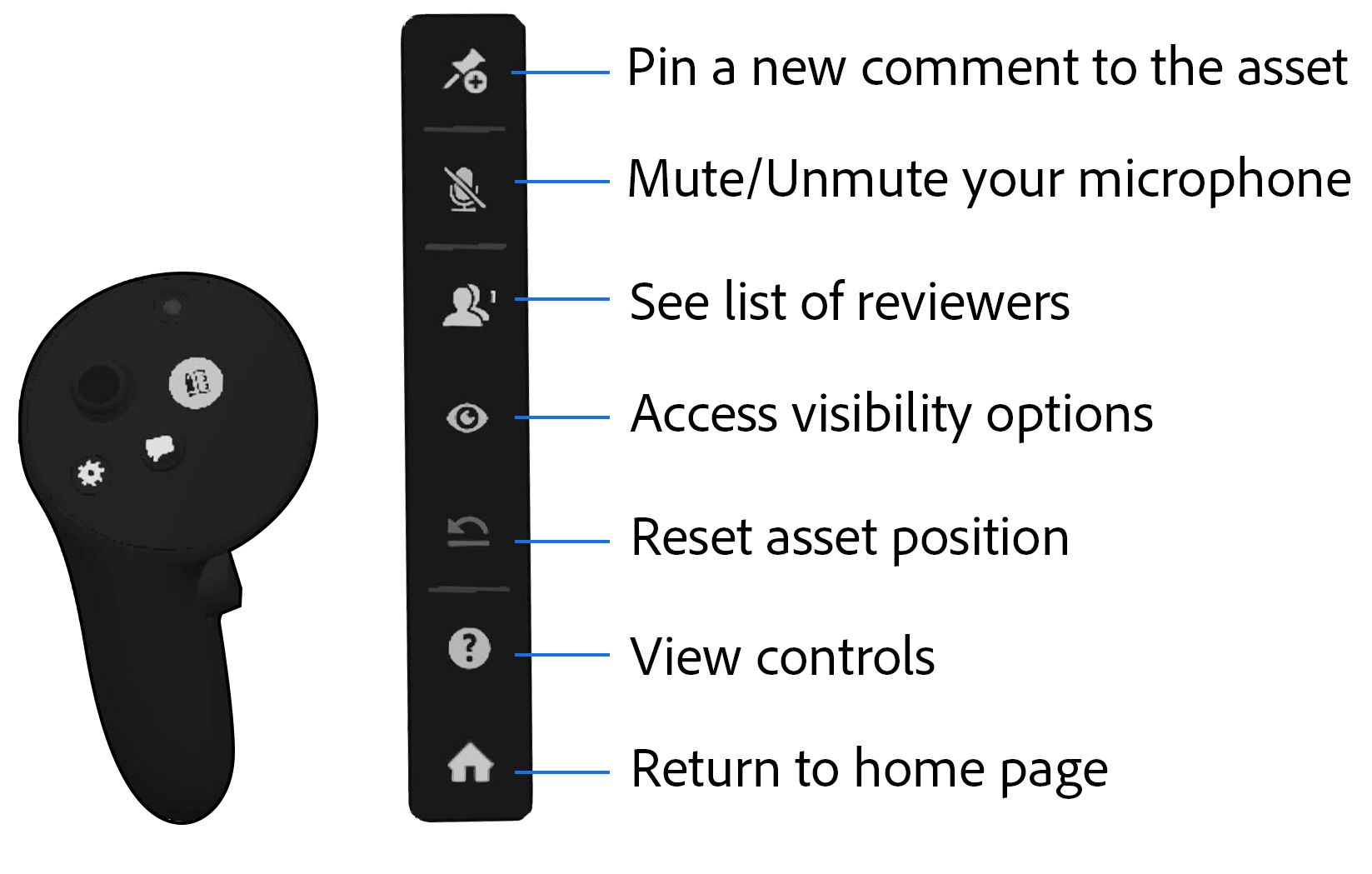

The Quick access panel is where you can access a collection of commonly used actions and tools during a review.

• Pin a comment:
  To pin a comment, select this option, then use the primary controller to place the pin on the asset. After placing the pin, the Comments panel will open where you can enter the text of the comment.
• Mute/unmute microphone:
  When in a review with other users, you can mute your microphone to prevent them from hearing you or sounds in your surroundings.
• See reviewers:
  See a list of other users currently in the review with you.
• Access visibility options:
  Open the visibility menu to access toggles to hide or display
  • Nameplates for other users in the review.
  • Pins attached to the asset.
  • The Comments panel. You can also hide or show the comments panel with S2.
• Reset asset position:
  If the asset has been moved from its starting position, you can use this button to reset the position.
• View controls:
  Turn on visibility of floating names for each of the controls available on the controllers.
• Return to Home page:
  Close the review and return to the Reviewer Home page.

The Comments panel

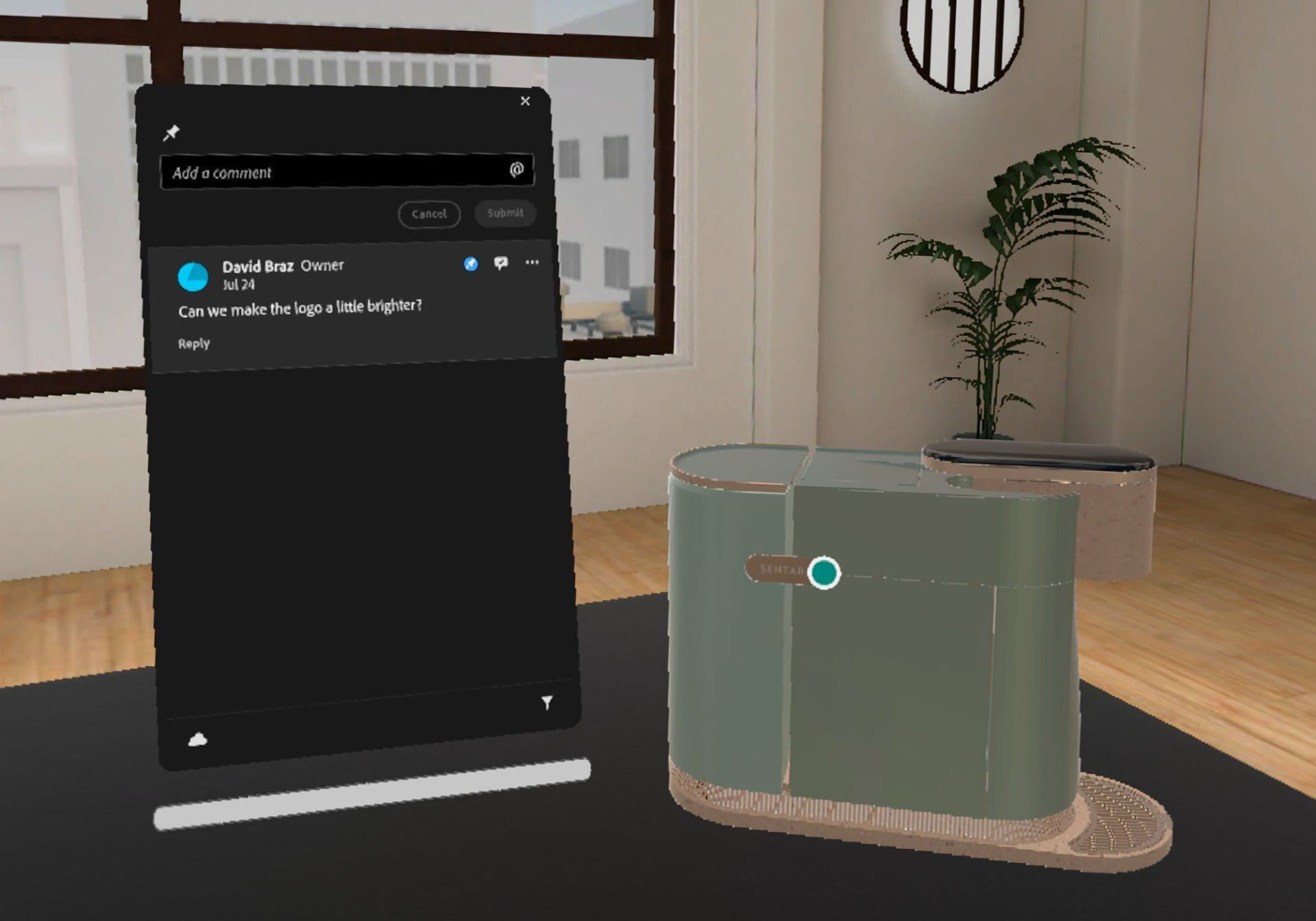

The Comments panel allows you to leave comments for other reviewers, reply to other comments, or attach pins to the asset to call out specific details or areas.

You can open the Comments panel with S2, or by toggling Comments panel visibility from the Visibility menu in the Quick access panel.

Adding a pin to the asset from the Quick access panel will also open the Comments panel.

The Prefrences panel

You can learn more about the Preferences panel here.
