How to create zoom areas in Adobe Captivate

Properties of zoom destination areas
Properties of zoom source areas
Add zoom areas

Zoom areas help you draw the learner’s attention to important sections of a slide. For example, if you create a simulation that includes a step that might be easily overlooked, you can add a zoom area to highlight the step. After you add a zoom area, you can add timing, transition, and audio options to the zoom effect. Zoom areas consist of the following:

Zoom source

The area of the slide that you want to magnify.

Zoom destination area

The area in which the magnified portion of the slide is displayed.

You can set the properties for a zoom destination area using the Property Inspector (Window > Properties).

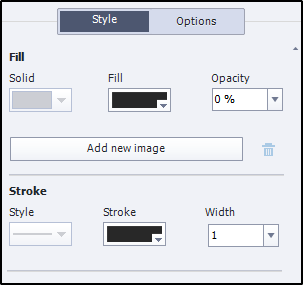

Fill

Color of the area within the Zoom Destination Area box. To decide the degree of transparency for the fill color, select a value for the option Alpha in the Color menu. The value of 90% is less transparent (more solid) than a value of 10%.

Stroke

Stroke color for the Zoom Destination Area box.

Width

Thickness of the border of the Zoom Destination Area box.


Image for the zoom destination area. Click the respective icon to add, crop, or delete image.

Note:

You can also change the size and position of the zoom area or zoom destination area directly on the slide. Select the box you want to change. When the hand cursor is visible, you can adjust the position of the box. When the double-headed arrow cursor is visible, you can adjust the size.

You can set the properties for a zoom source area using the Property Inspector (Window > Properties).

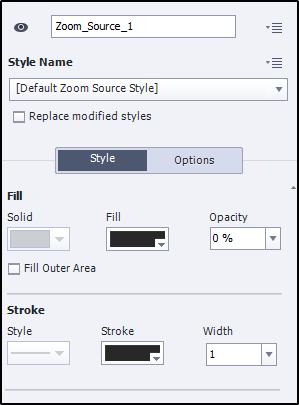

Name

Enter a unique name for the object. You can use this name when defining the visibility conditions for the object.

Visible

Deselect this option if you want the object to be invisible on the slide. The object can be made visible using the Show option. For more information, see Controlling the visibility of objects

Style

Select a style for the Zoom source. To define a new style, select Edit > Object Style Manager. For more information on object styles, see Object style

Fill

Color of the area within the Zoom source.

To decide the degree of transparency for the fill color, select a value for the option Alpha in the Color menu. The value of 90% is less transparent (more solid) than a value of 10%.

Stroke

Stroke color of the area within the Zoom source.

Fill Outer Area

Select this option to fill the area outside the boundaries of the Zoom Area box with the color selected in Fill Color. When you choose this option, the area within the Zoom Area box is not colored.

Note:

You can observe the fill color around the zoom area only when you preview or publish the project.

Width

Thickness of the border of the Zoom Area box.

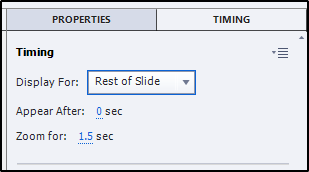

Display For [Time]

Specifies the duration for which the zoom area is displayed.

Appear After [#] Seconds

Delay between the first appearance of the slide and the first appearance of the zoom area.

Zoom For

The duration of the zoom, in tenths of a second.

Effect

The transition effect for the slidelet when it appears and exits the slide.

In and Out

The time (in seconds) for the fading effects.

In an open project, select the slide to which you want to add a zoom area.

Select Insert > Standard Objects > Zoom Area.

Set the options for the zoom area as required.

Select the zoom destination area and set its properties using the Property Inspector (Window > Properties).
