Align and distribute objects in Dimension

Using the Align and Distribute action

To use the Align and Distribute action, do the following:

  1. Create a selection of at least two objects.

  2. In the Actions panel, click on the Align and Distribute action. A 3D widget appears in the canvas.

  3. Click on the various handles to use the align and distribute actions. See Aligning objects and Distributing objects to understand how handles work.

  4. When you’re done aligning and distributing, click on the Align and Distribute action again to toggle the action off.

Alternatively, you can use the A shortcut key to enter the Align and Distribute action, the Enter or Escape keys to exit, or deselect the objects to exit.

Aligning objects

There are several ways to interact with Align and Distribute. The teardrop handles manage alignment. Each handle represents the outer bounds of your current selection along the X (left/right), Y (up/down), and Z (front/back) axes.

Hovering over a handle will show a blue plane that represents the side or center of the selection bounds that your objects will be aligned to. Click on the handle to confirm the movement and the selected objects will move to the displayed plane. Objects will be aligned with their edges aligned for a side handle or with their centers aligned for a center handle.

The handles on the sides of each axis will align the object sides together.
The handles on the sides of each axis will align the object sides together.
The handle in the center of each axis will align the object centers together.
The handle in the center of each axis will align the object centers together.

Distributing objects

Distribution is the act of adjusting the space of objects. There are several ways to distribute and re-space objects using the Align and Distribute action:

  • Single-click on the bar shaped handle to apply basic distribution along any axis. This action will set the spacing of all objects to an even value. Spacing is adjusted based on the bounds of the object, not their center points, so distribution gives even ‘gaps’ between multiple objects of different sizes.

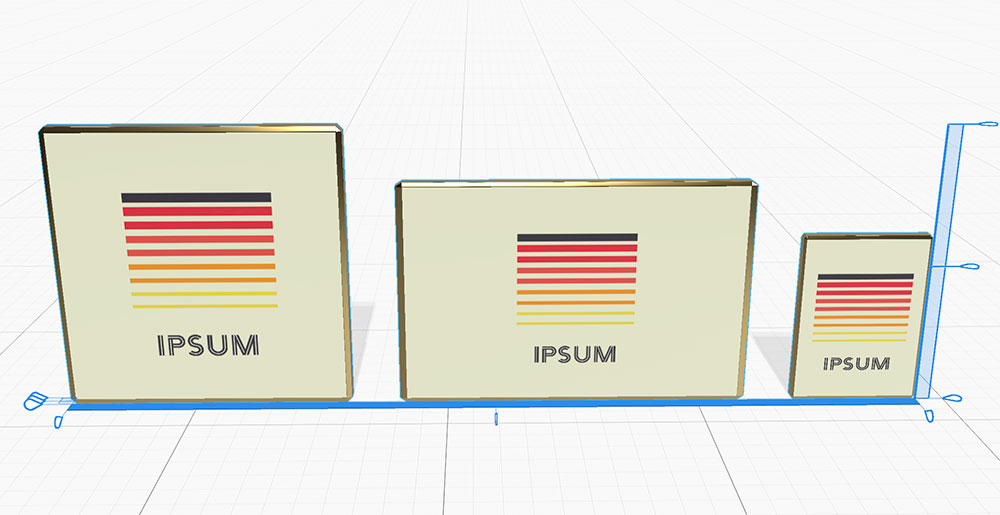

Single clicking the distribution bar will set the spacing between objects evenly.
Single clicking the distribution bar will set the spacing between objects evenly.
  • Double-click on the bar to apply zero spacing distribution along any axis. This action will set the spacing of all objects to zero. This is best if you want your objects perfectly touching each other with no spacing between them. This action will work whether your objects originally had spacing or were overlapping.

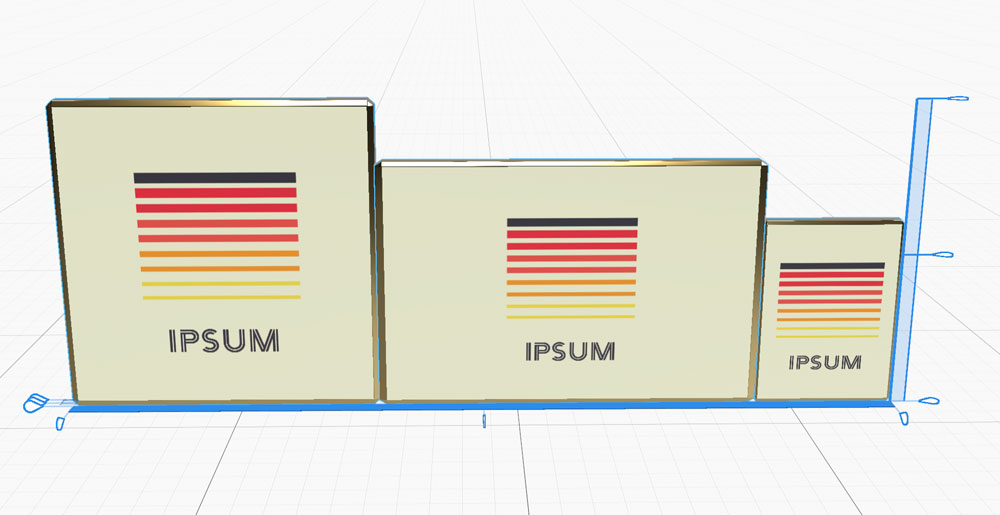

Double clicking the distribution handle sets the spacing between objects to zero, preventing overlap or gaps.
Double clicking the distribution handle sets the spacing between objects to zero, preventing overlap or gaps.
  • Single-click and drag on the teardrop handles to adjust the spacing of your active selection along any axis. This action will move the spacing out from the handle you clicked on. This is great for quickly adjusting the overall space objects take.
Clicking and dragging on an align handle will adjust the spacing of the overall object, using the current spacing distribution.
Clicking and dragging on an align handle will adjust the spacing of the overall object, using the current spacing distribution.
