Scripting in Unity (Deprecated)

The content below might not be applicable with the new Substance 3D Plugin

This section of the documentation contains details on the Substance API that we provide via the Substance plugin. Using the Substance API, you can write scripts to update and change Substance parameters at runtime.

Table of Contents


API Overview

Substance.Game
Using Substance.Game
Using Substance.Game
Using Substance.Game

Substance.Game is the assembly that contains the classes used for scripting. These classes are as follows:

Substance.Game.Substance: References the sbsar

Substance.Game.SubstanceGraph: Individual graph in the sbsar. (used to be ProceduralMaterial in Unity 2017)

Scripting Process

  1. Create an instance of SubstanceGraph
  2. Set parameters on the graph instance.

Example
// panel color
mySubstance.SetInputColor("paint_color", color);
// panel size
mySubstance.SetInputVector2("square_open", panelSize);
// wear level
mySubstance.SetInputFloat("wear_level", wearLevel);
// panel color mySubstance.SetInputColor("paint_color", color); // panel size mySubstance.SetInputVector2("square_open", panelSize); // wear level mySubstance.SetInputFloat("wear_level", wearLevel);
// panel color
mySubstance.SetInputColor("paint_color", color);

// panel size
mySubstance.SetInputVector2("square_open", panelSize);

// wear level
mySubstance.SetInputFloat("wear_level", wearLevel);

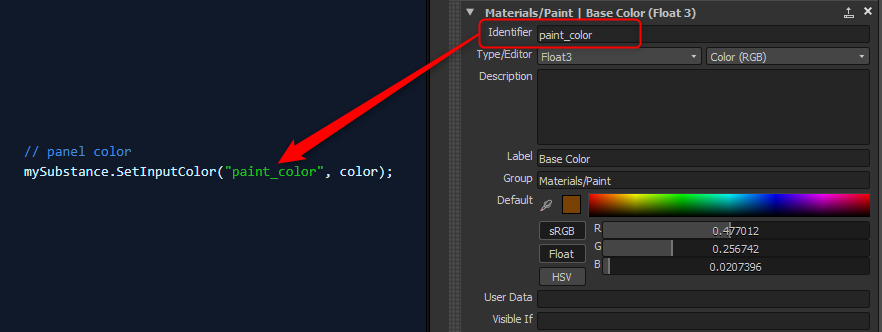

The value in quotes is the parameter Identifier set in Substance Designer.

In the Unity Inspector, you can mouse over a parameter to reveal a tooltip that showcases the name of the Identifier set in Substance Designer.

3. Queue the Substance for Rendering: QueueForRender() will add the substance graph to a queue. This list will be processed by the next call to RenderSubstancesAsync or RenderSubstancesSync.

SubstanceGraph Instance
// queue the substance to render
mySubstance.QueueForRender();
//render all substances async
Substance.Game.Substance.RenderSubstancesAsync();
// queue the substance to render mySubstance.QueueForRender(); //render all substances async Substance.Game.Substance.RenderSubstancesAsync();
// queue the substance to render
mySubstance.QueueForRender();

//render all substances async
Substance.Game.Substance.RenderSubstancesAsync();

Note:

Currently, we only support x86_64 Architecture. You need to set x86_64 in the Build Settings
