Color management

Color management is the handling and conversion of colors. From importing resources to displaying colors on screen to finally exporting textures. Color calibration is important to ensure the same look across applications.

In the application color management is handled via the integration of OpenColorIO (OCIO for short) version 2. OCIO is the standard in film and animation to convert and display colors. To enable color management, simply create a new project or open an existing one and enable the dedicated settings.

Note:

Color management is available since version 7.4.0.

Project settings

Vocabulary

It may be helpful to know a few technical terms related to color management in order to understand better the associated workflow:

KeywordDescription
Color spaceCoordinate system in which colors are defined.
Working spaceThe color space used inside the application to blend texture, paint, etc.
Display transformDisplay transform converts the linear colors from the working space to the color space of the monitor to display colors perceptually (to be seen by the human eyes). Display transforms often include a tonemapping pass to compress colors to fit the limited range of values allowed by a screen.
ConfigurationA OCIO configuration file. It defines what is the working space, a list of color spaces and a list of display transform.
ACESACES stands for Academy Color Encoding System and is the standard in many application to exchange digital image files. Two version of this standard are included inside the application by default.
TonemappingIt is the process of mapping color values from HDR (high dynamic range) to LDR (low dynamic range). This process helps display approximate the display of a wide range of colors.

List of color managed channels

Inside the application, which channels are color managed or not (data/passthrough) is pre-defined.

Channel

Is color managed

Ambient occlusion

No

Anistotropy angle

No

Anisotropy level

No

Base color

Yes

Blending mask

No

Coat color

Yes

Coat normal

No

Coat opacity

No

Coat roughness

No

Coat specular level

No

Diffuse

Yes

Displacement

No

Glossiness

No

Height

No

Ior

No

Metallic

No

Normal

No

Opacity

No

Reflection

No

Roughness

No

Scattering

No

Scattering color

Yes

Sheen color

Yes

Sheen opacity

No

Sheen roughness

No

Specular

Yes

Specular edge color

Yes

Specular level

No

Translucency

No

Transmissive

Yes

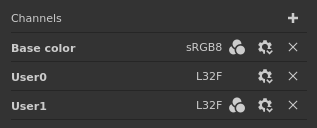

UserX (0-15)

Depends on Texture Set settings.
By default user channels are not color managed.

Color picker

When color management is enabled, the color picker behavior change slightly:

  • Colors are edited based on the current Display selected.
  • A few additional information are added to the interface.

For more information, see the color picker documentation page.

Viewport controls

Both the 2D and 3D views are color managed and have a dedicated settings available at the top of the viewport to control which display transform to use:

  • Left button: Enable/disable the display transform of the viewport. If disabled the viewport will display colors as raw/passthrough. This button is enabled by default.
  • Right dropdown: Specify which display transform to use to convert the colors to display them on screen. The default value is based on the OCIO configuration. This setting isn't saved with the project since it can be monitor dependent.
Note:

In solo mode (viewing channels individually) the color management is automatically disabled when viewing data channels (see the list above).

Export settings

The main export settings are driven by the project configuration (see above).

Inside the export textures window there is a keyword that can be used to append to the filenames the color space used per texture: $colorSpace.

Overriding color spaces

It may be necessary to specify an alternate color space for a resource to differ from the defaults. This can be done via the color space menu.

Changing the color space of a resource

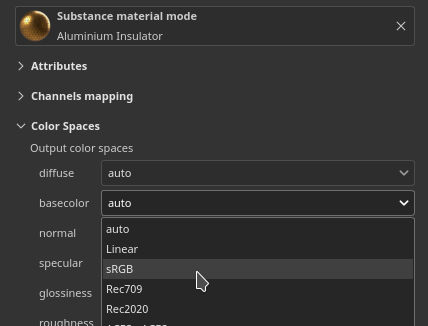

Inside the properties window is it possible to override the color space of a specific resource (where it is currently used).

To do so, expand the color space section and use the dropdown to specify the new color space:

Changing the color space of the environment map

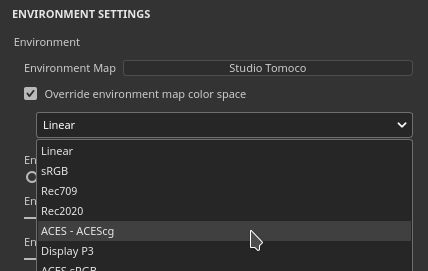

Inside the display settings, enable the Override environment map color space then choose a color space in the list that matches your resource.

 Adobe

Get help faster and easier

New user?
