About high dynamic range images

The dynamic range (ratio between dark and bright regions) in the visible world far exceeds the range of human vision and of images that are displayed on a monitor or printed. But whereas human eyes can adapt to very different brightness levels, most cameras and computer monitors can reproduce only a fixed dynamic range. Photographers, motion picture artists, and others working with digital images must be selective about what’s important in a scene because they are working with a limited dynamic range.

High dynamic range (HDR) images open up a world of possibilities because they can represent the entire dynamic range of the visible world. Because all the luminance values in a real-world scene are represented proportionately and stored in an HDR image, adjusting the exposure of an HDR image is like adjusting the exposure when photographing a scene in the real world.

Photoshop Merging images
Merging images of different exposures to create an HDR image

A. Image with shadow detail but highlights clipped B. Image with highlight detail but shadows clipped C. HDR image containing the dynamic range of the scene

In Photoshop, the luminance values of an HDR image are stored using a floating-point numeric representation that’s 32 bits long (32‑bits-per-channel). The luminance values in an HDR image are directly related to the amount of light in a scene. By contrast, non-floating point 16‑ and 8‑bpc image files store luminance values only from black to paper white, reflecting an extremely small segment of dynamic range in the real world.

In Photoshop, the Merge To HDR Pro command lets you create HDR images by combining multiple photographs captured at different exposures. Because an HDR image contains brightness levels that far exceed the display capabilities of a standard 24‑bit monitor, Photoshop lets you adjust the HDR preview. If you need to print or use tools and filters that don’t work with HDR images, you can convert them to 16- or 8‑bpc images.

Take photos for HDR images

Keep the following tips in mind when you take photos to be combined with the Merge To HDR Pro command:

  • Secure the camera to a tripod.

  • Take enough photos to cover the full dynamic range of the scene. You can try taking at least five to seven photos, but you might need to take more exposures depending on the dynamic range of the scene. The minimum number of photos should be three.

  • Vary the shutter speed to create different exposures. Changing the aperture changes the depth of field in each exposure and can produce lower-quality results. Changing the ISO or aperture may also cause noise or vignetting in the image.

  • In general, don’t use your camera’s auto-bracket feature, because the exposure changes are usually too small.

  • The exposure differences between the photos should be one or two EV (exposure value) steps apart (equivalent to about one or two f‑stops apart).

  • Don’t vary the lighting; for instance, don’t use a flash in one exposure but not the next.

  • Make sure that nothing is moving in the scene. Exposure Merge works only with differently exposed images of the identical scene.

Features that support 32‑bpc HDR images

You can use the following tools, adjustments, and filters with 32‑bpc HDR images. (To work with more Photoshop features, convert a 32‑bpc image to a 16‑bpc or an 8‑bpc image. To preserve the original image, create a copy with the Save As command.)


Levels, Exposure, Hue/Saturation, Channel Mixer, Photo Filter.


Although the Exposure command can be used with 8‑ and 16‑bpc images, it is designed for making exposure adjustments to 32‑bpc HDR images.

Blend Modes

Normal, Dissolve, Darken, Multiply, Lighten, Darker Color, Linear Dodge (Add), Lighter Color, Difference, Subtract, Divide, Hue, Saturation, Color, and Luminosity.

Create new 32‑bpc documents

In the New dialog box, 32 bit is an option in the bit depth pop‑up menu to the right of the Color Mode pop‑up menu.

Edit menu commands

All commands including Fill, Stroke, Free Transform, and Transform.

File Formats

Photoshop (PSD, PSB), Radiance (HDR), Portable Bit Map (PBM), OpenEXR, and TIFF.


Although Photoshop cannot save an HDR image in the LogLuv TIFF file format, it can open and read a LogLuv TIFF file.


Average, Box Blur, Gaussian Blur, Motion Blur, Radial Blur, Shape Blur, Surface Blur, Add Noise, Clouds, Difference Clouds, Lens Flare, Smart Sharpen, Unsharp Mask, Emboss, De-Interlace, NTSC Colors, High Pass, Maximum, Minimum, and Offset.

Image commands

Image Size, Canvas Size, Image Rotation, Crop, Trim, Duplicate, Apply Image, Calculations, and Variables.


Pixel Aspect Ratio (Custom Pixel Aspect Ratio, Delete Pixel Aspect Ratio, Reset Pixel Aspect Ratio, etc.)


New layers, duplicate layers, adjustment layers (Levels, Vibrance, Hue/Saturation, Channel Mixer, Photo Filter, and Exposure), fill layers, layer masks, layer styles, supported blending modes, and Smart Objects.


RGB Color, Grayscale, conversion to 8 Bits/Channel or 16 Bits/Channel.

Pixel Aspect Ratio

Support for square and non-square documents.


Invert, Modify Border, Transform Selection, Save Selection and Load Selection.


All tools in the toolbox except: Magnetic Lasso, Magic Wand, Spot Healing Brush, Healing Brush, Red Eye, Color Replacement, Art History Brush, Magic Eraser, Background Eraser, Paint Bucket, Dodge, Burn, and Sponge. Some tools work with supported blend modes only.

Merge images to HDR

The Merge To HDR Pro command combines multiple images with different exposures of the same scene, capturing the full dynamic range in a single HDR image. You can output the merged image as a 32‑, 16-, or 8-bpc file. However, only a 32-bpc file can store all the HDR image data.

HDR merging works best when photos are optimized for the process. For recommendations, see Take photos for HDR images.

  1. Do one of the following:
    • (Photoshop) Choose File > Automate > Merge To HDR Pro.

    • (Bridge) Select the images you want to use and choose Tools > Photoshop > Merge To HDR Pro. Skip to step 5.

  2. In the Merge To HDR Pro dialog box, click Browse to select specific images, click Add Open Files, or choose Use > Folder. (To remove a particular item, select it in files list, and click Remove.)
  3. (Optional) Select Attempt To Automatically Align Source Images if you held the camera in your hands when you photographed the images.
  4. Click OK.


    If images lack exposure metadata, enter values in the Manually Set EV dialog box.

    A second Merge To HDR Pro dialog box displays thumbnails of the source images, and a preview of the merged result.

  5. To the upper right of the preview, choose a bit depth for the merged image.


    Choose 32 Bit if you want the merged image to store the entire dynamic range of the HDR image. 8‑bit and (non-floating point) 16‑bit image files cannot store the entire range of luminance values in an HDR image.

  6. (Optional) To save your tonal settings for future use, choose Preset > Save Preset. (To later reapply the settings, choose Load Preset.)

Options for 32-bit images

Move the slider below the histogram to adjust the white point preview of the merged image. Moving the slider adjusts the image preview only; all HDR image data remains in the merged file.

The preview adjustment is stored in the HDR file and applied whenever you open the file in Photoshop. To readjust the white point preview at any time, choose View > 32‑Bit Preview Options.

Options for 16- or 8-bit images

HDR images contain luminance levels that far exceed the dynamic range that 16‑ or 8‑bpc images can store. To produce an image with the dynamic range you want, adjust exposure and contrast when converting from 32‑bpc to lower bit depths.

Choose one of the following tone-mapping methods:

Local Adaptation

Adjusts HDR tonality by adjusting local brightness regions throughout the image.

Edge Glow

Radius specifies the size of the local brightness regions. Strength specifies how far apart two pixels’ tonal values must be before they’re no longer part of the same brightness region.

Tone and Detail

Dynamic range is maximized at a Gamma setting of 1.0; lower settings emphasize midtones, while higher settings emphasize highlights and shadows. Exposure values reflect f-stops. Drag the Detail slider to adjust sharpness and the Shadow and Highlight sliders to brighten or darken these regions.


Vibrance adjusts the intensity of subtle colors, while minimizing clipping of highly saturated colors. Saturation adjusts the intensity of all colors from –100 (monochrome) to +100 (double saturation).

Toning Curve

Displays an adjustable curve over a histogram showing luminance values in the original, 32-bit HDR image. The red tick marks along the horizontal axis are in one EV (approximately one f‑stop) increments.


By default, the Toning Curve and Histogram limit and equalize your changes from point to point. To remove the limit and apply more extreme adjustments, select the Corner option after inserting a point on the curve. When you insert and move a second point, the curve becomes angular.

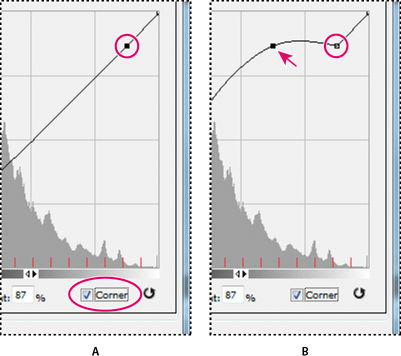

Photoshop Toning Curve and Histogram adjustment
Toning Curve and Histogram adjustment using the Corner option

A. Inserting a point and selecting the Corner option. B. Adjusting new point makes the curve angular at the point where the Corner option is used.

Equalize Histogram

Compresses the dynamic range of the HDR image while trying to preserve some contrast. No further adjustments are necessary; this method is automatic.

Exposure and Gamma

Lets you manually adjust the brightness and contrast of the HDR image. Move the Exposure slider to adjust gain and the Gamma slider to adjust contrast.

Highlight Compression

Compresses the highlight values in the HDR image so they fall within the luminance values range of the 8‑ or 16‑bpc image file. No further adjustments are necessary; this method is automatic.

Compensate for moving objects

If images have different content due to moving objects like cars, people, or foliage, select Remove Ghosts in the Merge To HDR Pro dialog box.

Photoshop displays a green outline around the thumbnail with the best tonal balance, identifying the base image. Moving objects found in other images are removed. (If movement occurs in very light or dark areas, click a different thumbnail where moving objects are better exposed to improve results.)


For a tutorial on the Remove Ghosts option, see this video. (Discussion of Remove Ghosts begins at 3:00.)

Save or load camera response curves

Response curves indicate how camera sensors interpret different levels of incoming light. By default, the Merge To HDR Pro dialog box automatically calculates a camera response curve based on the tonal range of images you are merging. You can save the current response curve and later apply it to another group of merged images.

  • In the upper-right corner of the Merge to HDR Pro dialog box, click the response curve menu , and then choose Save Response Curve. (To later reapply the curve, choose Load Response Curve.)

Convert from 32 bits to 16 or 8 bpc

If you originally created a 32-bit image during the Merge to HDR Pro process, you can later convert it to a 16- or 8-bit image.

  1. Open a 32‑bpc image in Photoshop, and choose Image > Mode > 16 Bits/Channel or 8 Bits/Channel.
  2. Adjust exposure and contrast to produce an image with the dynamic range you want. (See Options for 16- or 8-bit images.)
  3. Click OK to convert the 32‑bit image.

Adjust displayed dynamic range for 32-bit HDR images

The dynamic range of HDR images exceeds the display capabilities of standard computer monitors. When you open an HDR image in Photoshop, it can look very dark or washed out. Photoshop lets you adjust the preview so that the monitor displays an HDR image whose highlights and shadows aren’t washed out or too dark. The preview settings are stored in the HDR image file (PSD, PSB, and TIFF only) and are applied whenever the file is opened in Photoshop. Preview adjustments don’t edit the HDR image file; all the HDR image information remains intact. Use the Exposure adjustment (Image > Adjustments > Exposure) to make exposure edits to the 32‑bpc HDR image.


To view 32‑bit readouts in the Info panel, click the Eyedropper icon in the Info panel and choose 32‑Bit from the pop‑up menu.

  1. Open a 32‑bpc HDR image in Photoshop, and choose View > 32‑Bit Preview Options.
  2. In the 32‑bit Preview Options dialog box, choose an option from the Method menu:

    Exposure And Gamma

    Adjusts the brightness and contrast.

    Highlight Compression

    Compresses the highlight values in the HDR image so they fall within the luminance values range of the 8‑ or 16‑bpc image file.

  3. If you chose Exposure And Gamma, move the Exposure and Gamma sliders to adjust the brightness and contrast of the image preview.
  4. Click OK.


    You can also adjust the preview of an HDR image open in Photoshop by clicking the triangle in the status bar of the document window and choosing 32‑Bit Exposure from the pop‑up menu. Move the slider to set the white point for viewing the HDR image. Double-click the slider to return to the default exposure setting. Since the adjustment is made per view, you can have the same HDR image open in multiple windows, each with a different preview adjustment. Preview adjustments made with this method are not stored in the HDR image file.

About the HDR Color Picker

The HDR Color Picker allows you to accurately view and select colors for use in 32‑bit HDR images. As in the regular Adobe Color Picker, you select a color by clicking a color field and adjusting the color slider. The Intensity slider allows you to adjust the brightness of a color to match the intensity of the colors in the HDR image you’re working with. A Preview area lets you view swatches of a selected color to see how it will display at different exposures and intensities.

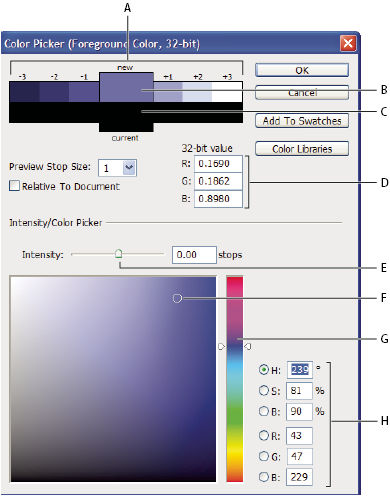

Photoshop HDR Color Picker
HDR Color Picker

A. Preview area B. Adjusted color C. Original color D. 32‑bit floating point values E. Intensity slider F. Picked color G. Color slider H. Color values

Display the HDR Color Picker

With a 32‑bpc image open, do one of the following:

  • In the toolbox, click the foreground or background color selection box.

  • In the Color panel, click the Set Foreground Coloror Set Background Color selection box.

The Color Picker is also available when features let you choose a color. For example, by clicking the color swatch in the options bar for some tools, or the eyedroppers in some color adjustment dialog boxes.

Choose colors for HDR images

The lower part of the HDR Color Picker functions like the regular Color Picker does with 8‑ or 16‑bit images. Click in the color field to select a color and move the color slider to change hues, or use the HSB or RGB fields to enter numeric values for a particular color. In the color field, brightness increases as you move from bottom to top, and saturation increases as you move from left to right.

Use the Intensity slider to adjust the brightness of the color. The color value plus the intensity value are converted to 32‑bit floating point number values in your HDR document.

  1. Select a color by clicking in the color field and moving the color slider, or by entering HSB or RGB numeric values, as in the Adobe Color Picker.
  2. Adjust the Intensity slider to boost or reduce the color’s brightness. The new color swatch in the Preview scale at the top of the Color Picker shows the effect of increasing or decreasing stops for the selected color.

    The Intensity Stops correspond inversely to exposure setting stops. If you boost the Exposure setting of the HDR image two stops, reducing the Intensity stops by two will maintain the same color appearance as if the HDR image exposure and the color intensity were both set to 0.

    If you know the exact 32‑bit RGB values for the color you want, you can enter them directly in the 32‑bit value RGB fields.

  3. (Optional) Adjust settings for the Preview area.

    Preview Stop Size

    Sets the stop increments for each preview swatch. For example, a setting of 3 results in swatches of ‑9, ‑6, ‑3, +3, +6, +9. These swatches let you preview the appearance of your selected color at different exposure settings.

    Relative to Document

    Select to adjust the preview swatches to reflect the current exposure setting for the image. For example, if the document exposure is set higher, the new preview swatch will be lighter than the color selected in the Color Picker’s color field, to show the effect of the higher exposure on the selected color. If the current exposure is set to 0 (the default), checking or unchecking this option will not change the new swatch.

  4. (Optional) Click Add to Swatches to add the selected color to the Swatches panel.
  5. Click OK.

Paint on HDR images

You can edit and add effects to HDR/32‑bpc images using any of the following Photoshop tools: Brush, Pencil, Pen, Shape, Clone Stamp, Pattern Stamp, Eraser, Gradient, Blur, Sharpen, Smudge, and History Brush. You can also use the Text tool to add 32‑bpc text layers to an HDR image.

When editing or painting on HDR images, you can preview your work at different exposure settings using either the 32‑Bit Exposure slider in the document info area or the 32‑Bit Preview Options dialog box (View > 32‑Bit Preview Options). The HDR Color Picker also lets you preview your selected foreground color at different intensity settings, to match different exposure settings in an HDR image.

  1. Open an HDR image.
  2. (Optional) Set the exposure for the image. See Adjust displayed dynamic range for 32-bit HDR images.
  3. For the Brush or Pencil tools, click the foreground color to open the HDR Color Picker and select a color. For the Text tool, click the color chip in the Text tool options bar to set the text color.

    The Preview area of the HDR Color Picker helps you select and adjust a foreground color in relation to different exposure settings in the HDR image. See About the HDR Color Picker.


    By default, the Toning Curve and Histogram limit and equalize your changes from point to point. To remove the limit and apply more extreme adjustments, select the Corner option after inserting a point on the curve. When you insert and move a second point, the curve becomes angular.
