Inheritance in Substance graphs | Substance 3D Designer

  1. Substance 3D home
  2. User guide
  3. Glossary
  4. Getting started
    1. Getting started
    2. Activation and licenses
    3. System requirements
    4. Overview
      1. Overview
      2. What is a Substance 3D file?
    5. Workflow overview
    6. Shortcuts
    7. Tutorials & learning
  5. Interface
    1. Interface
    2. Customizing your workspace
    3. Home screen
    4. Main toolbar
    5. Preferences
      1. Preferences
      2. Project settings
      3. Version control
    6. Explorer
      1. Explorer
      2. Send to... / Interoperability
    7. Graph view
      1. Graph view
      2. Link creation modes
      3. Graph items
        1. Graph items
        2. Dot node (also Portal)
        3. Frame
        4. Comment
        5. Pin
    8. Library
      1. Library
      2. Managing custom content and filters
    9. Properties
    10. 2D view
    11. 3D view
      1. 3D view
      2. Material properties
      3. GLSLFX shaders
      4. Switching your shaders to OpenGL Core Profile
      5. Iray
    12. Dependency manager
  6. Resources
    1. Resources
    2. Importing, linking and new resources
    3. Bitmap resource
      1. Bitmap resource
      2. Bitmap painting tools
    4. Vector graphics (SVG) resource
      1. Vector graphics (SVG) resource
      2. Vector editing tools
    5. 3D scene resource
    6. AxF (Appearance eXchange Format)
    7. Font resource
    8. Warnings from dependencies
  7. Substance graphs
    1. Substance graphs
    2. Substance graph key concepts
    3. Creating a Substance graph
      1. Creating a Substance graph
      2. Graph instances / Sub-graphs
    4. Exposing a parameter
      1. Exposing a parameter
      2. Parameter presets
      3. Visible if: control visibility of inputs, outputs and parameters
    5. Graph parameters
    6. Inheritance in Substance graphs
    7. Output size
    8. Values in Substance graphs
    9. Publishing Substance 3D asset files (SBSAR)
    10. Exporting bitmaps
    11. Exporting PSD files
    12. Sample Substance graphs
    13. Warnings in Substance graphs
    14. Nodes reference for Substance graphs
      1. Nodes reference for Substance graphs
      2. Atomic nodes
        1. Atomic nodes
        2. Bitmap
        3. Blend
          1. Blend
          2. Blending modes description
        4. Blur
        5. Channel shuffle
        6. Curve
        7. Directional blur
        8. Directional warp
        9. Distance
        10. Emboss
        11. FX-map
        12. Gradient (Dynamic)
        13. Gradient map
        14. Grayscale conversion
        15. HSL
        16. Levels
        17. Normal
        18. Pixel processor
        19. SVG
        20. Sharpen
        21. Text
        22. Transformation 2D
        23. Uniform color
        24. Value processor
        25. Warp
        26. Output
        27. Input
      3. Node library
        1. Node library
        2. Texture generators
          1. Texture generators
          2. Noises
            1. Noises
            2. 3D Perlin noise
            3. 3D Perlin noise fractal
            4. 3D Ridged noise fractal
            5. 3D Simplex noise
            6. 3D Voronoi
            7. 3D Voronoi fractal
            8. 3D Worley noise
            9. Anisotropic noise
            10. Blue noise fast
            11. BnW spots 1
            12. BnW spots 2
            13. BnW spots 3
            14. Cells 1
            15. Cells 2
            16. Cells 3
            17. Cells 4
            18. Clouds 1
            19. Clouds 2
            20. Clouds 3
            21. Creased
            22. Crystal 1
            23. Crystal 2
            24. Directional noise 1
            25. Directional noise 2
            26. Directional noise 3
            27. Directional noise 4
            28. Directional scratches
            29. Dirt 1
            30. Dirt 2
            31. Dirt 3
            32. Dirt 4
            33. Dirt 5
            34. Dirt gradient
            35. Fluid
            36. Fractal sum 1
            37. Fractal sum 2
            38. Fractal sum 3
            39. Fractal sum 4
            40. Fractal sum base
            41. Fur 1
            42. Fur 2
            43. Fur 3
            44. Gaussian noise
            45. Gaussian spots 1
            46. Gaussian spots 2
            47. Grunge concrete
            48. Grunge Damas
            49. Grunge galvanic large
            50. Grunge galvanic small
            51. Grunge leaks
            52. Grunge leaky paint
            53. Grunge map 001
            54. Grunge map 002
            55. Grunge map 003
            56. Grunge map 004
            57. Grunge map 005
            58. Grunge map 006
            59. Grunge map 007
            60. Grunge map 008
            61. Grunge map 009
            62. Grunge map 010
            63. Grunge map 011
            64. Grunge map 012
            65. Grunge map 013
            66. Grunge map 014
            67. Grunge map 015
            68. Grunge rough dirty
            69. Grunge rust fine
            70. Grunge scratches dirty
            71. Grunge scratches fine
            72. Grunge scratches rough
            73. Grunge shavings
            74. Grunge splashes dusty
            75. Grunge spots
            76. Grunge spots dirty
            77. Liquid
            78. Messy fibers 1
            79. Messy fibers 2
            80. Messy fibers 3
            81. Microscope view
            82. Moisture noise
            83. Perlin noise
            84. Plasma
            85. Caustics
            86. Voronoi
            87. Voronoi fractal
            88. Waveform 1
            89. White noise
            90. White noise fast
          3. Patterns
            1. Patterns
            2. 3D linear gradient
            3. 3D volume mask
            4. Alveolus
            5. Arc pavement
            6. Brick 1
            7. Brick 2
            8. Brick generator
            9. Checker 1
            10. Cube 3D
            11. Cube 3D GBuffers
            12. Fibers 1
            13. Fibers 2
            14. Gaussian 1
            15. Gaussian 2
            16. Gradient axial
            17. Gradient axial reflected
            18. Gradient circular
            19. Gradient linear 1
            20. Gradient linear 2
            21. Gradient linear 3
            22. Gradient radial
            23. Height extrude
            24. Mesh 1
            25. Mesh 2
            26. Panorama shape
            27. Polygon 1
            28. Polygon 2
            29. Scratches generator
            30. Shape
            31. Shape extrude
            32. Shape mapper
            33. Shape splatter
            34. Shape splatter blend
            35. Shape splatter data extract
            36. Shape splatter to mask
            37. Splatter
            38. Splatter circular
            39. Star
            40. Starburst
            41. Stripes
            42. Tile generator
            43. Tile random
            44. Tile random 2
            45. Tile sampler
            46. Triangle grid
            47. Weave 1
            48. Weave 2
            49. Weave generator
        3. Filters
          1. Filters
          2. Adjustments
            1. Adjustments
            2. Apply color palette
            3. Auto levels
            4. Channel mixer
            5. Chrominance extract
            6. Clamp
            7. Color match
            8. Color to mask
            9. Contrast/Luminosity
            10. Convert to linear
            11. Convert to sRGB
            12. Create color palette (16)
            13. Grayscale conversion advanced
            14. Hald CLUT
            15. HDR range viewer
            16. Height map frequencies mapper
            17. Highpass
            18. Histogram compute
            19. Histogram equalize
            20. Histogram range
            21. Histogram render
            22. Histogram scan
            23. Non-uniform histogram scan
            24. Histogram select
            25. Histogram shift
            26. ID to mask grayscale
            27. Invert
            28. Lighting cancel high frequencies
            29. Lighting cancel low frequencies
            30. Luminance highpass
            31. Min max
            32. Modify color palette
            33. Pow
            34. Quantize color (Simple)
            35. Quantize color
            36. Quantize grayscale
            37. Replace color
            38. Replace color range
            39. Threshold
            40. View color palette
          3. Blending
            1. Blending
            2. Color (Blend node)
            3. Color burn
            4. Color dodge
            5. Difference
            6. Dissolve
            7. Linear burn
            8. Luminosity (Blend node)
            9. Multi switch
            10. Switch
          4. Blurs
            1. Blurs
            2. Anisotropic blur
            3. Blur HQ
            4. Non-uniform blur
            5. Radial blur
            6. Slope blur
          5. Channels
            1. Channels
            2. RGBA merge
            3. RGBA split
            4. Alpha merge
            5. Alpha split
            6. Pre-multiplied to straight
            7. Straight to pre-multiplied
          6. Effects
            1. Effects
            2. 3D texture position
            3. 3D texture SDF
            4. 3D texture surface render
            5. 3D texture volume render
            6. Ambient occlusion (HBAO)
            7. Ambient occlusion (RTAO)
            8. Anisotropic Kuwahara color
            9. Anisotropic Kuwahara grayscale
            10. Bevel
            11. Bevel smooth
            12. Cross section
            13. Curvature
            14. Curvature smooth
            15. Curvature sobel
            16. Diffusion color
            17. Diffusion grayscale
            18. Diffusion UV
            19. Directional distance
            20. Edge detect
            21. Emboss with gloss
            22. Extend shape
            23. Flood fill
            24. Flood fill mapper
            25. Flood fill to Bbox size
            26. Flood Fill to gradient
            27. Flood Fill to grayscale/color
            28. Flood Fill to index
            29. Flood Fill to position
            30. Flood Fill to random color
            31. Flood Fill to random grayscale
            32. FXAA
            33. Glow
            34. Mosaic
            35. Multi directional warp
            36. Non-uniform directional warp
            37. Reaction diffusion fast
            38. RT irradiance
            39. RT shadow
            40. Shadows
            41. Shape drop shadow
            42. Shape glow
            43. Shape stroke
            44. Summed area table
            45. Swirl
            46. Uber emboss
            47. Vector morph
            48. Vector warp
          7. Normal map
            1. Normal map
            2. Bent normal
            3. Facing normal
            4. Height normal blender
            5. Height to normal world units
            6. Normal blend
            7. Normal combine
            8. Normal invert
            9. Normal normalize
            10. Normal sobel
            11. Normal to height
            12. Normal to height HQ
            13. Normal transform
            14. Normal uncombine
            15. Normal vector rotation
          8. Tiling
            1. Tiling
            2. Make it tile patch
            3. Make it tile photo
          9. Transforms
            1. Transforms
            2. 3D texture offset
            3. Auto crop
            4. Cartesian to polar
            5. Clone (Filter node)
            6. Mirror (Filter node)
            7. Noise upscale 1
            8. Noise upscale 2
            9. Noise upscale 3
            10. Non-square transform
            11. Non-uniform rotation
            12. Polar to cartesian
            13. Quad transform
            14. Safe transform
            15. Skew
            16. Symmetry
            17. Symmetry slice
            18. Trapezoid transform
        4. Material filters
          1. Material filters
          2. 1-click
            1. 1-Click
            2. Bitmap to material light
          3. Effects (Material)
            1. Effects (Material)
            2. Height blend
            3. Material height blend
            4. Season filter
            5. Snow cover
            6. Water level
          4. Transforms (Material)
            1. Transforms (Material)
            2. Material transform
          5. Blending (Material)
            1. Blending (Material)
            2. Material adjustment blend
            3. Material blend
            4. Material color blend
            5. Material switch
            6. Multi-material blend
          6. PBR utilities
            1. PBR utilities
            2. BaseColor / Metallic / Roughness converter
            3. Base material
            4. PBR Albedo safe color
            5. PBR BaseColor / Metallic validate
            6. PBR Dielectric F0
            7. PBR Metal reflectance
            8. PBR render
            9. PBR render mapping
          7. Scan processing
            1. Scan processing
            2. AO cancellation
            3. Atlas scatter
            4. Atlas splitter
            5. Clone patch
            6. Color equalizer
            7. Crop
            8. Material clone patch
            9. Material crop
            10. Multi-angle to Albedo
            11. Multi-angle to Normal
            12. Multi-clone patch
            13. Multi-color equalizer
            14. Multi-crop
            15. Smart auto tile
        5. Mesh-based generators
          1. Mesh-based generators
          2. Mask generators
            1. Mask generators
            2. Bottom to top
            3. Cloth wear
            4. Dirt
            5. Dripping rust
            6. Dust
            7. Edge blur
            8. Edge damages
            9. Edge dirt
            10. Edge notch
            11. Edge select
            12. Edge speckle
            13. Edge wear
            14. Fiber glass edge wear
            15. Grease
            16. Ground dirt
            17. Leaks
            18. Leather wear
            19. Light
            20. Mask builder
            21. Metal edge eear
            22. Paint wear
            23. Selective dirt
            24. Sun bleach
            25. Surface brush
          3. Weathering
            1. Weathering
            2. Cracks weathering
            3. Fabric weathering
            4. Leather weathering
            5. Metal weathering
            6. Moss weathering
            7. Rock weathering
            8. Rust weathering
          4. Utilities (Mesh-based generators)
            1. Utilities (Mesh-based generators)
            2. 3D planar projection
            3. Material mesh data blender
            4. Material selector
            5. Mesh data combiner
            6. Triplanar
        6. Spline & Path tools
          1. Spline & Path tools
          2. Working with Path & Spline tools
          3. Path tools
            1. Path tools
            2. Paths format specifications
            3. Paths 2D transform
            4. Mask to Ppths
            5. Paths to spline
            6. Paths polygon
            7. Preview paths
            8. Paths warp
            9. Quad transform on path
            10. Paths select
            11. Paths vertex processor
            12. Paths vertex processor simple
          4. Spline tools
            1. Spline tools
            2. Paths to Spline
            3. Point list
            4. Scatter on Spline color
            5. Scatter on Spline grayscale
            6. Spline 2D transform
            7. Spline (Cubic)
            8. Spline (Poly quadratic)
            9. Spline append
            10. Spline bridge (2 Splines)
            11. Spline bridge (List)
            12. Spline bridge mapper color
            13. Spline bridge mapper grayscale
            14. Spline circle
            15. Spline fill
            16. Spline flow mapper
            17. Spline mapper color
            18. Spline mapper grayscale
            19. Spline merge list
            20. Spline render
            21. Spline sample height
            22. Spline sample thickness
            23. Spline select
            24. Spline warp
            25. UV mapper color
            26. UV mapper grayscale
        7. 3D view (Library)
          1. 3D view (Library)
          2. HDRI tools
            1. HDRI tools
            2. Blackbody
            3. Color temperature adjustment
            4. Exposure
            5. Exposure preview
            6. HDR merge
            7. Nadir extract
            8. Nadir patch
            9. Panorama 3D position
            10. Panorama rotation
            11. Gradient 2 points
            12. Gradient linear (HDRI)
            13. Line light
            14. Physical sun/sky
            15. Plane light
            16. Shape light
            17. Sphere light
            18. Straighten horizon
  8. Substance function graphs
    1. Substance function graphs
    2. What is a Substance function graph?
    3. Create and edit a Substance function graph
    4. The Substance function graph
    5. Variables
      1. Variables
      2. Built-in variables
      3. Get a variable value
      4. Create a variable
    6. FX-maps
      1. FX-Maps
      2. How it works
      3. The Iterate node
      4. The Quadrant node
      5. Using Substance function graphs in FX-Maps
        1. Using Substance function graphs
          in FX-Maps
        2. Iterate and $number variable
        3. Using the Sampler nodes
        4. Using the Set/Sequence nodes
    7. Warnings in Substance function graphs
    8. Sample Substance function graphs
    9. Nodes reference for Substance function graphs
      1. Nodes reference for Substance function graphs
      2. Function nodes overview
      3. Constant nodes
      4. Vector and Swizzle nodes
      5. Get nodes
      6. Sampler nodes
      7. Cast nodes
      8. Operator nodes
      9. Logical nodes
      10. Comparison nodes
      11. Function nodes
      12. Control nodes
  9. MDL graphs
    1. MDL graphs
    2. Main MDL graph concepts
    3. Creating an MDL graph
    4. MDL library
    5. Exposing parameters in MDL graphs
    6. Substance graphs and MDL materials
    7. Exporting MDL content
    8. Warnings in MDL graphs
    9. MDL learning resources
  10. Bakers
    1. Bakers
    2. Bakers legacy interface
  11. Best practices
    1. Best practices
    2. Filesize reduction guidelines
    3. Graph creation etiquette
    4. Performance optimization guidelines
  12. Pipeline and project configuration
    1. Pipeline and project configuration
    2. Project configuration files - SBSPRJ
    3. Configuration list - SBSCFG
    4. User preferences - Automating setup
    5. Retrieving the installation path
    6. Environment variables
  13. Color management
    1. Color management
    2. Spot colors (Pantone)
  14. Package metadata
  15. Scripting
    1. Scripting
    2. Plugin basics
    3. Plugin search paths
    4. Plugins packages
    5. Plugin manager
    6. Python editor
    7. Accessing graphs and selections
    8. Nodes and properties
    9. Undo and redo
    10. Application callbacks
    11. Creating user interface elements
    12. Adding actions to the Explorer toolbar
    13. Using color management
    14. Using spot colors
    15. Logging
    16. Using threads
    17. Debugging plugins using Visual Studio Code
    18. Porting previous plugins
    19. Packaging plugins
    20. Scripting API reference
  16. Technical issues
    1. Technical issues
    2. Warnings and errors
    3. Cannot create/load a project
    4. Application does not start
    5. Crash when rendering graphs
    6. Parameters not working as expected
    7. Incorrect image output
    8. 3D View issues
    9. User interface issues
    10. Python issues
    11. Substance model graph feature is missing
  17. Release notes
    1. Release notes
    2. All changes
    3. Version 14.0
    4. Version 13.1
    5. Version 13.0
    6. Version 12.4
    7. Version 12.3
    8. Version 12.2
    9. Version 12.1
    10. Version 11.3
    11. Version 11.2
    12. Version 2021.1 (11.1)
    13. Old versions
      1. Old versions
      2. Version 2020.2 (10.2)
      3. Version 2020.1 (10.1)
      4. Version 2019.3 (9.3)
      5. Version 2019.2 (9.2)
      6. Version 2019.1 (9.1)

Inheritance in Substance graphs

This page describes how inheritance is applied in Substance graphs within Substance 3D Designer, and the impact it has on the graph's output.

In this page


Inheritance methods

Overview

All nodes in a Substance graph can inherit the value of some parameters from a source. Inheritance means that changing the value in the source will carry out that change across all nodes which inherit from it. This is one of the fundamental concepts underpinning Substance 3D Designer’s power in generating parametric assets.

Note:

An annotated project file demonstrating inheritance is available in the Sample Substance graphs section of this documentation.

Inheritance methods

Icon for 'Absolute' inheritance method

Absolute

No inheritance, the value is defined arbitrarily and locally for the parameter

Icon for 'Relative to input' inheritance method

Relative to input

The value is inherited from the data connected to the Primary input of the node

Icon for 'Relative to parent' inheritance method

Relative to parent

The value is inherited from the parent of the node or graph

Inheritance methods demonstration

Inheritance methods are applied for a node’s Base parameters, which is the set of common parameters all nodes have which control fundamental aspects of their behaviour. These parameters include:

  • Output Size
  • Output Format (i.e., bitdepth)
  • Pixel Size
  • Pixel Ratio
  • Tiling Mode
  • Random Seed

This should let you appreciate how changes in one node may impact the resolution, precision, and tiling behaviour of all nodes downstream from it.

Alert:

An important reminder for understanding the concepts discussed in this page: an instance node is a node representing a graph in another graph, with its own discrete parameter values, hence the term instance.
E.g., two Perlin noise nodes in a same graph are both representations of a same source graph (perlin_noise in noise_perlin_noise.sbs) with their own sets of parameter values.

Note:

Output size: Use the lock button to have the Height value match the Width value
Random seed: Use the button to assign a new random value to the random seed.


Making changes

Changing inheritance methods

In the Properties panel, all parameters listed in the Base parameters section of a node’s properties have a (icon) Set inheritance method dropdown button opposite to their label.
This button lets you select the inheritance method which should be used to for a parameter.

Changing inheritance method

In most cases, a node’s Base parameters are set to Relative to input, to leverage the procedural behaviour of chaining nodes together, while a graph’s Base parameters are set to Relative to parent, so the global parameters can adapt to the context the graph is used in.

TWEAKING INHERITED VALUES

Some Base parameters, such as Output Size, Pixel Size or Random Seed, can be changed relatively to the inherited value.

For instance, when the Output Size parameter uses a Relative to... inheritance method, a value or (1, -1) means one power of two resolution above the inherited value for X and one power of two resolution below the inherited value for Y such as:

  • Inherited value : (9, 9) which is 2^9, 2^9 = 512, 512
  • Relative value: (1, -1) which is 2^(9+1), 2^(9-1) = 256, 1024
Note:

The Output Size page digs deeper into this critical Base parameter, and is recommeded reading to understand how the final resolution of a node is computed.

If a function is applied to a Base parameter, the result of the function will also be interpreted using the parameter's inheritance method.
Keeping the Output Size example in mind, a function aiming at increasing the inherited resolution twofold in X and Y should output the (2, 2) Integer2 value.


Parenthood for nodes and graphs

When using the Relative to parent inheritance method, you should understand what exactly that parent is in a specific context.

The parent of a node is the graph it exists in.

The parent of a graph is the context it exists in:

  • If that graph is a sub-graph instantiated into another host graph as an instance node, then the parent of the sub-graph is the instance node. The parent of that instance node is the host graph.
  • If that graph is a root graph, then the parent is the application itself and whatever value the application has set for a given parameter. For instance, graphs will inherit from the Parent Size parameter set in the Graph view’s toolbar.
Alert:

Parenthood is applied as-is when publishing a package to Substance 3D asset files (SBSAR). This means setting any parameter to the Absolute inheritance method will lock that parameter to its current value in the published asset.
While this is desirable for Bitmap nodes or optimisation purposes, for instance, we strongly recommend using Relative to… inheritance methods when working in Substance graphs unless there is a clear, deliberate purpose in doing otherwise.

IN-CONTEXT EDITING

When using In-context editing on a graph instance node, the parent of the graph is the instance node. In that case, the Parent Size setting in the Graph view’s toolbar is disabled, as the graph inherits is base parameters from the instance node.

This trait is the point of in-context editing and should be factored in when setting inheritance method and assessing the current values of any node’s Base parameters.


Inheritance with multiple inputs

When a graph has multiple inputs, each input may inherit from its discrete input data or from the graph, depending on its inheritance method:

Icon for 'Relative to input' inheritance method

Relative to input

The input inherits from its discrete input data, regardless of the graph’s Base parameters. This is very helpful for controlling data per input.

Icon for 'Relative to parent' inheritance method

Relative to parent

The input inherits from the graph, and the data it receives is adapted accordingly.

Primary input

Primary input color/grayscale

Primary input color

Primary input grayscale

One of the inputs may be set as the graph’s Primary input, by clicking RMB on that Input node and selecting the Set as Primary Input option in the contextual menu.

Input connector types

When the graph is instanced into another graph as an instance node, all the instance node’s Base parameters which are set to Relative to input will inherit the data connected to that input. The Primary input of an instance node may be identified by the small dark dot in its connector.

The other inputs which are set to Relative to parent will inherit the same Base parameters’ values, as they inherit from the graph which inherits from the instance node*, which inherits from the Primary input.

*: This is true is the graph uses the Relative to parent inheritance method.


Examples

Here are some examples covering different cases of inheritance, and the interplay of the inheritance methods set in the following actors, from top to bottom:

  1. Application
  2. Host graph
  3. Instance node in host graph
  4. Sub-graph – i.e., the graph referenced by the instance node
  5. Nodes in sub-graph

The inheritance method set for an actor is displayed in orange just above it. The flow of inheritance to its source is displayed with orange lines.

Letters represent separate sets of Base parameters, and should help follow what data is inherited by which actor.

Example A

Inheritance diagram A

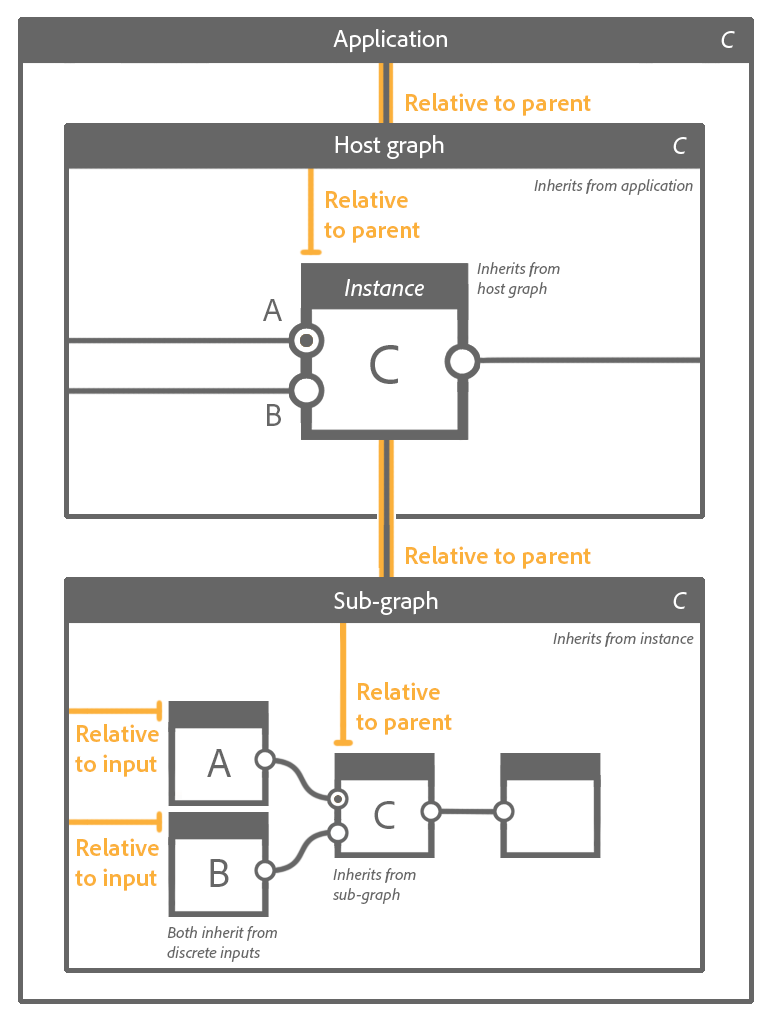

Example B

Inheritance diagram B

Example C

Inheritance diagram C

Example D

Inheritance diagram D


Troubleshooting inheritance issues

As you build your graph and increase its complexity, you may run into unexpected results caused by inheritance. If the output of a node has an incorrect resolution or precision (i.e., bitdepth), you should go up the inheritance chain to pinpoint where these values come from.

A good starting point is checking the data displayed just below a node: these are the resolution, color format and precision of the image output by the first output of the node. While understanding the resolution is straightforward, the second piece of data is worth detailing:

  • The letter prefix refer to the image’s color format:
    • L: Luminance (i.e., grayscale)
    • C: Color
  • The number refer to the image’s bitdepth, from lowest to highest precision:
    • 8: 8-bit integer (256 steps in 0-1)
    • 16: 16-bit integer (65 536 steps in 0-1)
    • 16F: 16-bit floating point (low precision values beyond 0-1, including negatives)
    • 32F: 32-bit floating point (high precision values beyond 0-1, including negatives)

If the node has more than one output, you can check their resolution and precision in two easy ways:

  • Double-click LMB on the output connector to display the image in the 2D view, and check the image information displayed on the bottom left corner of the 2D view’s viewport
  • Create a Levels or Transformation 2D node and connect its input to the output you want to check. The node will inherit from the output by default, and you can then check the values below the node.

Now you can go up the node chain in the graph and try to find the first node where the unexpected values appear. Check the inheritance method of its Base parameters.

If nothing is amiss and the node is an instance node, you need to go deeper and open the graph referenced by that instance node. Repeat the process starting from the graph’s Output nodes and going upstream.

A COMMON EXAMPLE

In particular, the Primary input concept is easily overlooked and can result in inheritance issues.

The Blend node is very susceptible to this, as it is used very frequently. Its Background input is its Primary input.

Output size inheritance

You need to pay attention to the order in which you blend the two inputs: the input which resolution and precision you wish to retain down the graph should be connected to the Background input, if the blending mode you need makes it possible. If not, then you may need to tweak the Blend node’s Base parameters and their inheritance method to compensate.
