Directional Noise 4 | Substance 3D Designer

Directional Noise 4

Directional Noise 4

In: Texture Generators/Noises

Intermediate

Description

This generates a noise with a clear directionality and a focus on medium-scale details along with some smaller scale details. It is quite different from Directional Noises 1, 2 and 3.

Parameters

  • Scale: 1 - 8
    Sets the global scale for the effect.
  • Disorder: 0.0 - 1.0
    Phase-shifts the noise to introduce small variation.
  • Angle: 0.0 - 1.0
    Sets the global angle for the direction.
  • Angle Random: 0.0 - 1.0
    Randomises the direction angle.
  • Non Square Expansion: False/True
    Enables compensation of squash and stretch with non-square ratios.

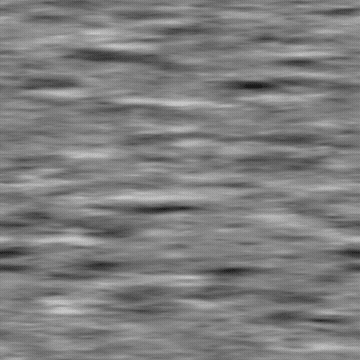

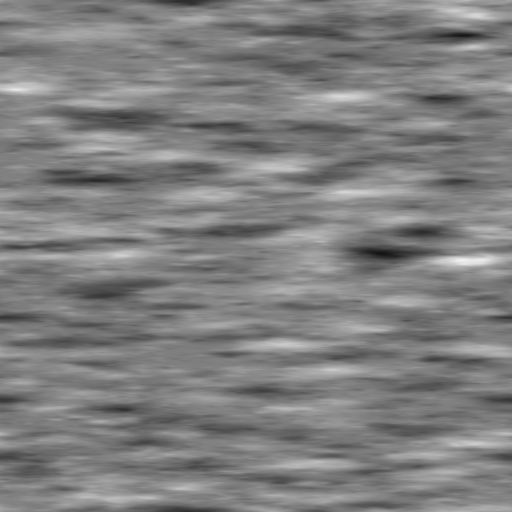

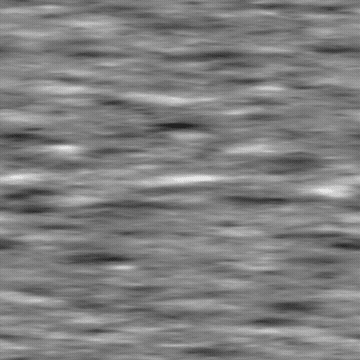

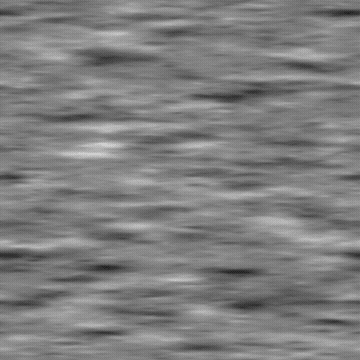

Example Images
