BnW Spots 1 | Substance 3D Designer

BnW Spots 1

BnW Spots 1

In: Texture Generators/Noises

Simple

Description

This generates a multi-frequency noise with nice details in both large, medium and small scales, along with a slider to customise scale and detail frequency.

Out of all three BnW Spots (See BnW Spots 2 and BnW Spots 3), this one is the most versatile due to the Roughness slider. Also see Fractal Sum Base for a similar noise.

Parameters

  • Scale: 1 - 8
    Sets the global scale for the effect.
  • Disorder: 0.0 - 1.0
    Phase-shifts the noise to introduce small variation.
  • Roughness: 0.0 - 2.0
    Blends between low and high frequency details.
  • Non Square Expansion: False/True
    Enables compensation of squash and stretch with non-square ratios.

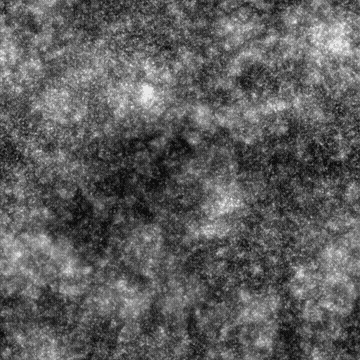

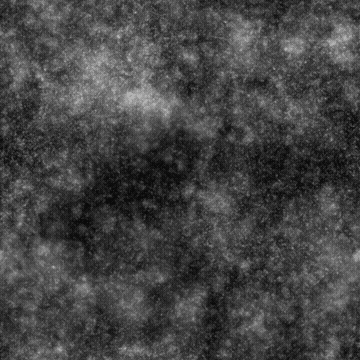

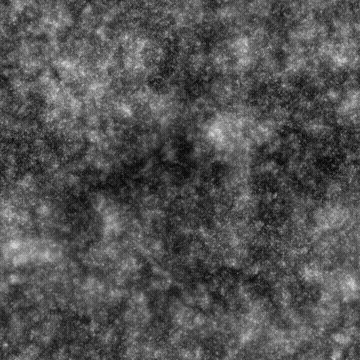

Example Images
