Learn about the advanced recolor options in the Assign and Edit tab of the Recolor Artwork dialog box.
Recolor Artwork dialog box
To access the Recolor Artwork dialog box, select the artwork, go to Edit > Edit Colors > Recolor Artwork, and then select Advanced Options.
Note
You can also access the Recolor Artwork dialog box by selecting Edit or Apply Colors from Window > Color Guide. If you didn’t select the artwork, you get the Edit Colors dialog box in place of the Recolor Artwork dialog box in which the Assign tab is greyed out.
The main areas of the dialog box are:
|
|
Description |
|
Assign |
Use the Assign tab to assign colors from a swatch group to replace the original colors or reduce the number of colors in the selected artwork. |
|
Edit |
Use the Edit tab to create or modify swatch groups. The smooth and segmented color wheels show the relationship between colors, while color bars let you adjust individual color properties. You can also adjust brightness, add, and remove colors. |
|
Swatch Groups |
Use the Swatch Groups list to edit, delete, and create swatch groups for the current document. If this list doesn’t appear in the Recolor Artwork dialog box, select Show swatch group storage . The selected swatch group denotes which swatch group is currently being edited. You can select any swatch group and use it to recolor the selected artwork. All changes you make in the Swatch Groups are reflected in the Swatches panel. |

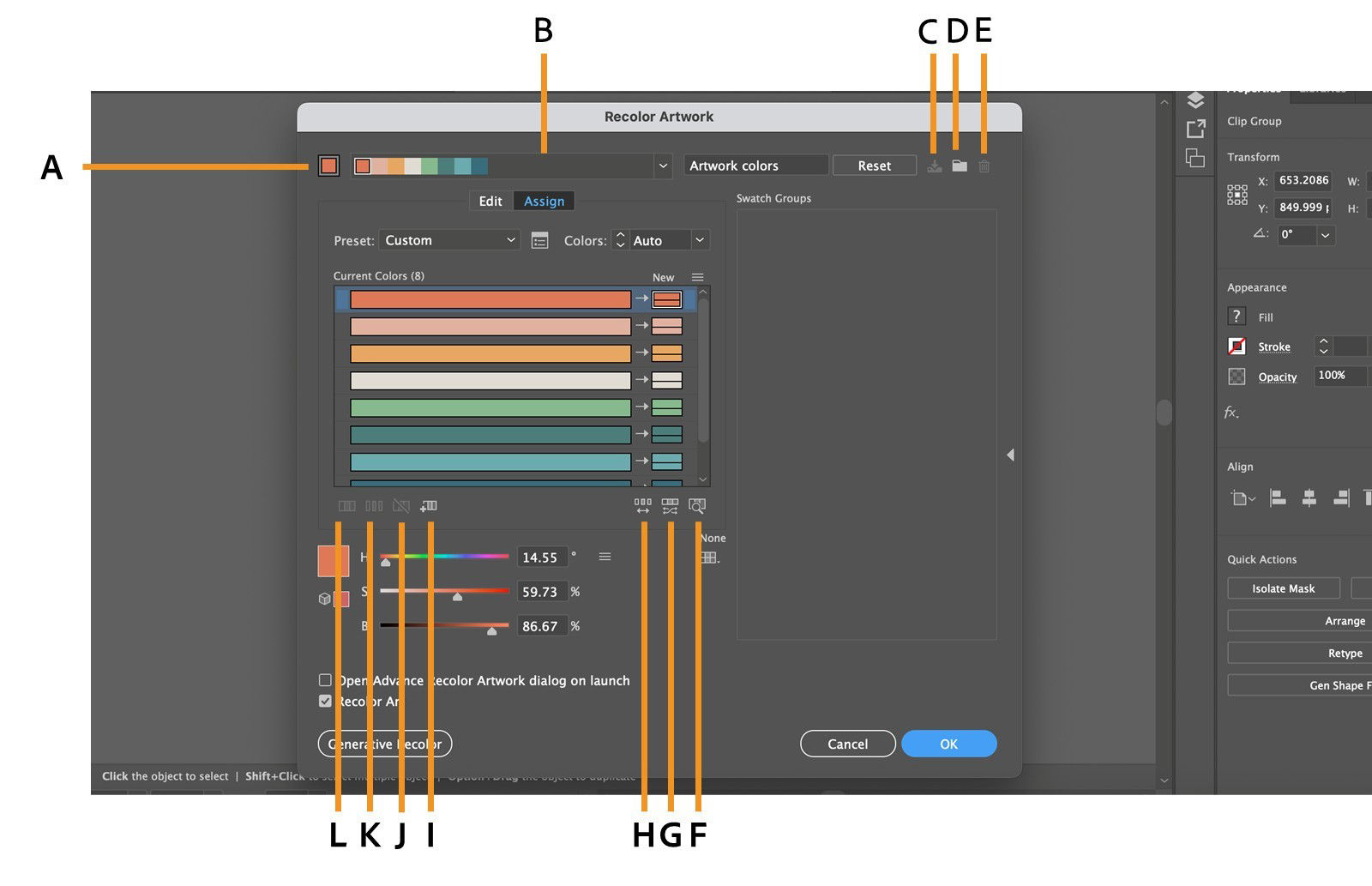

Assign tab
A. Set current color as the base color B. Active Colors C. Save changes to swatch group D. New Swatch Group E. Delete Swatch Group F. Click on colors above to find them in the artwork G. Randomly changes saturation and brightness H. Randomly change color order I. New Row J. Excludes selected colors so they will not be recolored K. Separate colors into different rows L. Merge colors into a row
You can assign colors in the following ways:
Option |
Function |
Swatch Groups |
Displays predefined or custom sets of related colors that you can apply to the artwork. |
Harmony Rules |
Generates balanced color schemes based on the selected base color. |
Reset |
Restores the original artwork colors. |
Set current color as the base color |
Sets the base color for the edits. |
Save changes to swatch group |
Saves the recolored changes to the selected swatch group. |
New Swatch Group |
Creates a new swatch group from the colors in your recolored artwork. |
Delete Swatch Group |
Removes the selected swatch group from the Swatches panel. |
Preset |
Shows predefined recolor adjustment options, such as Custom, Color Library, Single Color, Two Color, Three Color, or Color Harmony. |
Colors |
Sets the number of colors to display in the artwork. |
Current Colors |
Shows the original colors used in the artwork that can be reassigned. |
New |
Displays the colors that are assigned to replace the current colors. |
Merge colors into a row |
Combines selected color from the Current Colors column into a single row. |
Separate colors into different rows |
Separates merged row into individual colors. |
Exclude selected colors so they will not be recolored |
Excludes the selected colors from the recoloring process. |
New Row |
Adds a new color row to manually map an original color to a new one. |
Change color order randomly |
Changes the order of colors on the wheel randomly. |
Change saturation and brightness randomnly |
Adjusts saturation and brightness values of the colors randomly. |
Click on colors above to find them in the artwork |
Finds the selected colors from the Current Colors to find them in the artwork. |
Recolor Art |
Previews and recolors the selected artwork using the active color group based on the assignments in the Current Colors and New columns. |
Generative Recolor |
Uses generative AI to recolor the artwork based on a text prompt. |

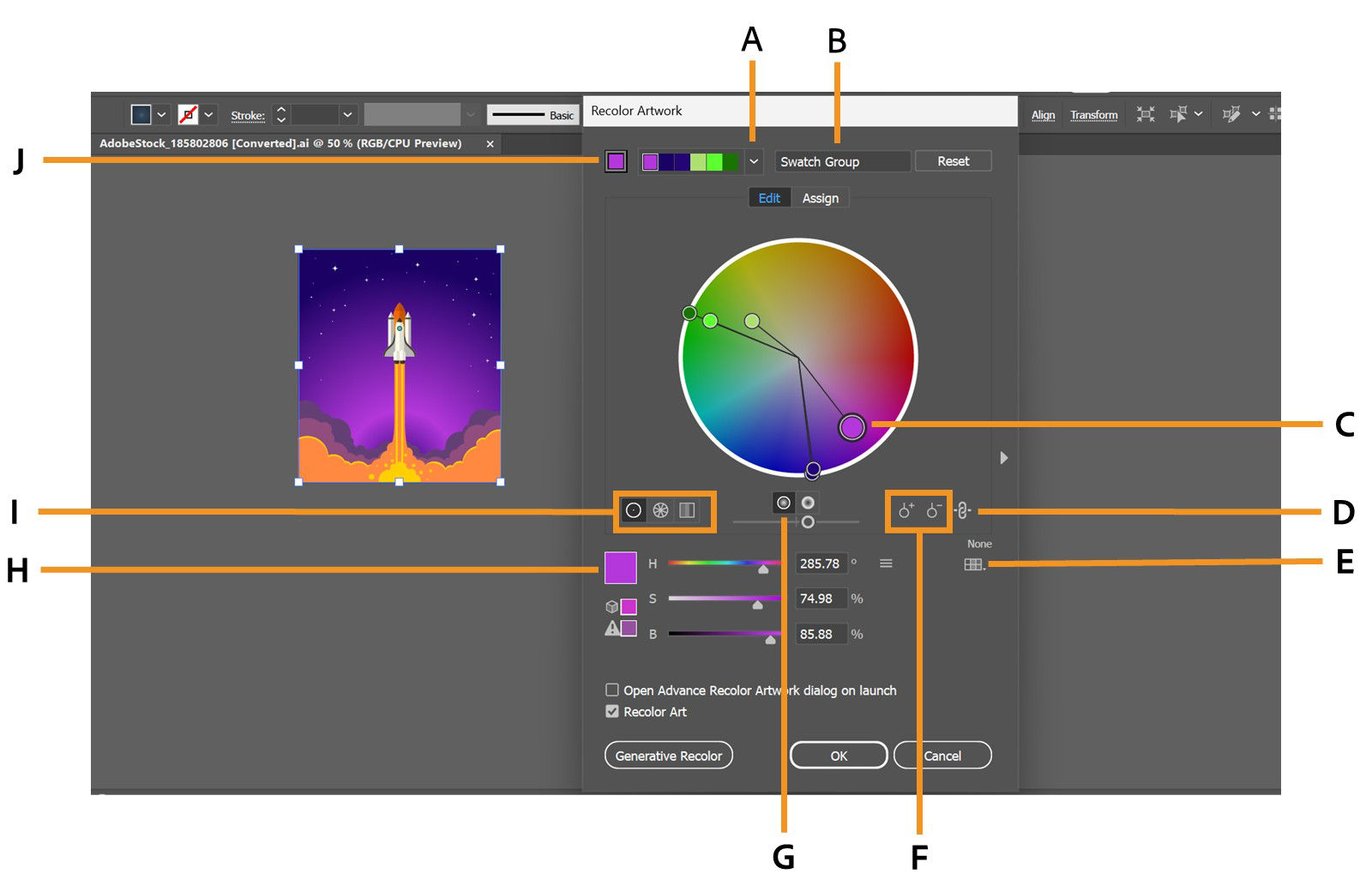

Edit tab
A. Harmony Rules B. Name field C. Base color marker D. Unlink harmony colors E. Limits the swatch group to colors in a swatch library F. Add Color Tool or Remove Color Tool G. Show brightness and hue on wheel H. Selected color I. Display color options J. Set current color as the base color
|
Option |
Function |
|
Display smooth color wheel |
Displays hue, saturation, and brightness in a smooth, continuous circle. Each color in the current swatch group is drawn on the wheel inside a circle. This wheel lets you select from numerous colors with great precision. |
|
Display segmented color wheel |
Displays colors as a set of segmented color patches. This wheel makes it easy to see individual colors. |
|
Display color bars |
Displays the color group as solid bars of color that you can select and edit individually. You can reorganize colors in this display by dragging and dropping color bars. You can remove a color, set it as the base color, change its shade, or change it using the Color Picker by right-clicking on it. |
