Vanishing Point in Photoshop

When you need to edit images containing architectural elements, floors, walls, or any rectangular objects in perspective, maintaining accurate spatial relationships becomes critical. Vanishing Point provides a specialized workspace where you define perspective planes once, then apply edits (painting, cloning, transformations) that automatically conform to those planes. This approach delivers realistic results because all modifications support the spatial geometry of your scene.

How Vanishing Point works

Vanishing Point operates through a dedicated dialog box (Filter > Vanishing Point) that isolates perspective editing from your standard Photoshop workflow. Within this workspace, you first define rectangular planes by clicking four corner nodes that align with perspective elements in your image. These elements are typically edges of buildings, room corners, or any rectangular surface whose geometry is visible.

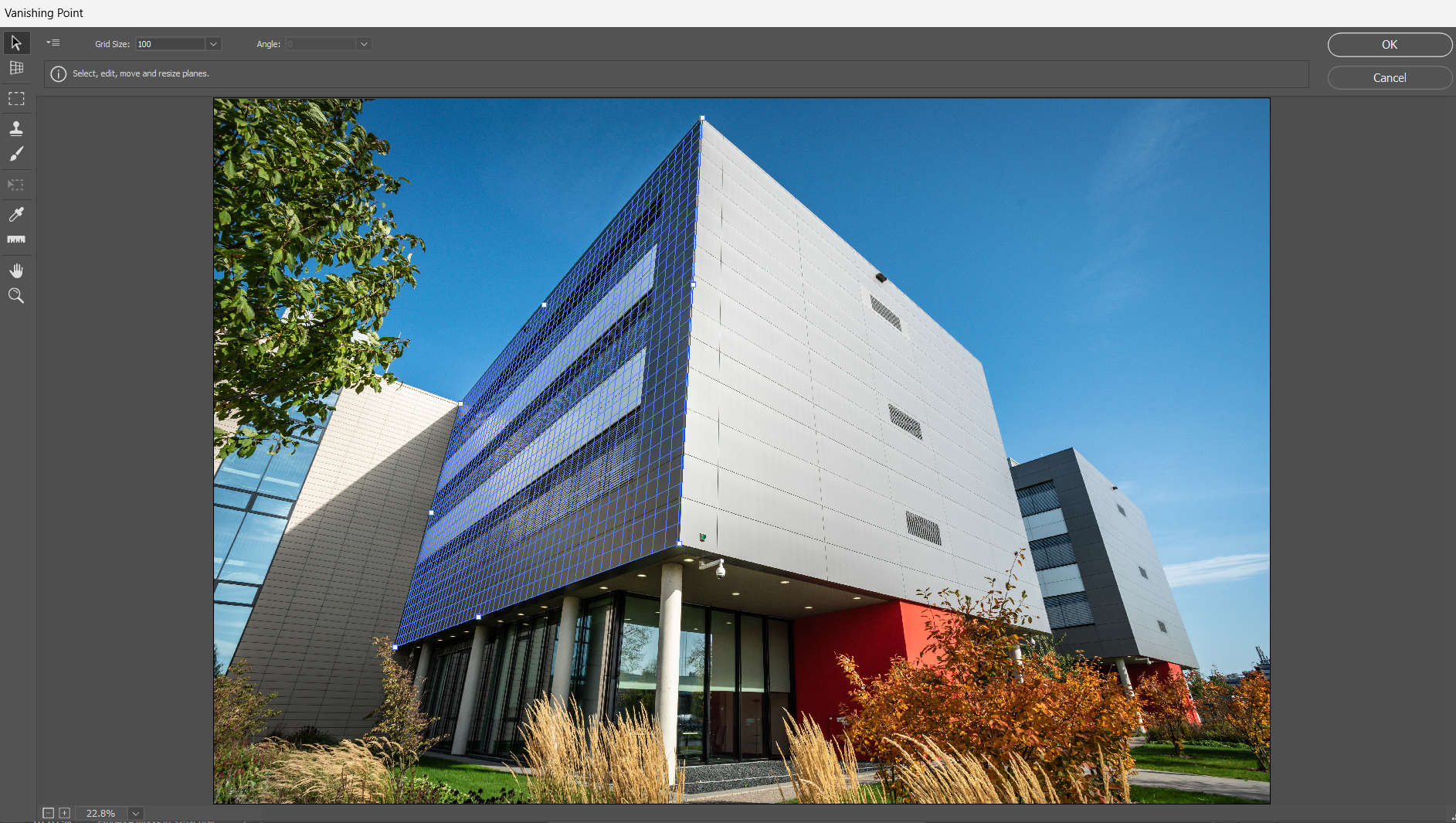

Vanishing point dialog box with tool options

Once you establish these planes, a grid overlay appears that follows the perspective you have defined. This grid serves as both a visual guide and a geometric constraint system. Any editing you perform within these planes automatically scales and orients to match the perspective, whether you are cloning textures, painting details, or moving selections.

When supported, Photoshop stores your perspective plane information with the document, allowing you to reopen Vanishing Point without redefining your perspective planes.

The Vanishing Point interface with tool options

The dialog box organizes tools along the left side, with options appearing dynamically based on your active tool. A large preview area at the center, displaying your image with defined planes and grids.

The toolset mirrors familiar Photoshop tools but operates within perspective constraints:

These tools share keyboard shortcuts with their Photoshop counterparts, making the interface immediately familiar if you know the main application.

Understanding perspective planes

Perspective planes define the geometric framework that makes Vanishing Point effective. Each plane represents a flat surface in 3D space (a wall, floor section, or building face) whose perspective you have captured by aligning four corner nodes with visible rectangular features in your photograph.

The grid overlay on each plane provides visual feedback about perspective accuracy. When the grid aligns cleanly with textures, tile patterns, or architectural details in your image, you have achieved proper perspective matching. Grid spacing is adjustable, which helps when you need to count elements or align edits with repeating patterns.

Bounding box and grid alerts in Vanishing Point

The bounding box around each plane uses color to communicate geometric validity:

• Blue indicates a valid plane with correct perspective geometry
• Red signals an invalid plane where corner positions create impossible perspective
• Yellow appears on planes with extreme perspective angles that may produce unexpected results

These color alerts help you refine plane positioning before investing time in edits that will not align properly.

Connected planes

You can tear off additional planes from any edge of an existing plane by Ctrl-drag (Windows) or Command-drag (macOS) an edge node. These connected planes automatically maintain proper geometric relationships.

Workspace navigation

Use the Zoom tool to magnify areas for precise plane placement and the Hand tool (or press the spacebar while another tool is active) to pan across the preview when working at higher magnifications.

Working with perspective-aware edits

Once planes are defined, selections made with the Marquee tool automatically conform to the plane's geometry. Moving these selections within a plane maintains their perspective orientation. Moving them between planes causes automatic perspective adjustment as they enter each new spatial context.

The Stamp and Brush tools scale dynamically as you work. Brush size and stroke appearance adjust based on the perspective depth of your paint location within the plane. This scaling prevents the obvious visual problems that occur when texture size remains constant across surfaces that recede into the distance.

Measurement and export capabilities

The Measure tool creates dimensional overlays within your perspective planes, useful for architectural documentation or planning composite element sizes. These measurements can be rendered as raster overlays in your main Photoshop document.

Vanishing Point also exports 3D information to DXF and 3DS formats, translating your defined planes and measurements into geometric data that CAD, modelling, and animation applications can import. The 3DS format includes rendered textures extracted from your image, providing both geometry and surface appearance to downstream applications.

Integration with standard Photoshop workflows

Vanishing Point preserves your original image and gives you opacity and blending control over the perspective-corrected edits.

Standard Photoshop selections and masks active before you open Vanishing Point constrain where edits can occur, providing another level of control over the modification scope. Content you copy to the clipboard in Photoshop becomes available for pasting into Vanishing Point.

The Vanishing Point keyboard shortcuts reference provides a complete list of interface commands and tool modifiers.
